Description of the BLITZ H7 Pro control unit
The BLITZ H7 Pro controller is a powerful solution for drone enthusiasts and professionals. It has double-sided shielding that protects the control unit from interference and dirt, which ensures smooth and reliable operation even in demanding conditions. The removable shield allows for easy replacement of the TF card. With a powerful STM32H743 MCU processor, it supports input voltage up to 12S and is fully compatible with ArduPilot firmware, giving users endless customization options. With improved build quality and user-friendly features, the BLITZ H7 Pro is designed for superior performance in demanding flight scenarios.
Key features:
- 35x35mm mounting holes: Provide more space to optimize PCB wiring.
- GH1.25 connector: Improves connection reliability and facilitates assembly.
- SD card for logging: Enables extensive recording of flight data for analysis.
- Double-sided shielding: Protects against interference and dirt that could cause malfunctions.
- Removable Soldering Plate: Allows easy connection of additional peripherals for advanced users.
- High voltage DC-DC converter: Supports up to 100V, which ensures stable voltage for the controller and video transmission.
- Firmware Support: Compatible with Betaflight and Ardupilot firmware.
Specifications:
- MCU: STM32H743
- Gyro: ICM42688
- Barometer: DPS310
- OSD: AT7456E
- Input Voltage: 14.8V-50.4V (4S-12S LIPO)
- Black box: SD card
- UART ports: 7
- VTX protocol: Smartaudio / IRC Tramp
- Mounting pattern: 35x35mm, φ4
- Dimensions: 42x42x11.3mm
- Weight: 20g
- BEC: 5V 3A, 12V 2.5A
- Betaflight target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
- Ardupilot target: BlitzH743Pro
Recommended connection:
- UART1: VTX HD/Analog
- UART2: Receiver
- UART4: GPS
- UART5: ESC telemetry
- 8x Dshot/PWM outputs
- 2x I2C: GPS Mag
Description of BLITZ E80 ESC
BLITZ E80 BLHeli Dshot600 Single ESC is designed to ensure smooth performance and exceptional durability. Equipped with 32-bit G071 48MHz processor and 11 TDK MLCC capacitors (total 420UF), it ensures faster reaction time and smooth flight experience. This ESC is designed to handle heavy loads with an 8-layer PCB with 4OZ copper thickness and a 80A maximum output, making it an ideal choice for high-performance drones.
Key features of ESC:
- Input voltage 2-8S (maximum 8S)
- 80A output with 8-layer PCB with 4OZ copper thickness for better durability.
- 11 TDK MLCC capacitors (total 420UF) for lower ripple and stable operation.
- High-quality NTMFS5C430NL MOSFETs for reliability.
- 3528 LED for power on display.
- Rational layout with large soldering points and well-designed holes for better conductivity.
ESC specification:
- Input Voltage: 2-8S (maximum 8S)
- 80A 8-layer PCB with 4OZ copper thickness
- Capacitors: 11 pcs TDK MLCC, total 420UF
- MOSFET: NTMFS5C430NL
- LED indicator: 1x 3528 LED to display power on
ESC function:
- Current sensor: Yes
- Telemetry Output: Yes
- Engine Timing: Yes
- Parking brake: Yes
Packaging:

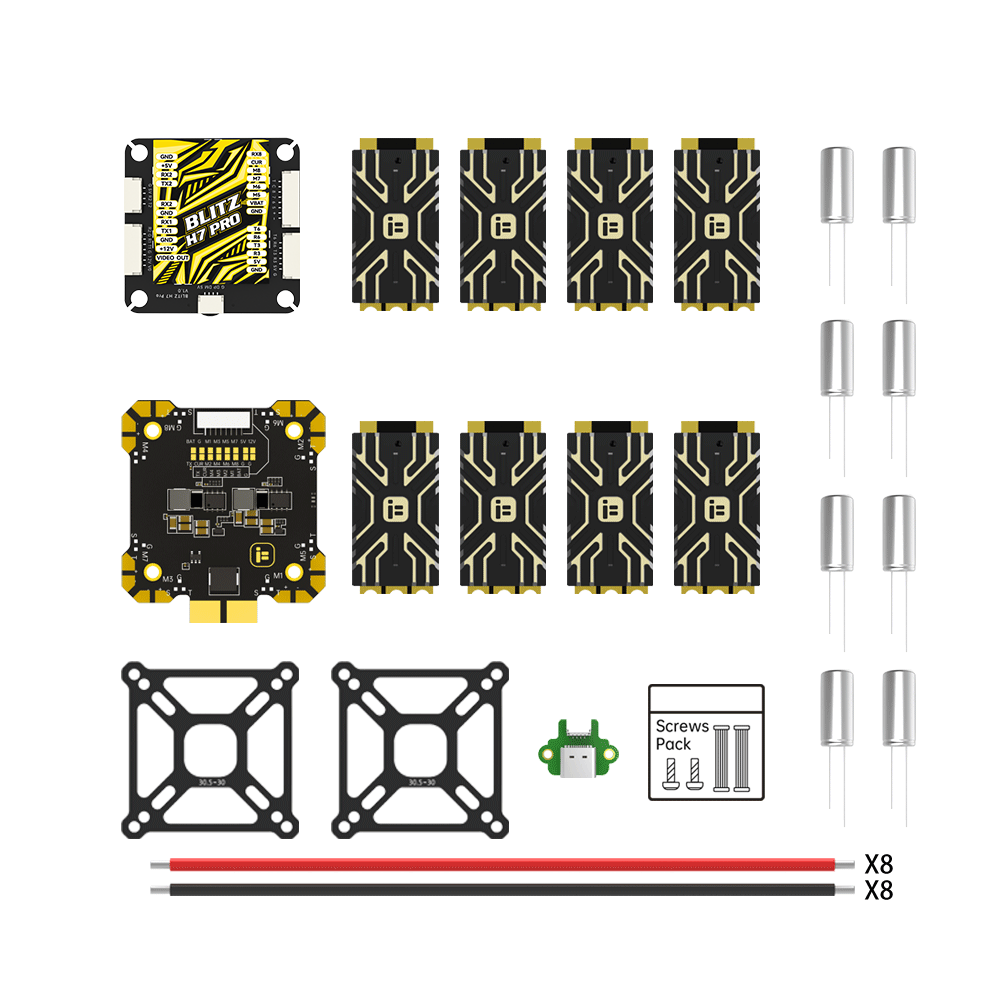

Combo 1:
- 1x BLITZ H7 Pro Flight Controller
- 8x BLITZ E80 Single ESC with CNC aluminum cover
- 8x 50V 1000UF capacitor
- 8x Power cables & ESC signal wires
- 2x BLITZ For PDB
- 1x Pack of screws
- 1x USB adapter
