STACK GEPRC TAKER F405 BLS 50A

Name: STACK GEPRC TAKER F405 BLS 50A
Brand: Baltic Drones
SKU: GP105996
Price: 69.55 EUR
Availability: OutOfStock

STACK GEPRC TAKER F405 BLS 50A

Brand: GEPRC

€69,55

~~€68,29~~ €69,55

--2% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

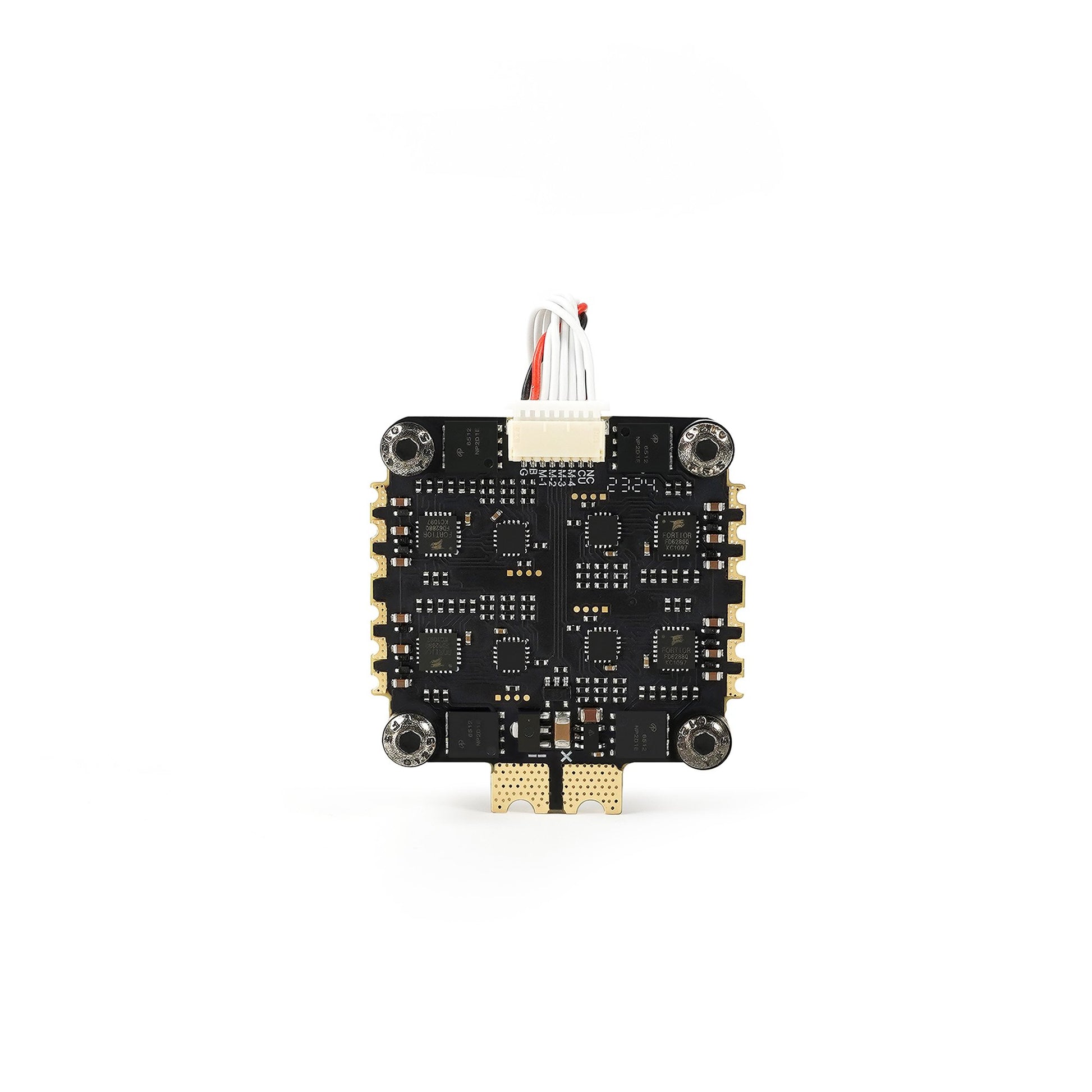

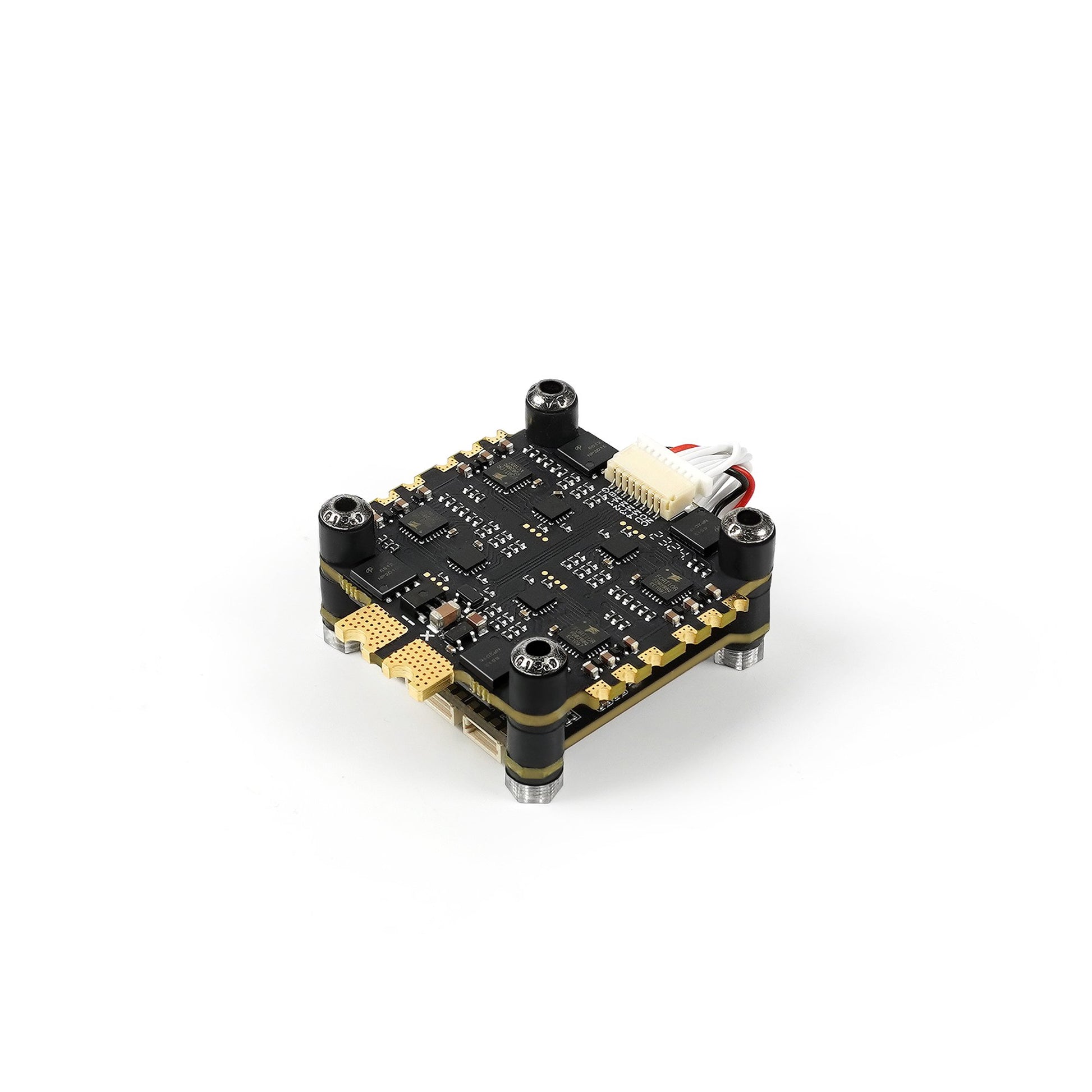

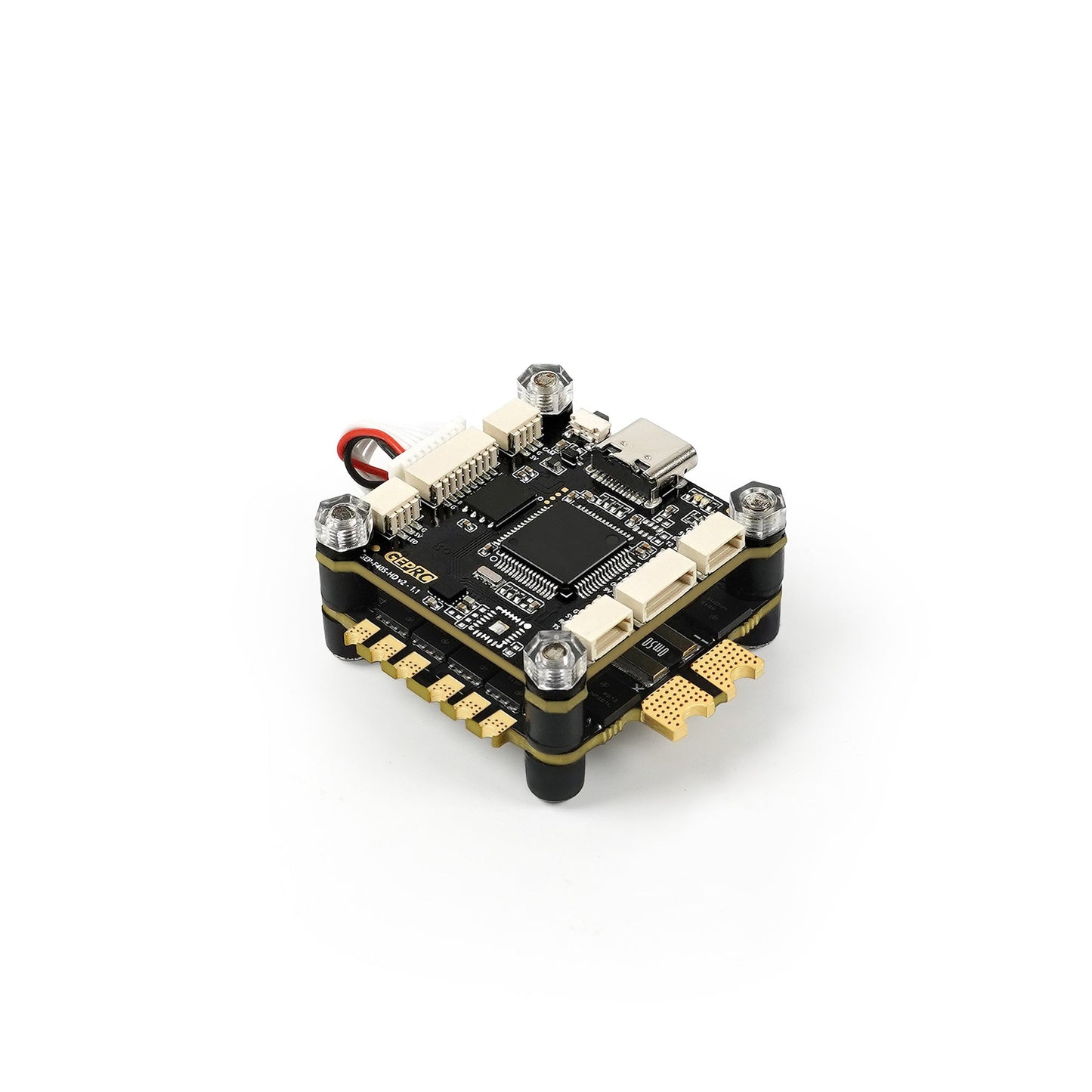

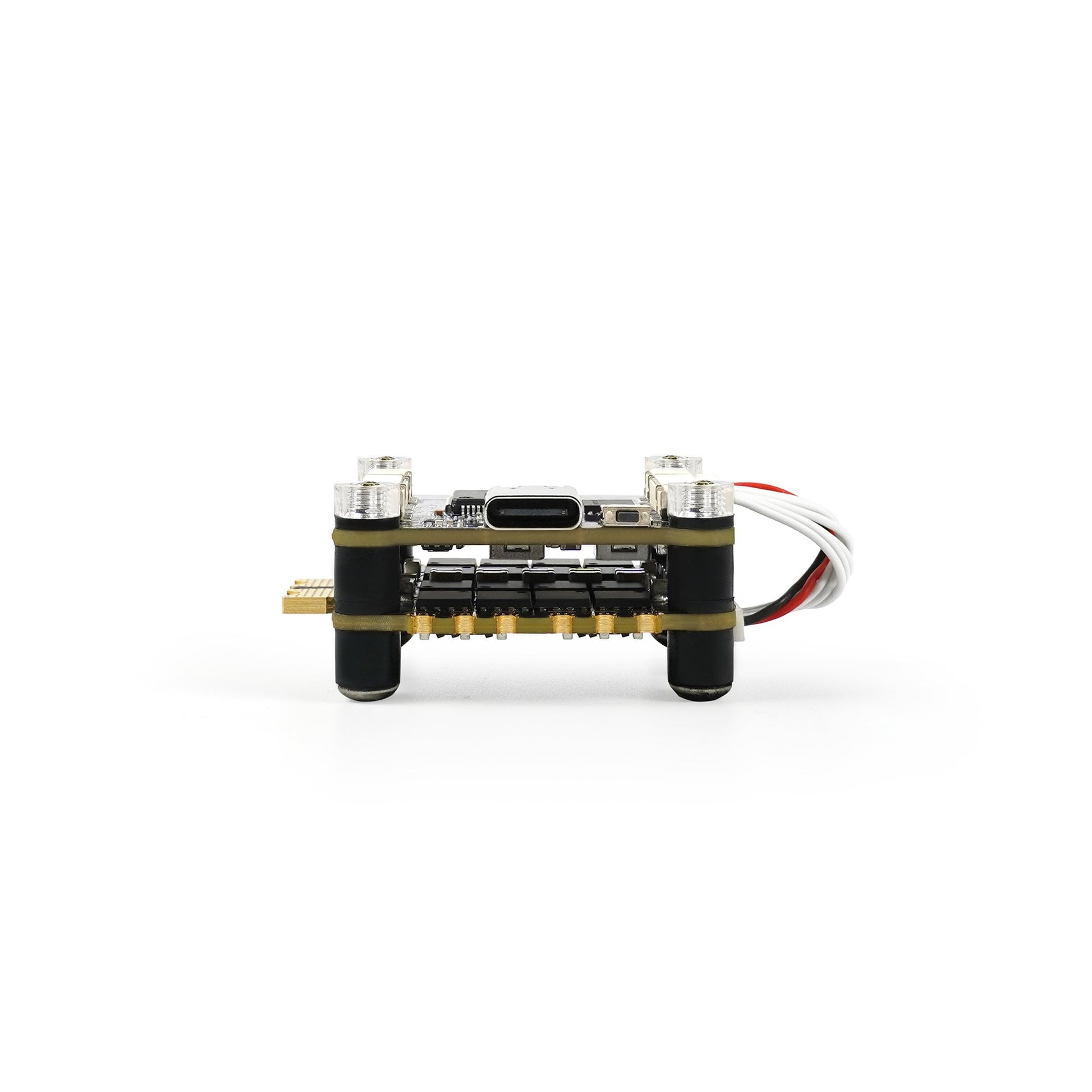

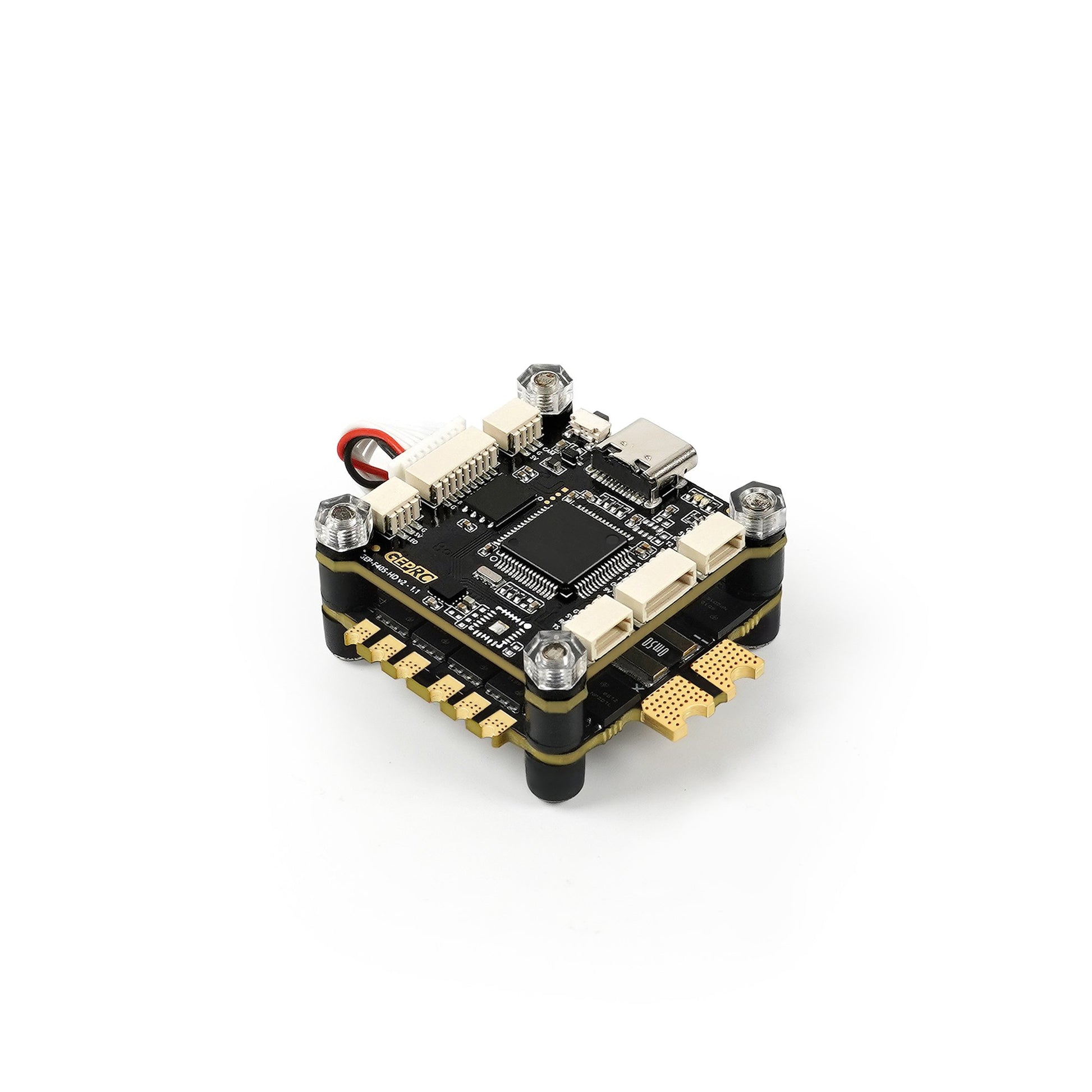

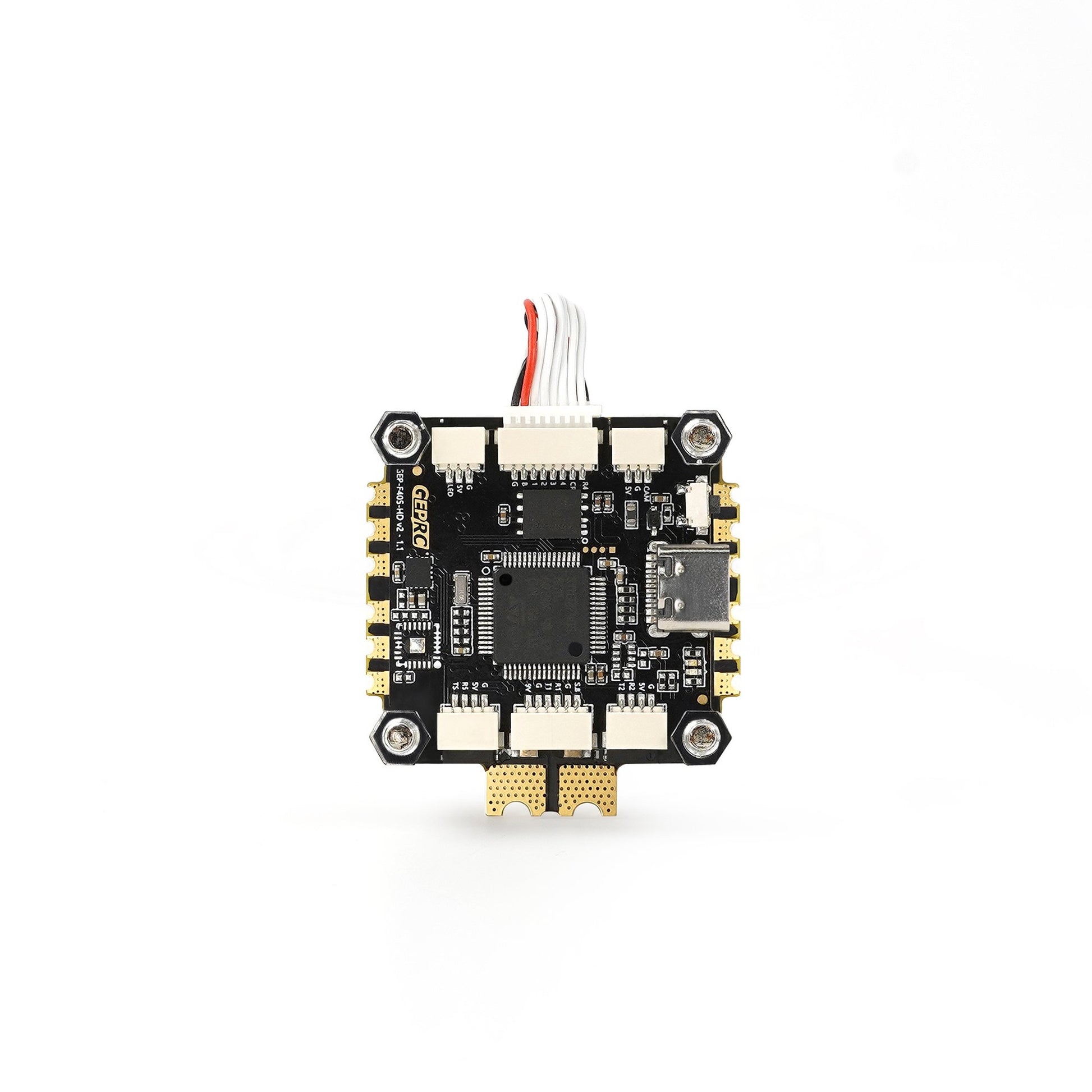

TAKER F405 BLS 50A STACK

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI air unit.

Function:
1. It uses mainstream STM32F405 chip.
2. Equipped with the latest ICM42688-P gyroscope for better stability.
3. Contains 16M black box storage for flight data recording.
4. Integrated LC filter for clean performance.
5. Upgraded with USB Type-C interface for durability and reliability.
6. Can be directly plugged into the DJI air unit, eliminating the need for soldering.
7. Includes GEP-BLS50A-4IN1 ESC for smooth flying.
8. It uses a simple and effective installation method with shock absorbers for stable operation of the gyro.
9. Offers dual independent BEC with 9V 2.5A and 5V 3A for reliable power supply to external devices.
10. Specifications for GEP-F405-HD v2 flight controller:

MCU: STM32F405
IMU: ICM42688-P (SPI)
Air Unit Connection: Direct connection to DJI air unit
Black Box: 16M onboard storage
USB connector: Type-C
OSD: BetaFlight OSD with AT7456E chip
BEC: 5V, 9V dual BEC
Firmware Target: GEPRCF405
Size: 36.8×36.8mm, hole 30.5×30.5mm, hole diameter 4mm will change to 3mm after using silicone shock absorbing ring.
Input voltage: 3-6S LiPo
UART: 6
Power filter: Integrated LC filter
Weight: 7.7g
Specifications for GEP-BLS50A-4IN1 ESC:

Input voltage: 3-6S LiPo
Galvanometer: Supported
Continuous current: 50A
Explosive current: 55A (5s)
Supported protocols: Oneshot125/Oneshot42/Multishot modes/Dshot 150/300/600
Size: 42.9 x 39.7mm, hole 30.5 x 30.5mm, hole diameter 4mm will change to 3mm after using silicone shock absorbing ring.
Weight: 13.7g
Target: G_H_30
