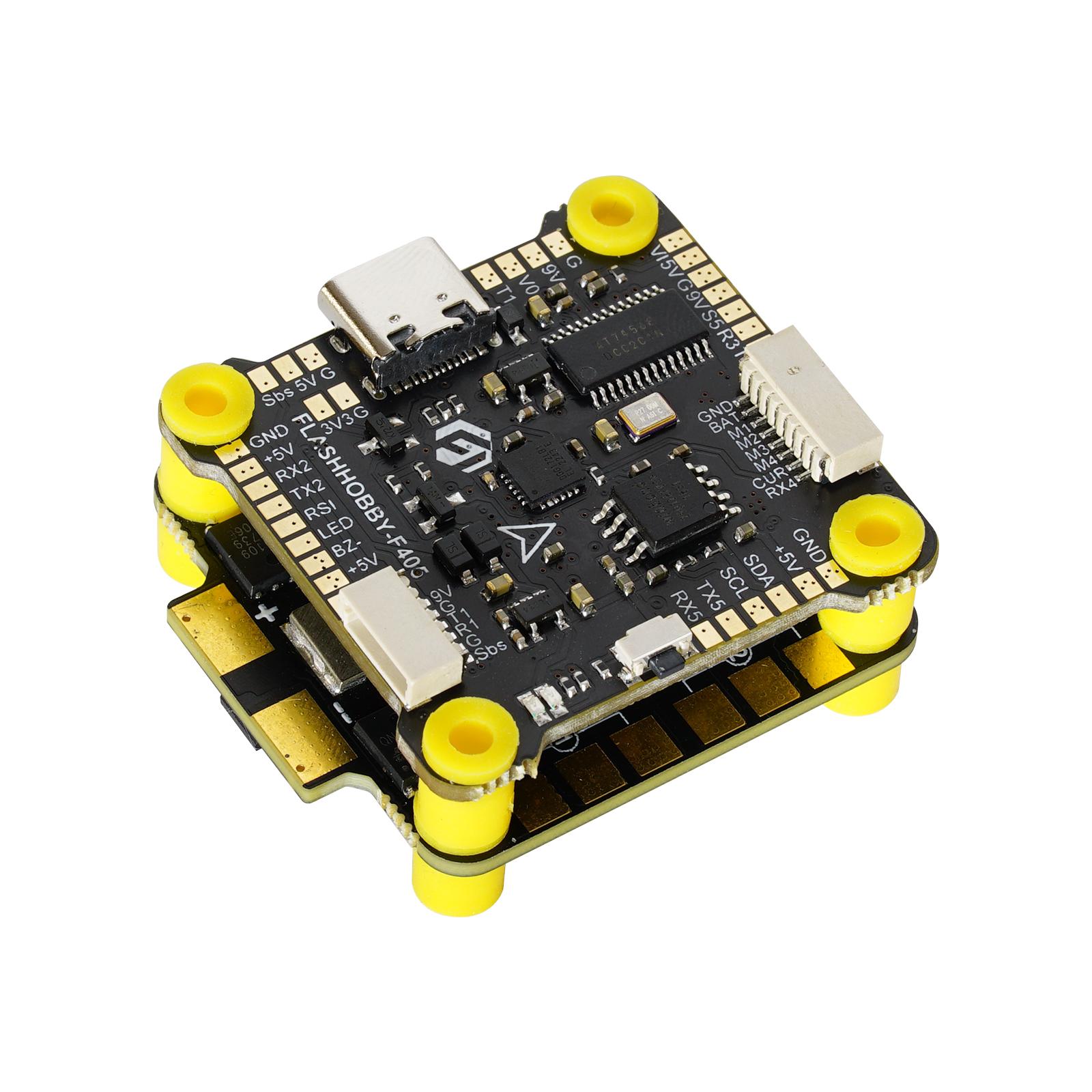

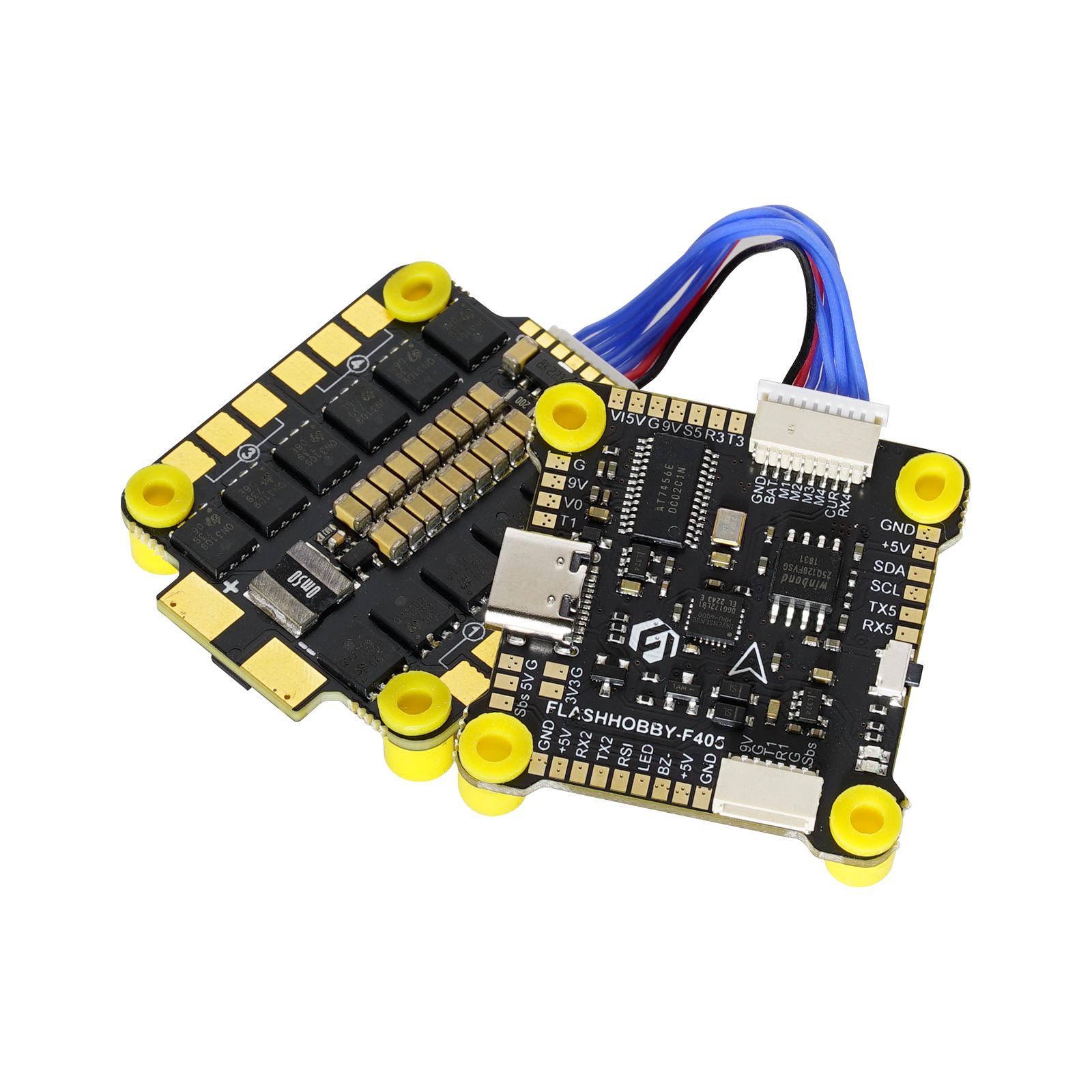

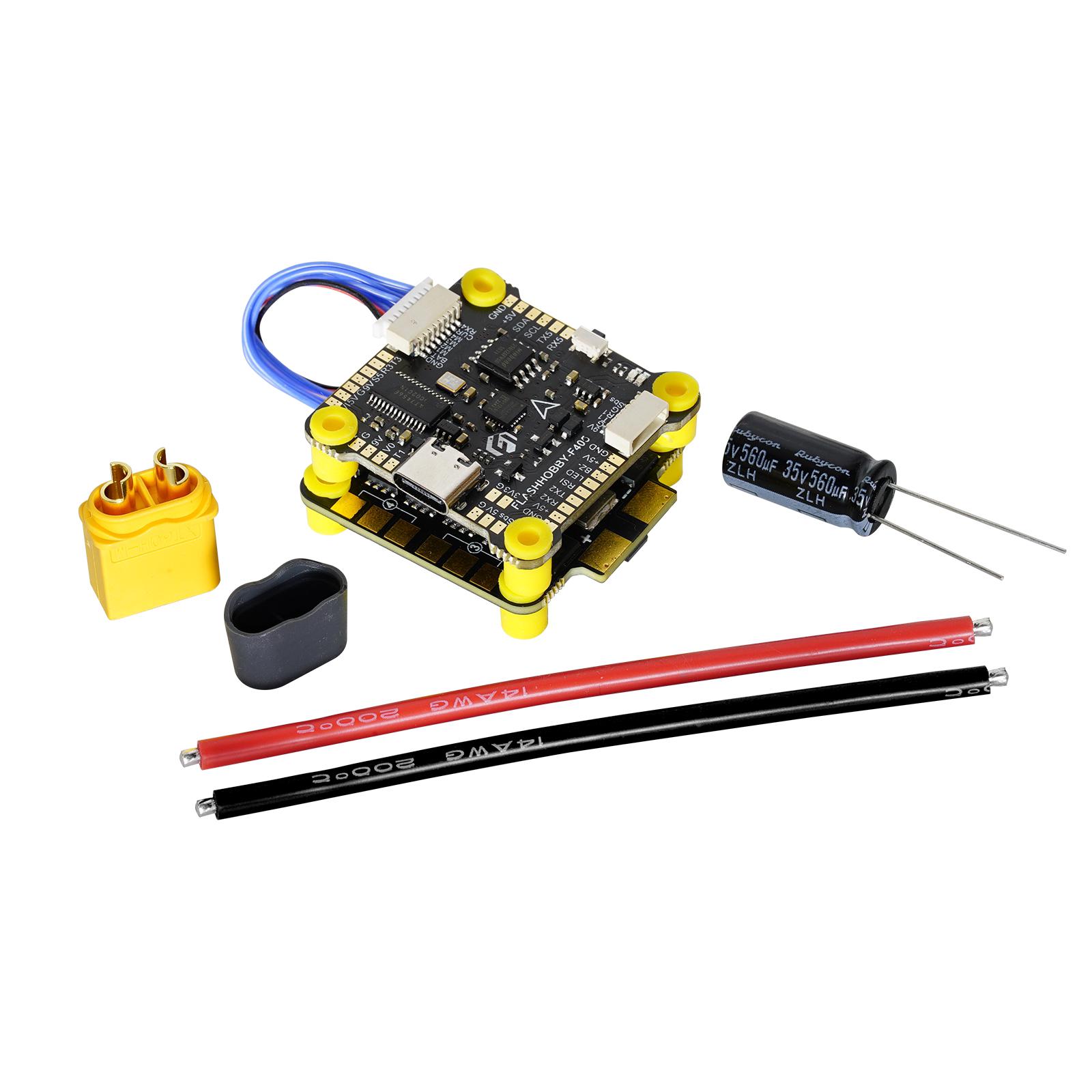

Stack FlashHobby F4 FC + F55A ESC
Stack FlashHobby F4 FC + F55A ESC
Brand: FlashHobby
Regular price
€57,99
Regular price
€57,99
Sale price
€57,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

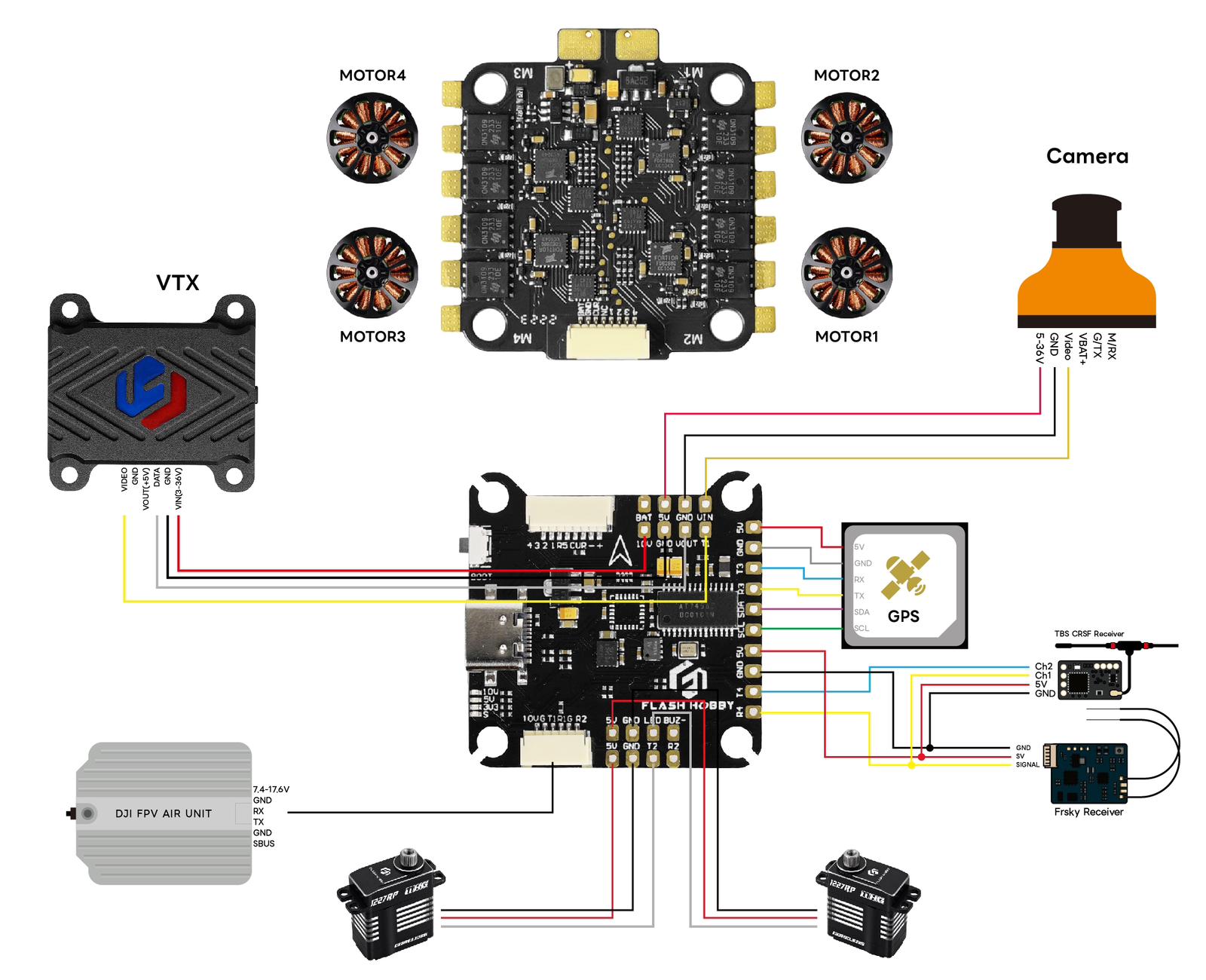

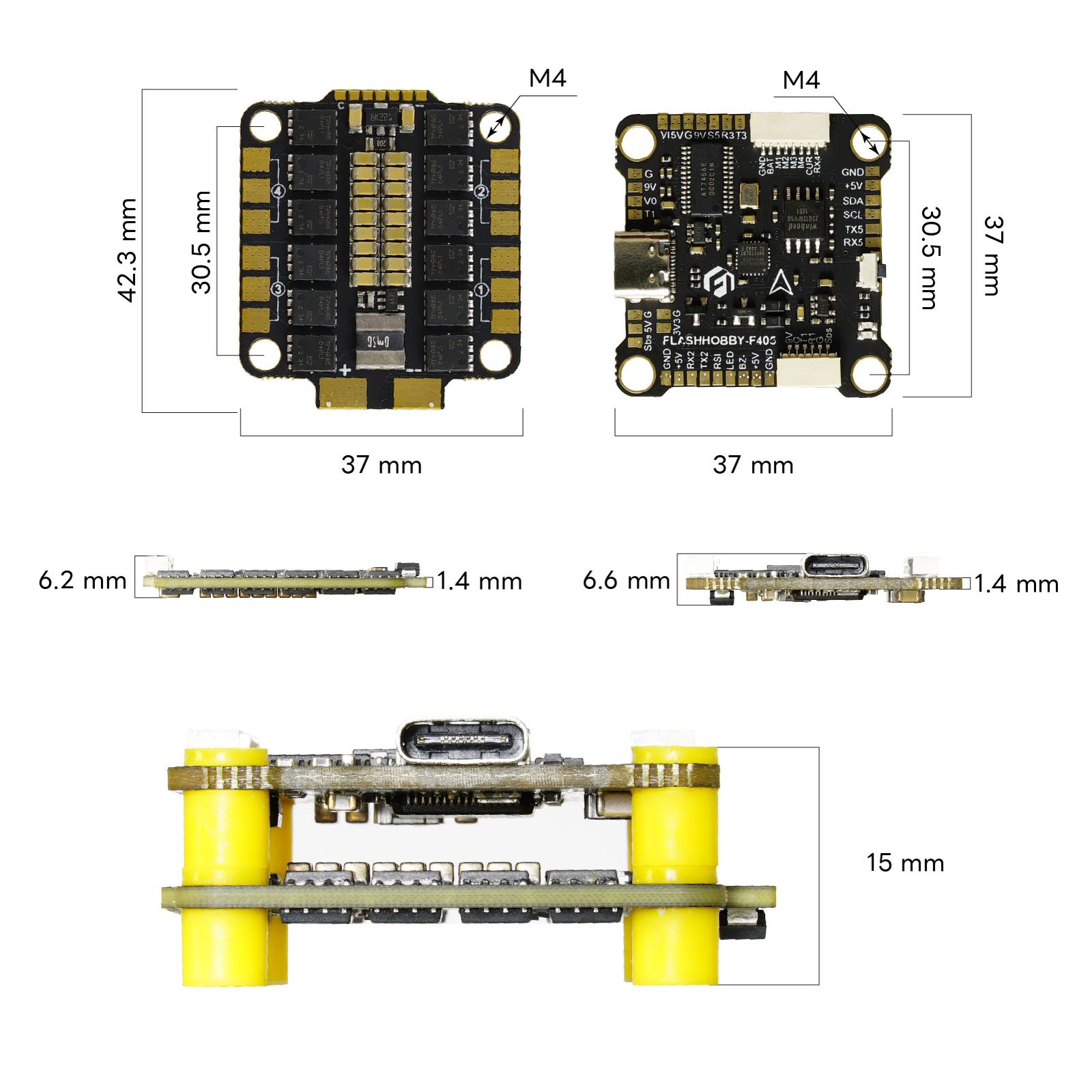

FlashHobby F4 FC + F55A ESC Specifications: Product name: FLASH HOBBY F405 30.5x30.5 Flight Controller MCU: STM32F405 IMU (Gyro): ICM42688 USB port type: Type-C Barometer: BMP280 OSD chip: BetaFlight OSD with AT7456E chip DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering. DJI 6-pin connector: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable. Black box: 16M Black Box Current sensor input: Supported. For 50A ESC, set Scale = 180 and Offset = 0. Power input: 3S - 6S Lipo (via ESC 8-PIN connector) 5V BEC output: 5 grouse 5V output, total current load is 3A 9V output: 3 groups 9V output, the total current load is 2.5A 3.3V output: 1 group 3.3V output, the maximum current is 300mA ESC signal: M1 - M4 UART: 6 sets (UART2 UART5, UART3), UART6 (Dedicated for SBUS), UART4 (Reserved for ESC telemetry), UART1 (Reserved for VTX data setting) Sbs: Debug on UART6 channel ESC telemetry: UART R4 (UART4) I2C: Supported. SDA & SCL pads on the front. Used for magnetometer. LED Pad: Supported. LED, 5V and GND pads on the bottom of the front. Used for WS2812 LED controlled by Betaflight firmware. Buzzer: supported, 5V, BZ pads for 5V buzzer BOOT Button: Supported. [AND]. Press and hold the BOOT button and power on the FC at the same time, this will put the FC into DFU mode, this is for flashing the firmware when the FC freezes. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom. By default, short press the BOOT button to toggle the LED display mode. Long press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. In BF-LED mode, all LED1-LED4 strips will be controlled by Betaflight firmware. Supported flight controller firmware: BetaFlight (default), Target firmware name: STM32F405 Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimension: 37 (L) x 37 (W) x 6.6 (H) mm Weight: 7.5g Product name: FLASH HOBBY BLS 60A 30.5x30.5 4in1 ESC Firmware: BLS 16.7 PC Configurator download link: https://esc-configurator.com/ Continuous current: 60A * 4 Explosive current: 65A (5 seconds) TVS protection diode: Yes External capacitor: 35V560uF Low ESR capacitor (included) ESC protocol: DSHOT300/600 Power: 3-6S LiPo Output power: VBAT Current Sensor: Support (Scale=180 Offset=0) ESC telemetry: Not supported Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimensions: 42.3 (D) * 37 (W) * 6.2 mm (H) Weight: 12g The package includes: 1x FlashHobby F4 FC + F55A ESC
