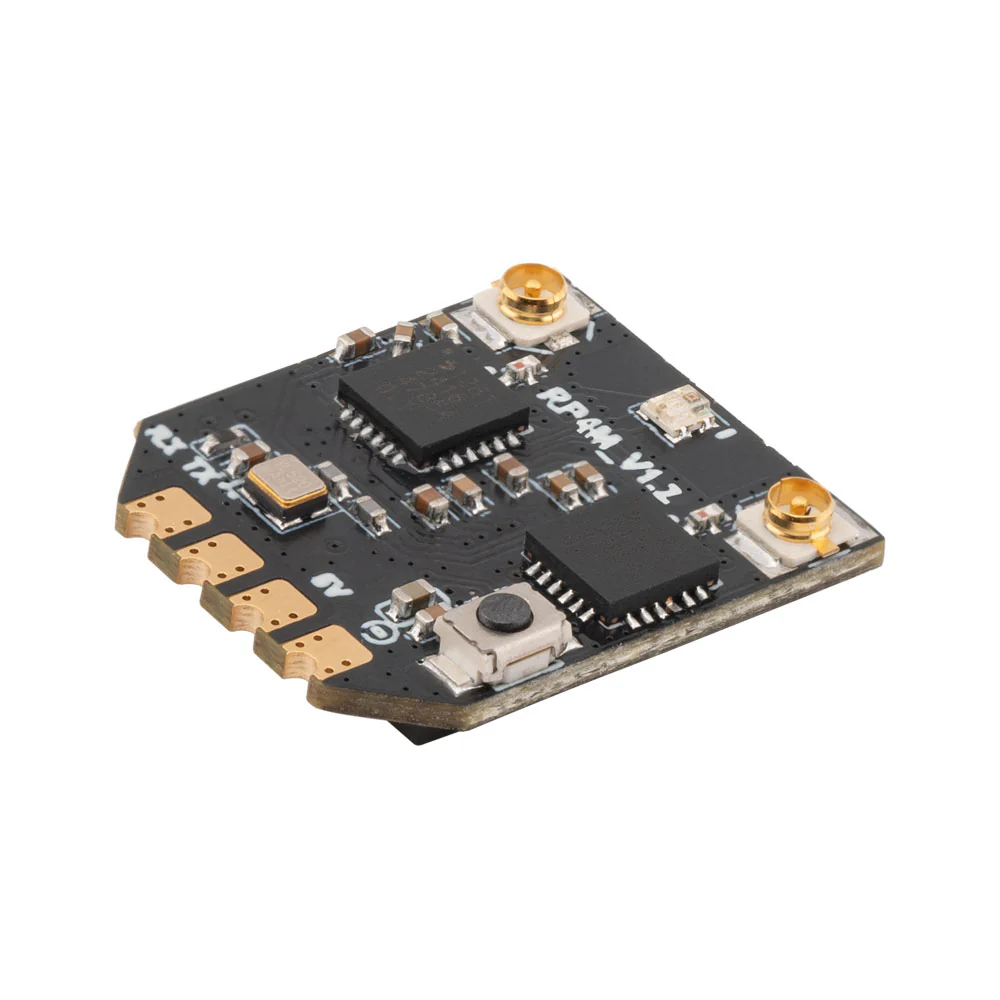

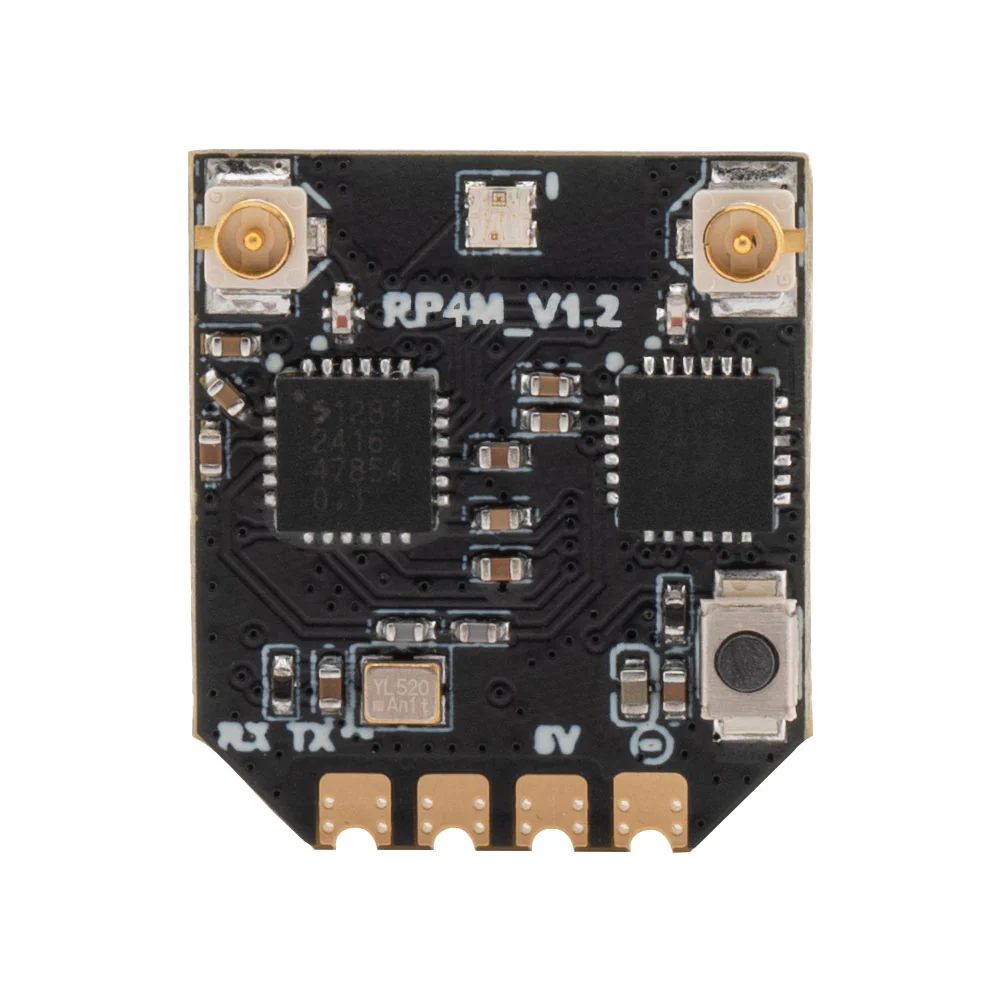

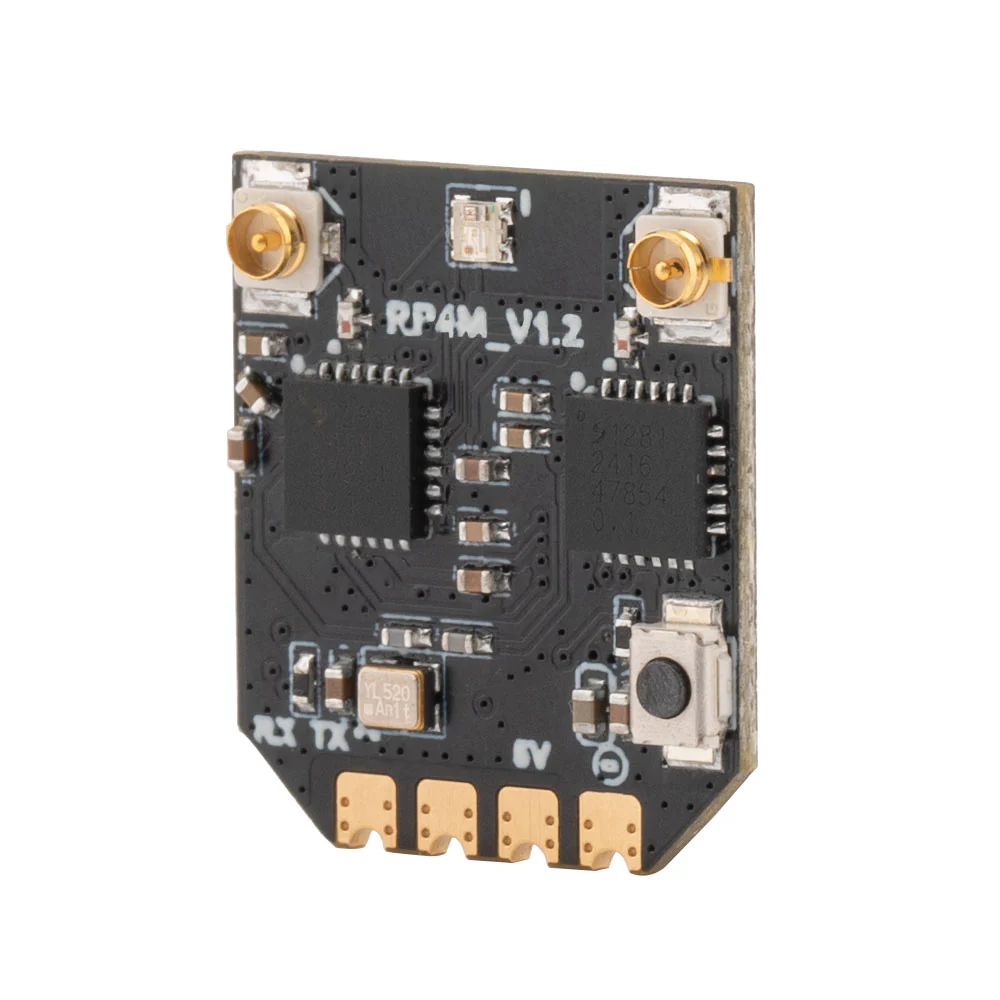

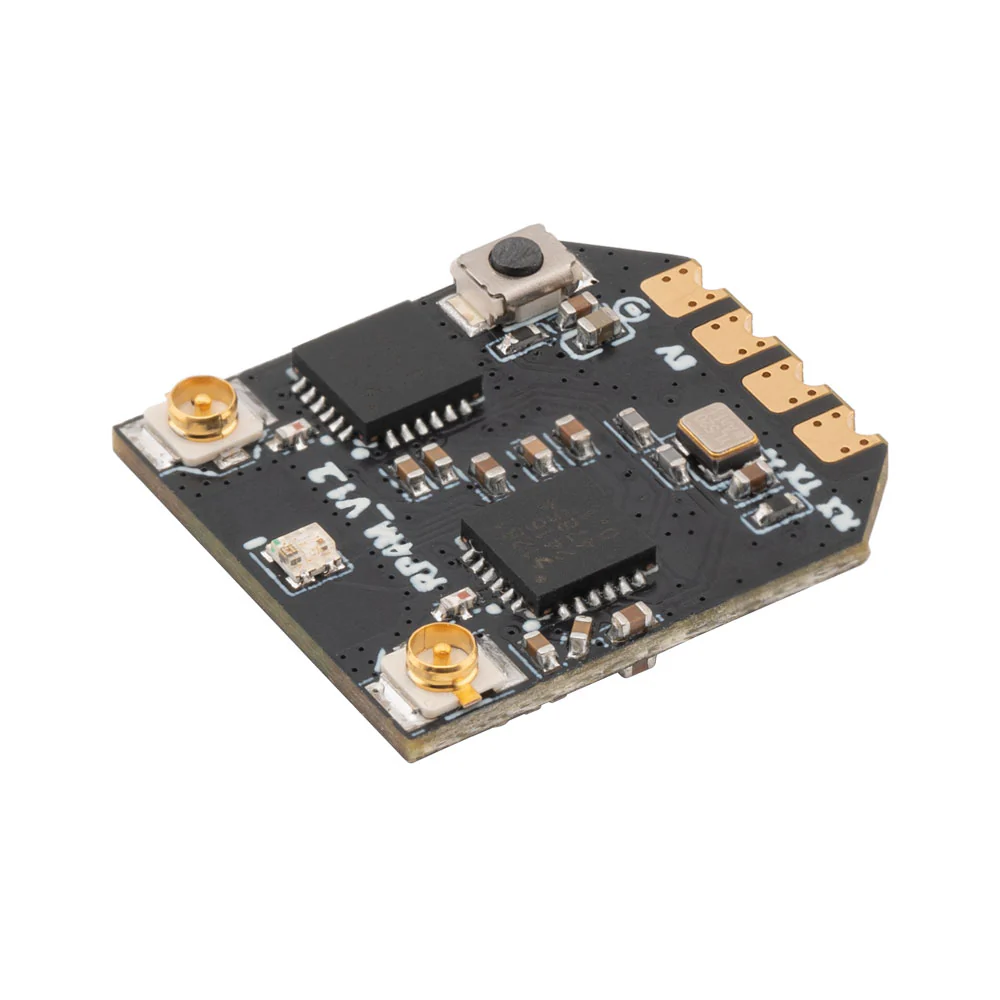

RadioMaster RP4TD-M ExpressLRS 2.4G Race receiver
Weighing only 1 gram, the compact and lightweight RP4TD-M is ideal for designs where minimizing weight is key while utilizing "Gemini" technology for superior interference suppression. Thanks to an optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios that provide exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you are into racing drones or any other application where every gram counts, the RP4TD-M is the leader in its class.
Features:
- Miniature Gemini Right Diversity Receiver
- Best-in-class SNR and RSSI performance
- Built-in TCXO (Temperature Compensated Crystal Oscillator)
- Optimized PCB design for better heat dissipation
- Improved antenna with greater resistance and performance
- 2 x 10mW RF telemetry power
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built-in 2.4GHz ExpressLRS
Specifications:
- Item: RP4TD-M ExpressLRS 2.4GHz Mini Right Diversity Receiver
- Type: ISM

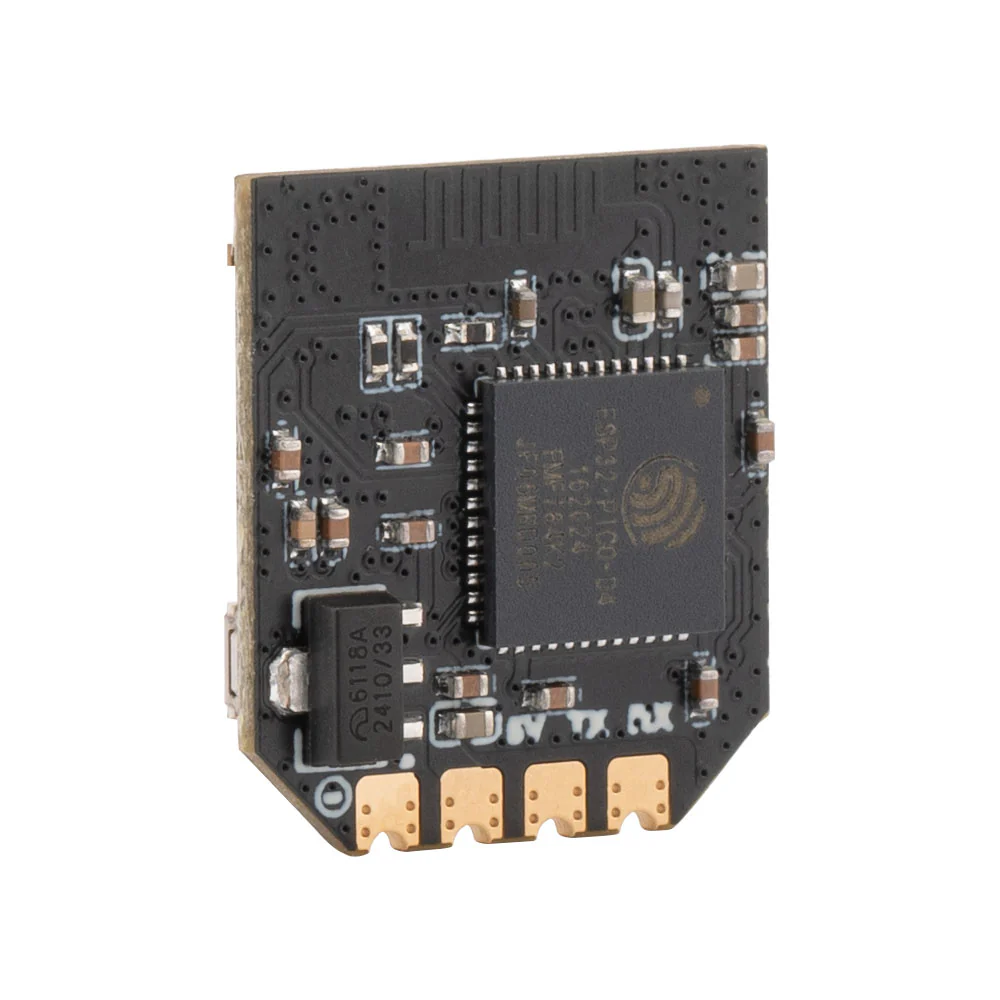

- MCU: ESP32
- RF chip: SX1281 x 2

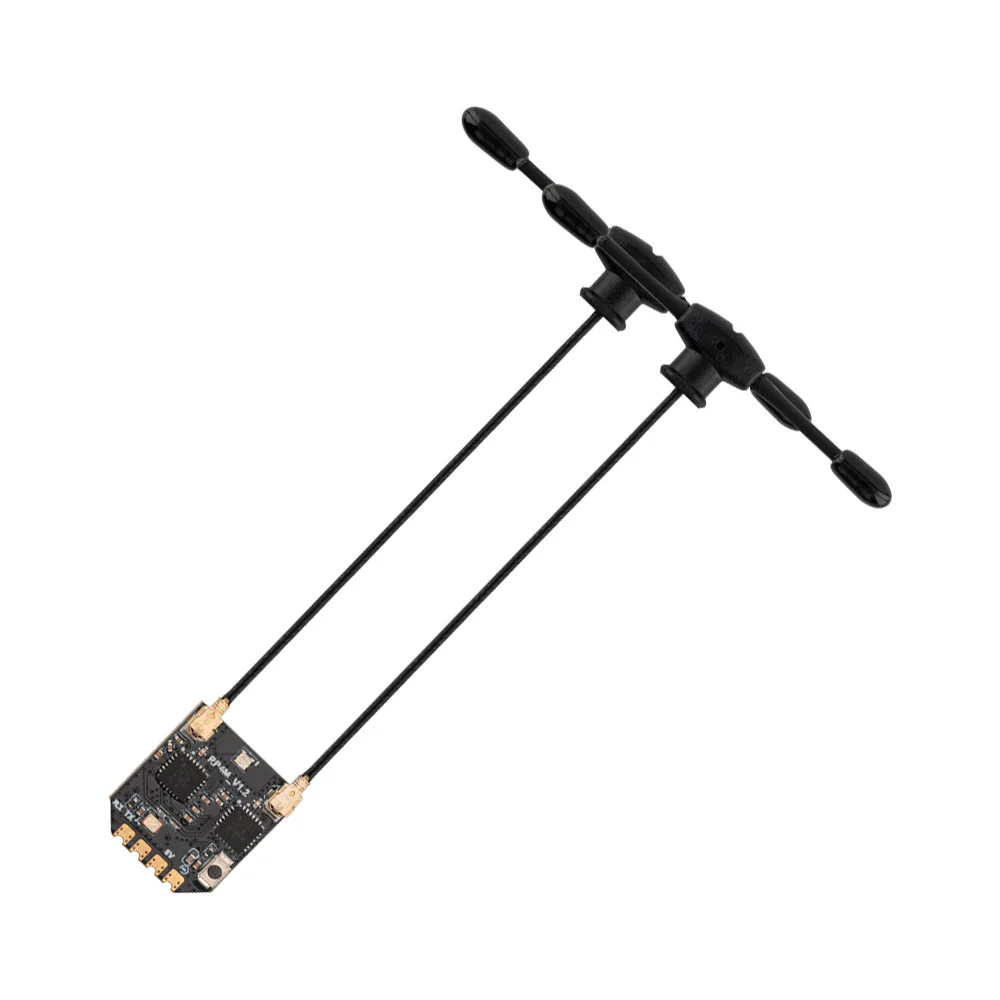

- Antenna: 65mm 2.4GHz T antenna x 2
- Frequency range: 2.4GHz
- Maximum refresh rate: 500Hz / F1000Hz
- RF telemetry power: Max 2x 10mW
- Working voltage: DC 5.0V
- Update via WiFi: Yes

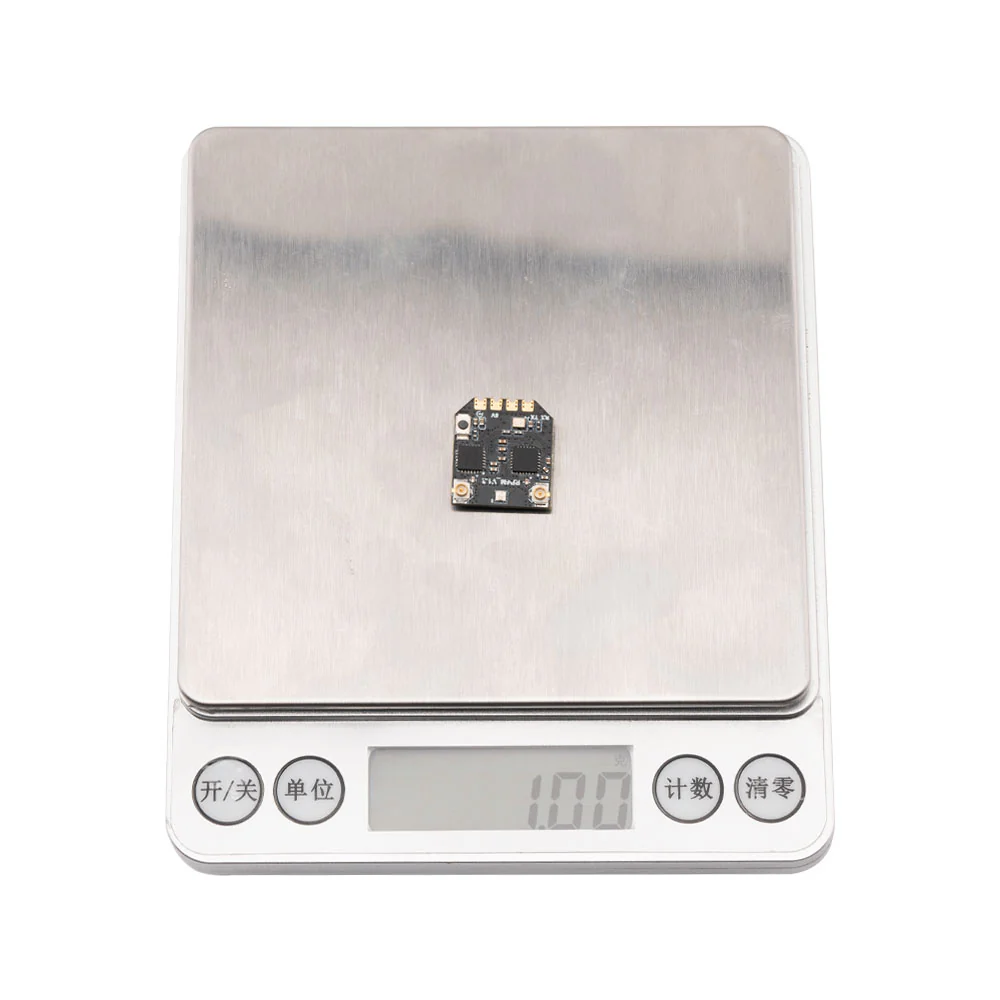

- Weight: 1.00g [without antennas] / 3.30g [with antennas]
- Dimensions: 18.10 x 16.0mm
- Firmware version: ExpressLRS V3.4.3 pre-installed
- FW target: RadioMaster RP4TD-M 2400 RX
- Bus interface: CRSF

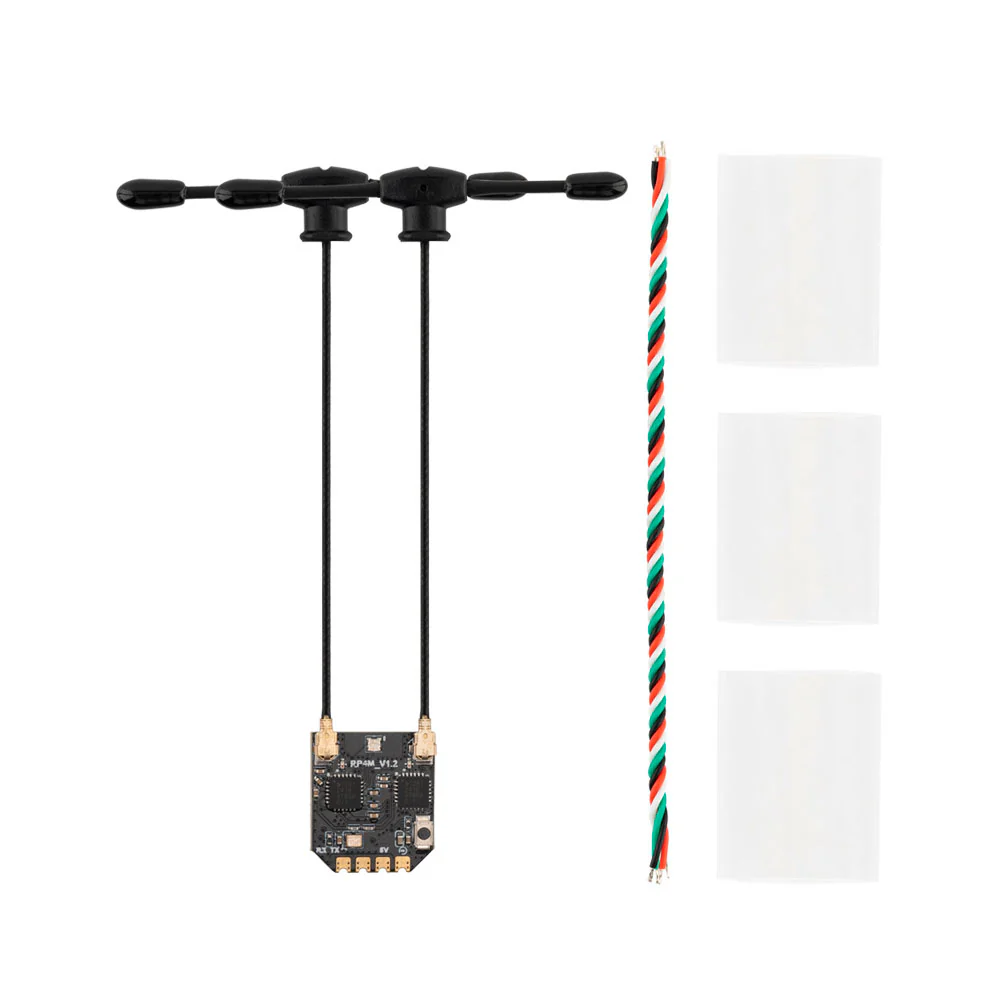

The package contains:
- 1x RP4TD-M ExpressLRS right diversity receiver 2.4GHz
- 1x CRSF cable
- 3x heat shrink tubes
- 2x 65mm 2.4GHz T antenna (installed on the receiver)
- 1x user manual
