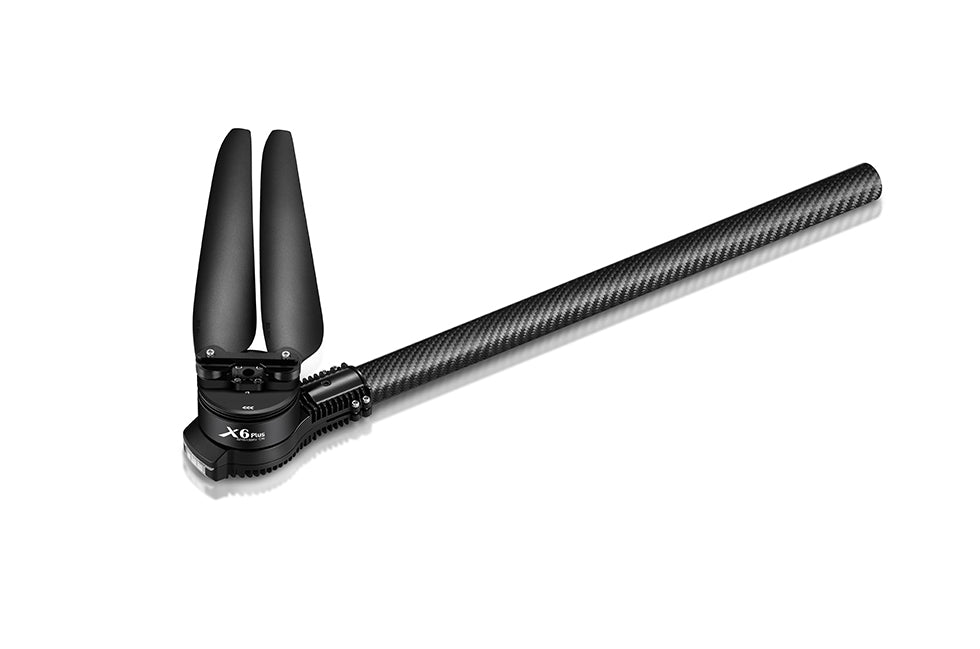

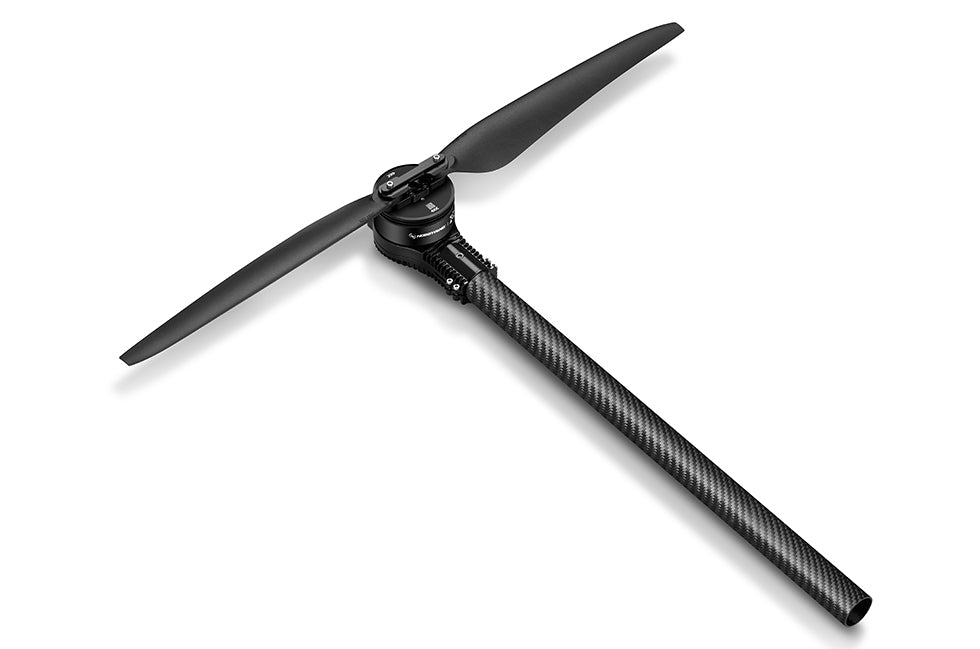

Hobbywing CM-X6 Plus-6218-150KV-D30-CW
The COMBO-XRotor-X6-PLUS alternating drive system is designed for plant protection applications and supports a single rotor load of 3.5-5.5 kg. The system provides a maximum thrust of 11.8kg per rotor and is designed for 30mm carbon tube arms. It offers IPX6 waterproofing, resistance to rain, pesticides, salt spray, sand and high temperatures. The ESC uses FOC vector control and PMSM optimization and is equipped with both digital and analog throttles to increase flight stability. Other features include built-in error storage and real-time data transfer via CAN communication.
Safety measures:
- Avoid crowds, high voltage cables and obstacles during operation. Follow all safety regulations.
- Do not approach a rapidly rotating propeller or engine to avoid injury.
- Check all components before use; replace damaged parts with authorized spare parts.
- Before flying, make sure all connections are secure and the engine is mounted in a horizontal position.
- Compatible with 30mm diameter circular tubular arms.
- Optional power system navigation light with adjustable color via switch.
- Engines can be washed after years, but must be kept clean and dry.
- A CAN channel is required for serial communication; digital throttle is not supported in this mode.
Specifications:
- Recommended take-off weight: 3.5-5.5 kg per rotor (at sea level, 46 V).
- Battery compatibility: 12-14S LiPo (max. 61V)
- Diameter of the arm of the drive unit: 30 mm
- Degree of protection: IPX6
- Maximum torque: 11.8 kg
- Operating temperature: -20°C to 50°C
- Total weight (including propeller): 790 g
- Throttle frequency support: 50-500 Hz
ESC:
- Continuous current: 25 A
- Maximum current: 80 A
- Gas pulse width: 1050-1950 μs
Engine:
- Stator size: 6218
- Rated power KV: 150
- Dimensions: 69.4 x 40.3 mm
Propeller:
- Average & pitch: 24 x 8.0 inches
- Weight (including adapter): 107 g
- Weight (with one propeller): 33 g
The package contains:
1x engine
1x ESC
1x propeller
1x motor mount
1x set of fixing screws
