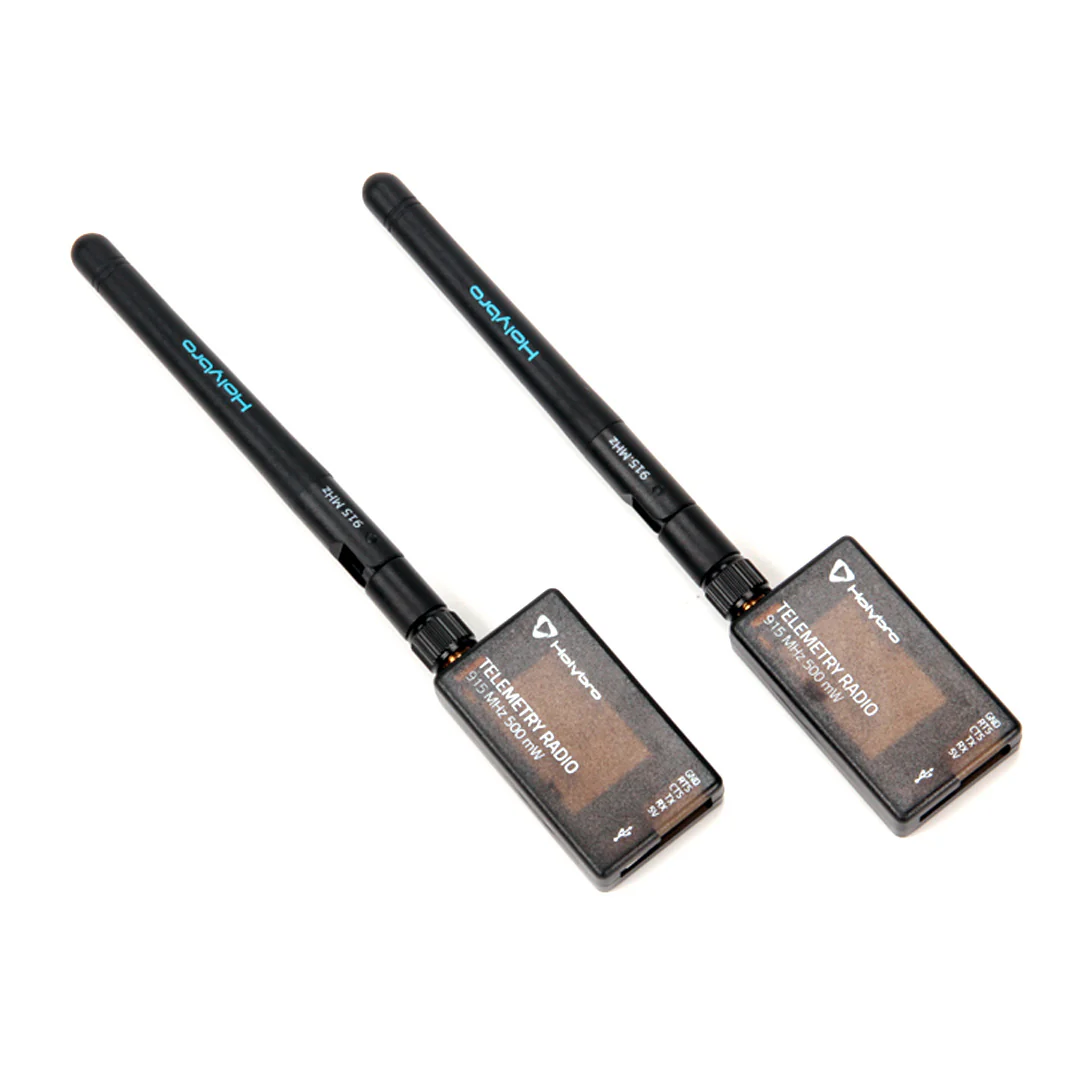

Holybro SiK Telemetry Radio V3 - 500mW 915MHz
This Holybro SiK Telemetry Radio is a small, lightweight and affordable open-source radio platform that typically allows a range of better than 300m "out of the box" (the range can be extended to several kilometers by using a patch antenna on the ground). This radio is plug-and-play with all standard Pixhawk and other flight controllers, providing the easiest way to set up a telemetry connection between your autopilot and ground station. It uses open-source firmware, which was specially designed for good cooperation with MAVLink packets and integration with Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot. Radios can be either 915 MHz or 433 MHz and you should purchase the model that is appropriate for your country/region.
Specifications
- Maximum transmission power: 100 mW (adjustable) -117 dBm receiver sensitivity
- RP-SMA connector
- Two-channel full-duplex communication via adaptive TDM UART interface
- Transparent Serial Connection
- MAVLink protocol framing
- Frequency Hopping (FHSS)
- Configurable duty cycle
- Error correction corrects up to 25% of bit errors
- Open-source SiK firmware
- Configurable via Mission Planner and APM Planner
- FT230X/FT231 is a USB to BASIC UART IC
Dimensions
- 28 x 53 x 10.7 mm (without antenna)
Electrical data
- Power supply voltage: 5V DC (from USB or JST-GH)
- Transmit current: 100 mA at 20 dBm
- Current during reception: 25 mA
- Serial interface: 3.3V UART
FCC IDENTIFIER
2AP22-HT03-V3
