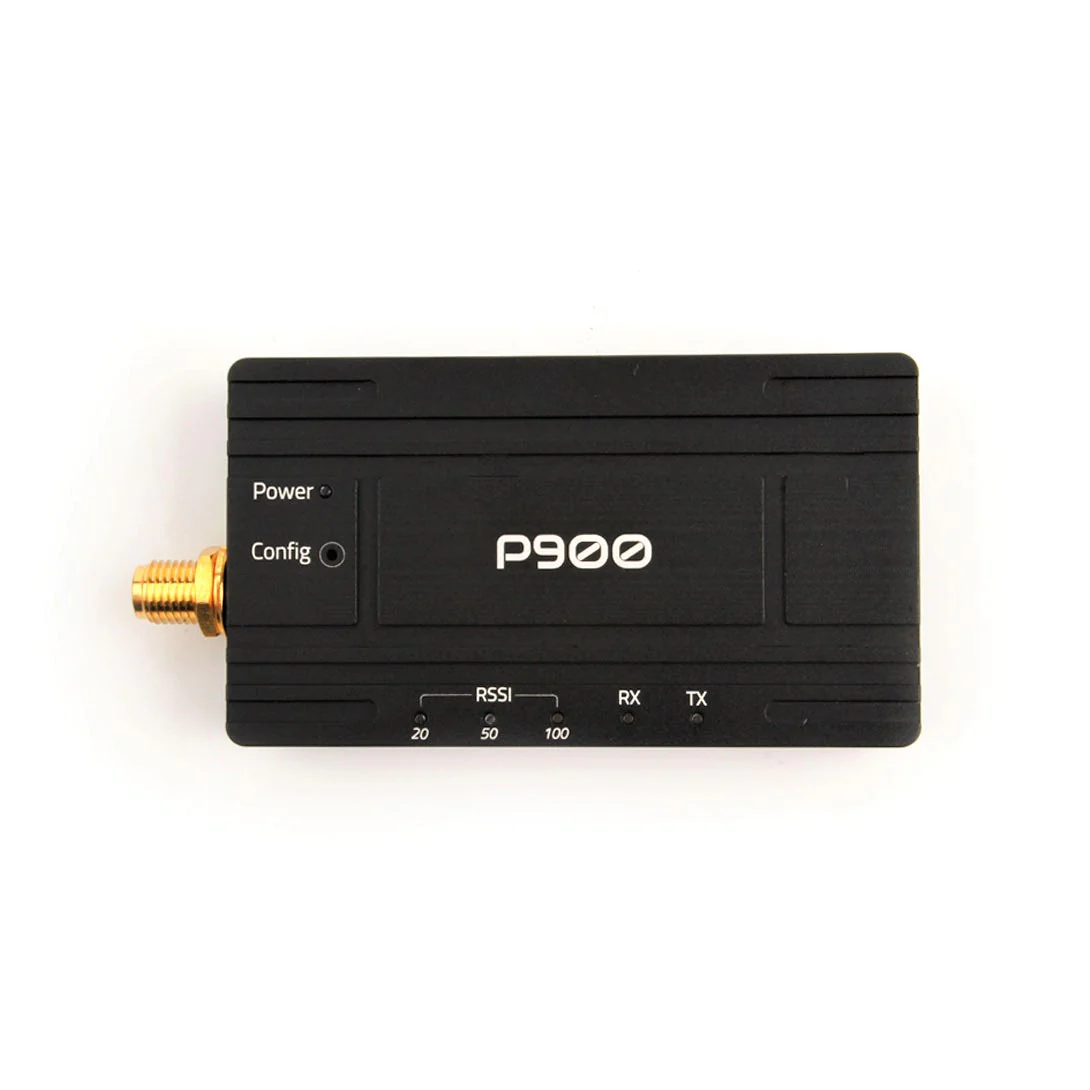

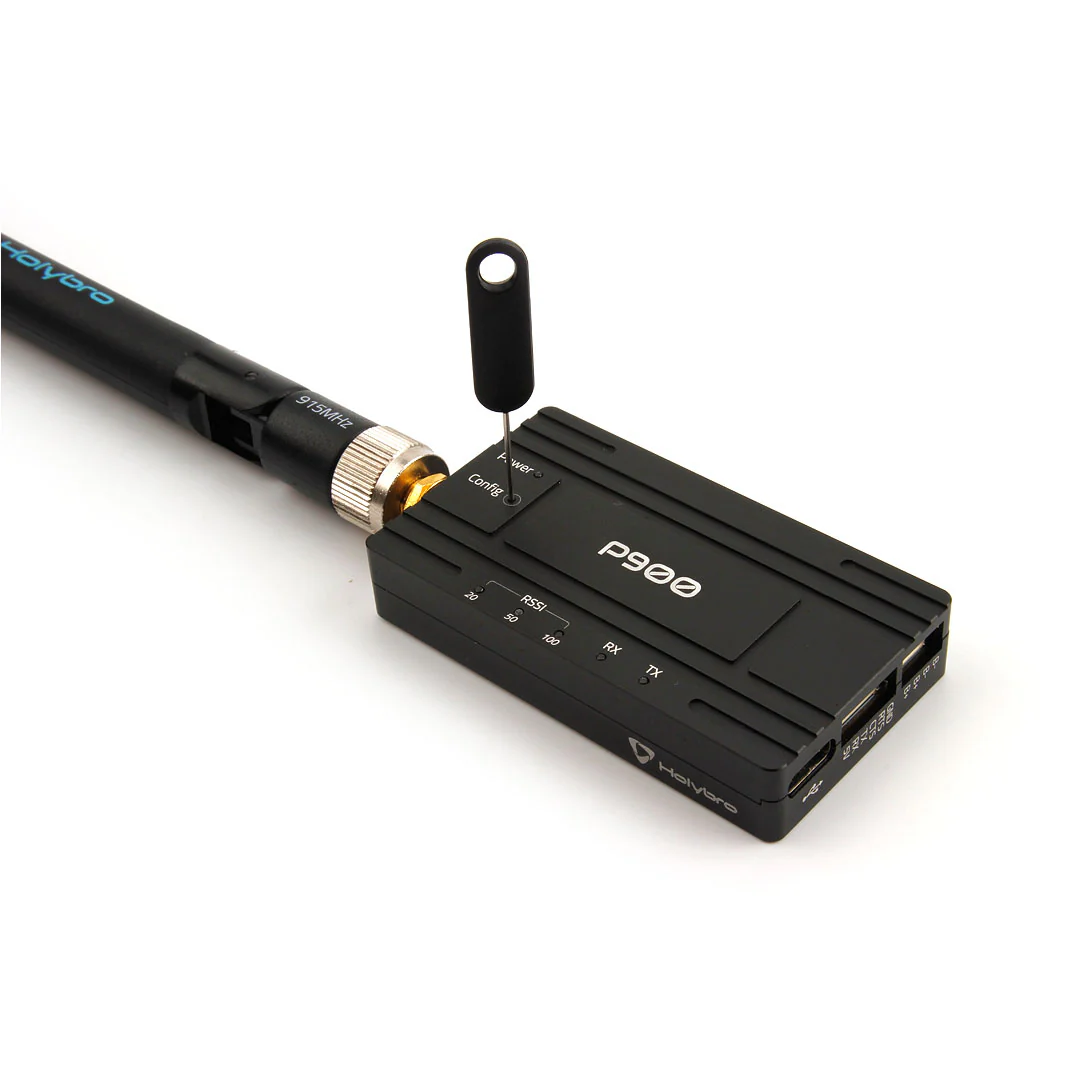

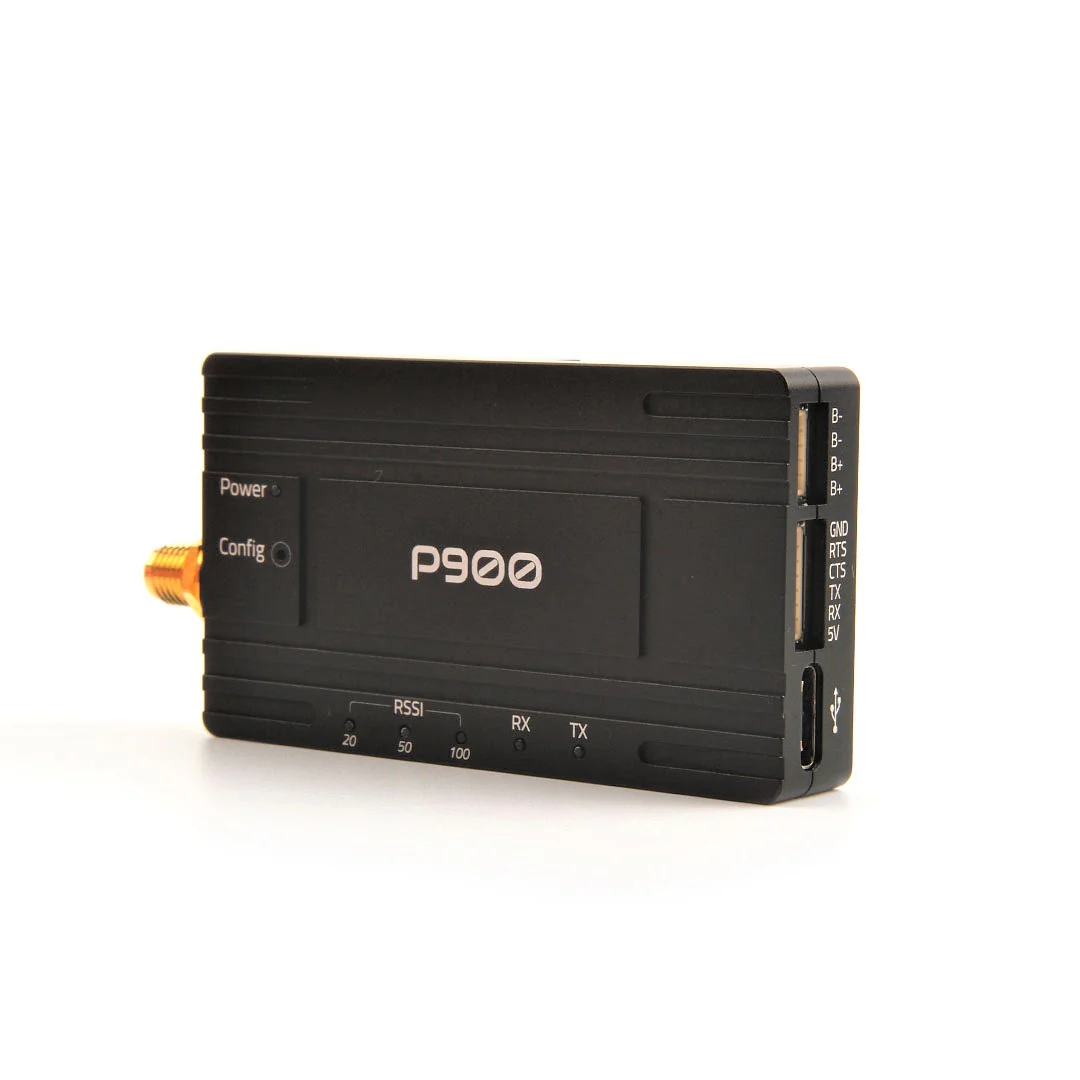

Holybro MicroHard P900 Radio (1pc)
Holybro P900 Radio includes a microhard Pico Series P900 radio module capable of providing high-performance wireless serial communication in reliable and secure Mesh, Point-to-Point or Point-to-Multipoint topologies.
The P900 Radio operates in the ISM 902-928 MHz frequency band, using Frequency Hopping Spread Spectrum (FHSS) technology, which ensures reliable wireless asynchronous data transfer between most devices that use a serial interface.
The P900 radio can be configured as a primary coordinator, secondary coordinator, backup coordinator, or remote device in a network topology, or as a leader, repeater, or remote device in a PP or PMP topology. This versatility is very user-friendly. The P900 radio is configured using AT commands via the data port or PicoConfig via the diagnostic port.
Features:
- Range of up to 60 km in line of sight with a speed of 276 kbps
- Wide supply voltage range
- Supports both broadcast and relay mode
- Adaptive Bandwidth
- High quality aluminum cover
- Interchangeable onboard and ground modules
- Advantages:
- USB Type-C port, built-in USB to UART converter
- 6-pin JST-GH connector, can be directly connected to the TELEM port on various control units such as Pixhawk 4
- High voltage BEC on board, support DC7 ~ 35V supply voltage
- UART transfer LED indicator
- Three-stage RSSI LED indicator
- Transmission in an unlicensed radio band
- Transparent transfer rate with low latency up to 276 kbps
- Supports reliable operation with accurate network with automatic routing
- 32-bit CRC, optional retry and direct error correction

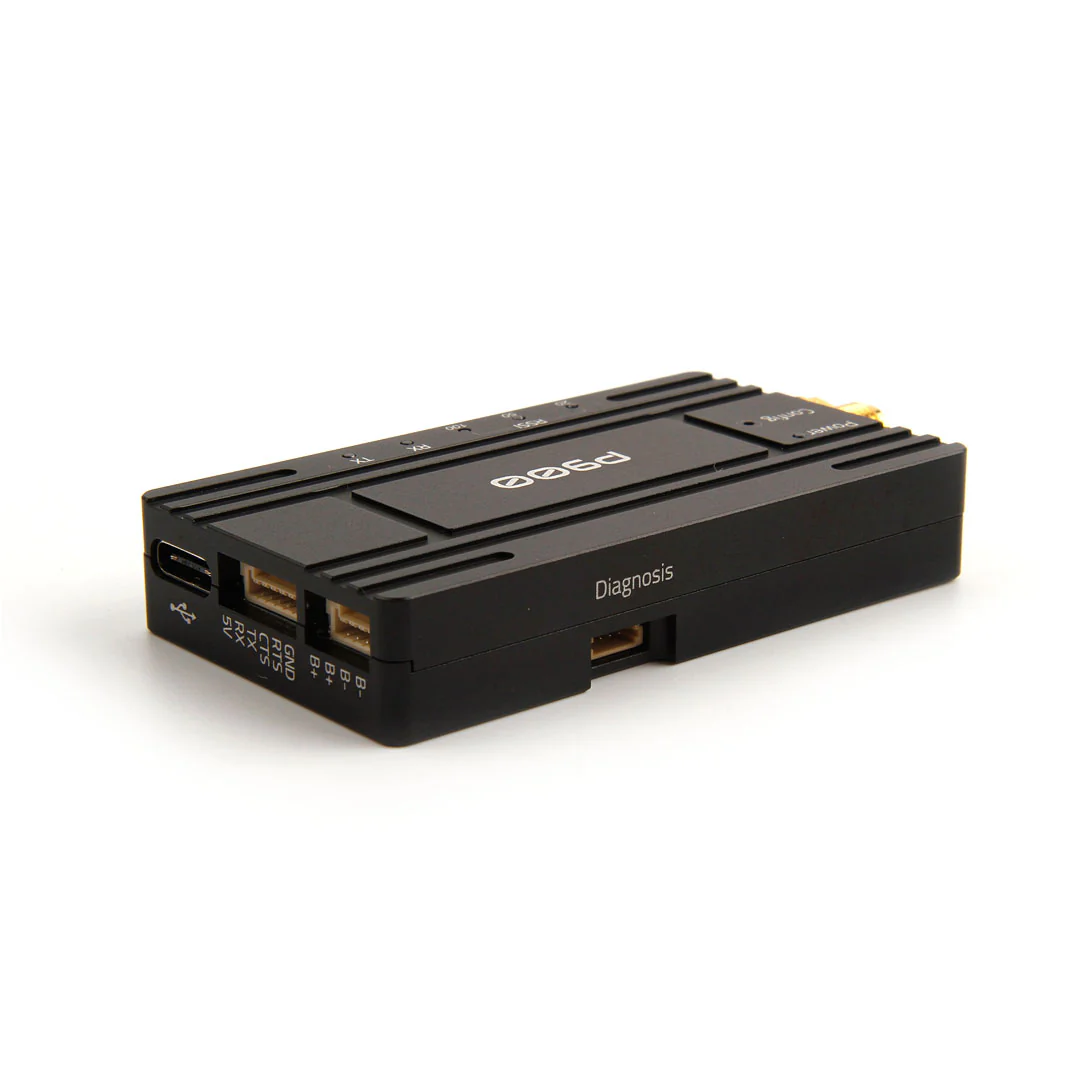

- Separate diagnostic port, transparent remote diagnostics and online network management
Specifications:
- Manufacturer: Holybro
- Operating frequency: 902 - 928 MHz
- Radio signal coding: FHSS
- Transport mode: transparent RS232-TTL (RX, TX, RTS, CTS)
- Error pre-correction algorithms: Hamming, BCH, Golay, Reed-Solomon, Viterbi
- Encryption: 32-bit CRC, ARQ
- Signal range: 60 km (with reinforced antennas and line of sight)
- Nominal range: 40 km under normal conditions
- Reception sensitivity: -110 dBm at 115.2 kbps, -108 dBm at 172.8 kbps, -107 dBm at 230.4 kbps
- Transmitter power: 100 - 1000 mW (default 1000 mW)
- Antenna gain: 5 dBi
- Serial port: RS232-TTL 3.3 V
- Bit rate: up to 230.4 kbps (default 57600)
- Modes of operation: automatic routing, relay, self-healing, packet routing
- Supply voltage: 12-60 V XT30
- Power consumption: up to 1 mA (sleep); up to 3.5 mA (standby); 35-80 mA (receive), up to 2 A (transmit)

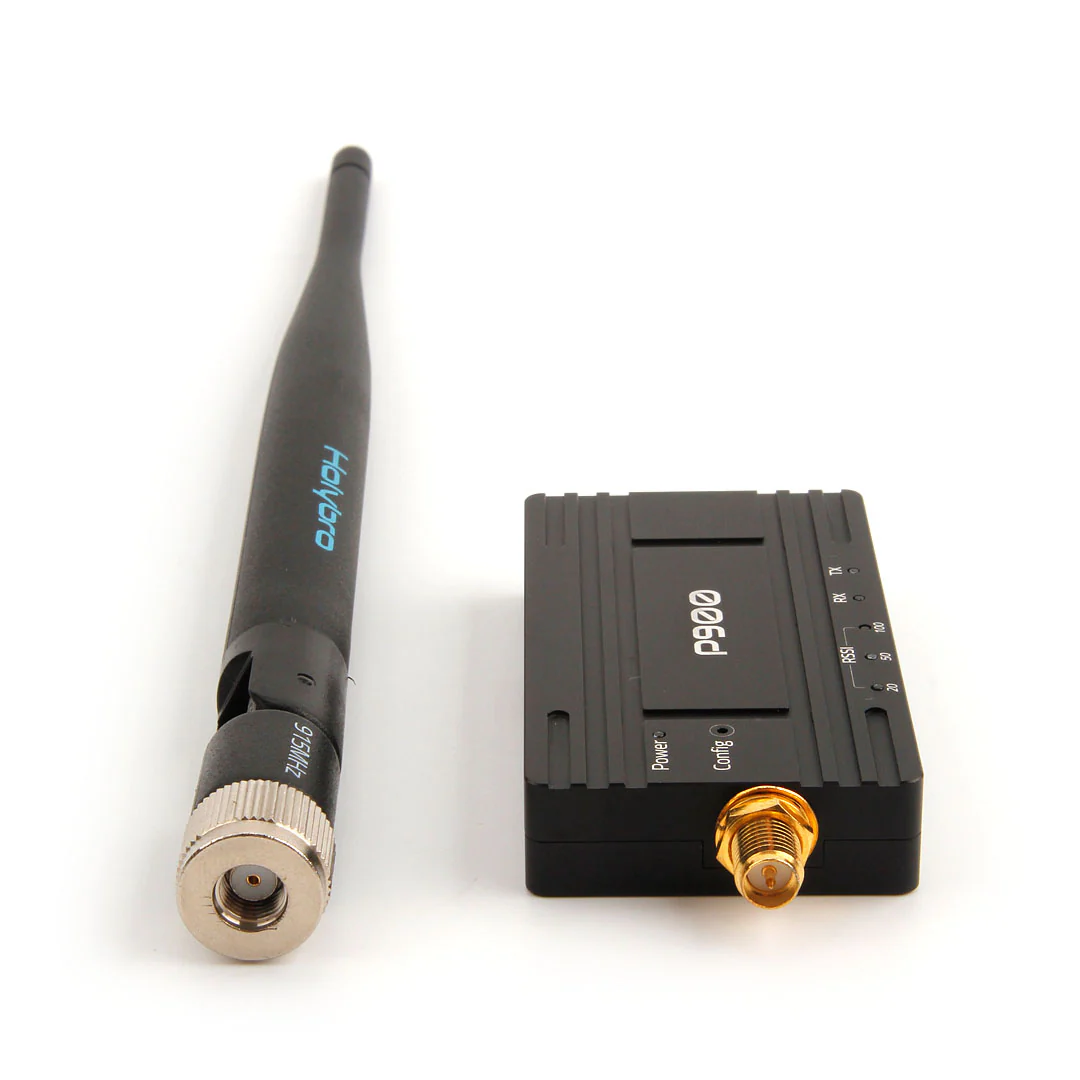

- Antenna interface: SMA F (female; jack)
- Serial port interface: USB Type-C / JST-GHR-06V-S
- Operating temperature: -40 - +85°C
- Operating humidity: 5 - 95% (non-condensing)
- Weight: 42 g (without antenna)
