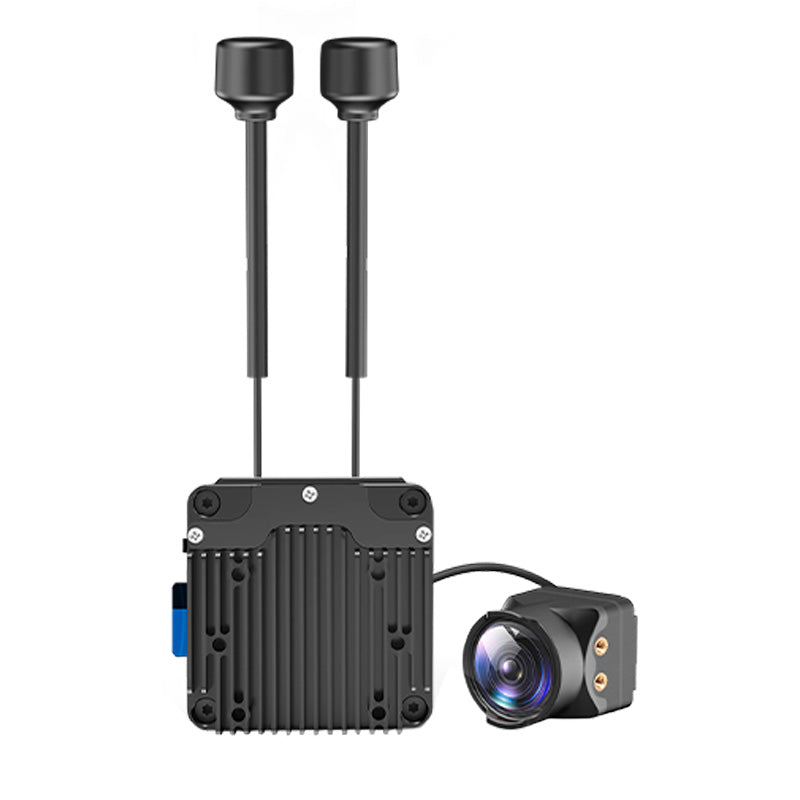

HD system EDGE T3 VTX Air Unit The EDGE T3 video transmission system is widely applicable to drones, unmanned vehicles and unmanned ships. It is an essential device that enables seamless communication and real-time video transmission in these unmanned systems and facilitates various operations such as aerial photography, surveillance and remote control. Features: - Image processing with artificial intelligence: Improves colors, dynamic range and details - Transmission range up to 35 km: Stable long-distance operation - Transmission latency: Approximately 60ms - Maximum video data rate: 120 Mbps - Night vision support: AI algorithms improve image quality in low light conditions - 3 in 1 data transmission: Combines video, telemetry and control into one channel - Flexible OSD settings: Ability to customize the information displayed on the screen - Compatibility with mobile devices: Integrated Wi-Fi for viewing video on smartphones and laptops without additional cables Specifications: Video Transfer Module (VTX) Model: T3 VTX Product Name: T3 Digital HD Image Transmission (Air Unit) Communication frequency: 5.18-5.24 GHz, 5.745-5.825 GHz Transmit power (EIRP): FCC≤30dBm, CE<14dBm; SRRC<20dBm Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P Spacing of mounting holes: 2×25.5 / 4×20 mm Dimensions: 36×36×11.8 mm External storage: microSD card support (16-256GB) Recording specifications: 1080p@60fps Weight: 25 g (including cooler) Operating temperature: 0 °C to +50 °C Available frequency points: 9 Input voltage range: 6-28 V DC Supported flight control systems: ArduPilot, Betaflight, iNav Camera module Model: T3 camera module Image sensor: 1/2.8-inch 2MP 16:9 sensor Resolution: 1080P/60 FPS Aspect ratio: 16:9 Lens (standard): 2.9mm HD120 Aperture: F1.4 Field of view: 120 Lens (optional): 2.2mm HD155 Aperture: F1.9 Field of view: 155 Shutter type: rolling shutter Weight: 13 Dimensions: 20 x 20 x 30 mm / 20 x 20 x 25 mm Coaxial cable length: 130 mm Antenna Name: Omnidirectional antenna Polarization direction: Left-handed circular polarization (LHCP) Operating Bandwidth: 5500-6000 MHz Input impedance: 50 Ω VSWR: ≤1.5 Interface type: IPEX-1 Dimensions: 15 x 122 mm Weight: 2.5g (each) The package contains: 1x EDGE T3 HD VTX Air Unit
