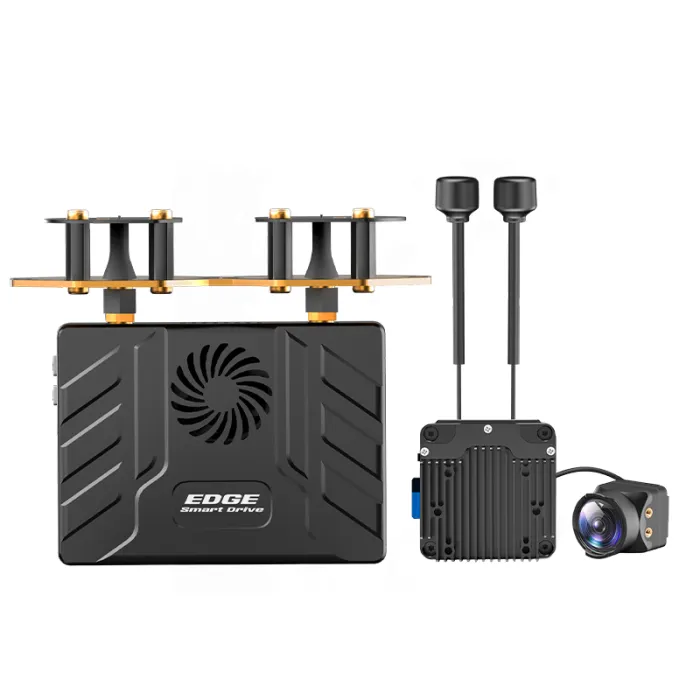

HD system EDGE T3 Combo VTX Air Unit + VRX Ground Unit The EDGE T3 video transmission system is widely applicable to drones, unmanned vehicles and unmanned ships. It is an essential device that enables seamless communication and real-time video transmission in these unmanned systems, facilitating various operations such as aerial photography, surveillance and remote control. The EDGE T3 VRX HD Digital Ground Unit is a high-performance video receiver designed for drones, unmanned ground vehicles (UGVs) and unmanned water systems. It provides stable real-time HD quality video transmission, ideal for aerial photography, surveillance and remote control. Features: - Image processing with artificial intelligence: Improves colors, dynamic range and details - Transmission range up to 35 km: Stable long-distance operation - Transmission latency: Approximately 60ms - Maximum video data rate: 120 Mbps - Night vision support: AI algorithms improve image quality in low light conditions - 3 in 1 data transmission: Combines video, telemetry and control into one channel - Flexible OSD settings: Ability to customize the information displayed on the screen - Compatibility with mobile devices: Integrated Wi-Fi for viewing video on smartphones and laptops without additional cables Specifications: Video Transfer Module (VTX) Model: T3 VTX Product Name: T3 Digital HD Image Transmission (Air Unit) Communication frequency: 5.18-5.24 GHz, 5.745-5.825 GHz Transmit power (EIRP): FCC≤30dBm, CE<14dBm; SRRC<20dBm Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P Spacing of mounting holes: 2×25.5 / 4×20 mm Dimensions: 36×36×11.8 mm External storage: microSD card support (16-256GB) Recording specifications: 1080p@60fps Weight: 25 g (including cooler) Operating temperature: 0 °C to +50 °C Available frequency points: 9 Input voltage range: 6-28 V DC Supported flight control systems: ArduPilot, Betaflight, iNav Camera module Model: T3 camera module Image sensor: 1/2.8-inch 2MP 16:9 sensor Resolution: 1080P/60FPS Aspect ratio: 16:9 Lens (standard): 2.9mm HD120 Aperture: F1.4 Field of view: 120 Lens (optional): 2.2mm HD155 Aperture: F1.9 Field of view: 155 Shutter type: rolling shutter Weight: 13 Dimensions: 20 × 20 × 30 mm / 20 × 20 × 25 Coaxial cable length: 130 Antenna Name: Omnidirectional antenna Polarization direction: Left-handed circular polarization (LHCP) Operating Bandwidth: 5500-6000 MHz Input impedance: 50 Ω VSWR: ≤1.5 Interface type: IPEX-1 Dimensions: 15 x 122 mm Weight: 2.5g (each) Video Transfer Module (VRX) Model: T3 VRX Product Name: T3 Digital HD Video Transmission (VRX) Communication frequency: 5.18-5.24 GHz, 5.745-5.825 GHz Transmit power (EIRP): FCC ≤ 30 dBm, CE < 14 dBm; SRRC < 20 dBm Available frequency points: 9 Interface: SH1.0-4P, SH1.0-6P Type C: Video output 1080P/60FPS Fixed hole spacing: 15mm (M2×2) Dimensions: 82×26×68 mm Built-in battery: 5000mAh, 3.7V Lion Weight: 142 g (without antenna) Operating temperature: 0 °C to +50 °C Maximum charging power: 20 W Maximum discharge power: 20 W Antenna Name: Directional antenna Polarization direction: Left-handed circular polarization (LHCP) Operating Bandwidth: 5000-6000 MHz Input impedance: 50 Ω Standing wave ratio: ≤1.5 Interface type: RPSMA Dimensions: 102 x 53 x 27 mm Weight: 30.5 g The package contains: 1x HD system EDGE T3 Combo VTX Air Unit + VRX Ground Unit
