DJI O4 Air Unit PNP Installer Version
The DJI O4 Air Unit series features the DJI O4 video transmission system, which achieves very low latency for more responsive control. This system can automatically select the most stable frequency.
It is capable of recording video in 4K/60 frames per second. The video transmission system uses H.265 video encoding and supports 1080p/100fps high frame rate transmission, which ensures clear and smooth real-time images.
The DJI O4 Air introduces a new racing mode with a video transmission latency of just 15 milliseconds. It supports up to eight racing planes at the same time, taking you on an exciting, high-speed journey through the sky. It's also equipped with a 1/2-inch image sensor that can shoot 4K/60 frames per second video - eliminating the need for an external action camera to achieve high-resolution ultra-wide shots.
Have full control over what is displayed on the screen. The DJI O4 Air range supports Betaflight's canvas mode and OSD settings. You can customize the real-time data and the layout displayed on the glasses screen, which makes the flight data clear at a glance and increases the precision of your control.

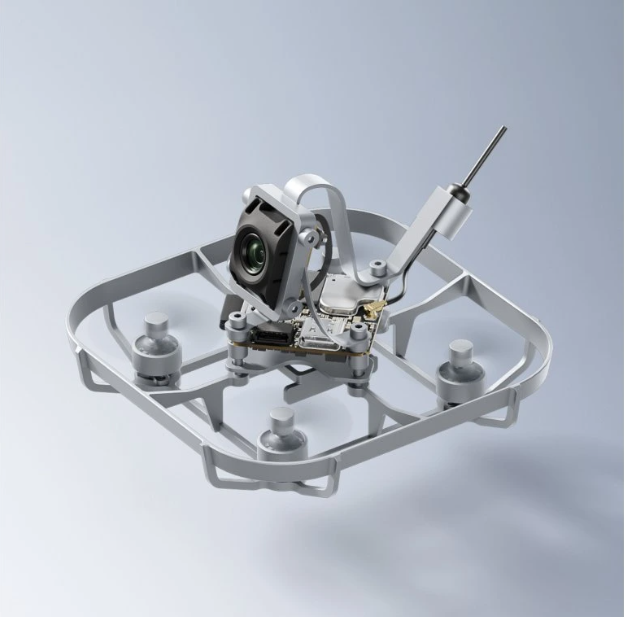

The DJI O4 Air Unit series uses a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit fits into drone frames 2 inches and smaller, supporting flexible mounting to suit a variety of creative flight scenarios.
NOTICE: This product is a PNP version for installation. It is not packed in a box and does not contain other accessories.
Specifications:
Model: DJI O4 Air Unit
Weight (including camera module): 8.2g.
Antenna weight: 0.75g
Antenna length: 80mm

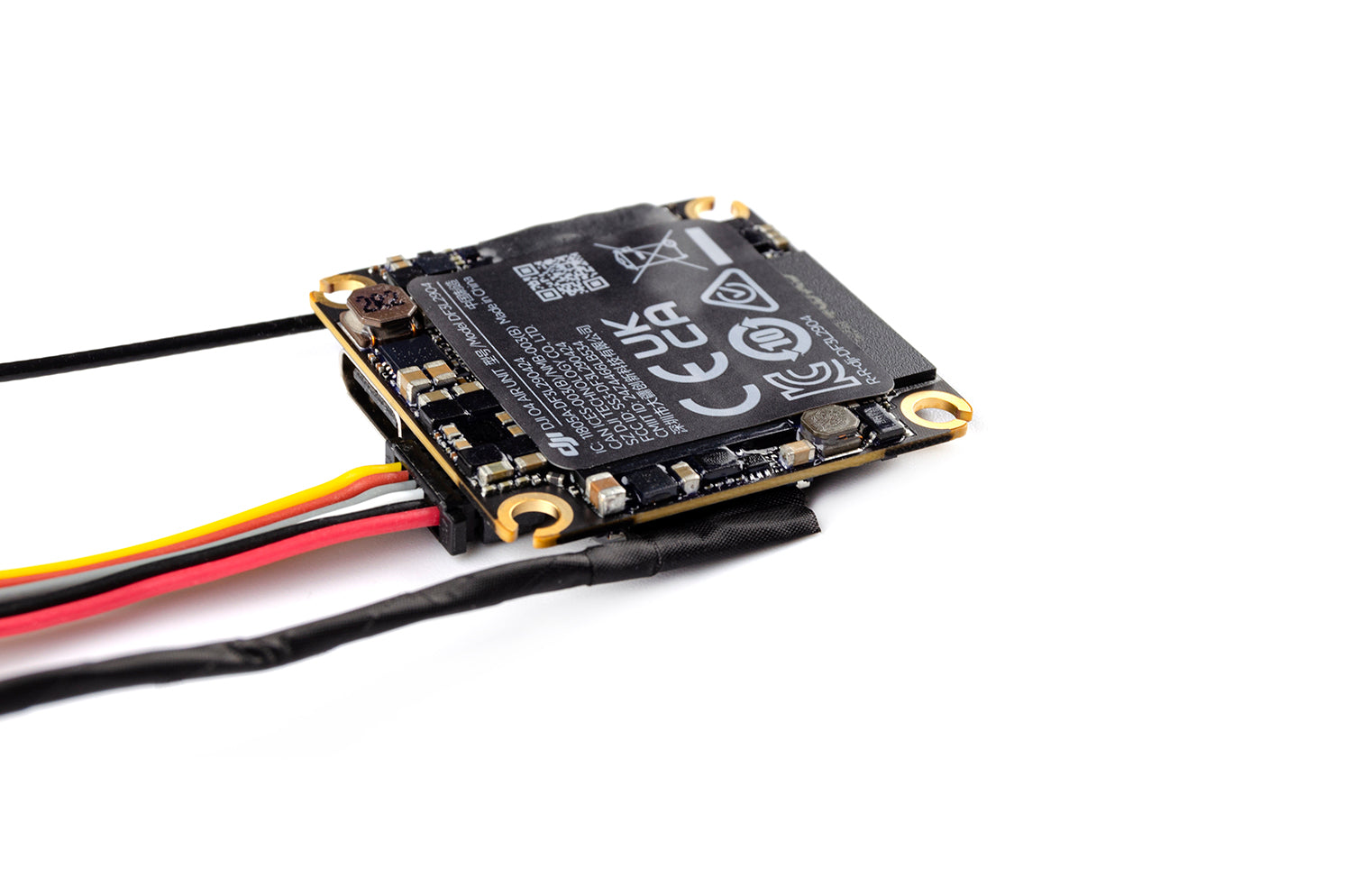

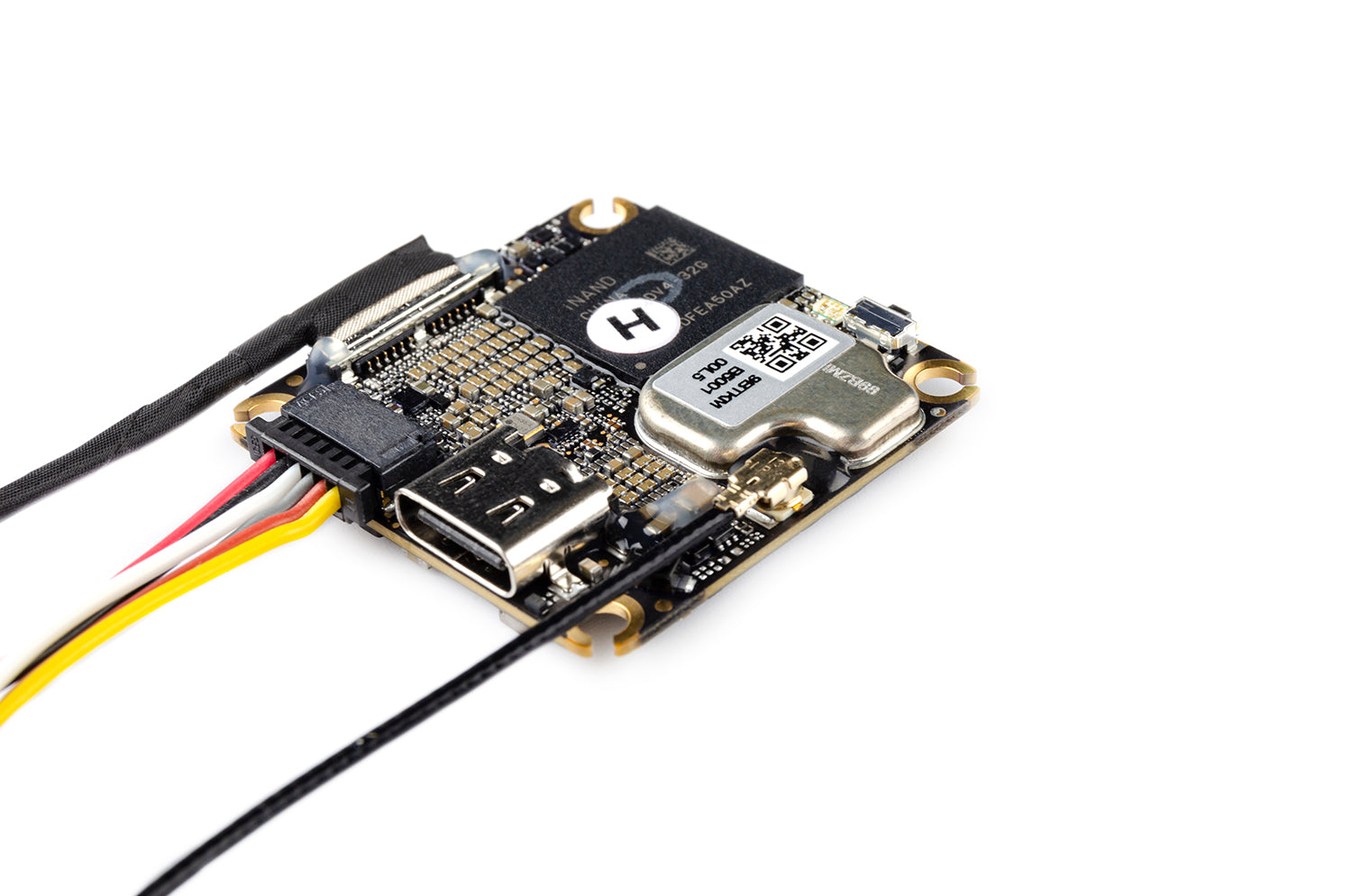

Transmitter module size: 30 × 30 × 6mm (L × W × H)

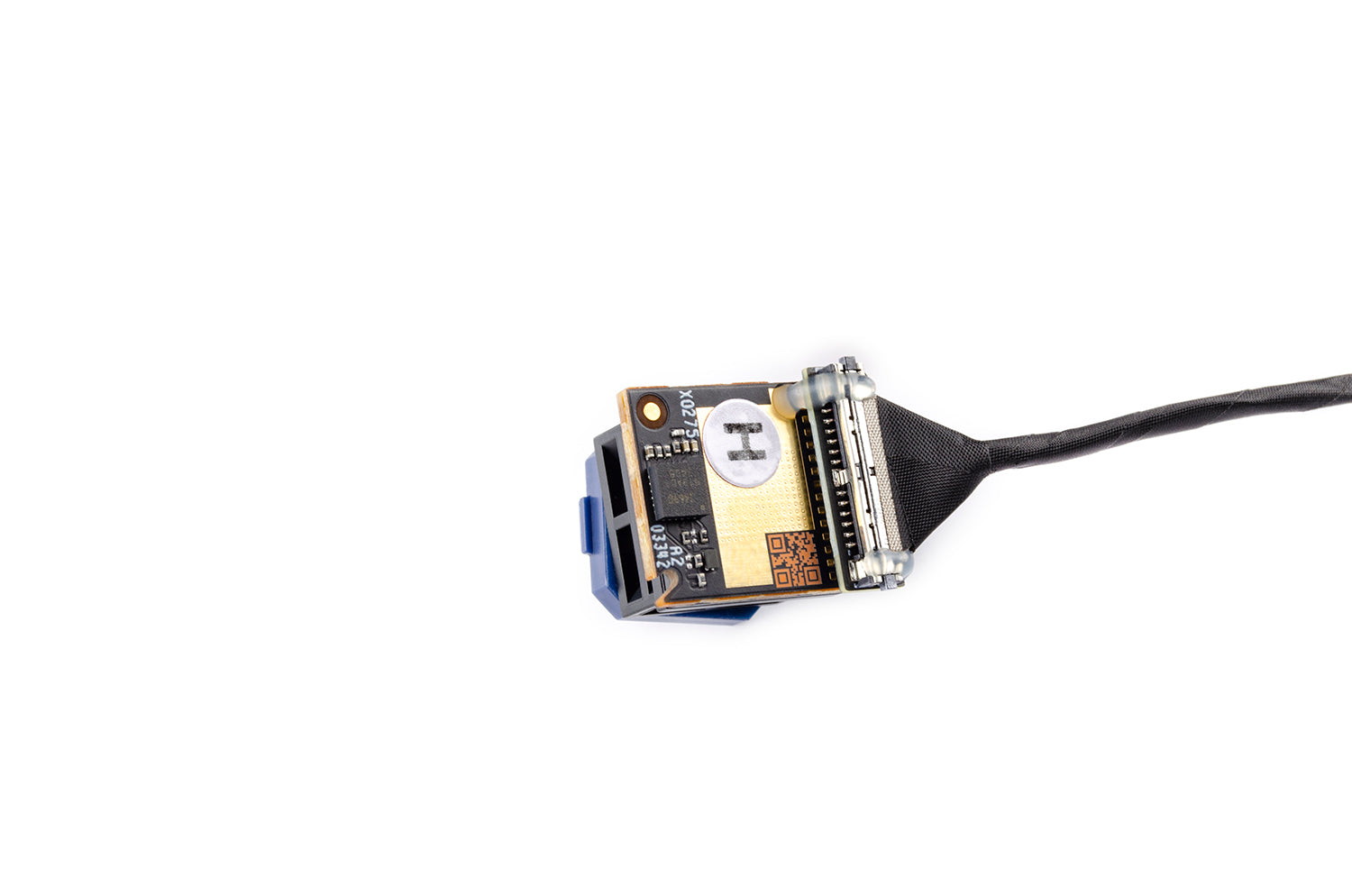

Camera module size: 13.44 × 12.36 × 16.50mm (L × W × V)
Coaxial cable length: 50mm
3 in 1 cable length: 50mm
VTX Working Frequency: 1.5mm
- 5.170-5.250 GHz
- 5.725-5.850 GHz
Transmitter Power (EIRP)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <30 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC)
Lowest Latency
With DJI Goggles 3 and race mode selected:
- Latency is only 20ms with 1080p/100fps video transmission quality.
With DJI Goggles N3 and race mode selected:
- Latency is only 24ms with 1080p/100fps video transmission quality.
With with DJI Goggles 2 or Goggles Integra:
- With 1080p/100fps video transmission quality, video transmission latency is less than 35ms.
Maximum video transmission range With DJI Goggles 3/DJI Goggles N3:
10km (FCC), 6km (CE), 6km (SRRC).
Live view quality: 1080P@30/50/60/100 frames per second
Communication bandwidth: max. 60 MHz
Antenna: 1 antenna, 1T1R
Channels: Support Auto/Manual mode, FCC/SRRC/CE

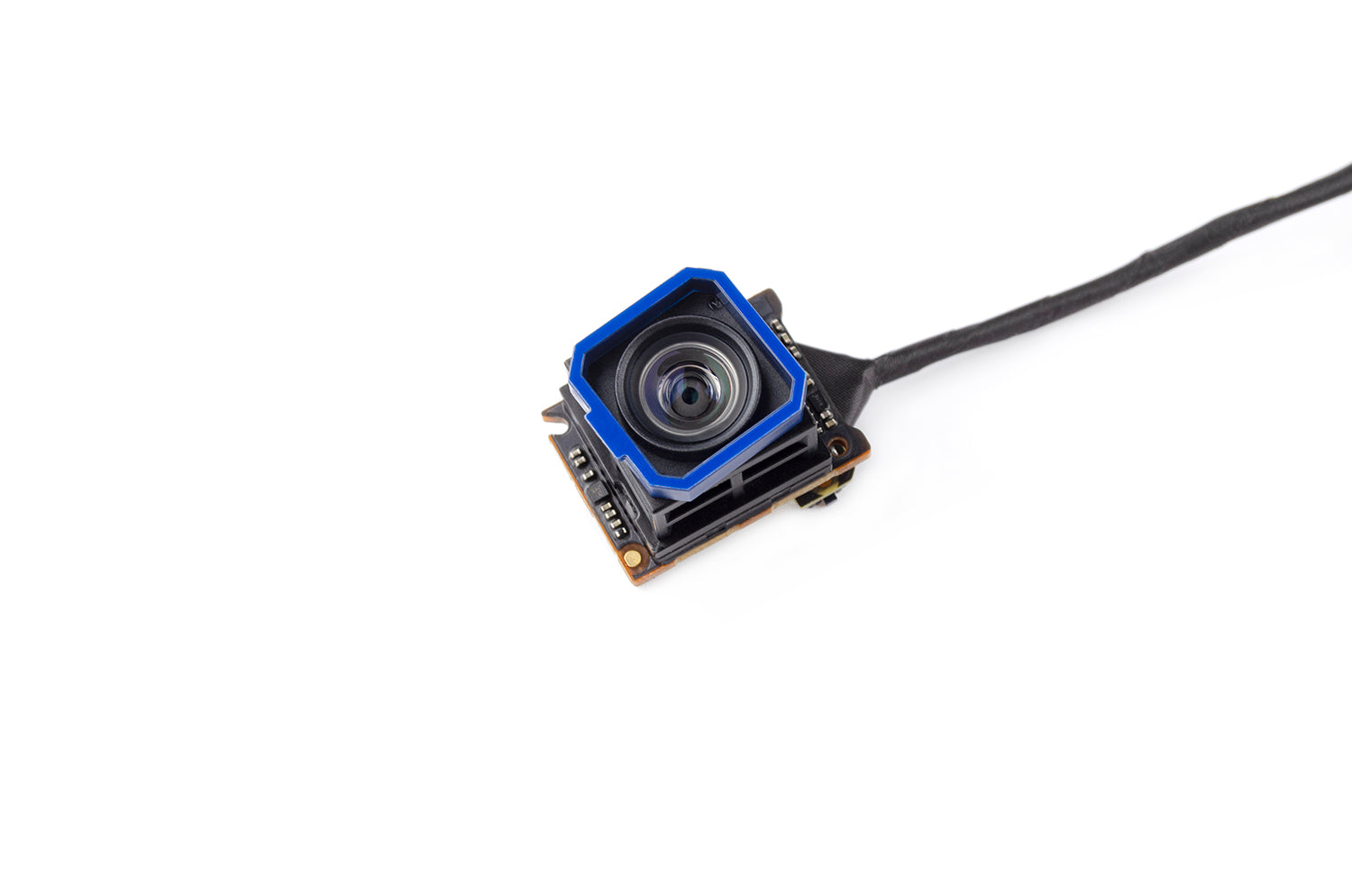

Camera
Image Sensor: CMOS 1/2 sensor
Lens FOV: 117.6°
Equivalent focal length: 14mm
Aperture: f/2.8
Focus: 0.6m to ∞
ISO sensitivity range: 100-6400 (auto), 100-12800 (manual)
Resolution videos:
- 4K (4:3): 3840×2880@30/50/60fps
- 4K (16:9): 3840×2160@30/50/60fps
- 1080p (4:3): 1440×1080@30/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/50/60/100/120fps
Video Format: MP4
Max Video Bitrate: MP4: 100Mbps
Color Mode: Normal Mode
Camera Range: Standard, Wide
EIS: RockSteady 3.0+; stabilization function off (supports Gyroflow)
Hardware
Input voltage: 3.7-13.2 V
Operating temperature: -10° to 40° C
Storage:
Built-in Storage: 23GB
SD Cards Supported: 23GB: Not Supported: SD Cards: Not Supported
Compatibility:
Supported flight controller system: Betaflight 4.3.0 and above.
Supported DJI goggles and remote controllers:
- DJI Goggles 3 + DJI FPV Remote Controller 3.
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2
*In order to use the DJI FPV remote controller, the flight control firmware must be configured to support the SBUS protocol.

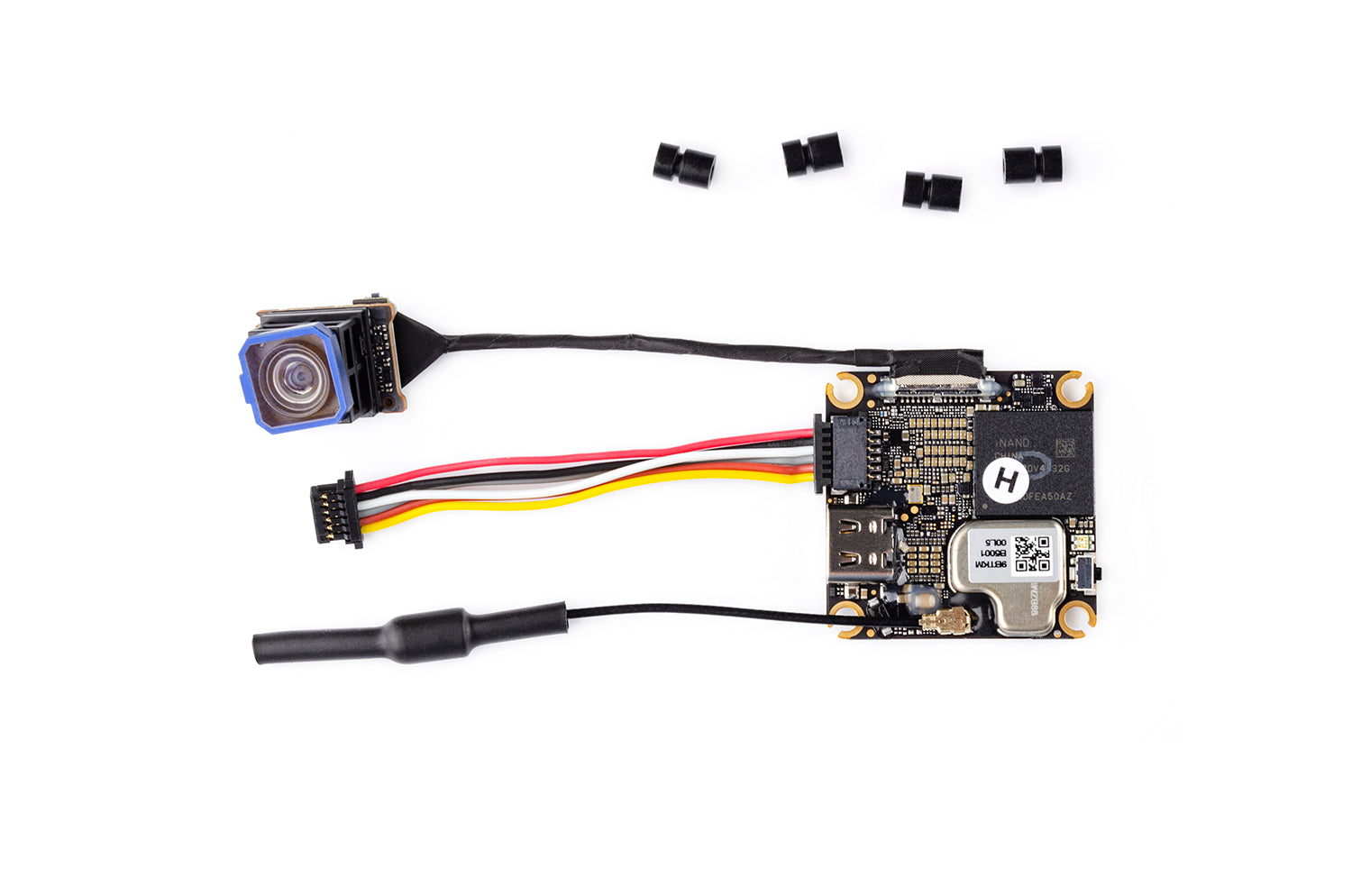

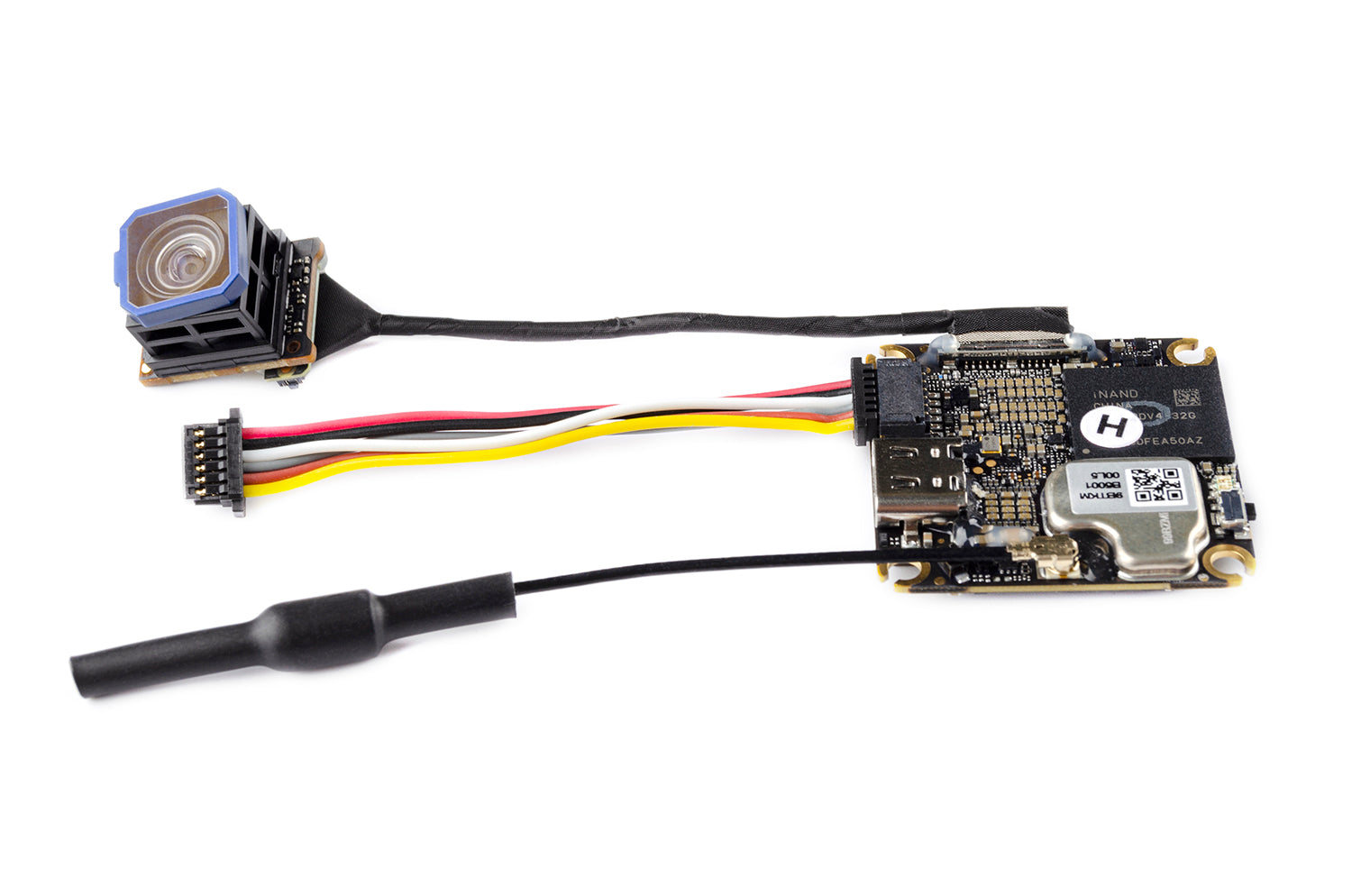

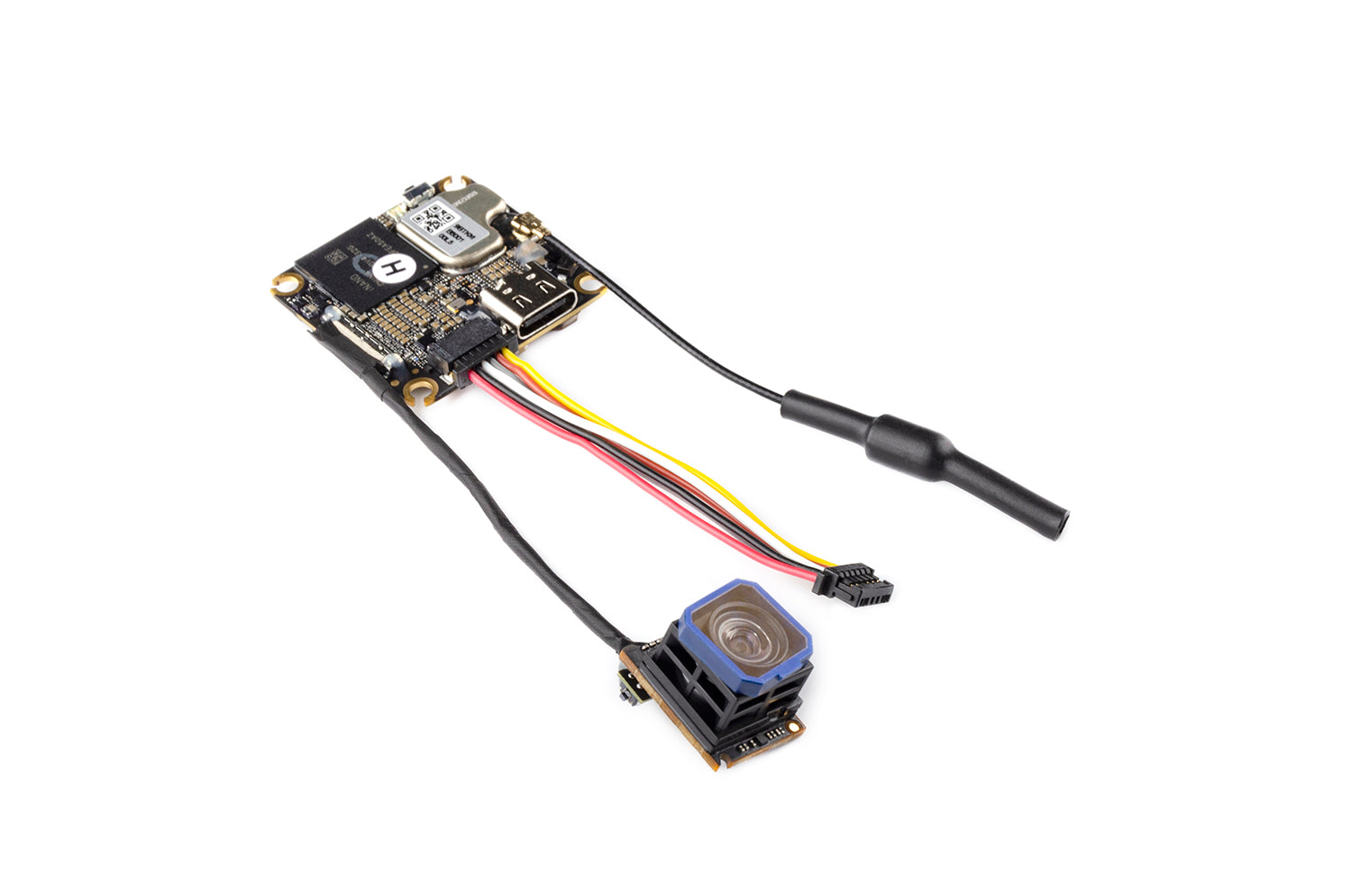

The package contains:
1x DJI O4 Air Unit Camera Module
1x DJI O4 Air Unit Transmitter Module
1x DJI O4 Air Unit Antenna
1x DJI O4 Air Unit 3 in 1 Cable
