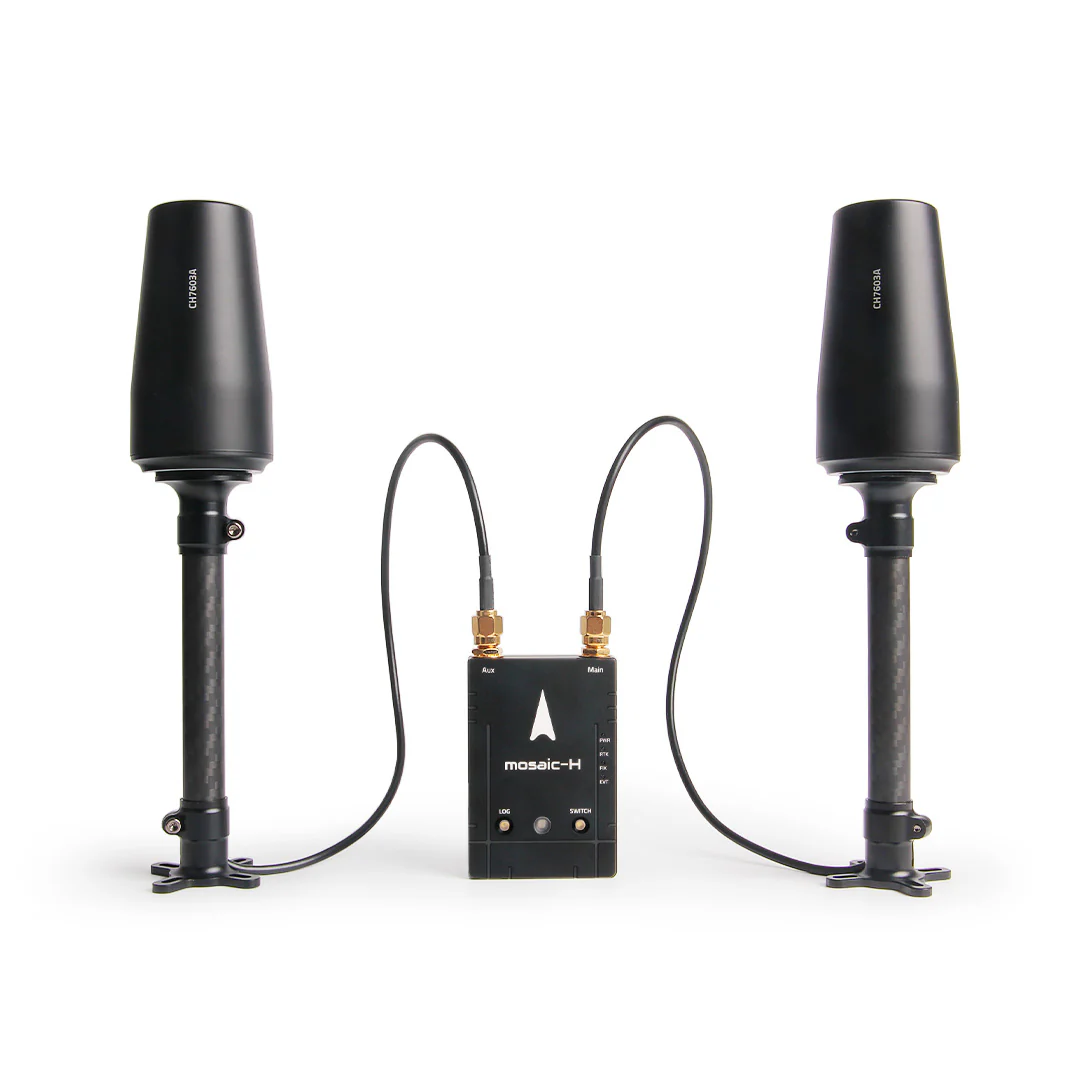

Holybro H-RTK mosaic-H GPS module (with double antenna for direction determination)
Holybro mosaic-H is a high-end RTK GPS module that uses a powerful Septentrio mosaic-H GNSS receiver. It includes an IST8310 magnetometer, two high-performance antennas and an aluminum CNC housing. This module is equipped with many features such as easy configuration, spectrum analysis, data logging and post-processing for a wide range of applications.
Thanks to the dual antenna input, mosaic-H can provide heading (YAW) information to the autopilot without the use of a compass (often referred to as GPS Heading or Moving Baseline Yaw). By using GPS instead of a traditional compass, it eliminates inaccuracies caused by magnetic interference from the vehicle's engines, electrical systems, and the surrounding environment, such as metal structures or power lines, ensuring accurate direction reporting to the autopilot and increasing overall reliability and navigation performance in challenging environments.
The Septentrio mosaic-H receiver GNSS module boasts a set of proprietary technologies that set it apart from the competition. Septentrio AIM+ (Advanced Interference Mitigation) technology protects against intentional and unintentional sources of interference, ensuring consistent and reliable performance even in challenging RF environments.
Septentrio's LOCK+ technology ensures optimal tracking even with fast antenna movement in the event of high vibration or impact, maintaining high accuracy and stable operation in dynamic situations. It is ideal for demanding applications such as UAVs and robotics. In addition, Septentrio's advanced RAIM+ (Receiver Autonomous Integrity Monitoring) algorithm provides unmatched integrity and reliability, providing a safety net for mission-critical applications.
Features
- Advanced anti-jamming and spoofing solution with AIM+ and OSNMA technology
- Dual antenna support for GPS Heading with one GPS module
- All satellite tracking: multi-constellation, multi-frequency (supports L1/L2/E5)
- Best in class RTK performance
Specification Product: Holybro H-RTK Mosaic-H
Application:
- Rover
- Moving Baseline Rover
- Base station
- PPK
GNSS:
- GPS: L1, L2
- Galileo: E1, E5b
- GLONASS: L1, L2
- Beidou: B1, B2, B3
- QZSS: L1C/A, L1C/B, L2
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1)
RTK performance:
- Horizontal accuracy 0.6 cm + 0.5 ppm
- Vertical accuracy 1 cm + 1 ppm
Positioning accuracy:
Mode
- Horizontal
- Vertical
Separately:
- 1.2m
- 1.9m
SBAS:
- 0.6m
- 0.8m
DGNSS:
- 0.4m
- 0.7m
RTK:
- 0.6cm + 0.5ppm
- 1.0cm + 1ppm
GNSS accuracy: Antenna separation:
- Direction: 0.15° (1m)
- Tilt/Roll: 0.25° (1m)
- Direction: 0.03° (5m)
- Tilt/Roll: 0.05° (5m)
Time for first fix:
- Cold start: ≤ 45s
- Warm start: ≤ 20s
- Recovery: 1s
Latency:
- < 10 ms
Magnetometer (compass): IST8310
Antenna gain (MAX): 2dBi
LNA gain: 33±2dB
Time accuracy:
- xPPS out: 5 ns
- Event precision: < 20 ns
Dates and update frequency:
- Measurement only: 100 Hz
- Separate, SBAS, DGPS + direction: 50 Hz
- RTK + direction: 20 Hz

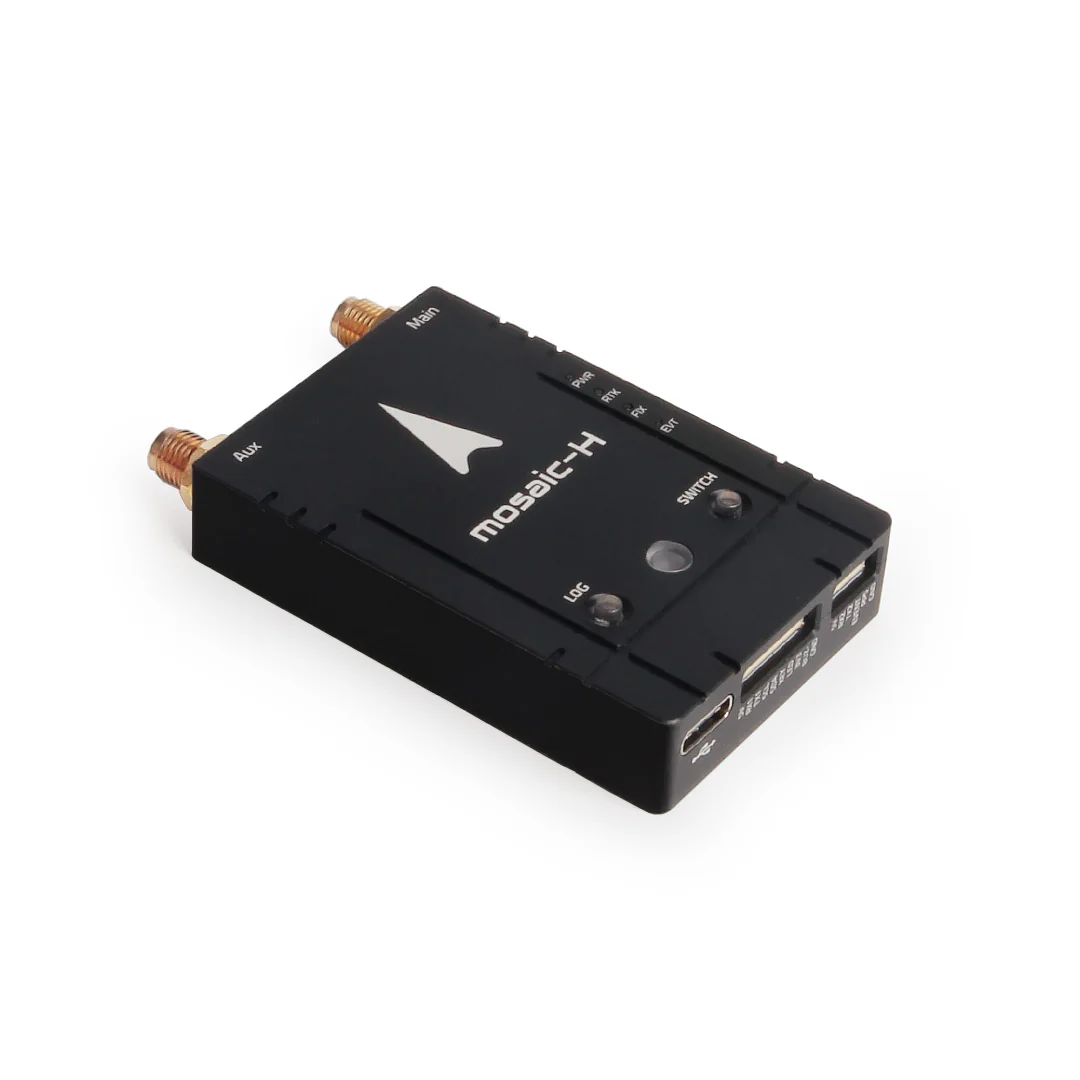

Ports:
- Port 1: USB Type-c
- Port 2: UART1 (GH1.25 10pin)
- Port 3: UART2 (GH1.25 6pin)

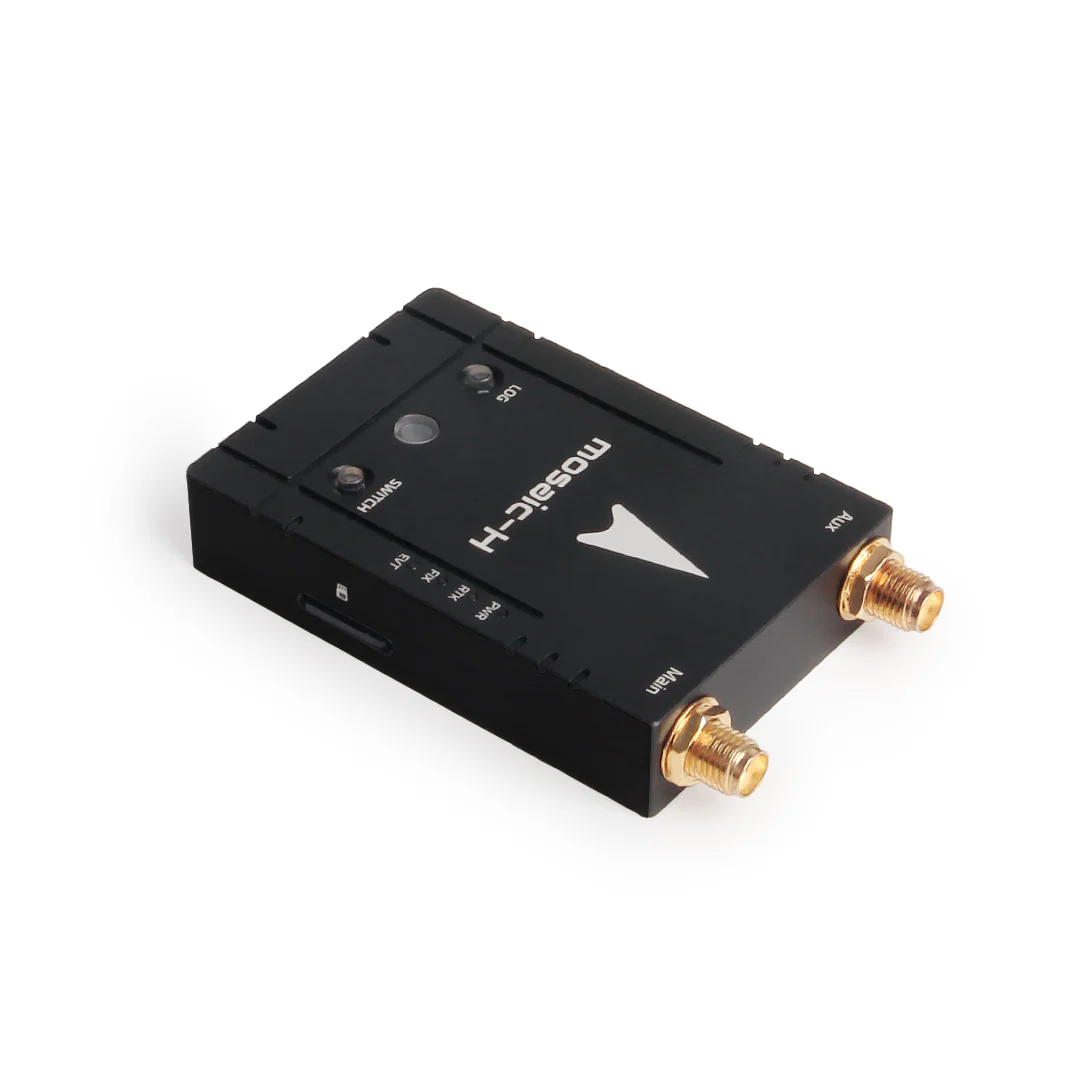

Antenna connection type:
- Board: SMA female
- Antenna: SMA male

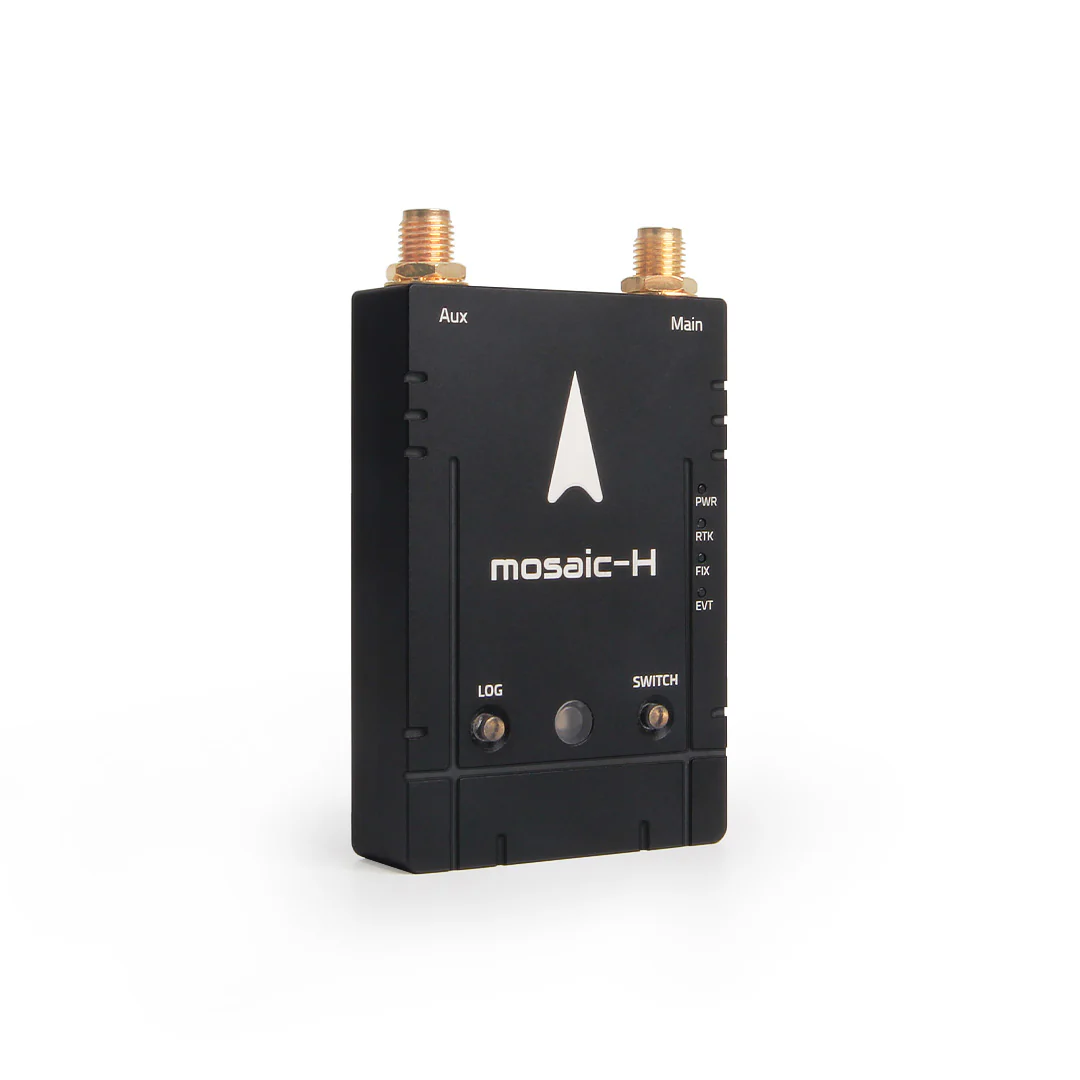

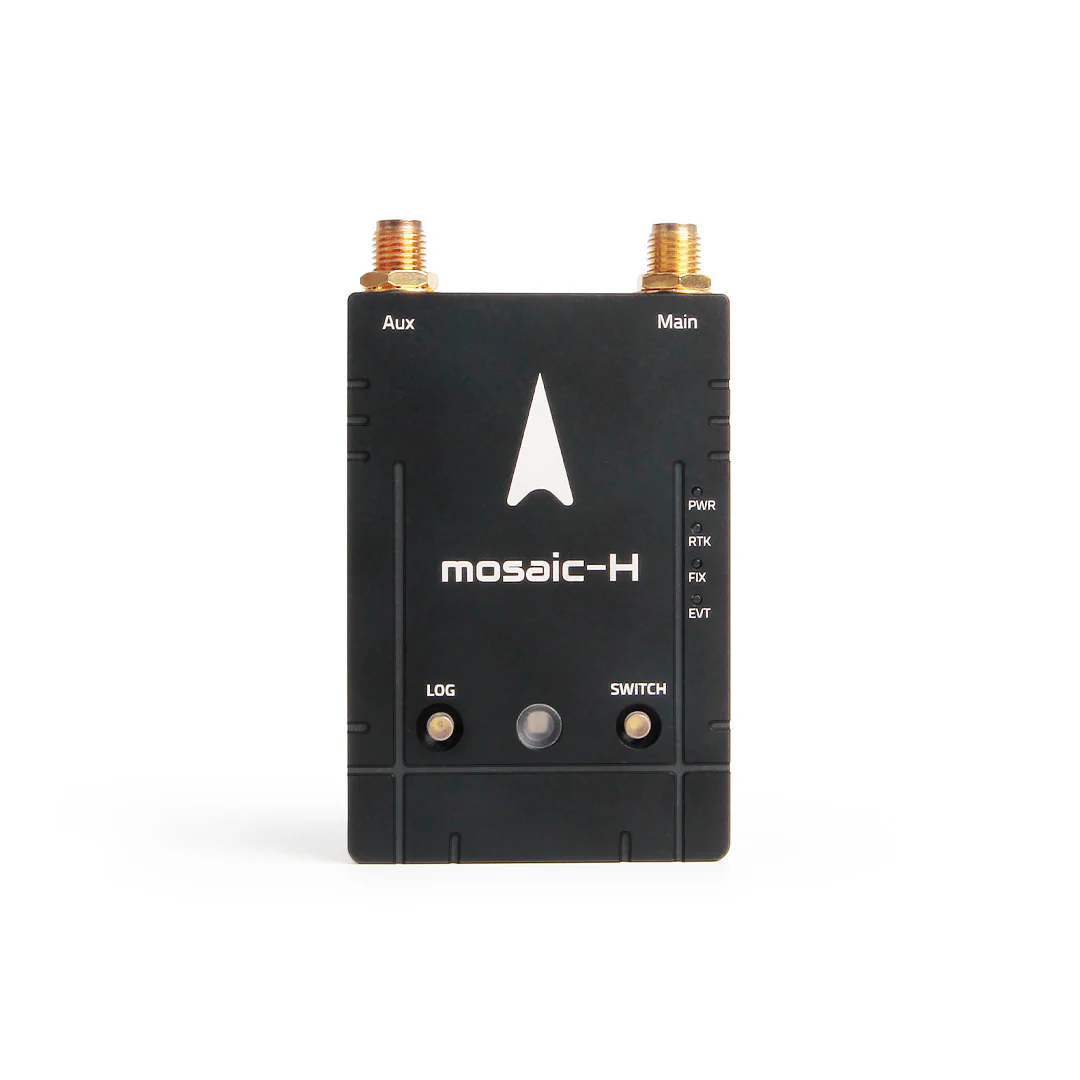

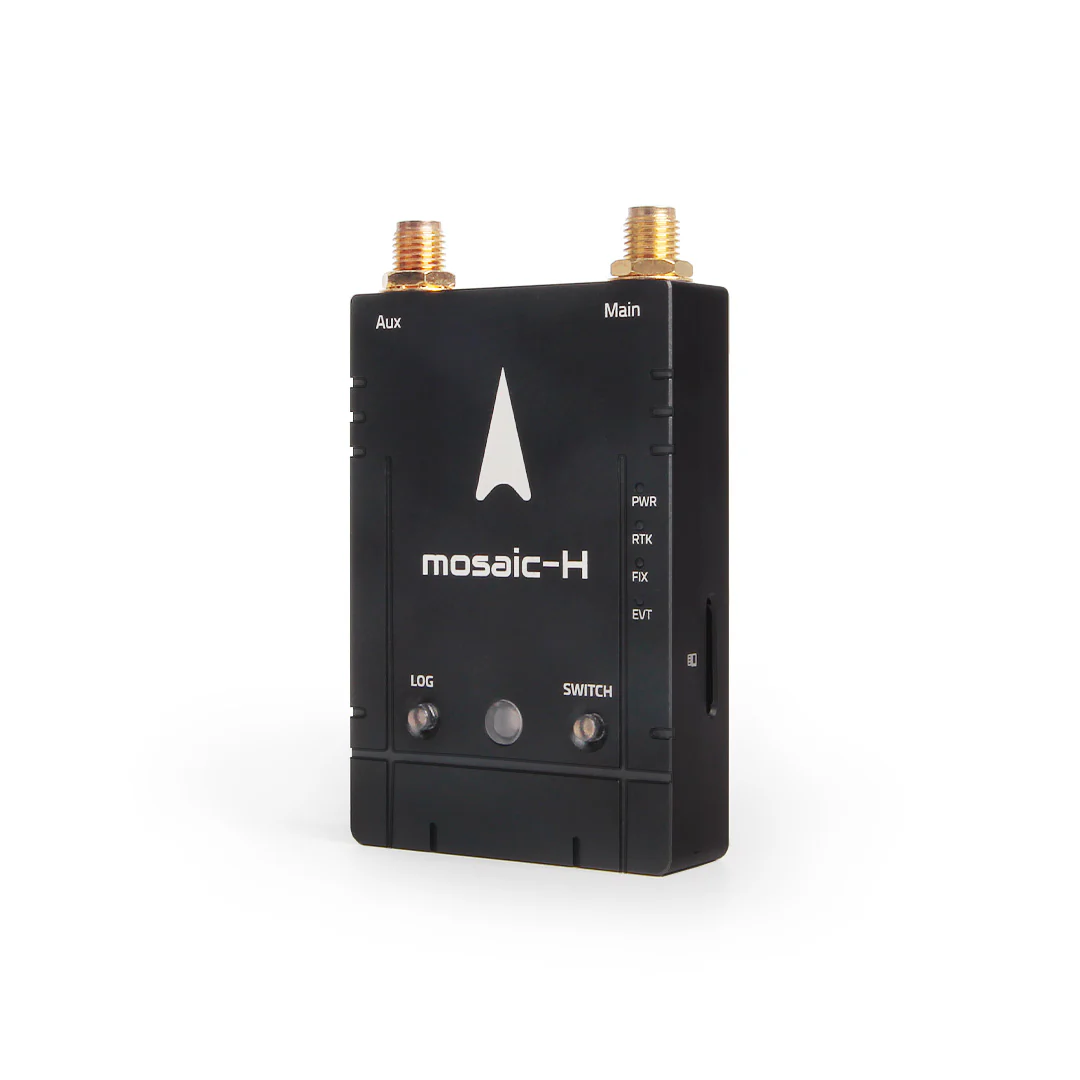

Buttons and buzzer:
- LOG BUTTON: Log button for Mosaic-H, short press to start/stop logging; long press to connect/disconnect SD card.
- SAFETY SWITCH: Safety switch to unlock/lock the flight controller.
- Integrated buzzer
Baud Rate: (Adjustable)
- 230400 5Hz default
Operating voltage:
- 4.75V~5.25V
Power consumption:
- 0.6 W type
- 1.1 W max
Operating temperature:
- -40℃ to 85℃
Dimensions:
- Board: 42.771.813.3mm
- Antenna diameter: 40mm
- Antenna height: 76mm

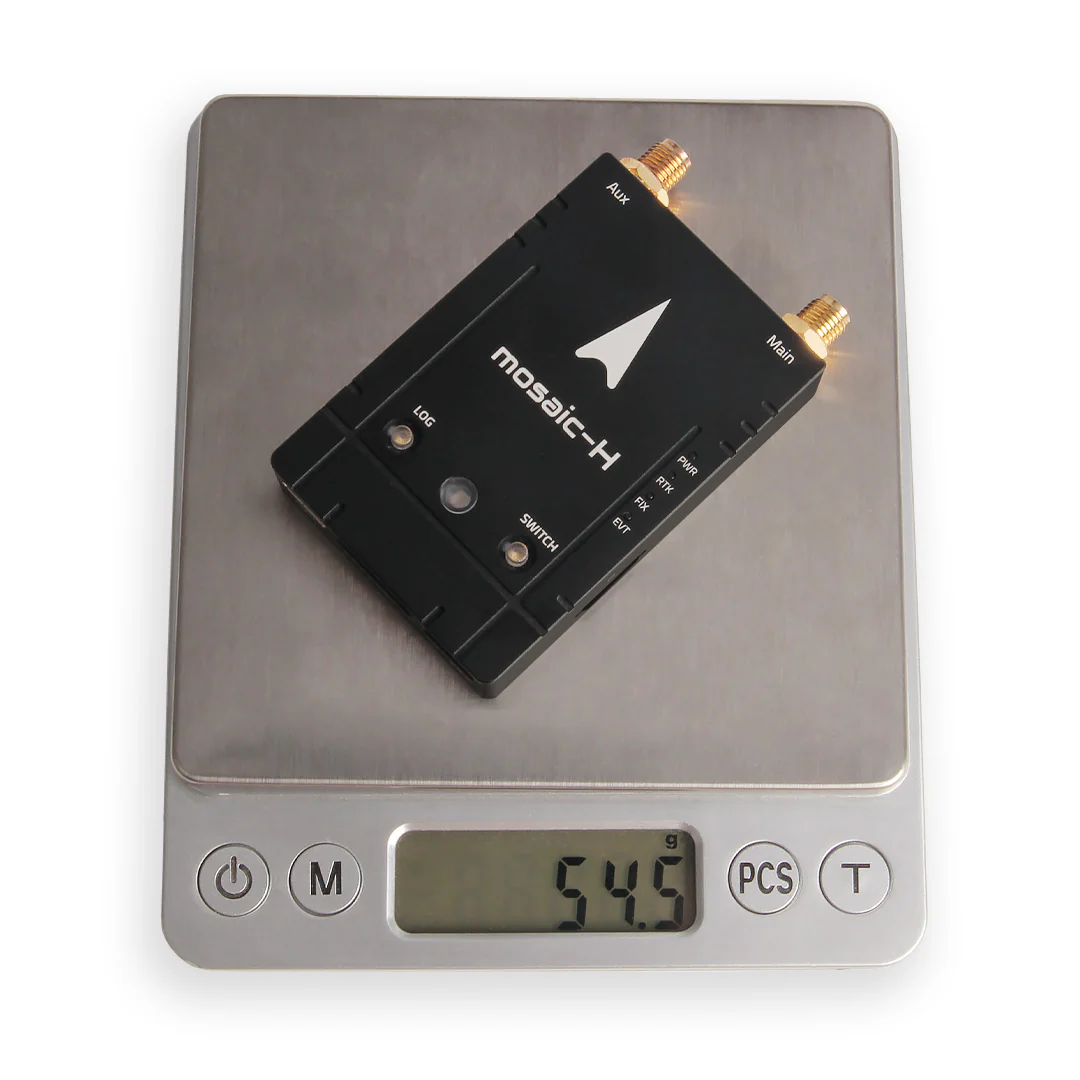

Weight:
- 54.5g (without antennas)
Advanced technologies inside:
- AIM+ the most advanced anti-jamming, anti-cheating and onboard interference mitigation technology on the market (narrowband and wideband, jammers).
- LOCK+ for robust tracking during high vibrations
- APME+ multiple reflection mitigation to separate direct from reflected signal
- IONO+ provides advanced protection against ionospheric effects
- OSNMA support
Firmware Compatibility:
- Ardupilot*
- PX4*

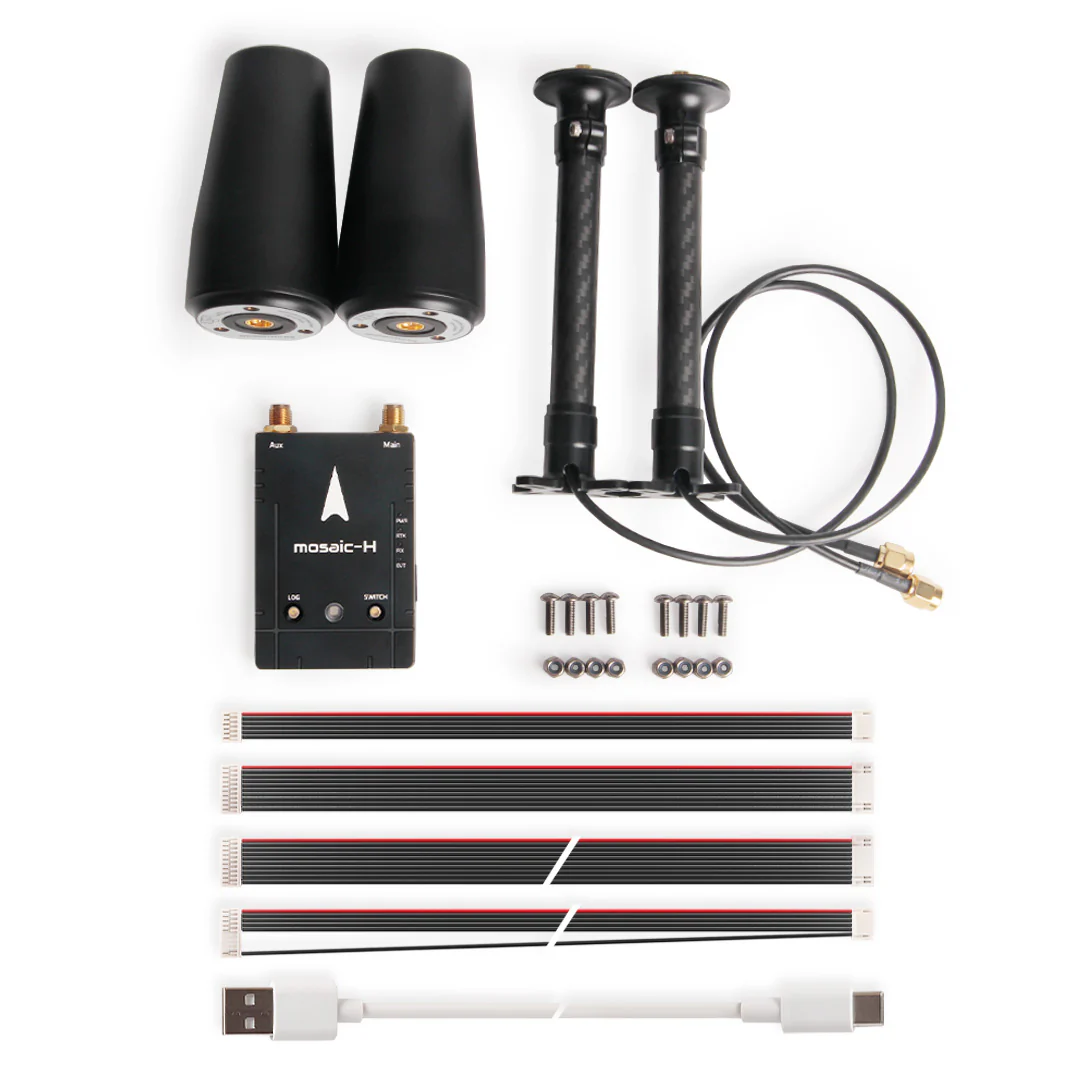

The package includes:
- 1x H-RTK Mosaic
- 2x High performance antenna
- 2x Antenna holder for H-RTK
- 2x SMA cable (40CM)
- 2x GH 10P cable
- 1x GH 6P cable
- 1x GH 10P to 6P cable
- 1x USB-C cable
