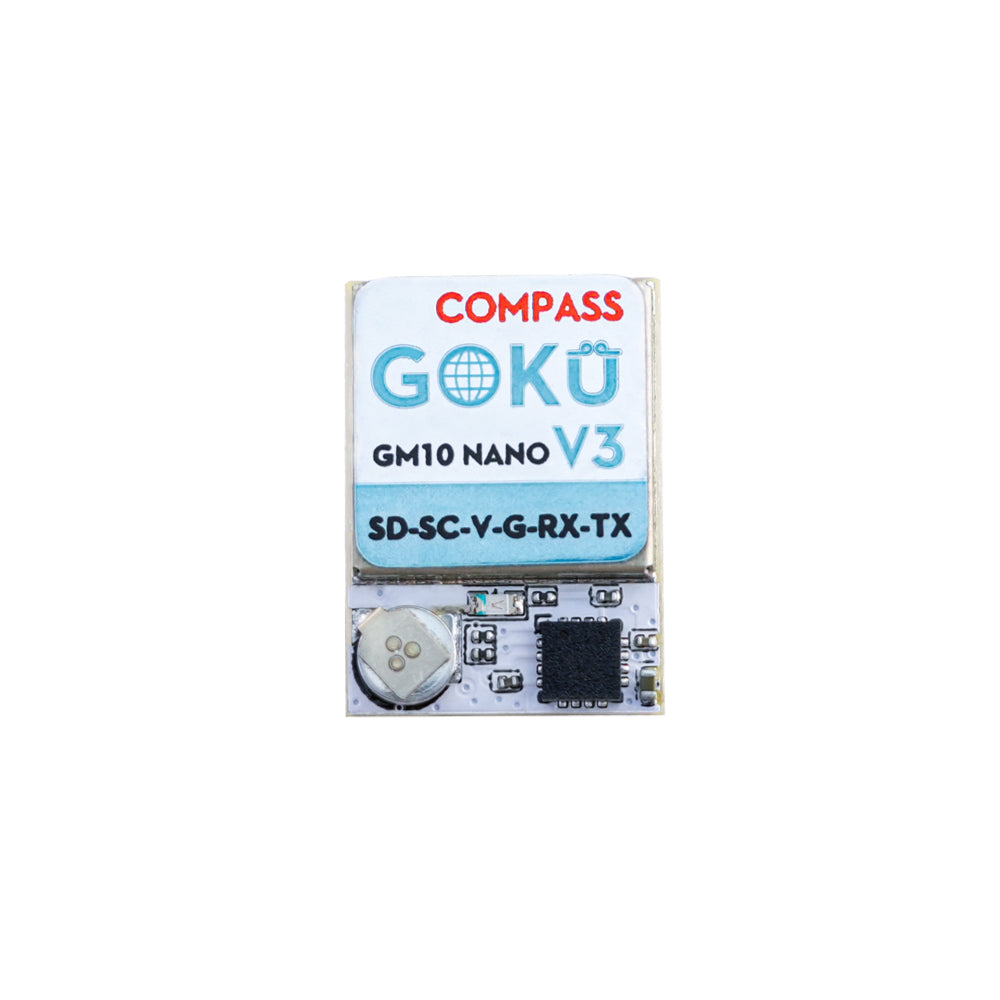

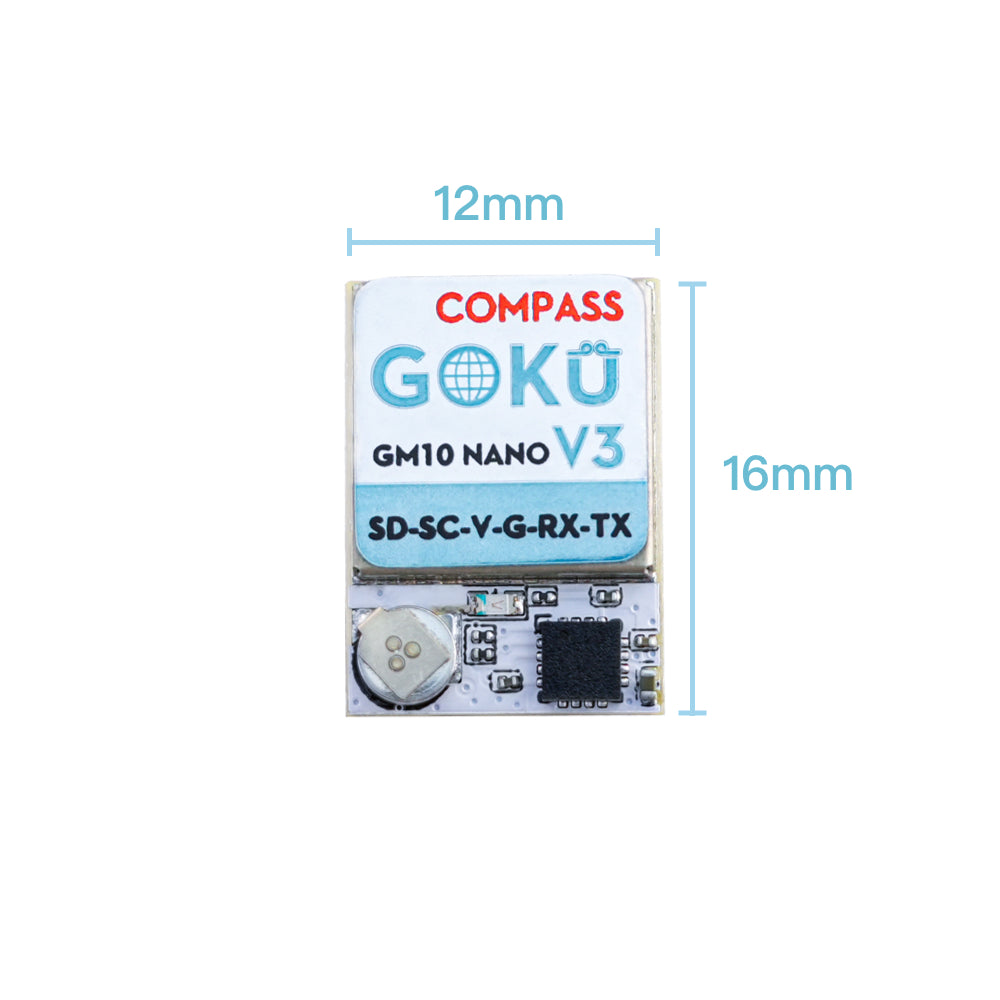

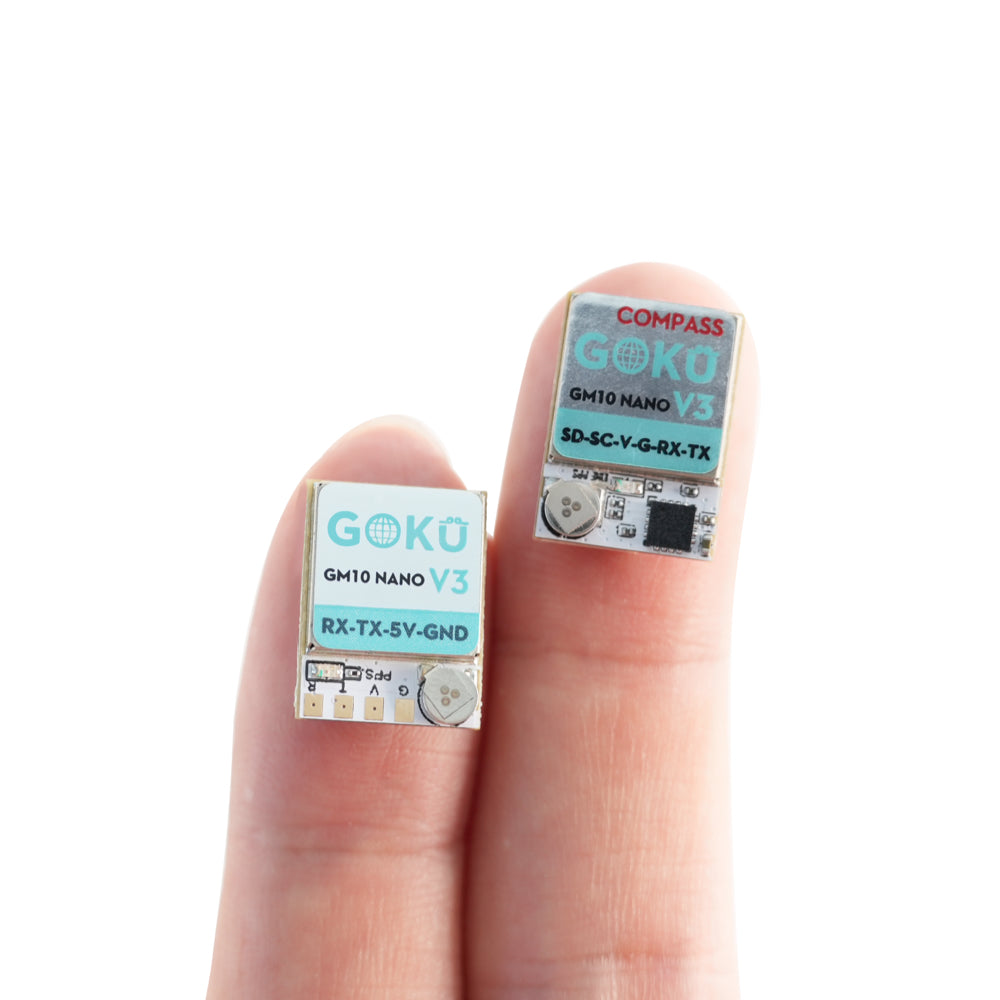

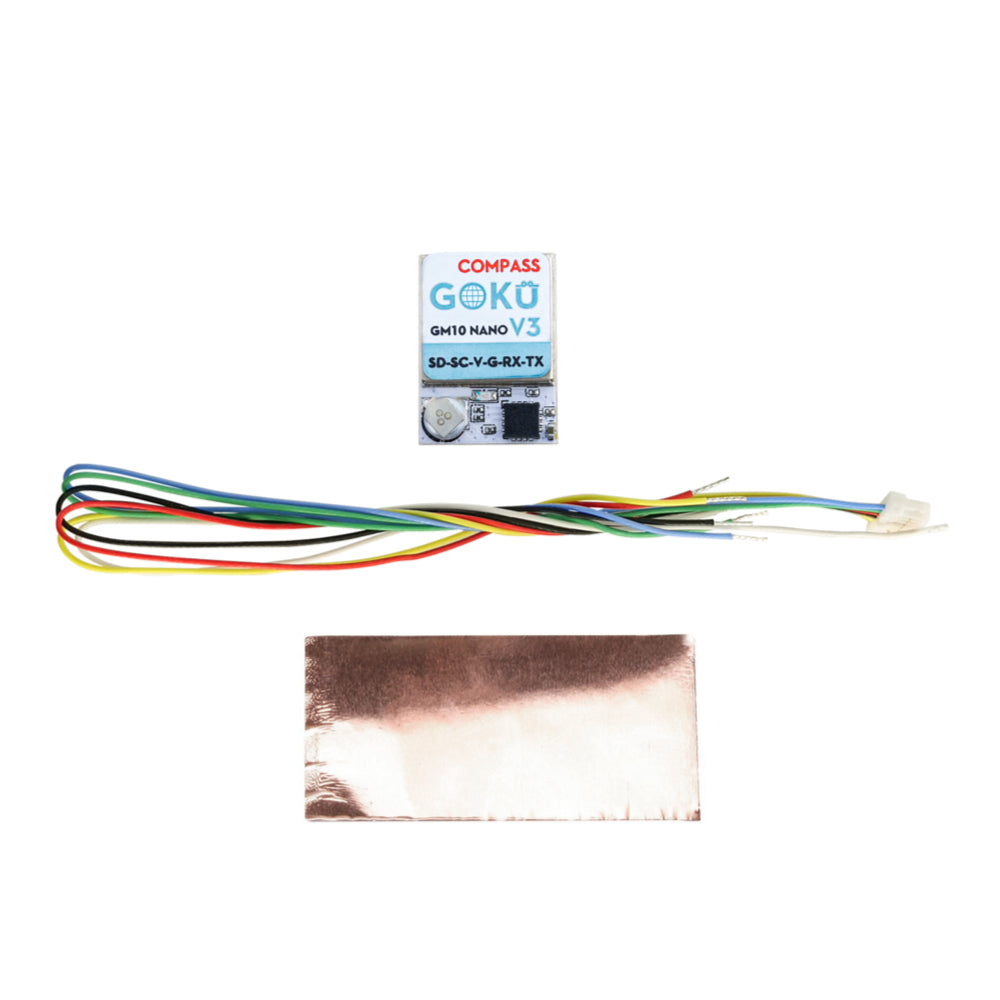

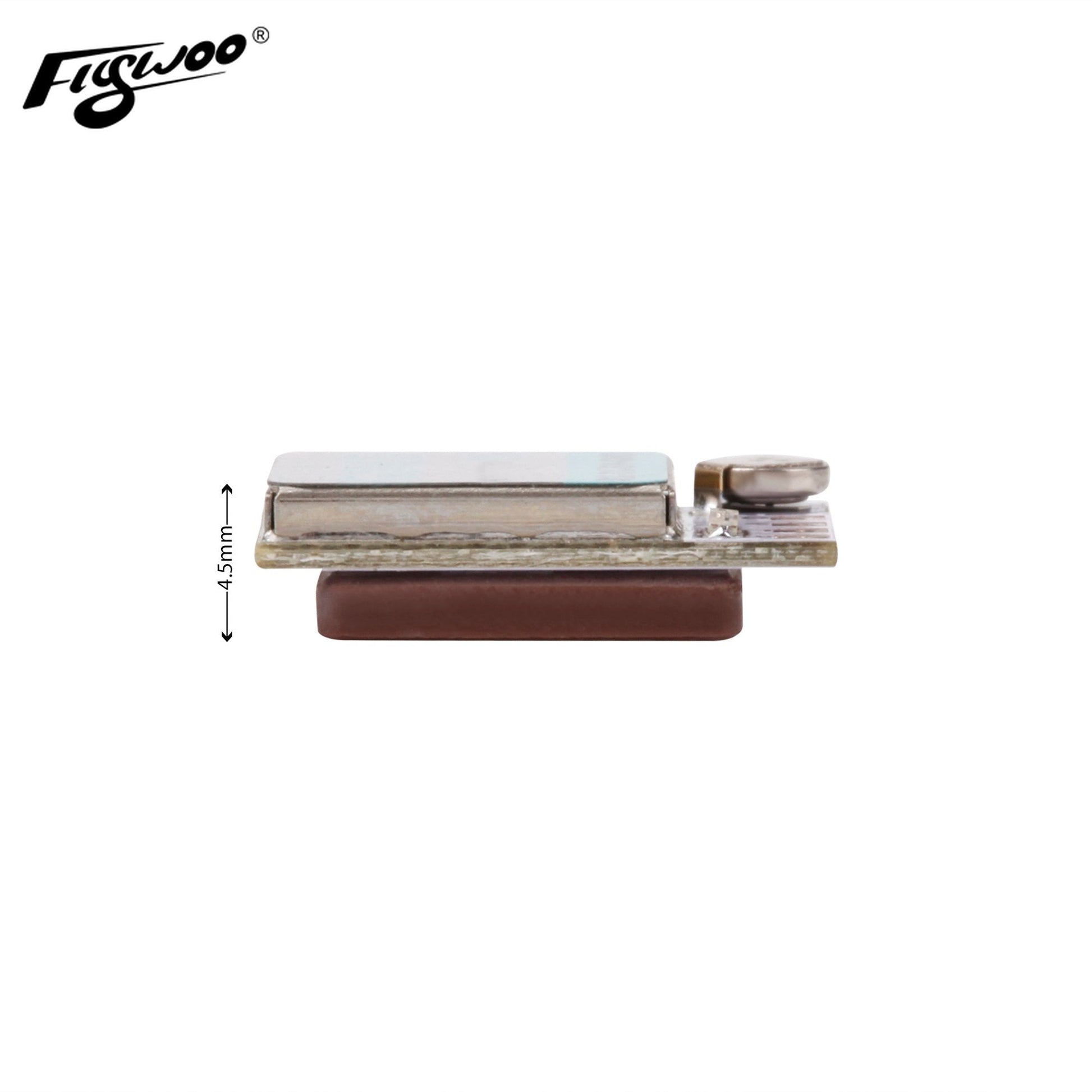

Flywoo GOKU GM10 Nano V3 GPS module with compass The Flywoo GOKU GM10 Nano V3 GPS with Compass is an ultra-compact plug-and-play navigation module designed for space-constrained micro-drones and drones. Weighing only 2.6g and measuring only 12 x 17mm, it combines a high-precision GPS receiver powered by the 10th generation M10050 chipset with a built-in electronic compass and offers full support for GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS. The integrated 6-pin pad and included connector enable easy installation without the need for soldering. Thanks to 72 tracking channels, an update frequency of 10 Hz and a wide range of input voltage, it ensures fast satellite signal acquisition and accurate real-time positioning even in challenging conditions. Specifications: Model: GM10 NANO V3 GPS with compass Dimensions: 12mm x 17mm x 5mm Weight: 2.6 g Connector: 6-pin pad (plug-and-play) Chipset: M10050 (10th generation) Compass: Integrated (QMC5883L or equivalent) Supported GNSS systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS Default GNSS protocol: GPS, Galileo, BeiDou Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1 Channels: 72 Tracking sensitivity: -162 dBm Reacquisition sensitivity: -160 dBm Baud rate: 4800 bps to 921600 bps (default 115200 bps) Data level: TTL (default), RS-232 Data protocol: BF4.3.X (UBLOX), BF4.2.X (NMEA) Output frequency: 1 Hz to 10 Hz (default 10 Hz) Maximum altitude: 50,000 m Maximum speed: 500 m/s Maximum acceleration: <4g Power supply: DC 3.3V-5V Operating temperature: -40 °C to +85 °C Storage temperature: -40 °C to +105 °C PPS LED indicator: Red - on when GPS is not fixed, off when it is Pinout: RX, TX, 3.3-5V, GND The package contains: 1 × GM10 Nano V3 GPS Module with Compass 1 x 100mm connection cable 1 x copper shielding foil
