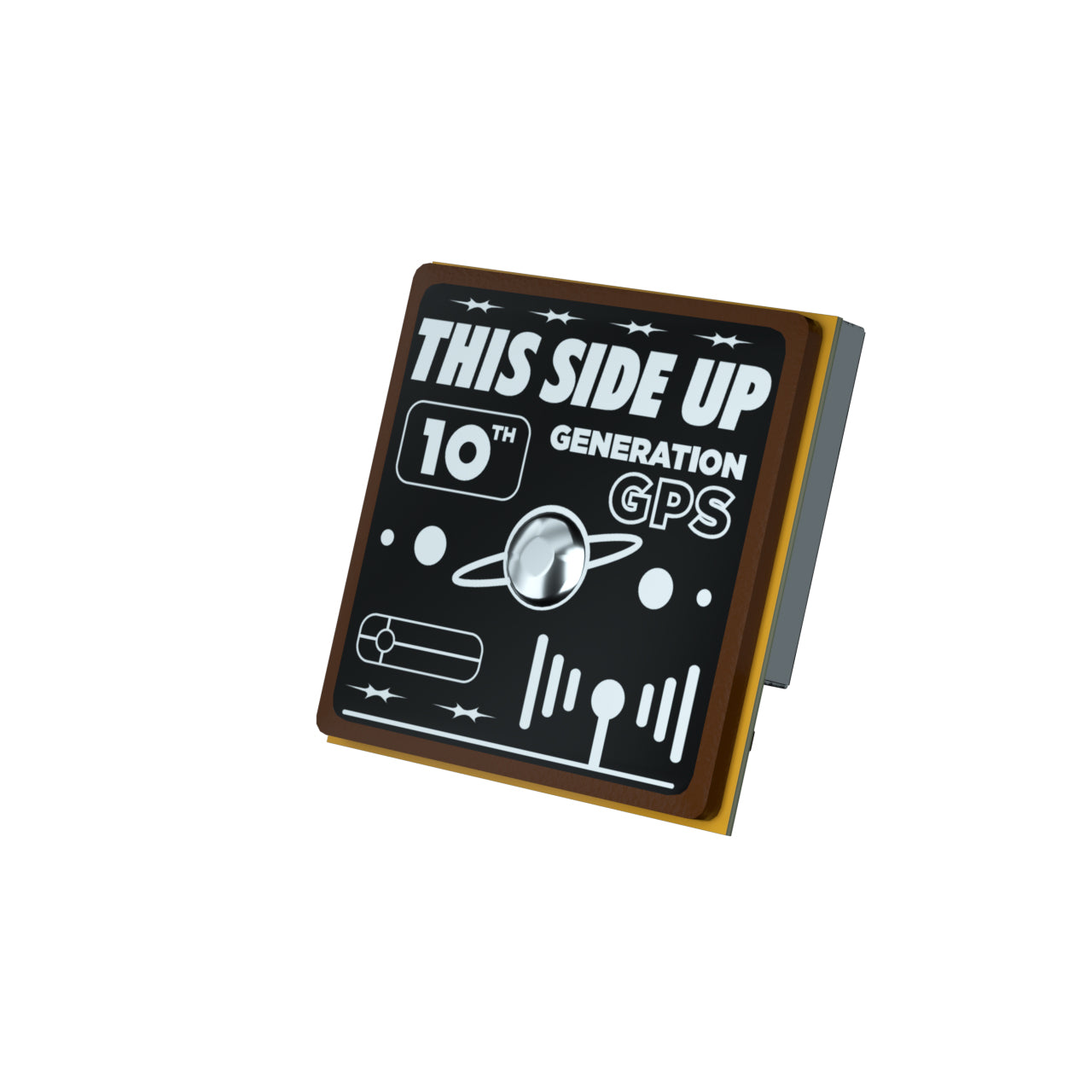

Flywoo GOKU GM10 Mini V3 GPS module with compass

Flywoo GOKU GM10 Mini V3 with Compass is a high-performance GPS module designed for FPV drones and UAVs that require accurate positioning and direction. Equipped with advanced M10050 (10th generation) chipset and QMC5883L electronic compass, this module supports multiple GNSS systems, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS. It offers exceptional tracking sensitivity, fast signal reacquisition and a fast 10Hz default refresh rate. The compact and lightweight 18 x 18 mm format is ideal for space-constrained designs, while the integrated compass adds essential directional data for flight controllers. Ideal for precise navigation in dynamic environments.

Specifications:

Model: GM10 MINI V3 GPS with compass

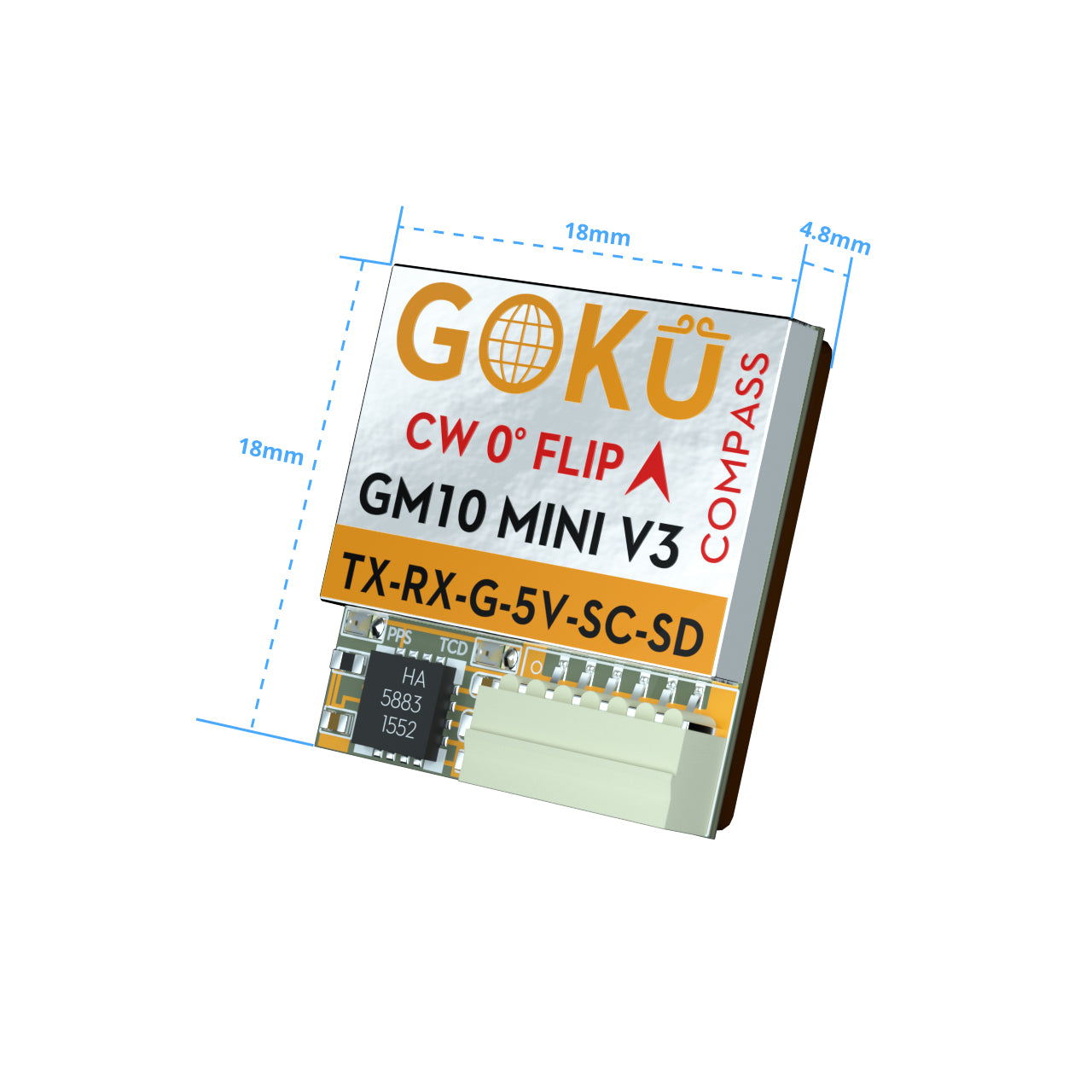

Dimensions: 18mm x 18mm x 4.8mm
Weight: 4.1 g
Connector: 6-pin patch connector with 1.00 mm pitch
Chipset: M10050 (10th generation)
Compass: Integrated electronic compass QMC5883L
Supported GNSS systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Default GNSS protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72
Tracking sensitivity: -162 dBm
Reacquisition sensitivity: -160 dBm
Baud rate: 4800 bps to 921600 bps (default 115200 bps)
Data level: TTL (default), RS-232
Data protocol: BF4.3.X (UBLOX), BF4.2.X (NMEA)
Output frequency: 1 Hz to 10 Hz (default 10 Hz)
Maximum altitude: 50,000 m
Maximum speed: 500 m/s
Maximum acceleration: <4g
Power supply: DC 5V
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +105 °C
PPS LED indicator: yellow - off until GPS signal is acquired, then blinks
Pinout: TX, RX, GND, 5 V, SCL, SDA

The package contains:

1 × GM10 Mini V3 GPS Module with Compass
1 × 150mm connecting cable
1 x copper shielding foil
