TinyGO 4K FPV Whoop RTF (Mode 2/Left Throttle)
TinyGO is an RTF kit that is suitable for every beginner from scratch and for indoor flying. TinyGO currently has two versions: Indoor version and 4K professional version. 4K can record 4K 60fps video.

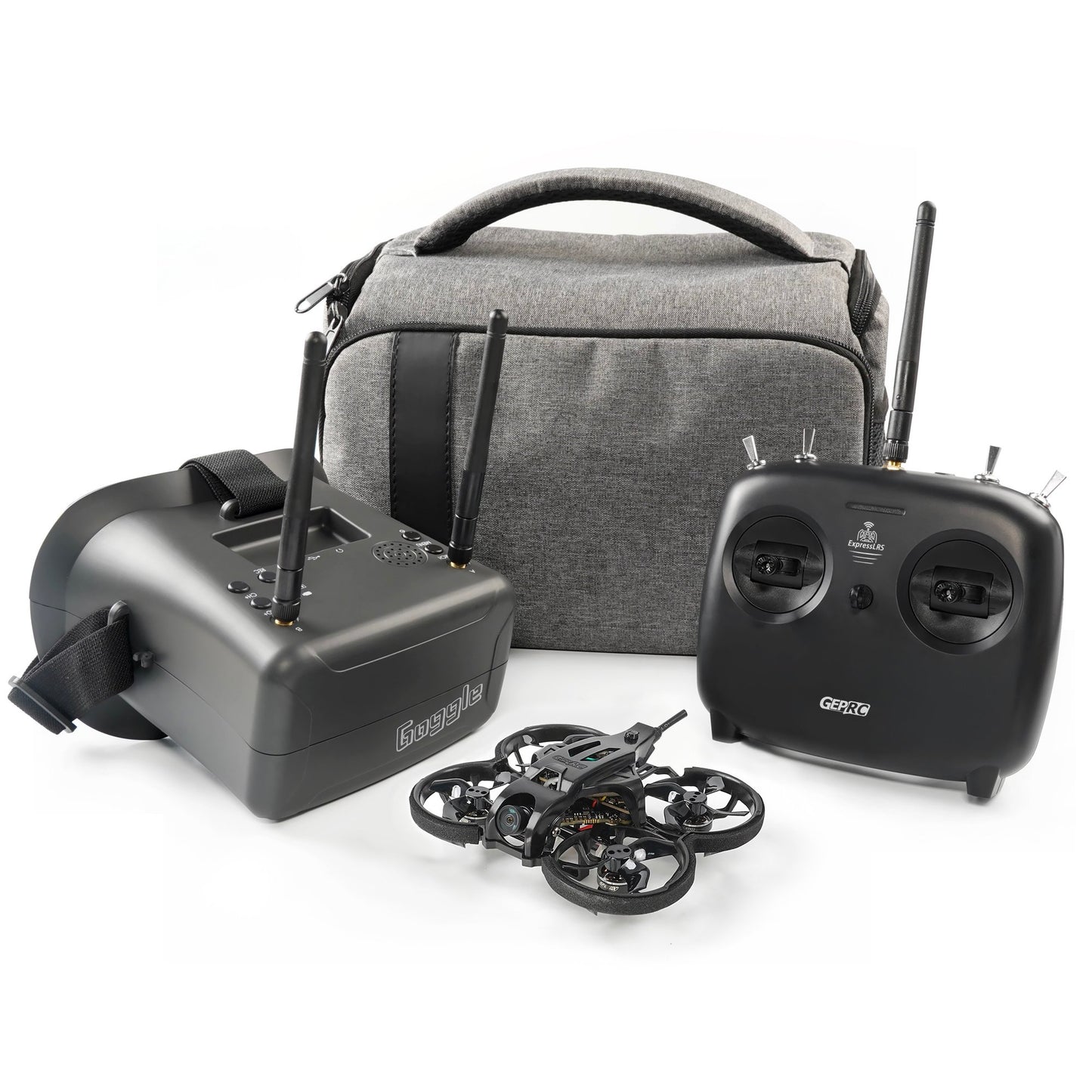

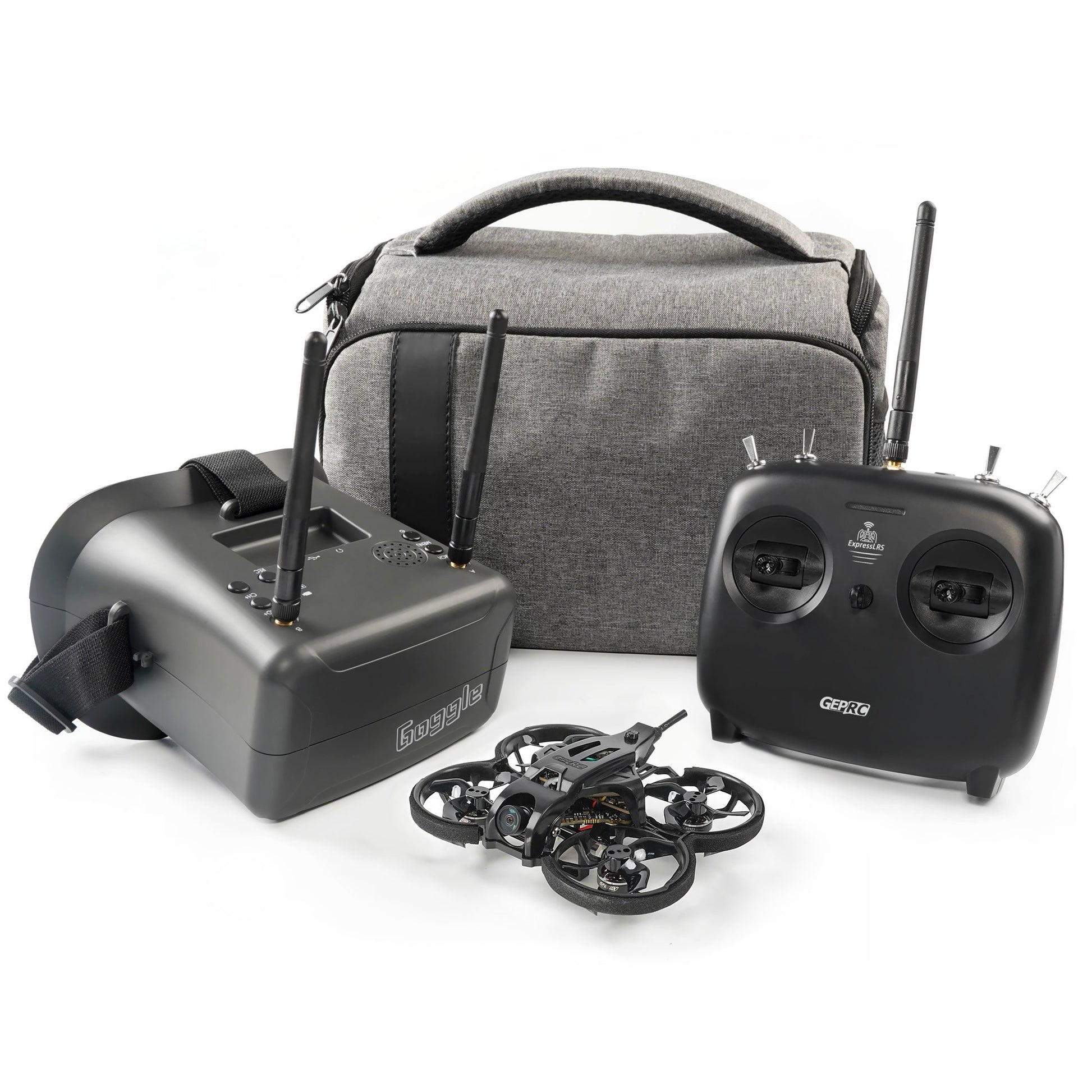

The kit includes 800x480px high resolution FPV goggles and the latest TinyRadio GR8 remote controller. It supports 8 channels and is specially designed for interiors and beginners. The remote control has a good control feel and is light and easy to carry. The advantage is that you don't have to carry heavy equipment. With our customized GEPRC Fly Bag, it's very convenient to go off-road, travel and fly indoors.
TinyGO can use its own charger to charge. The charger uses the Type-C interface. You can also use a portable power bank for charging. Use conveniently and quickly.
TinyGO can fly for more than 6 minutes (depending on flight patterns). Thanks to the stable electronic equipment and the extremely strong and durable frame material, the FPV is very stable and resistant to shocks. There is a protective EVA foam around the frame, which is more elastic and less prone to damage and deformation.
TinyGO currently has two versions: a professional 4K version and an indoor version https://www.hobbydrone.cz/en/fpv-whoop-rtf-geprc-tinygo-racing/.
Specifications of TinyGo 4K
Camera: Loris 4K
Image sensor: 1/2.7″ CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL switchable
Video Resolution: 1080P@60fps / 1080P@90fps / 2.7K/60FPS 4K/30FPS 4K/60FPS [REAL 3.5K/60FPS)
Power input: DC 4.5-20V
FPV FOV: 165°
Recording FOV: 170°
Mini lighting: 0.01 lux
Lens: 1.8mm lens
Working current: 380mA@5V/160mA@12V (low consumption)
OSD menu: Yes (support voltage display)
Video files: MOV
Sound: Support
Electronic shutter: PAL: 1/50-100,000 NTSC: 1/60-100,100
Video output: CVBS
Configuration
Name: TinyGO
Brand: GEPRC
Frame: GEP-TG16
Engine to engine: 79mm
FC: TAKER F411 8bit 12A
MCU: STM32F411
IMU: 42688-P
Blackbox: 16 Mb
OSD: BetaFlight OSD with AT7456E chip
ESC: 8bit 12A
VTX: RAD Whoop 5.8G 25~400mw VTX
Camera: Runcam Nano2/Caddx Loris 4K 60fps
Propellers: GEMFAN 1636*4 (4 pairs)
Engines: GR1102 10000Kv
Receiver: Integrated ELRS SPI receiver
Weight of TinyGO 4K: 54.8 grams
Remote control:
TinyRadio ELRS 2.4G remote control
Radio frequency: 2.4 GHz
Radio frequency: 2.4 GHz
Range: 1000+ meters
Channel: 8
Transmit power: <500mW
Antenna interface: SMA
Low voltage alarm: <6.6V
Battery: 2 x 18650 batteries (not included)
FPV Goggles:
Resolution: 800*480px
Screen size: 4.3 inches
Overall size: 155mm x 144mm x 113mm
Built-in battery: 3.7V/2000mAh
Working time: 2.5 hours
Weight: 314.6 grams
FPV Battery:
Battery capacity: 530 mAh
Voltage: 4.35V 1S1P
Discharge rate: 90C
Size: (61mm x 16.7mm x 7mm)
Weight: 12.7 grams
Interface: PH2.0
Charger:
Input power: 5V (USB and Type C)
Fully charged voltage: 4.35V
Output current: 500mAh
Charging: Can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time
