FPV Kit Holybro X650 Development Kit

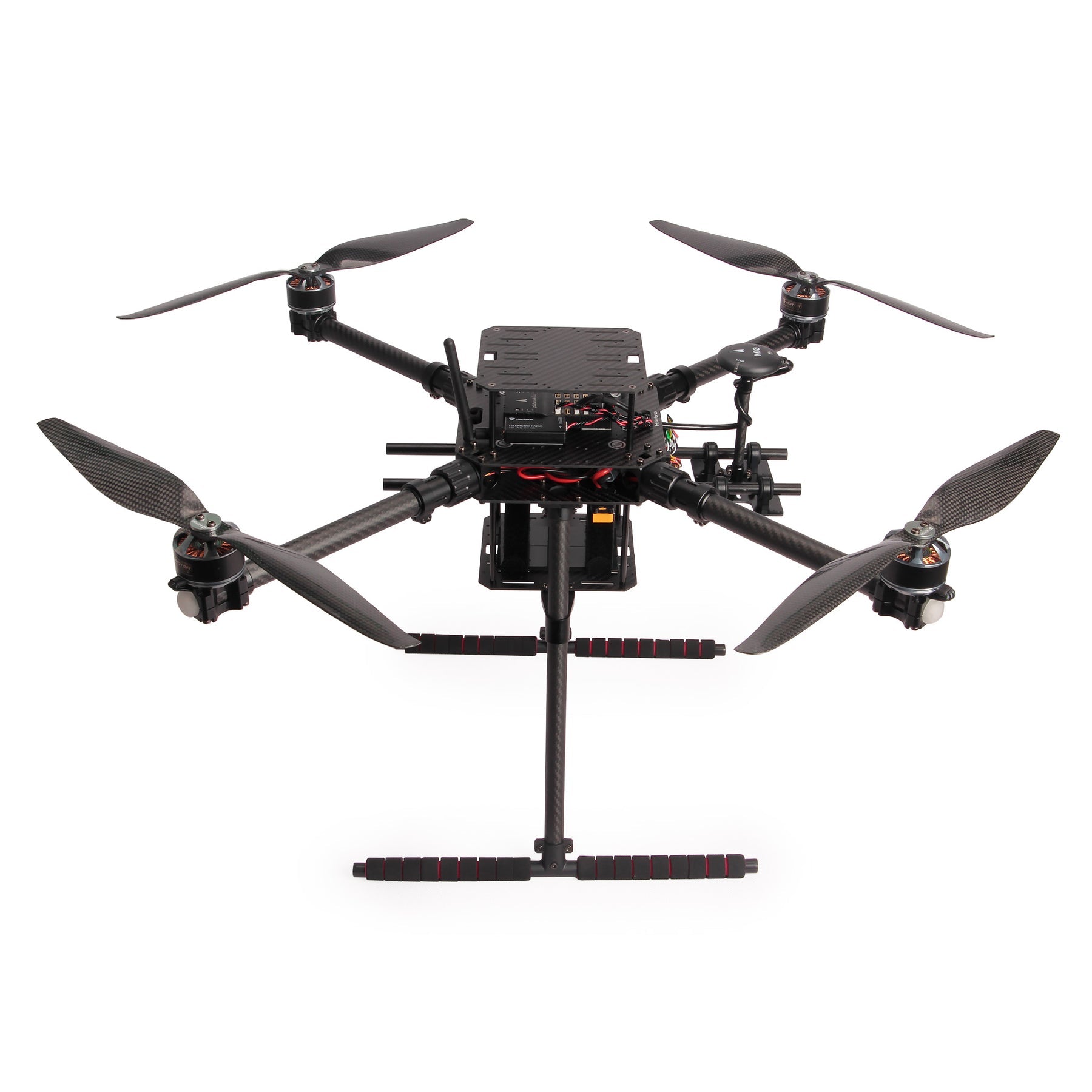

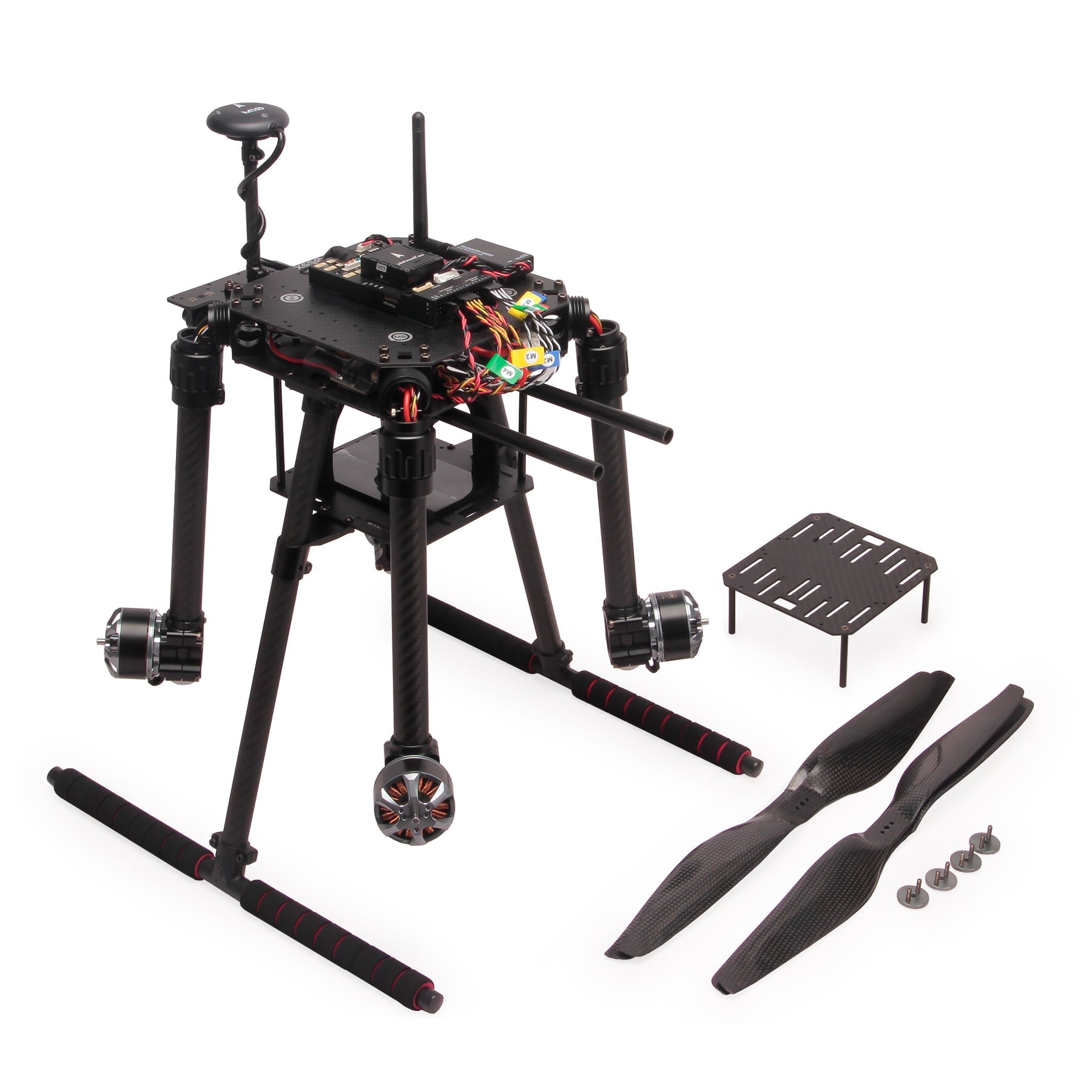

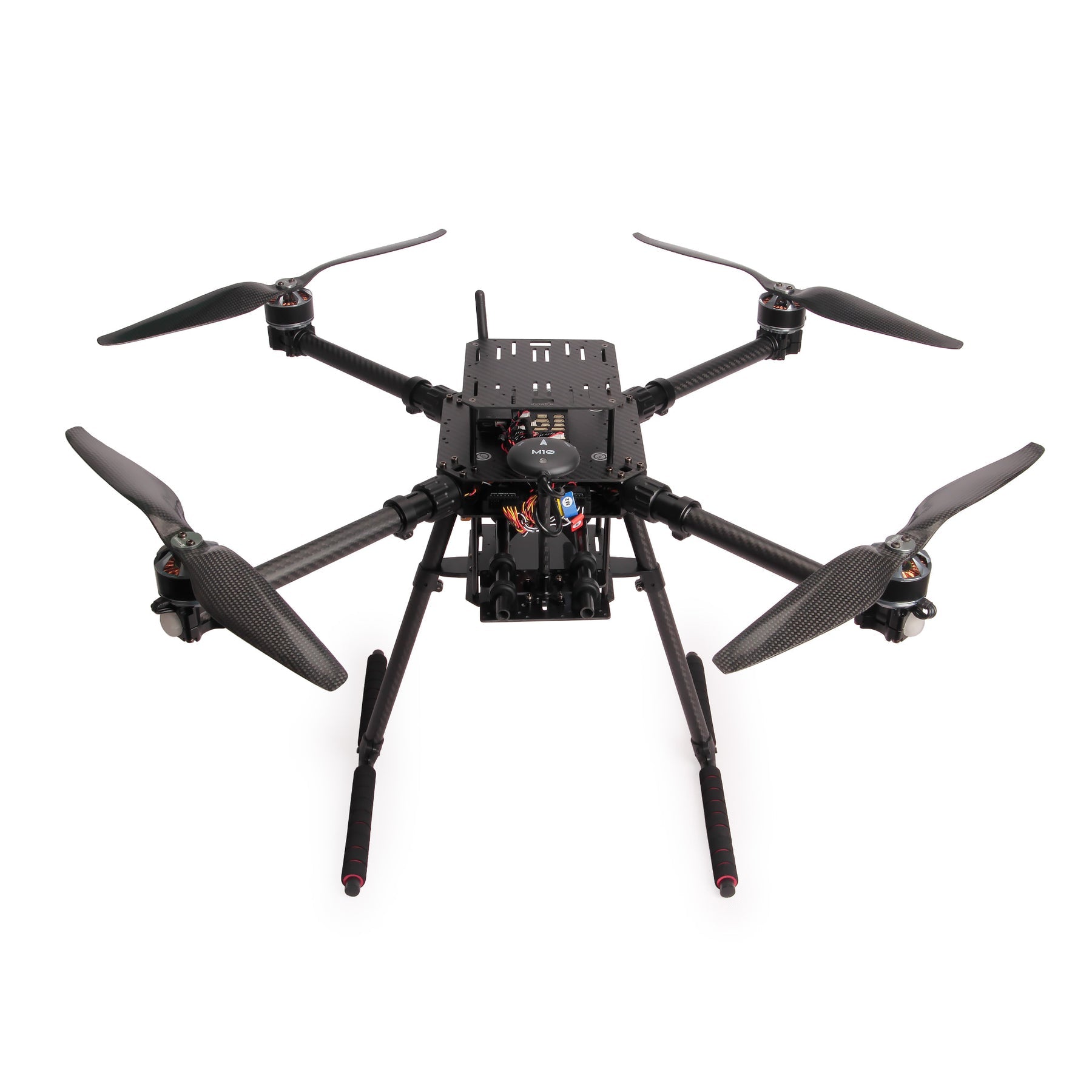

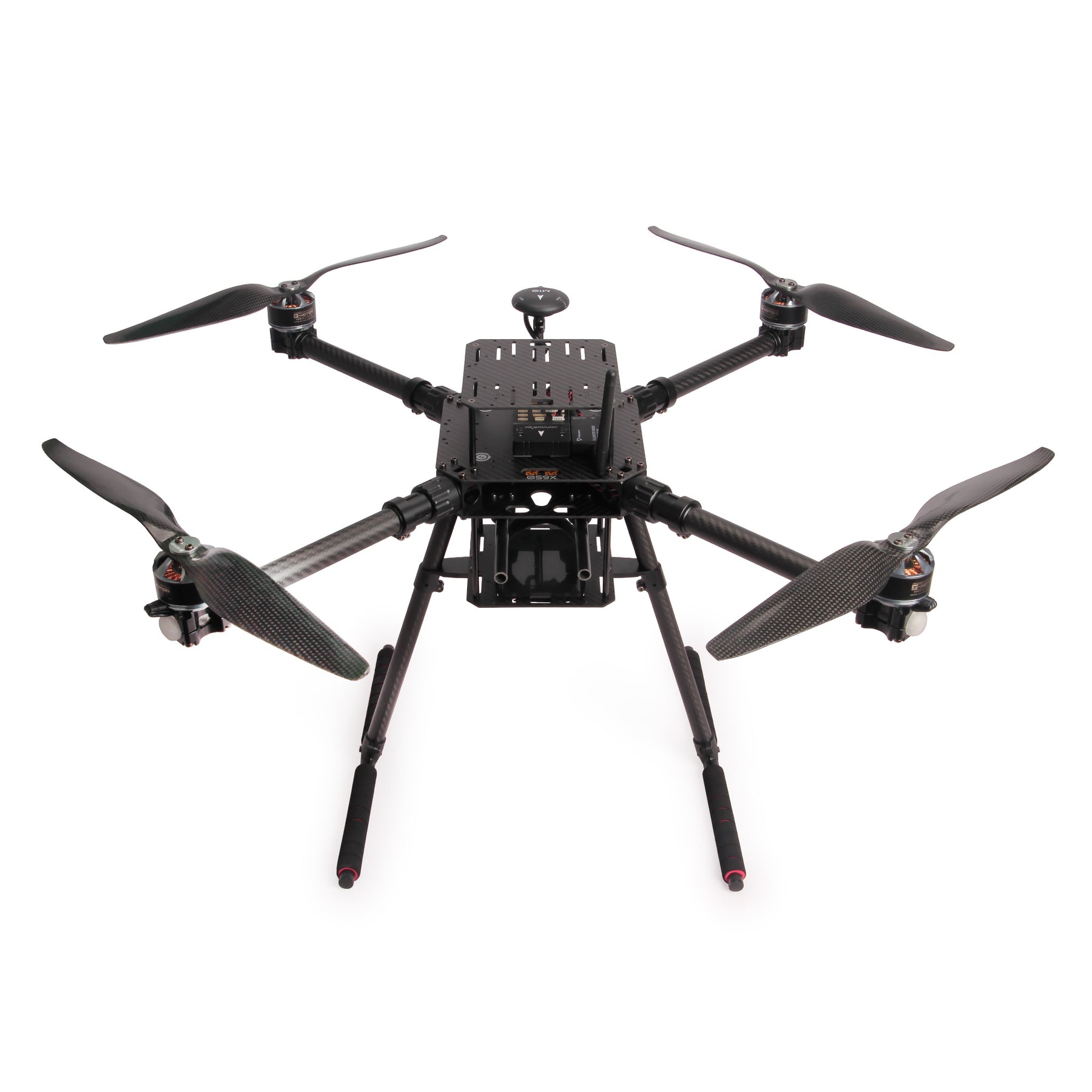

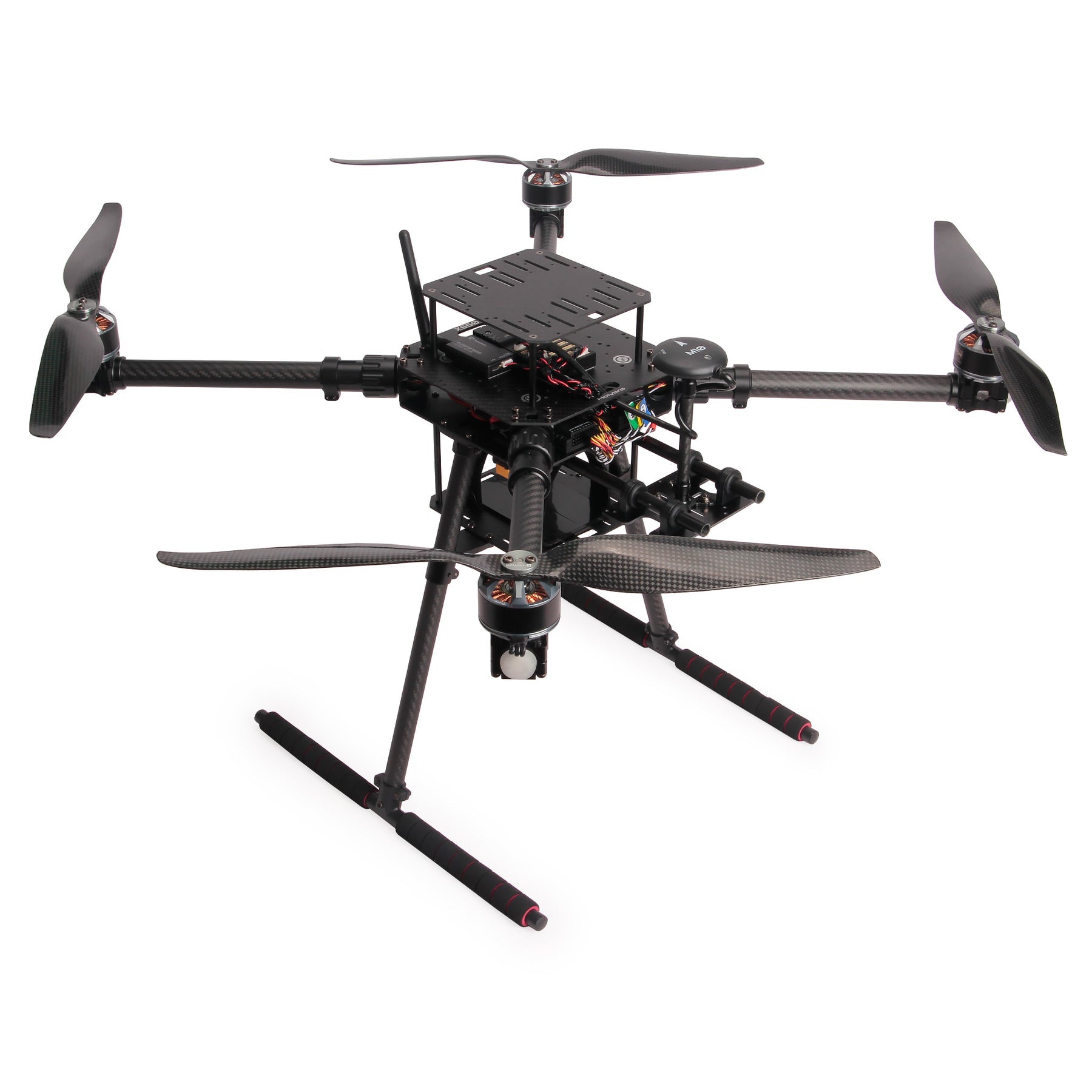

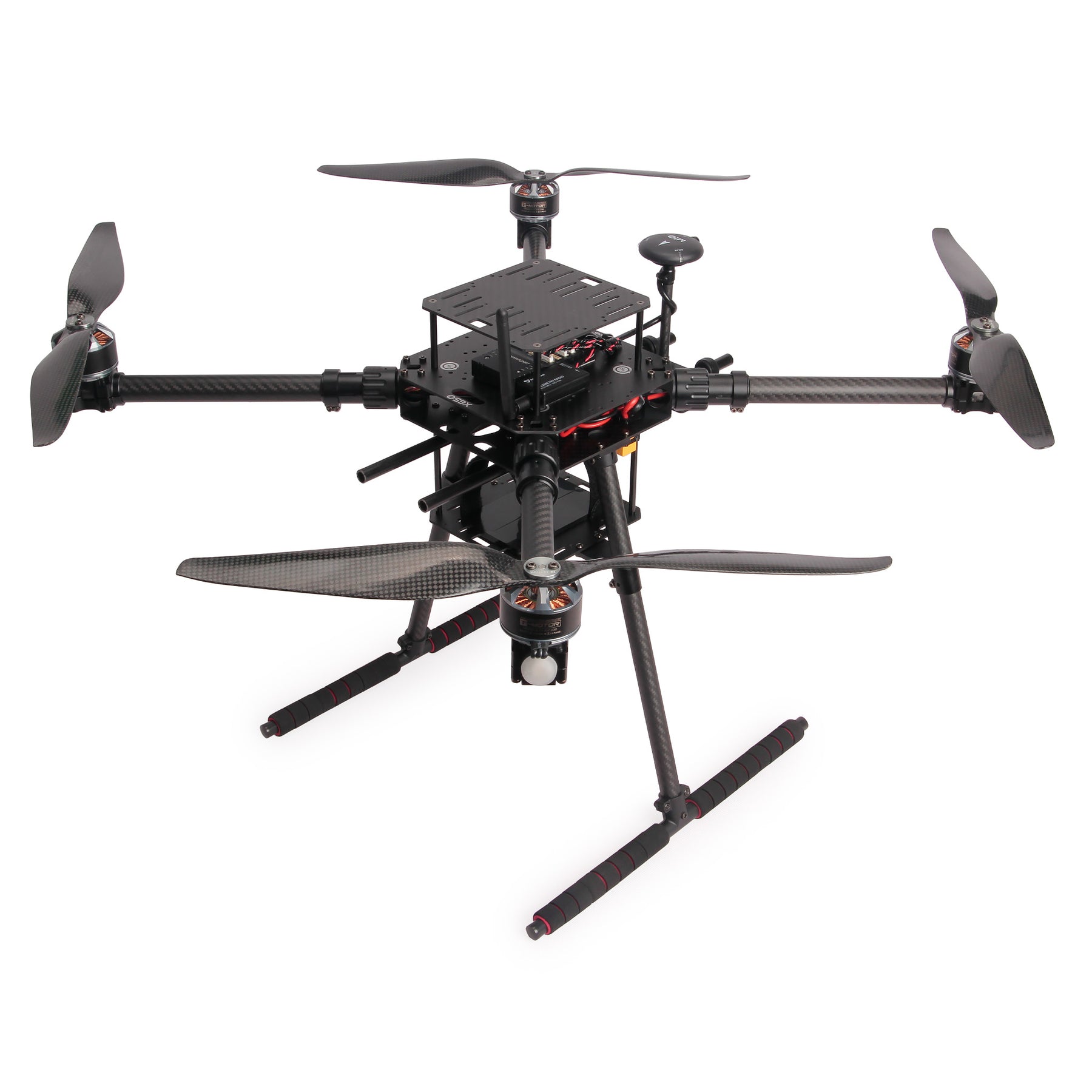

Holybro X650 FPV drone development kit

The X650 Development Kit is an easy-to-build and affordable rugged professional carbon fiber drone development kit with the latest Holybro Pixhawk 6C or Pixhawk 6X Autopilot flight controller, M10 GPS, plug & play SiK Telemetry Radio, in a brand new X650 frame. It's quick and easy to assemble with no soldering required, so you can spend more time flying and developing instead.

Features:

- Brand new Pixhawk 6C or Pixhawk 6X flight controller with M10 GPS and plug & play SiK telemetry radio.
- Carbon fiber frame with collapsible aluminum shoulder connector
- New frame design with minimal assembly time, no soldering required.
- Easy and straightforward installation
- Spacious platform for easy integration of other accessories and battery
- Pre-installed motors, ESC and LED with simple XT30 power connectors for PDB
- Power distribution board (PDB) with XT60 and XT30 connectors
- Optional depth camera mount for Intel RealSense depth camera

The X650 development kit includes:

- Autopilot Flight control unit: Pixhawk 6C (plastic case) & PM02 V3 or Pixhawk 6X (v2A)& PM02D
- GPS: GPS module M10
- Telemetry radio: SiK Telemetry transmitter V3 433/915MHz
- X650 V2 Frame Kit
- Pre-installed items: 4 motors - Tmotor MN4014 KV330 Motor with XT30 connector / 4 LEDs - NeoPixel WS2812 LED (setup guide) / 4 ESC - Tekko32 F4 45A ESC with XT30 connectors
- Gemfan 1555 carbon fiber propellers (4 pcs)
- Power distribution board (XT60 plug for battery and XT30 plug for ESC and peripherals)

X650 frame kit details:

- Wheelbase: 650 mm
- Motor Mount Pattern: 16-25mm Pattern
- Body - full carbon fiber top and bottom plate (160 x 160mm, 2mm thickness)
- Arm - High strength and ultra light 20mm carbon fiber tubing with newly designed aluminum folding arm mount
- Landing gear - 16mm and 10mm diameter carbon fiber tubes with reinforced and improved plastic tee connectors.
- Top and battery plate - 120 x 128mm carbon fiber plate for various payloads, accessories or battery.
- Platform board - With mounting holes for GPS and popular companion computer such as Raspberry Pi 4 and Jetson Nano.
- Double rail mounting system with a diameter of 10 mm x length of 320 mm.
- Two pads and straps for the battery
- Hand tools for installation

Flight time and payload:

- Flight time: 30 min (Hovering with 6S 10000 mAh battery, without additional payload)
- Weight of the whole set: 2000 g (without battery)
Payload: 4.3kg (without battery) / 3.5kg (with 5200mAh battery 750g) / 3.1kg (with 10000mAh battery 1200g)
- Takeoff weight limit: 6300 g (70% throttle)
- Recommended Battery: 1: 6S 5000-12000mAh Lipo Battery with XT60 (not included)

The package contains:

- 1 x Holybro X650 Development Kit
