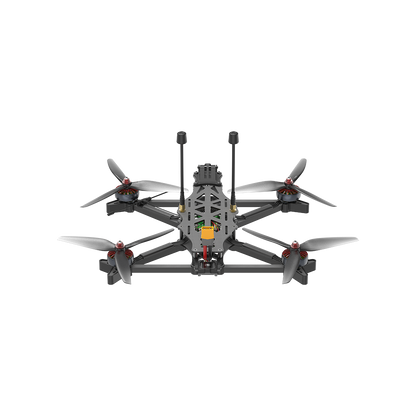

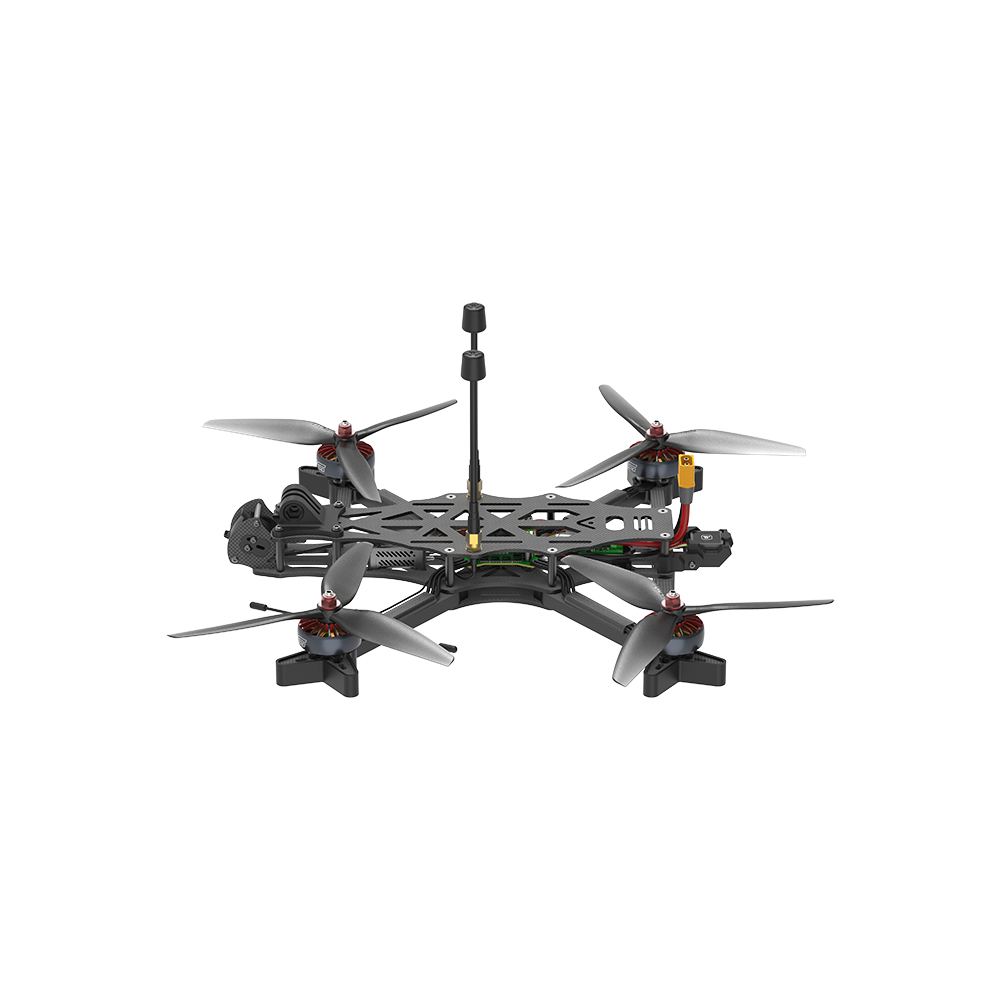

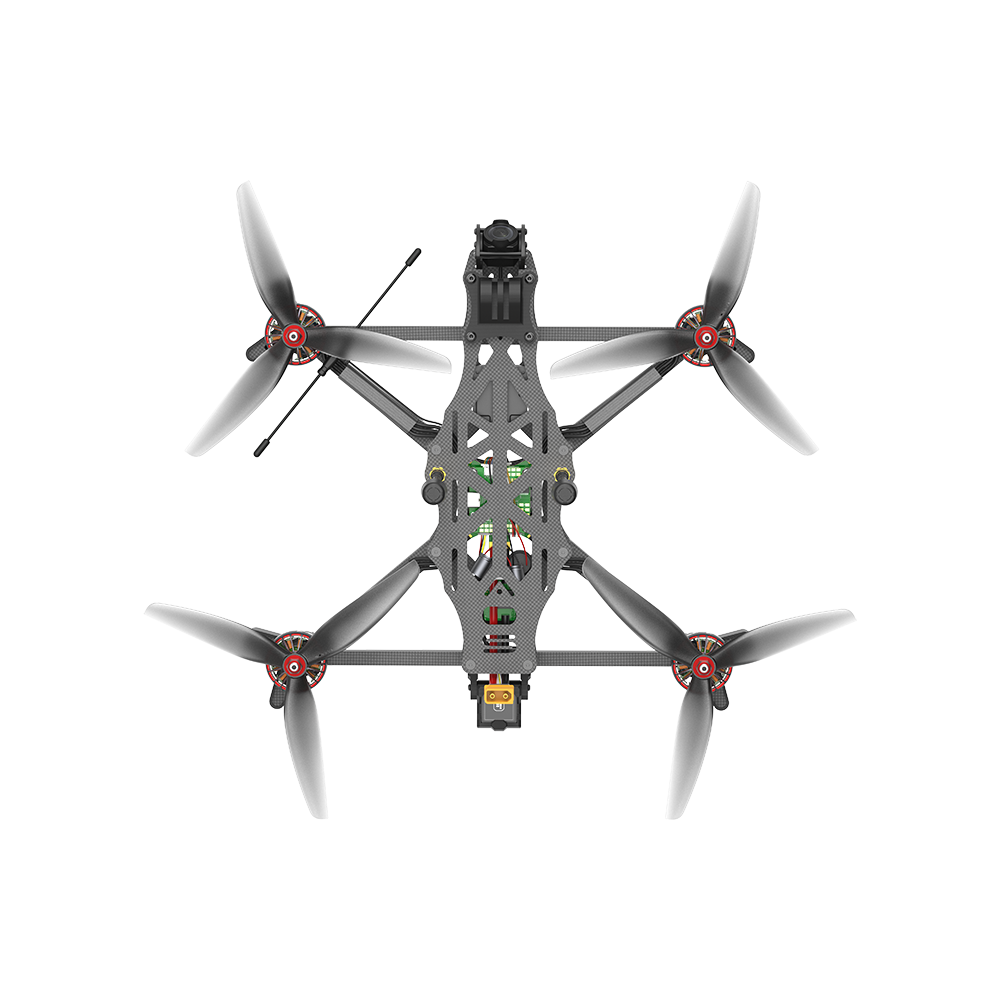

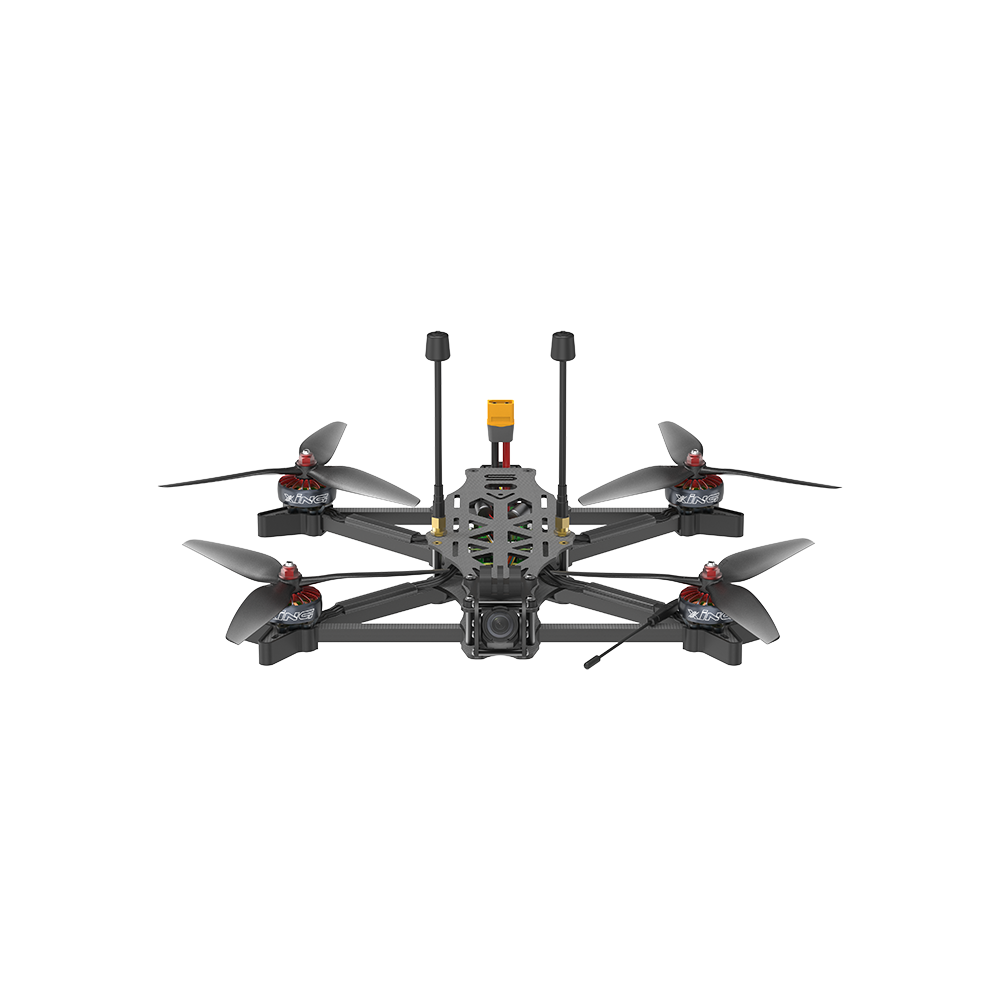

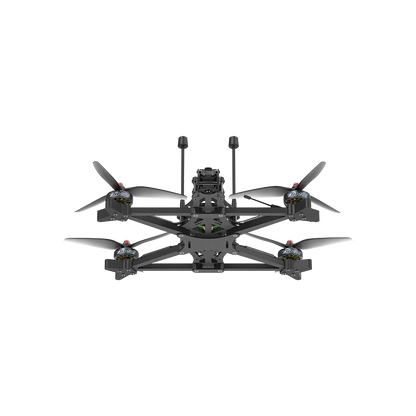

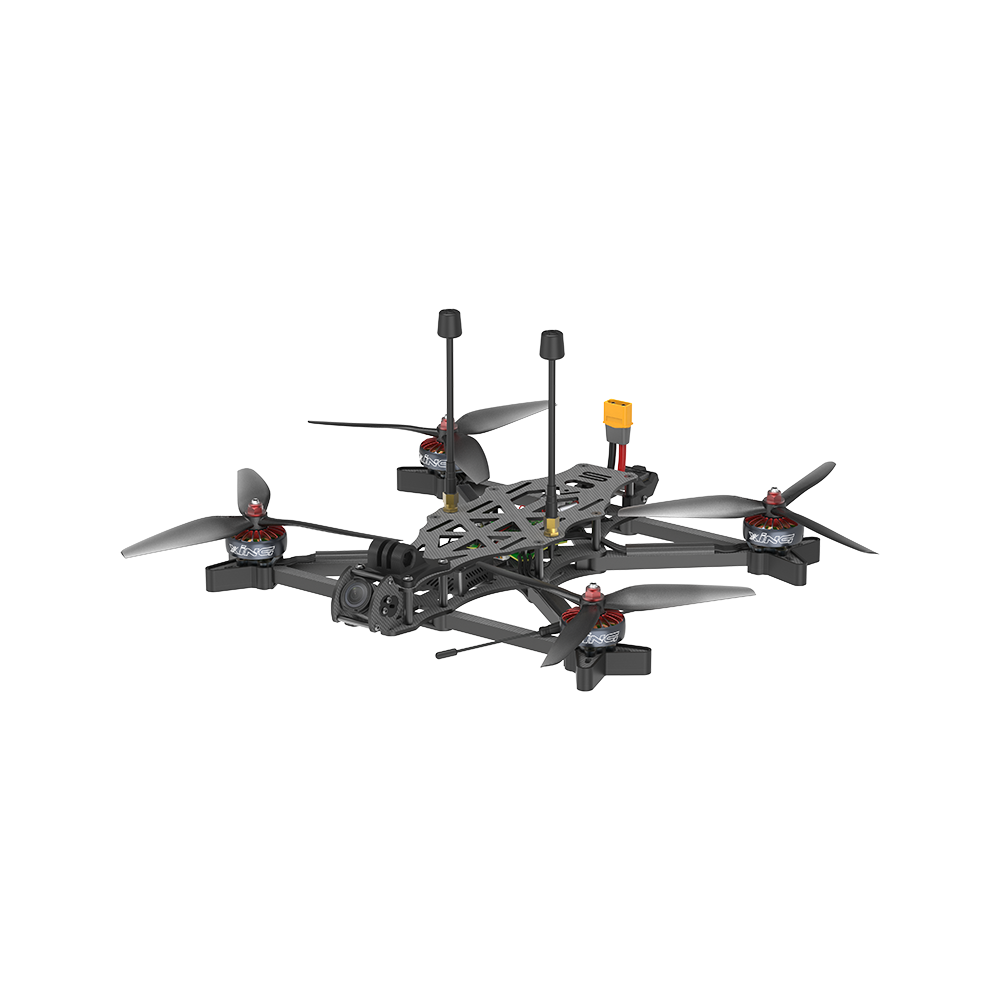

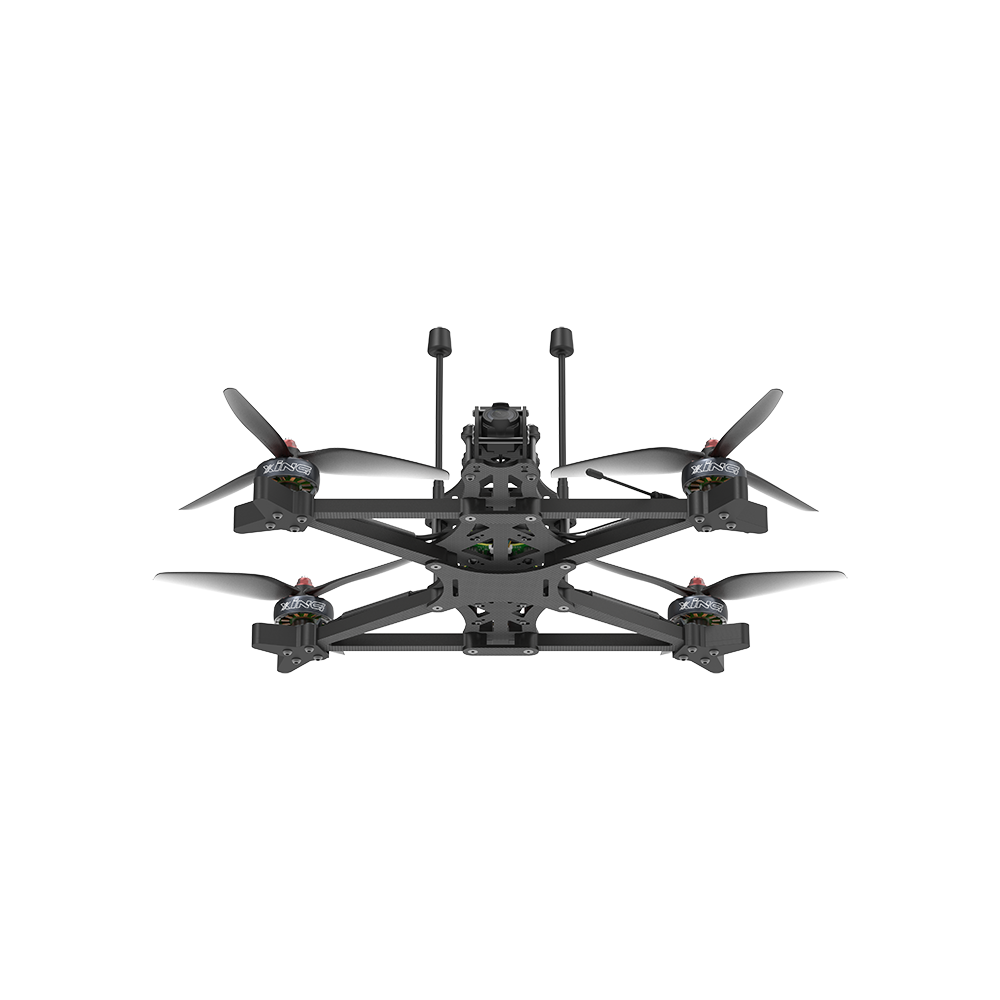

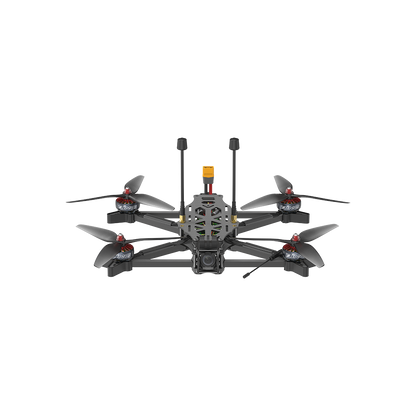

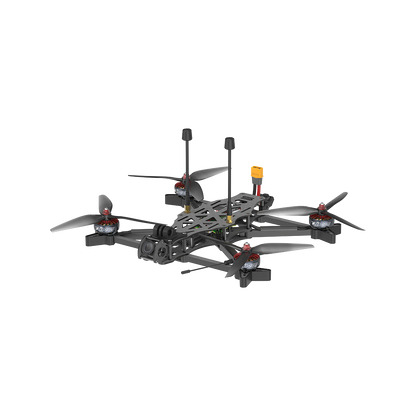

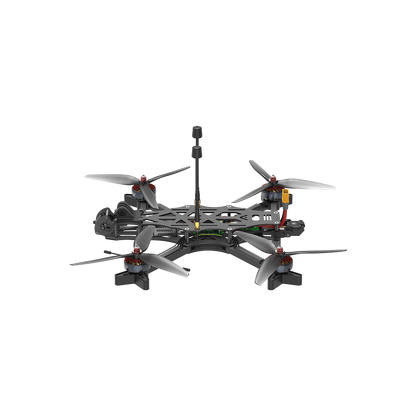

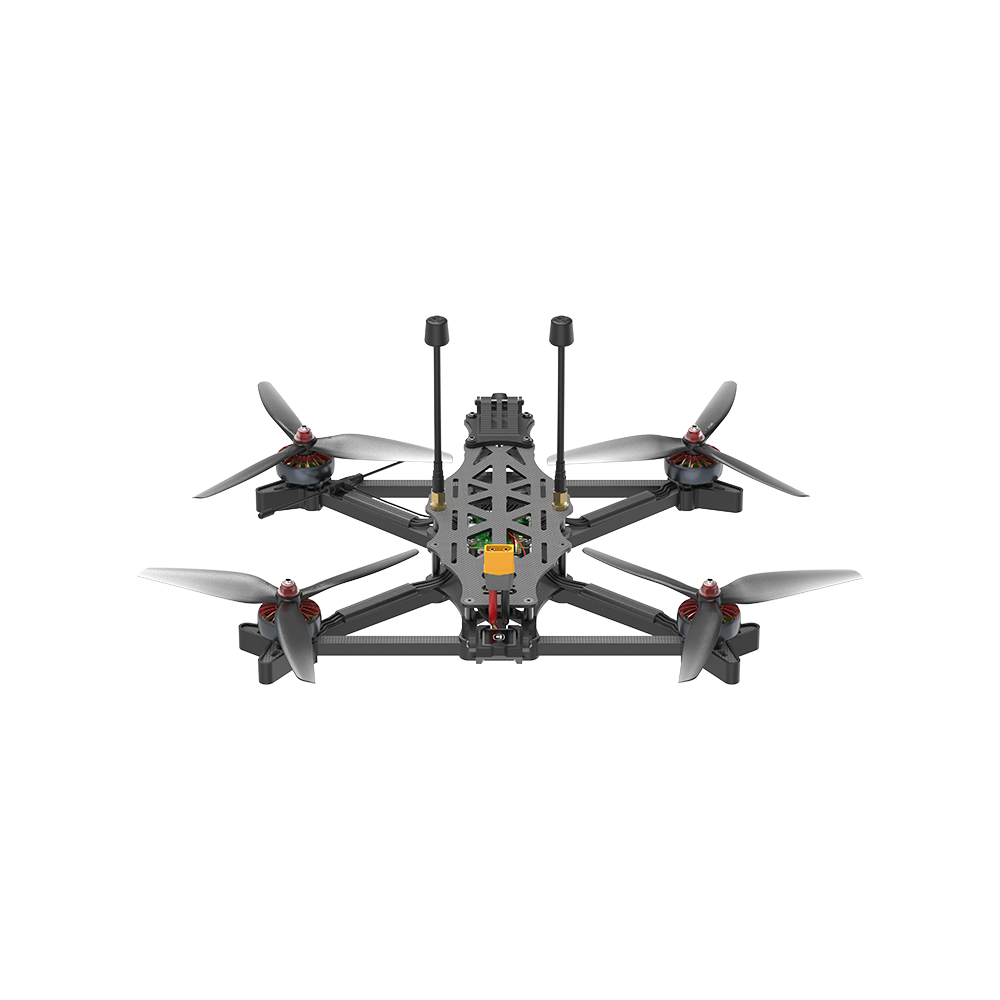

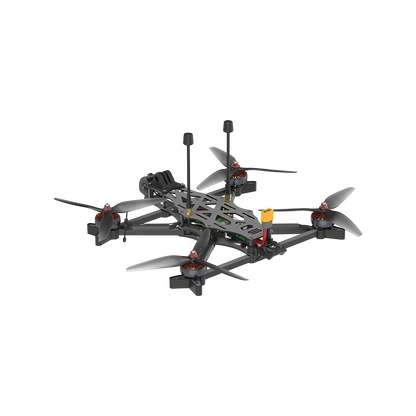

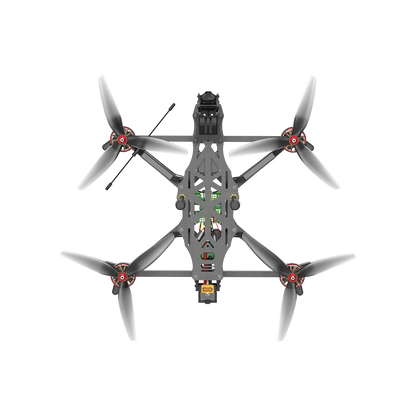

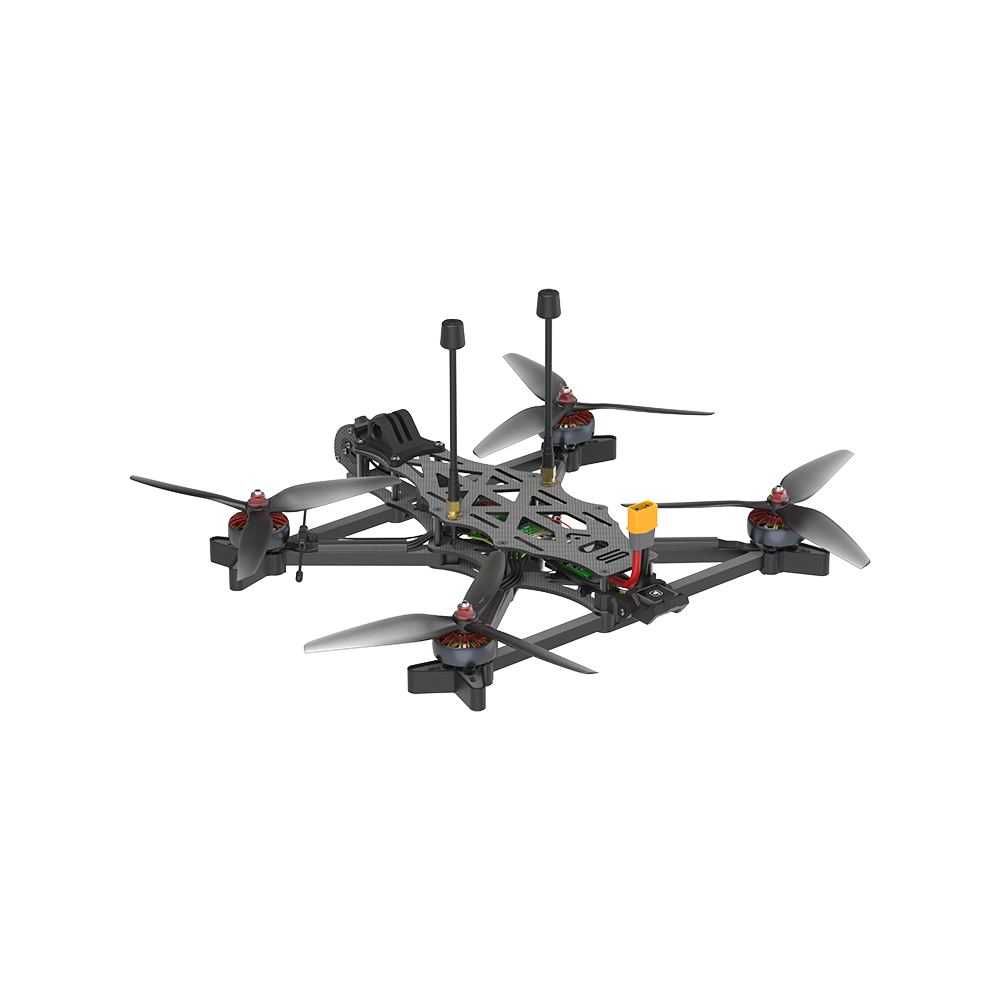

FPV Drone iFlight AOS 7 EVO V1.2 HD 6S BNF (ELRS 2.4GHz)
Properties
- Lightweight Design: Optimized for low vibration, allowing less filtering and higher PID gains.
- Universal Performance: Combines the best features of freestyle and long flight.
- Advanced Electronics: High quality components and topology optimization.
Specifications
- Frame: 293mm pitch, dimensions 284×228×34.5 mm.
- Flight Controller (FC): BLITZ F722 FC.
- ESC: BLITZ E55 55A 4-in-1 ESC.
- Motors: XING 2806.5 1300KV.
- Propellers: GemFan 7040.
- Starting Weight: Approximately 652g.
- Maximum Speed: 140 km/h in manual mode.
- Maximum Start Altitude: 7000 m.
- Maximum Hover Time: About 30 minutes with 6S 2P 8000mAh battery (no load).
- Maximum Wind Resistance: Level 6.
- Operating Temperature Range: -10° to 40° C.
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass.
Video Transfer
- Product Name: DJI O3 Air Unit.
- Communication Bandwidth: Max 40 MHz.
- Field of View (FOV): 155° (single screen).
-
Communication Frequency:
- RX only: 2.400-2.4835 GHz.
- RX and TX: 5.725-5.850 GHz.
-
End-to-End Latency:
- With DJI FPV Goggles V2:
- 810p/120fps: Latency lower than 28ms.
- 810p/60fps: Latency lower than 40ms.
- With DJI Goggles 2:
- 1080p/100fps: Latency up to 30ms.
- 1080p/60fps: Latency up to 40ms.
- With DJI FPV Goggles V2:
- Maximum Video Transmission Bitrate: 50 Mbps.
-
Maximum Video Transmission Range:
- 10 km (FCC).
- 2 km (CE).
- 6 km (SRRC).
- Operating Temperature Range: -10º to 40º C.
- Power supply: 7.4-26.4 V.
Package Contents
- 1 x AOS 7 EVO V1.2 6S HD. BNF (ELRS 2.4GHz)
- 2 x Antennas.
- 2 x Propeller Sets.
