Please note that this version does not include the M-10 GPS.

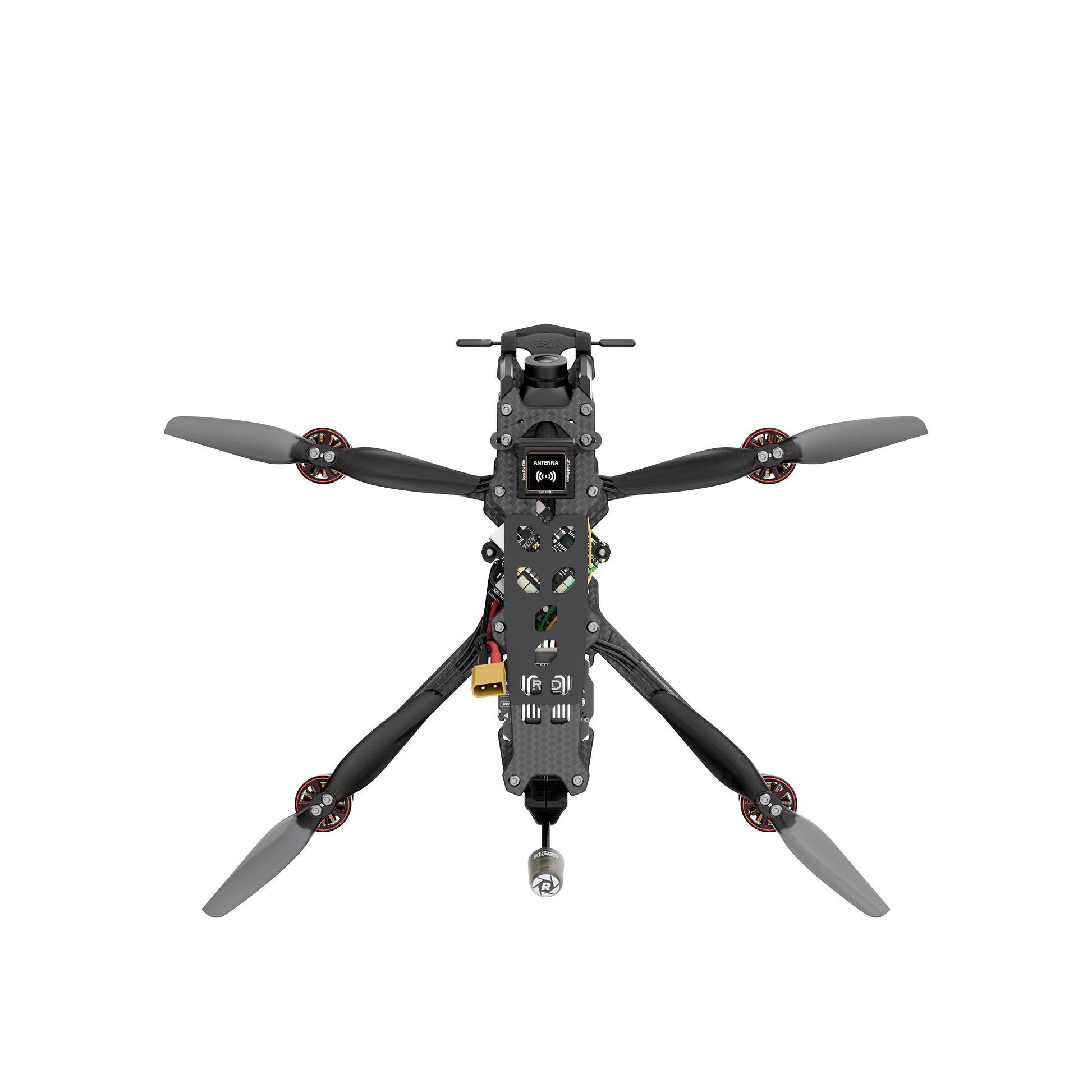

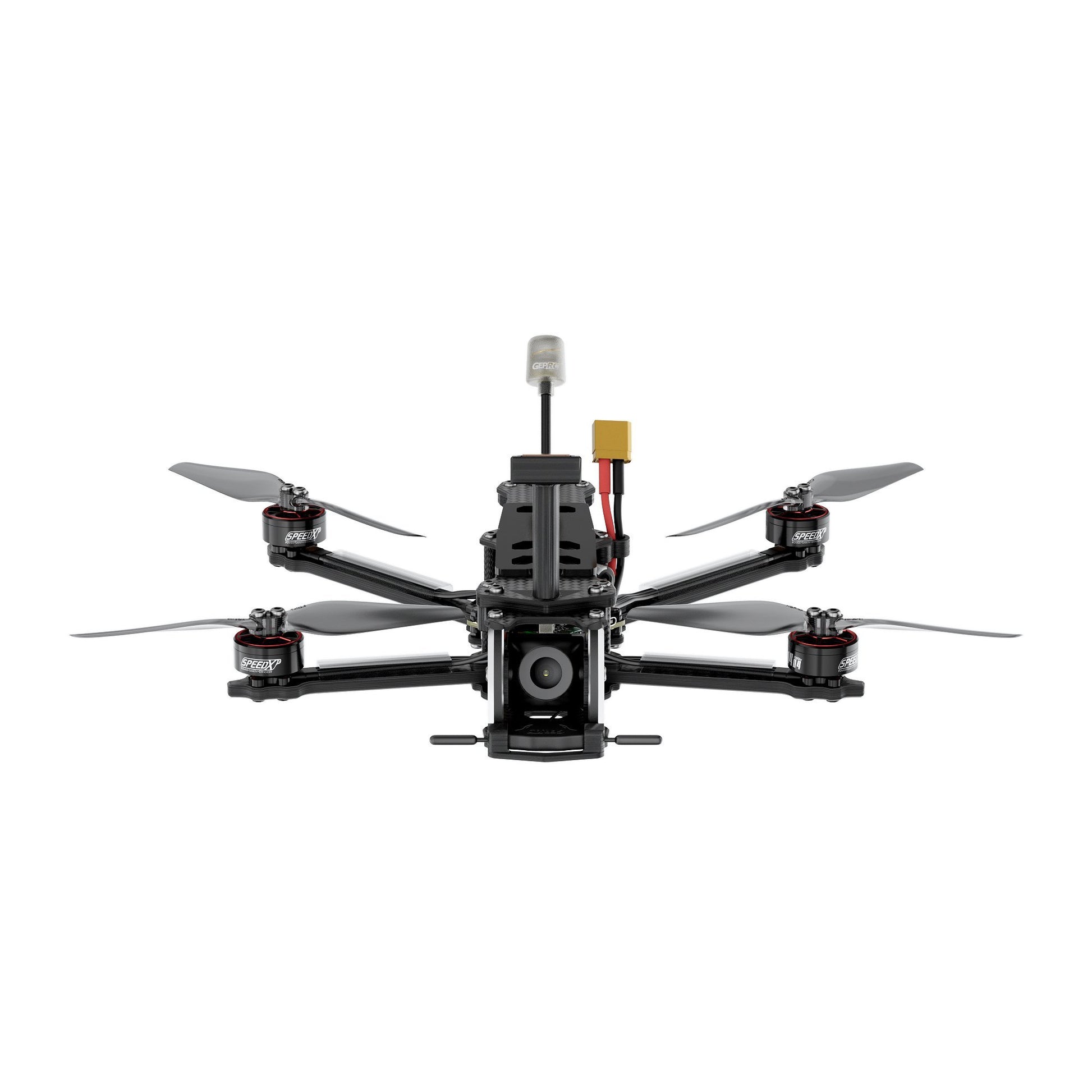

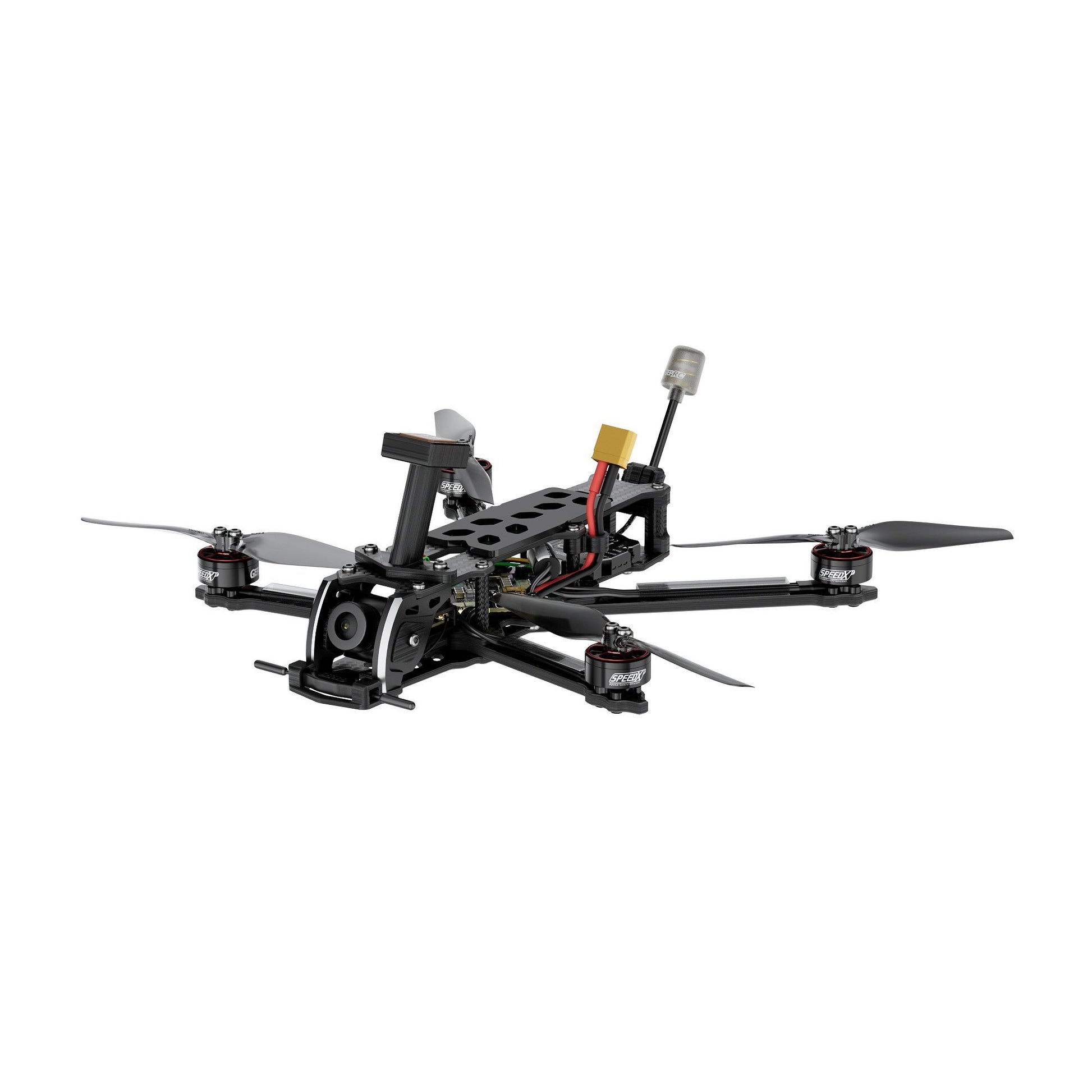

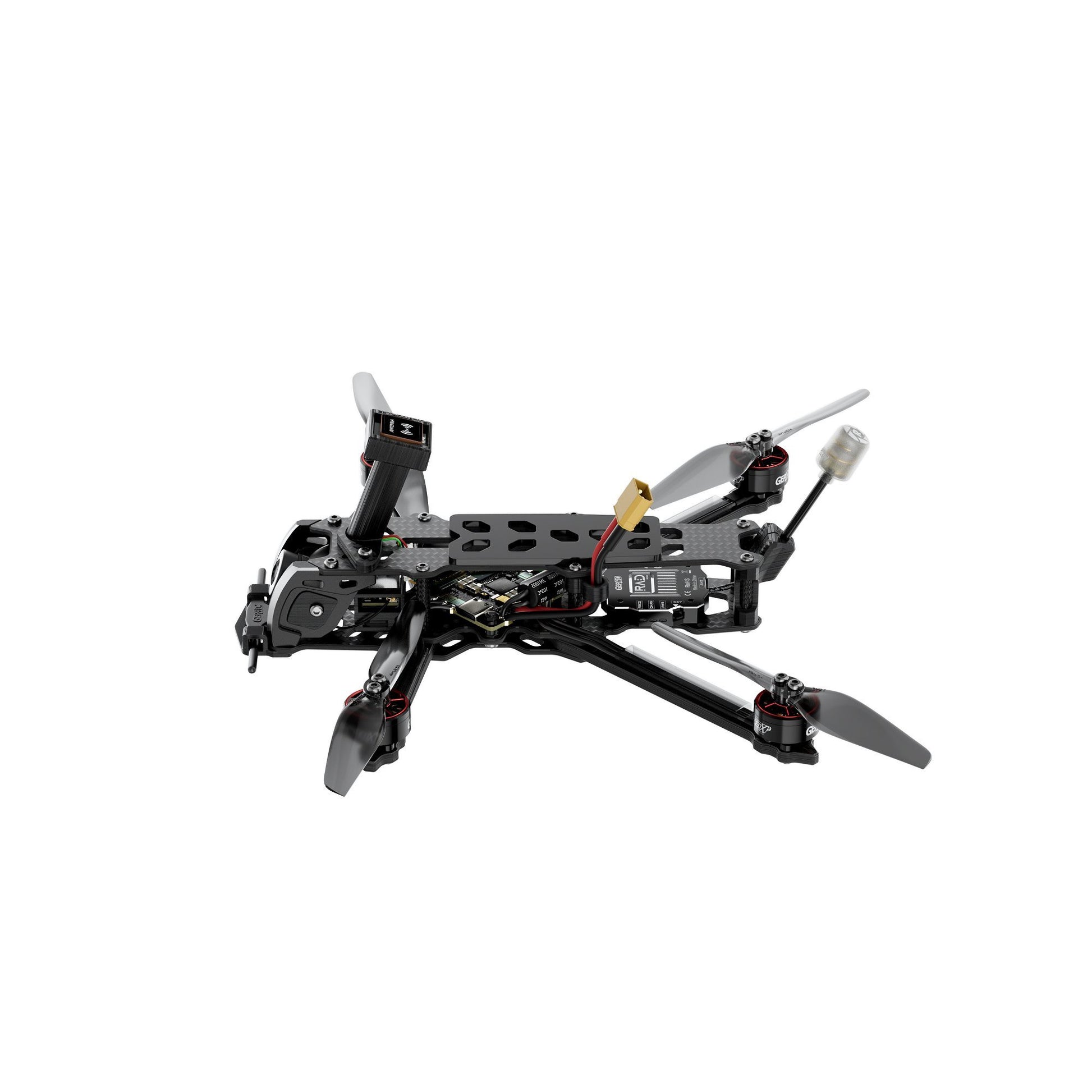

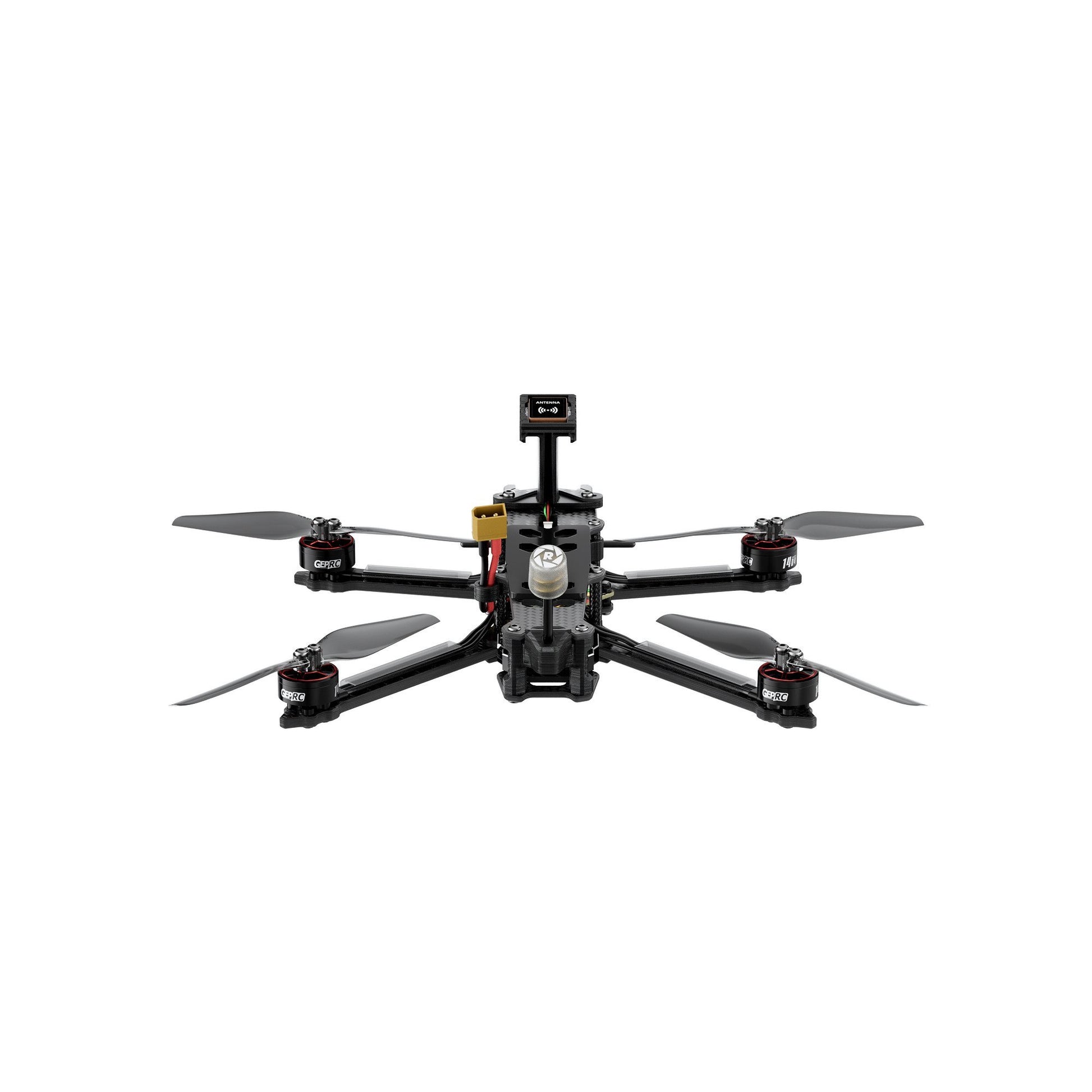

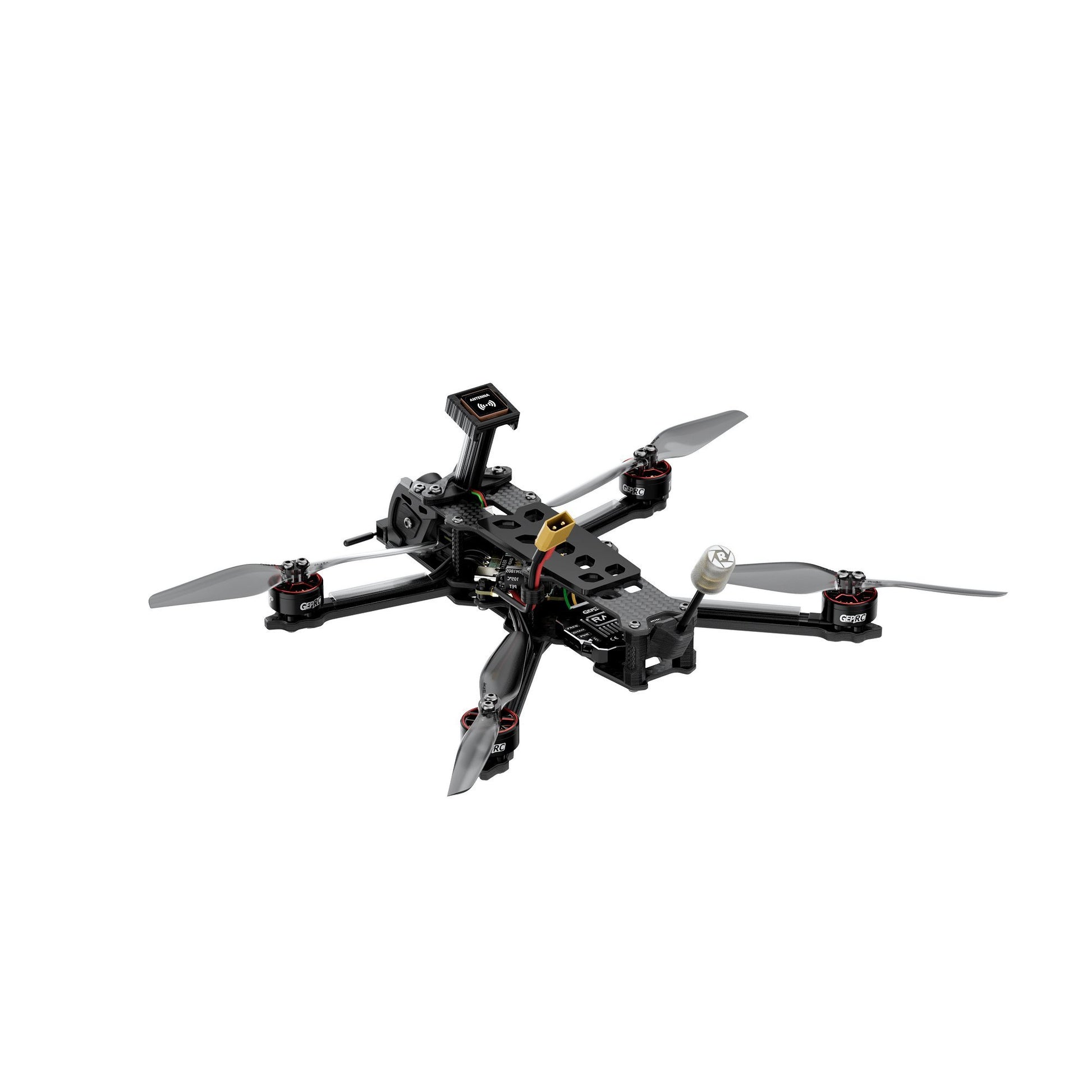

FPV Drone GEPRC Tern-LR40 Analog TBSNanoRX
New lightweight design, weight under 249 g.
Expand the jamming method of the GPS fix and stay away from sources of jamming
The DC design does not see the propeller during flight, which is more suitable for direct aerial photography.
Install the BB ring to set the low battery alarm
When using GPS GEP-M10nano, the satellite search speed is higher and the rescue mode is more stable.
Compatible gopro mount installation, expandable shooting creation.
Specifications
Model: Tern-LR40
Frame: Tern-LR40 frame
Top plate: 1.5 mm
Middle plate: 2.0mm
Bottom plate: 1.5 mm
Arm thickness: 3.5 mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E
ESC: 32bit 45A
VTX: RAD mini 1W
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP UFL
Connector: XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propeller: HQProp T4X2.5Grey (2CW+2CCW)
Weight of Tern -LR40 Analog TBSNanoRX version: 159g±5g
Receiver: TBS
Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25 min
Includes
1 x Tern-LR40
2 x HQProp T4X2.5 Gray (2CW+2CCW)
2x battery anti-slip mat
1 x pack of screws
4 x battery strap M15*170mm
1 x 1.5mm L-shaped screwdriver
1 x GoPro camera mount
1 x T-type antenna holder
1 x RC print
