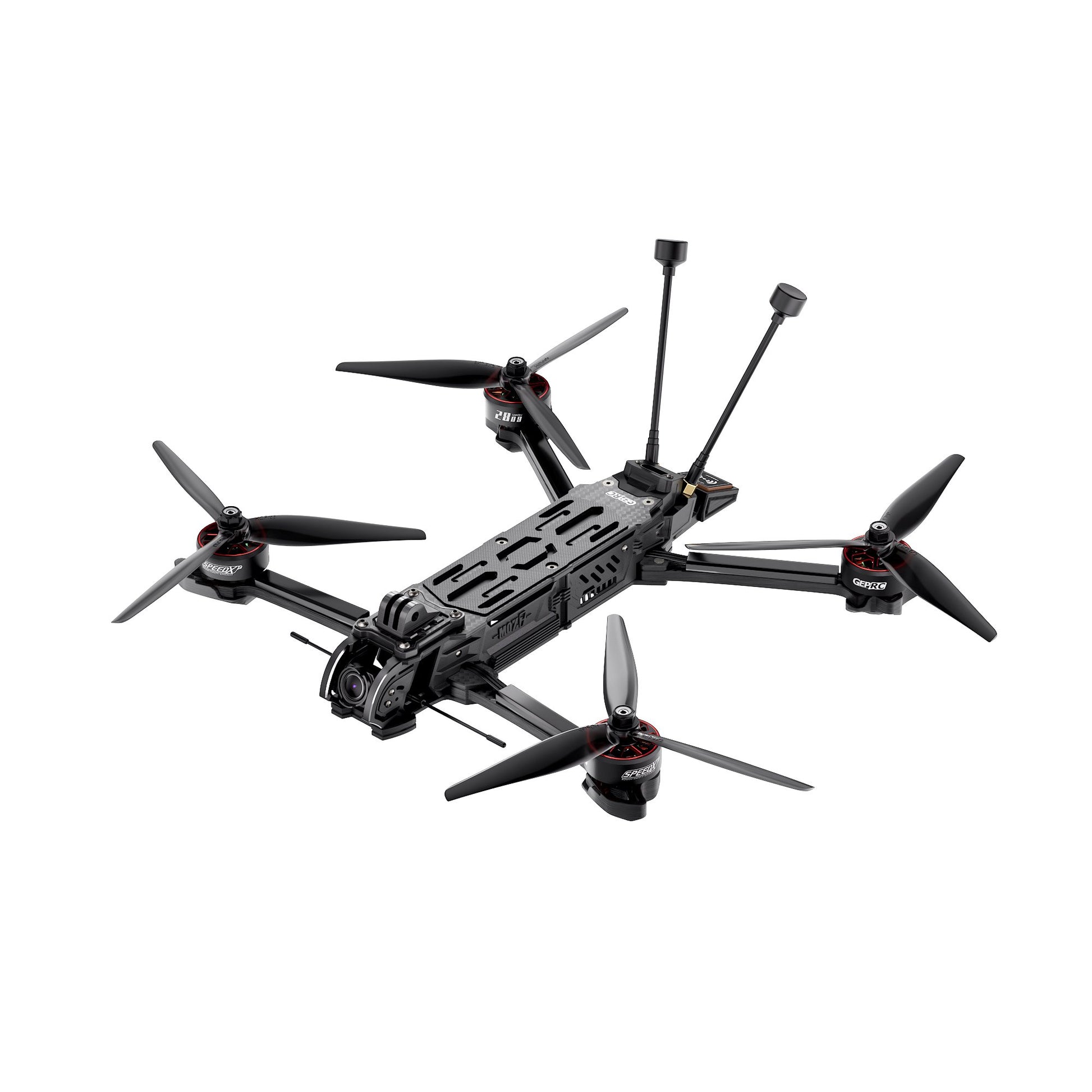

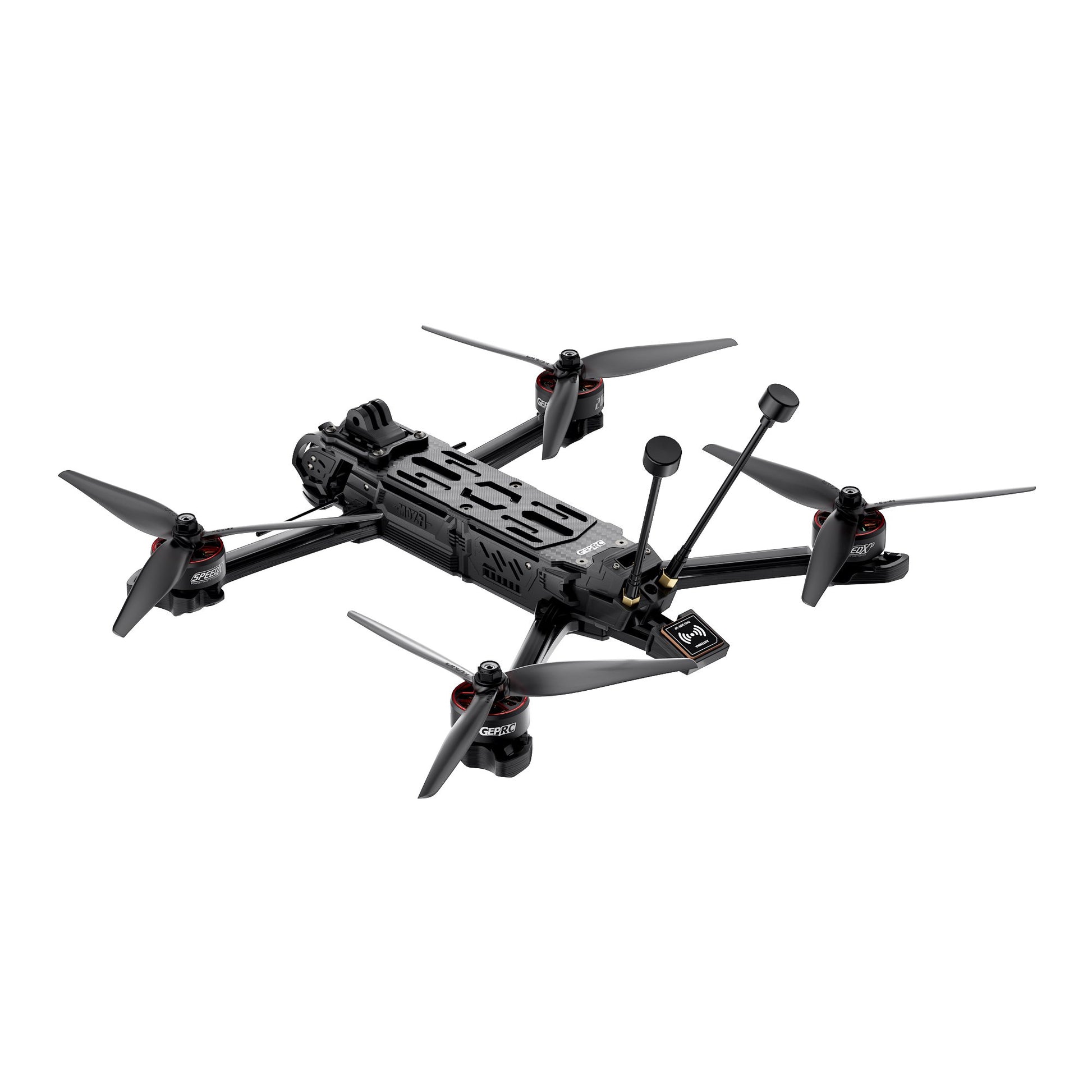

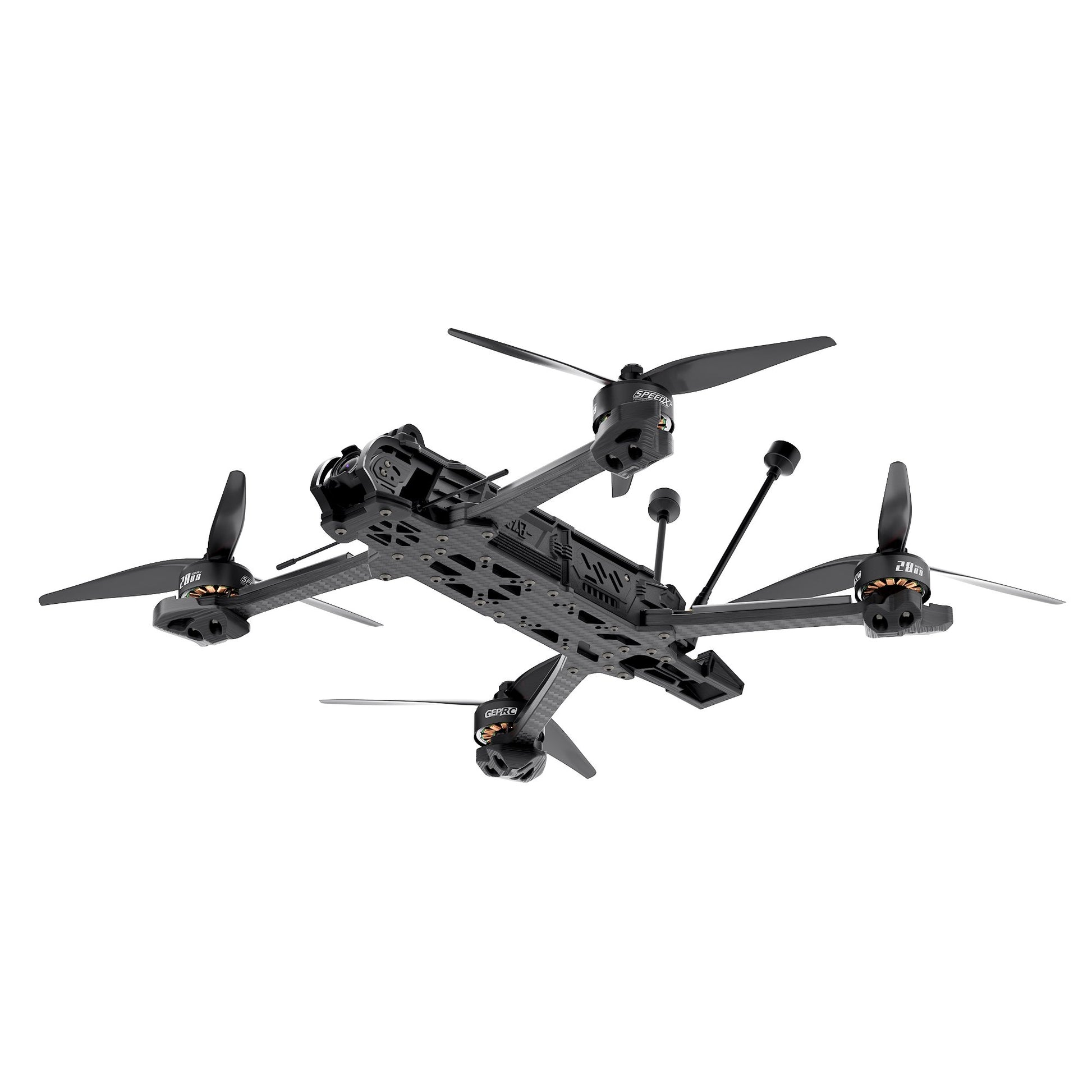

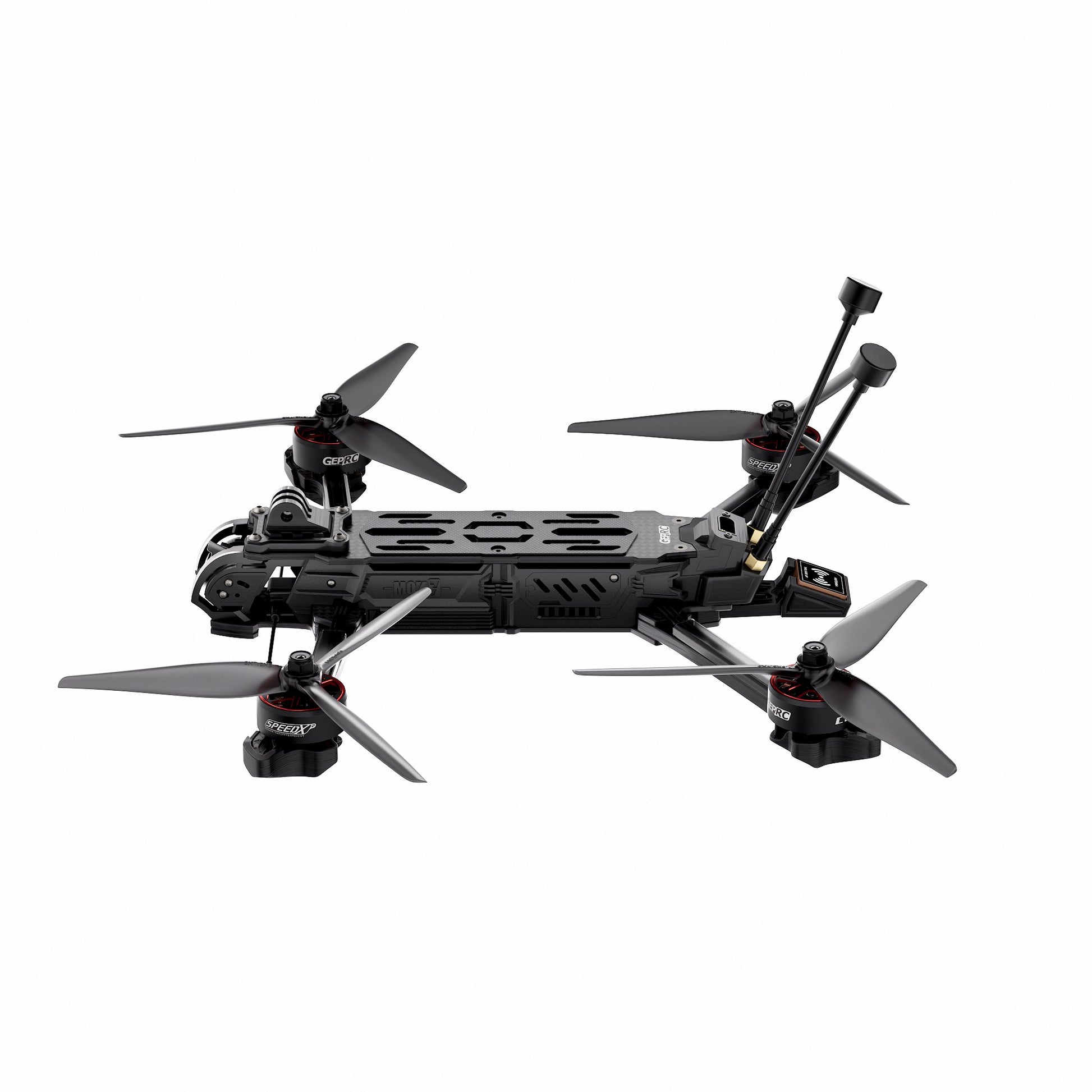

MOZ7 Wasp GPS ELRS24
The MOZ7 supports a maximum 30.5mm x 30.5mm installation and is compatible with various VTX and custom cooling systems. Innovative camera mounting method, the left and right position of the alternate aluminum camera part allows switching between 19mm and 20mm sizes. The fixed camera print is reinforced with a carbon plate to make the installation force more uniform and prevent deformation and deformation. Use the SPAN F722-BT-HD V2 stack and support wireless Bluetooth parameter setting. 2809 engines with HQ7.5*3.7*3 propellers are powerful. At the same time, it is equipped with GEP-M10-DQ GPS for long-distance flight protection. The forward antenna of the receiver prevents the fuselage from blocking the receiver signal due to a U-turn in the air. Use GEP-VTC6-6000mAh battery to fly for 30 minutes and with GoPro 10 to fly for 20 minutes.
Specifications:
Model: MOZ7
Frame: GEP-MOZ7
Dimensions: 280mm x 310mm
Wheelbase: 320 mm
Top plate: 3.0mm
Bottom plate: 3.0mm
Shoulder plate: 6.0 mm
Slat plate: 3.0 mm
Camera mount: 2.0mm
VTX cover: 1.5 mm
FC: SPAN F722-HD-BT V2
MCU: STM32F722
Gyroscope: 42688-P (SPI)
VTX: Runcam Link Wasp
ESC: GEP-BLheli32-50A
Propeller: HQ7.5*3.7*3
Antenna: Momoda 5.8G RP-SMA LHCP 120MM
Motor: 2809-1280KV (6s version)
GPS: GEP-M10
Camera: Runcam Wasp Camera 120FPS
Weight: 638.5g
Receiver: ELRS 2.4G
Recommended battery: VTC6 6S 6000mAh / LiPo 6s 3300mAh
