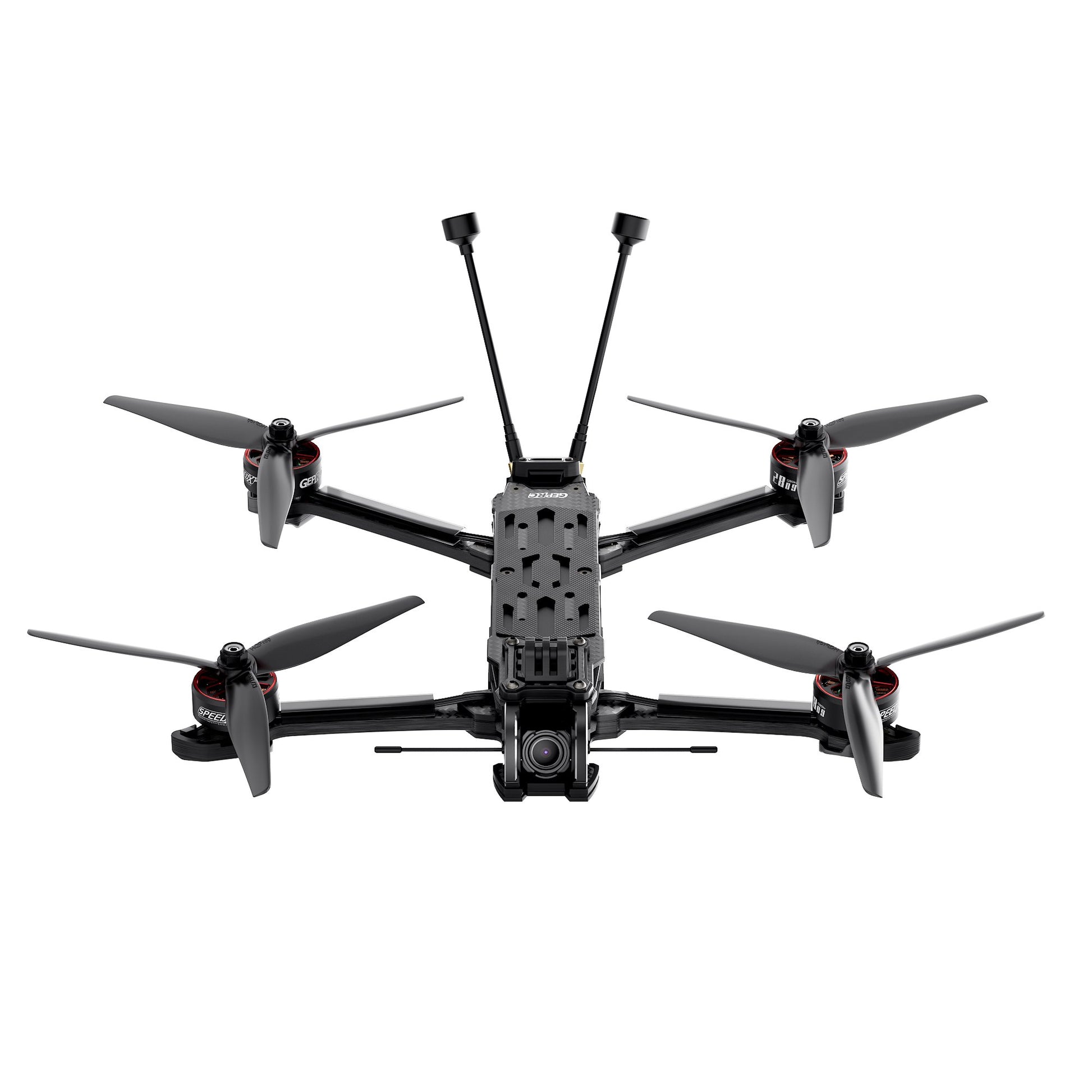

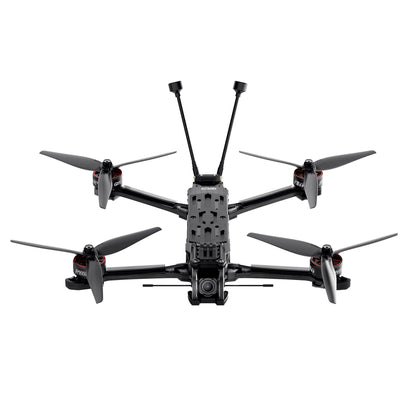

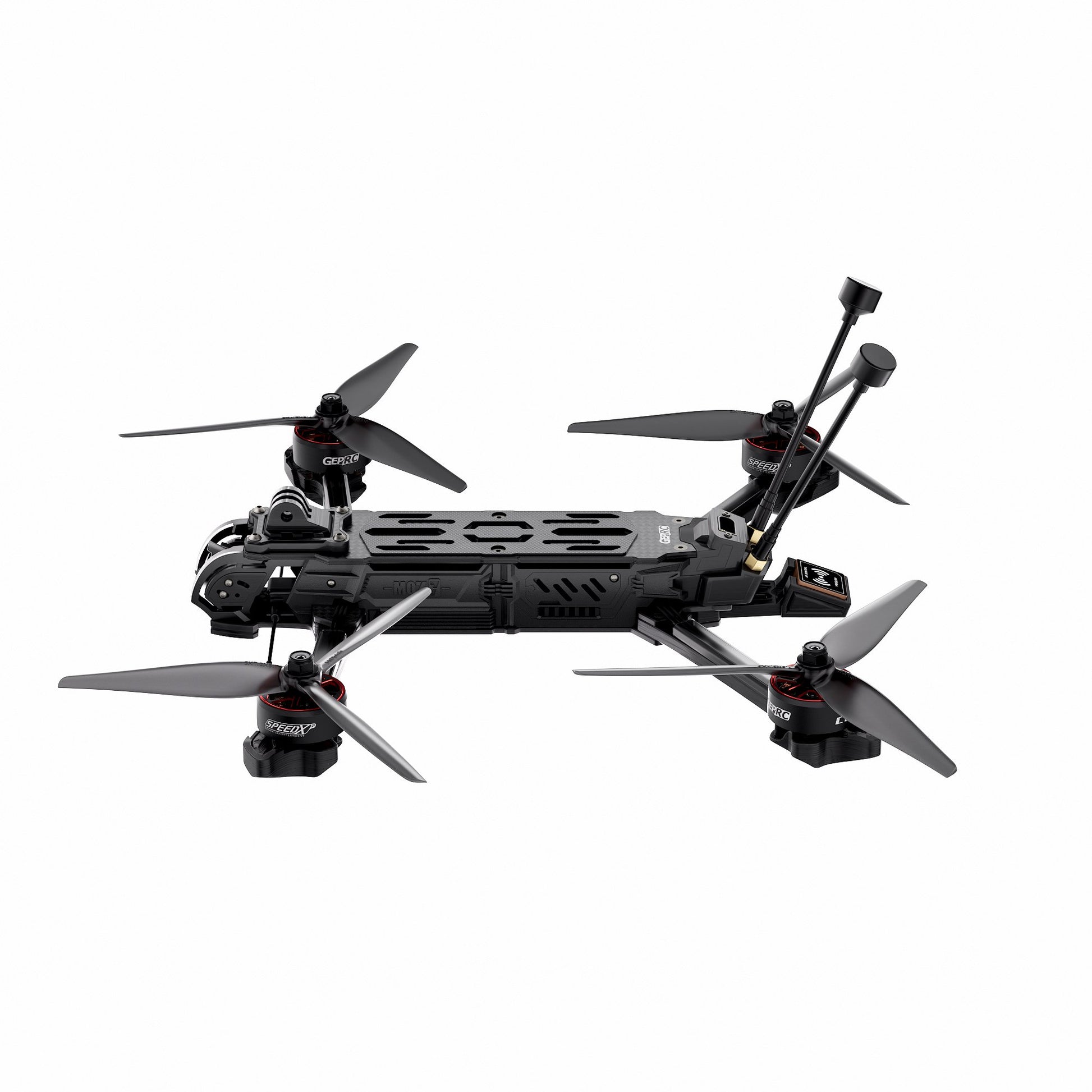

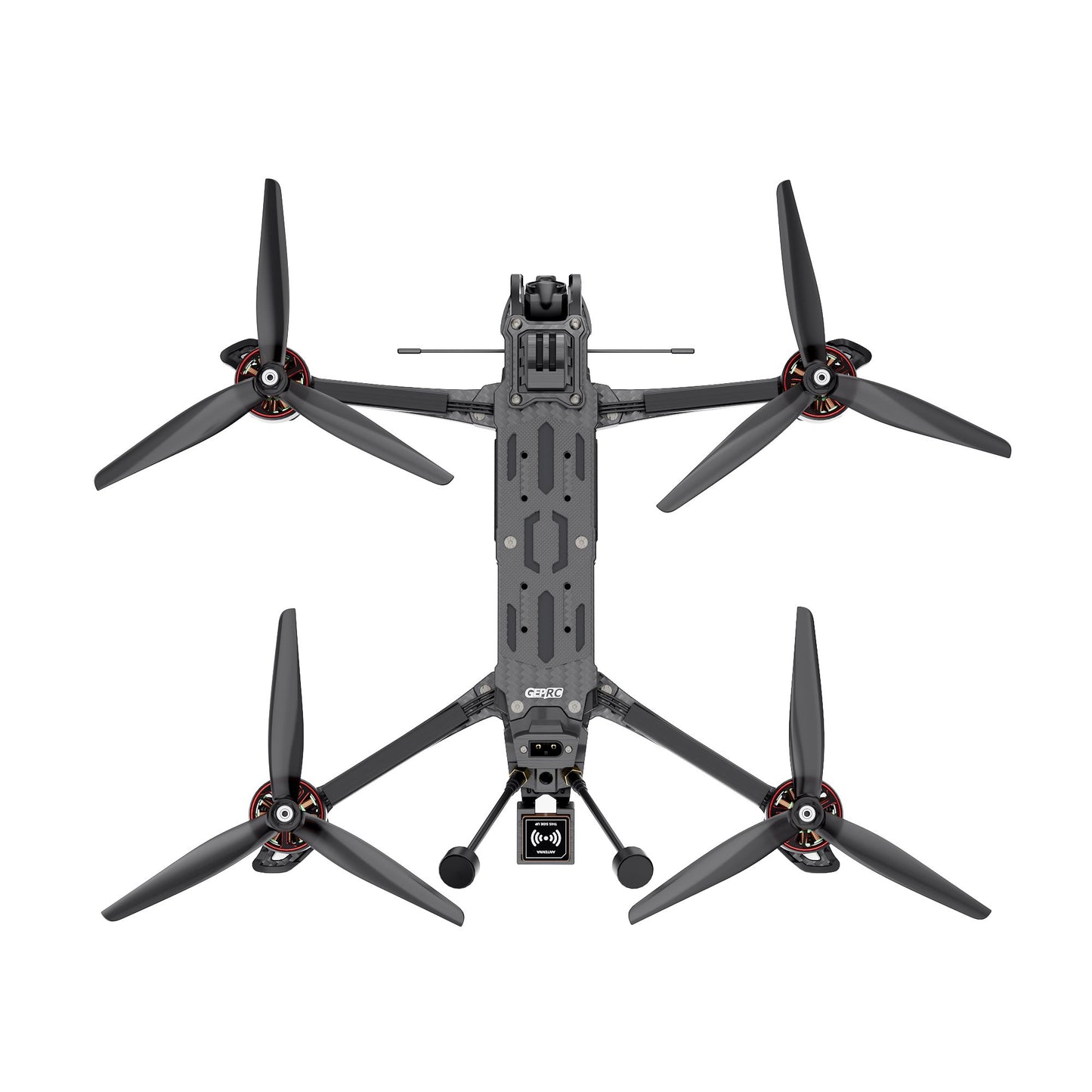

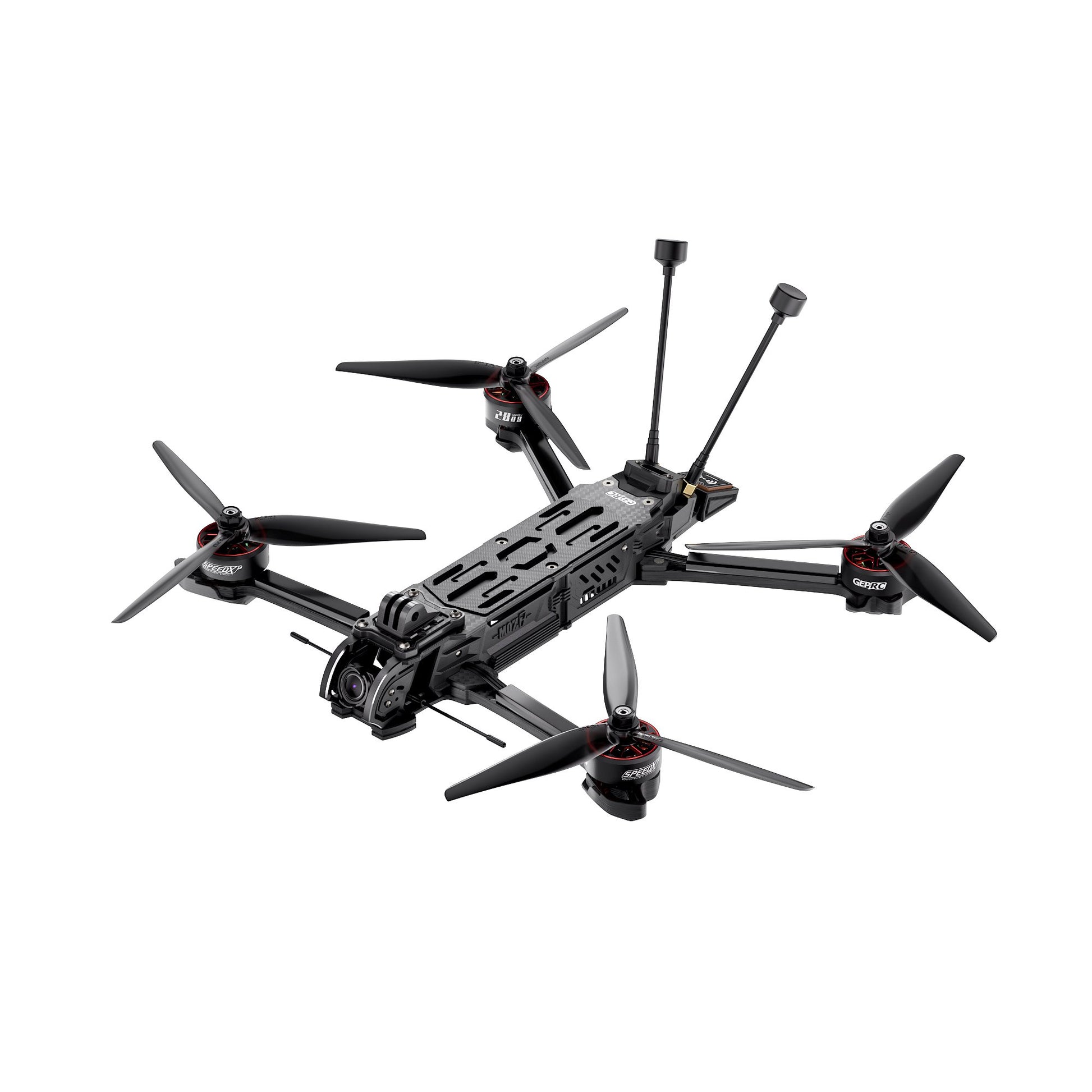

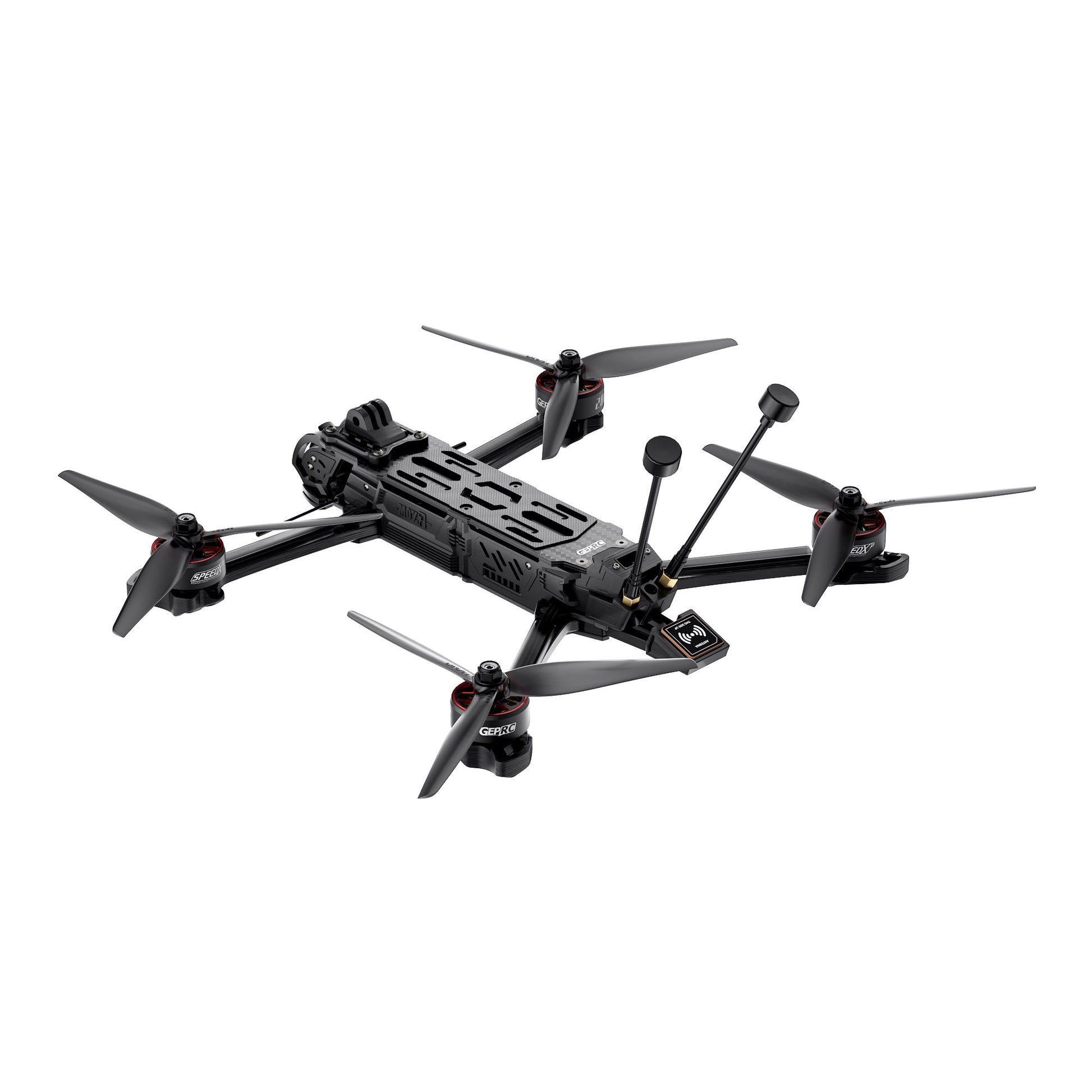

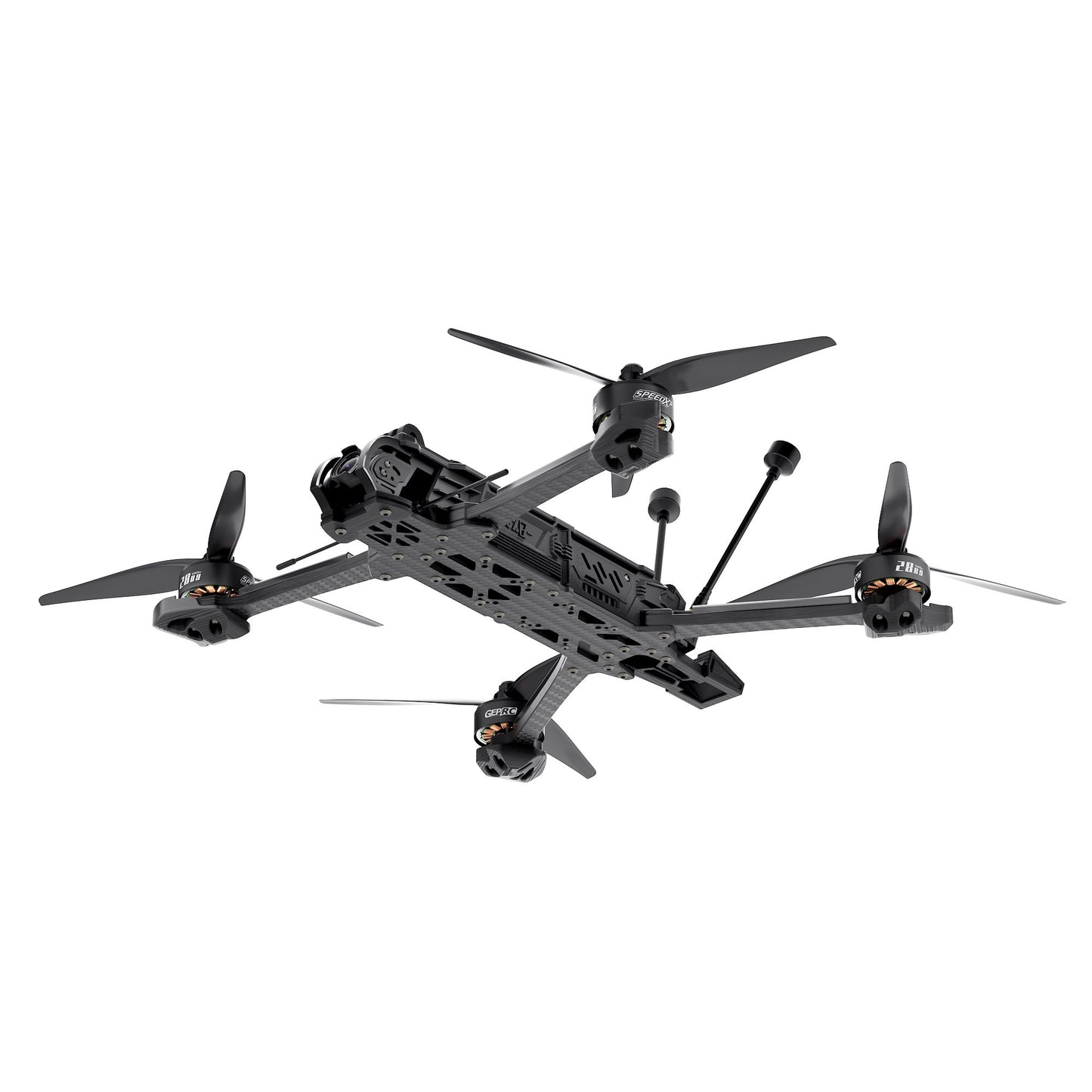

MOZ7 O3 GPS ELRS915
The MOZ7 supports a maximum 30.5mm x 30.5mm installation and is compatible with various VTX and custom cooling systems. Innovative camera mounting method, the left and right position of the alternate aluminum camera part allows switching between 19mm and 20mm sizes. The fixed point of the camera is reinforced with a carbon plate to make the installation force more uniform and prevent deformation and deformation.
Use the SPAN F722-BT-HD V2 stack and support wireless Bluetooth parameter setting. 2809 engines with HQ7.5*3.7*3 propellers are powerful. At the same time, it is equipped with GEP-M10-DQ GPS for long-distance flight protection. The forward antenna of the receiver prevents the fuselage from blocking the receiver signal due to a U-turn in the air.
Use the GEP-VTC6-6000mAh battery to fly for 30 minutes and the GoPro 10 to fly for 20 minutes. Choose the DJI O3 version for in-camera recording that supports up to 4K 120 FPS to meet your daily shooting needs.
Function:
1. The camera uses CNC aluminum alloy side plate, strong and sturdy, compatible with 19mm and 20mm camera mounts.
2. The flight controller has built-in Bluetooth, mobile phone wireless connection, convenient and quick parameter setting.
3. Personalized protective side plate, effectively protect the safe operation of internal electronic equipment and improve flight reliability, maximum support for installation 30.5 × 30.5mm and 30mm * 30mm for video transmission (outer size).
4. Adopt DJI O3 VTX, the FPV image is clear, stable signal, low delay, long distance and support up to 4K/120fps recording.
5. Compatible motor hole position, support 16mm × 16mm and 19mm × 19mm motor installation.
6. Added VTX cooling fins to ensure stable operation during flight.
Specifications:
Model: MOZ7
Frame: GEP-MOZ7
Dimensions: 280mm x 310mm
Wheelbase: 320 mm
Top plate: 3.0mm
Bottom plate: 3.0mm
Shoulder plate: 6.0 mm
Slat plate: 3.0 mm
Camera mount: 2.0mm
VTX cover: 1.5 mm
FC: SPAN F722-HD-BT V2
MCU: STM32F722
Gyroscope: 42688-P (SPI)
VTX: Air Unit O3
ESC: GEP-BLheli32-50A
Propeller: HQ7.5*3.7*3
Antenna: Momoda 5.8G RP-SMA LHCP 120MM
Motor: 2809-1280KV (6s version)
GPS: GEP-M10
Camera: DJI O3 Air Unit
Weight: 700.5g
Receiver: ELRS 915M
Recommended battery: VTC6 6S 6000mAh / LiPo 6s 3300mAh
