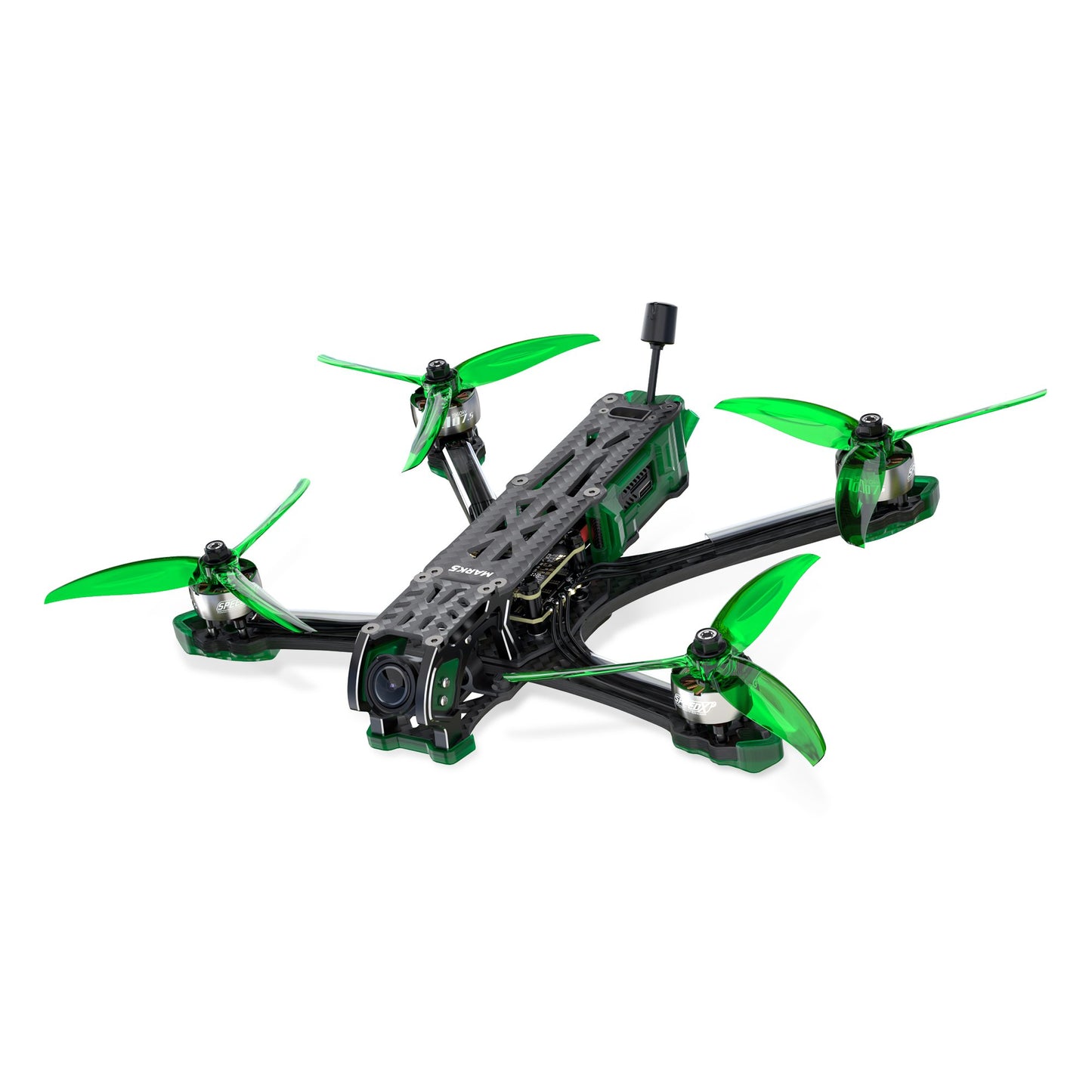

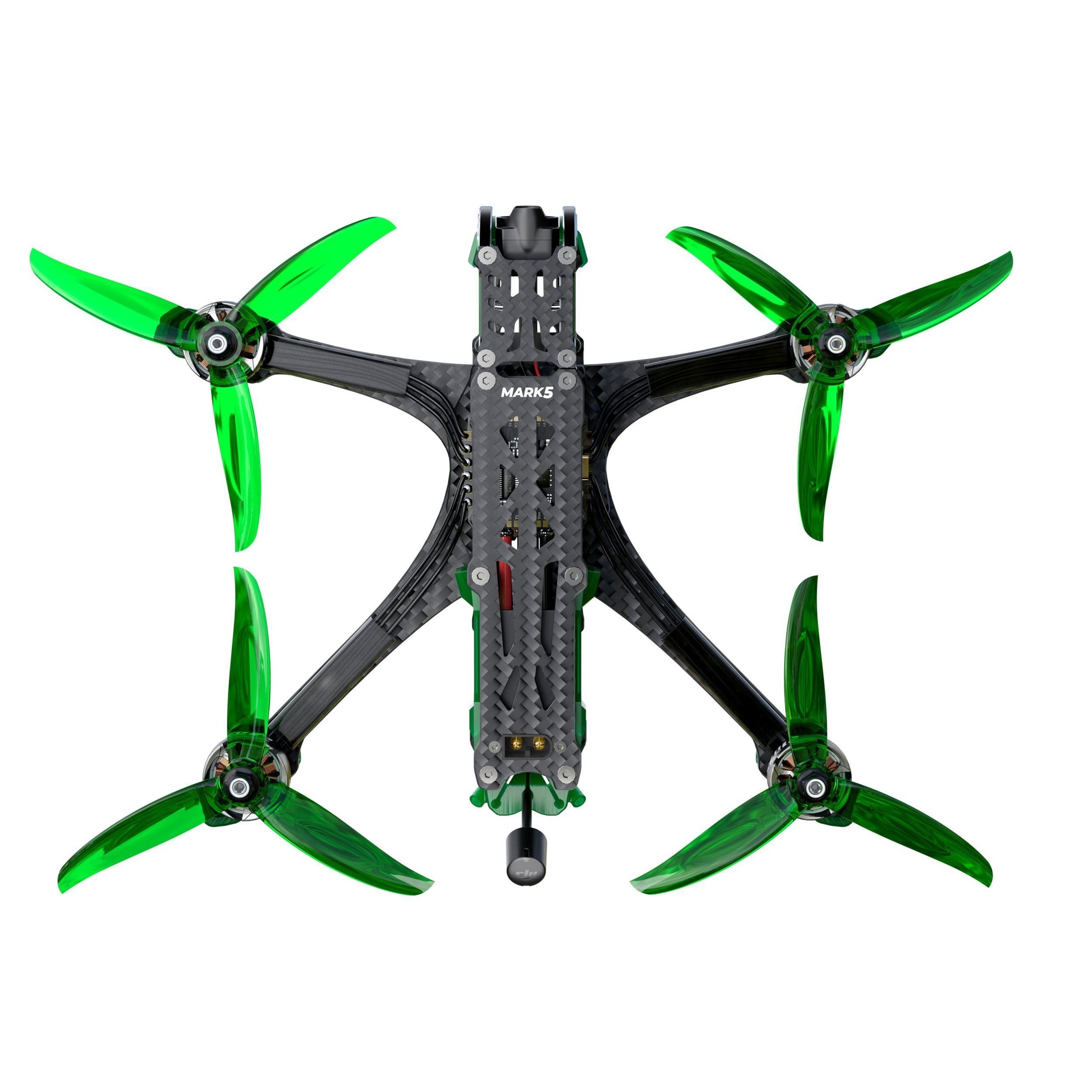

MARK5 DC O3 ELRS 2.4G (6S/Green)
The upgraded 7075-T6 aluminum alloy side plate of the camera is strong and durable. It can be fully adapted to the new DJI O3 aerial unit camera with a field of view (FOV) of 155° and the recording specification can support up to 4K 60FPS. Specially designed TPU mounting parts for the O3 VTX module and equipped with a cooling air intake port that contributes to sufficient heat dissipation in the air unit. MARK5 O3 uses the latest GEPRC SPAN F722-BT-HD V2 kit with ICM 42688P gyro for smooth flight, redundant power and ports. Supports Bluetooth wireless connection for debugging. SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor and uses the new powerful Gemfan 5136 propellers. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 internal video recording and direct output. The MARK5 O3 comes with two different camera mounts that can be mounted on a range of GP action cameras as well as GP 8/10 naked camera, Insta 360 GO2 and Caddx Peanut etc.
Specifications
Model: MARK5 DC HD O3 quadcopter
Frame: GEP-MK5D O3/GEP-MK5X O3
Wheelbase: 225 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyroscope: 42688-P (SPI)
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna
Motor: SPEEDX2 2107.5-1960KV (6S version) / SPEEDX2 2107.5-2450KV (4S version)
Weight: MK5D - 426.0g, MK5X - 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended battery: LiPo 4S 1300mAh-1800mAh (4S version) / LiPo 6S 1050mAh-1550mAh (6S version)
