CineLog25-Analog-ELRS 2.4G

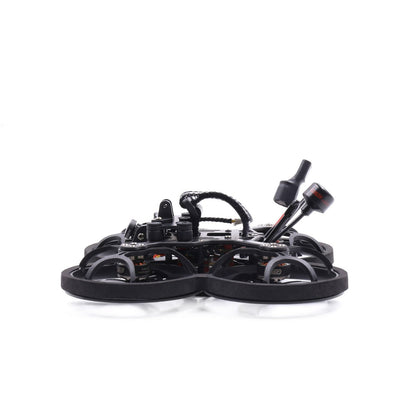

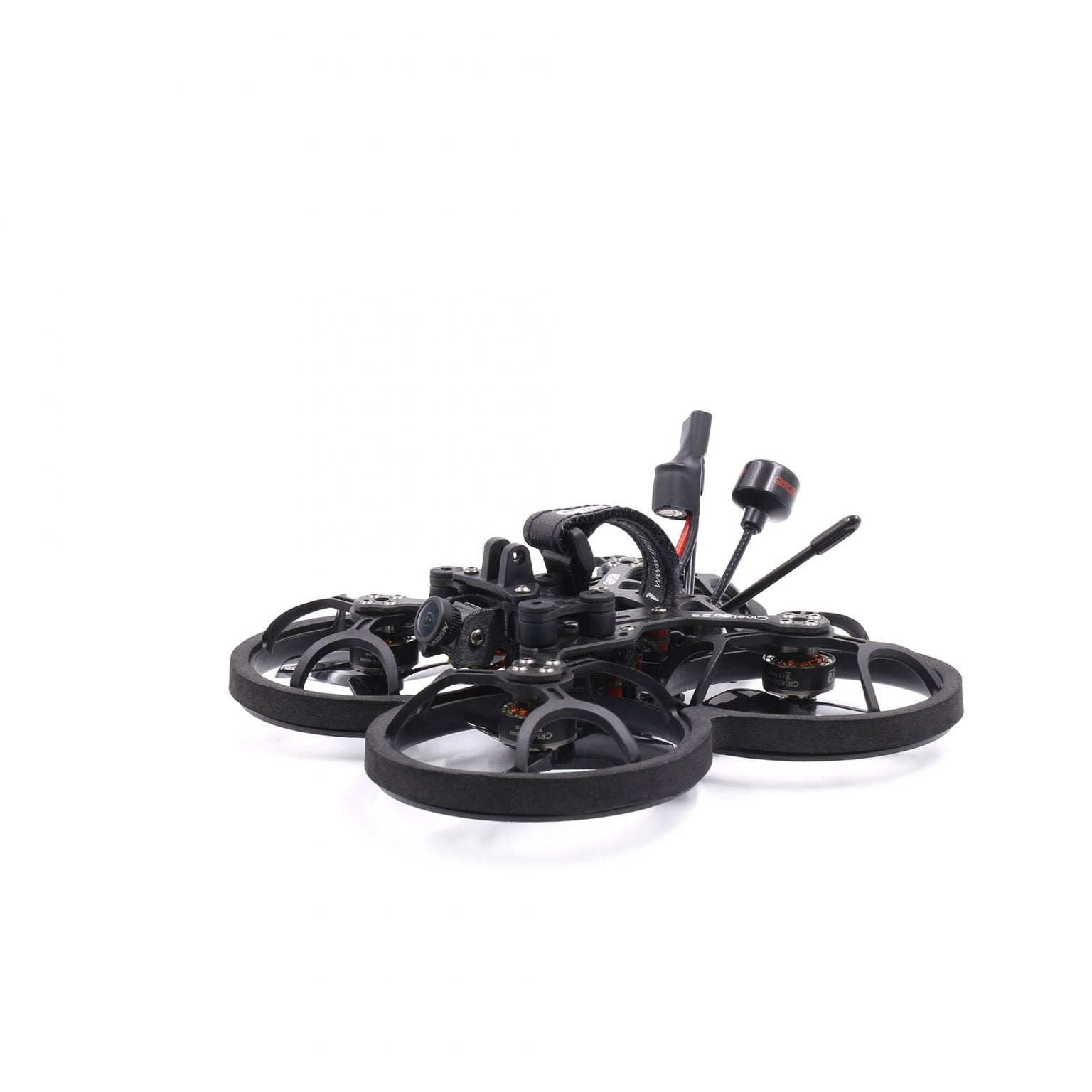

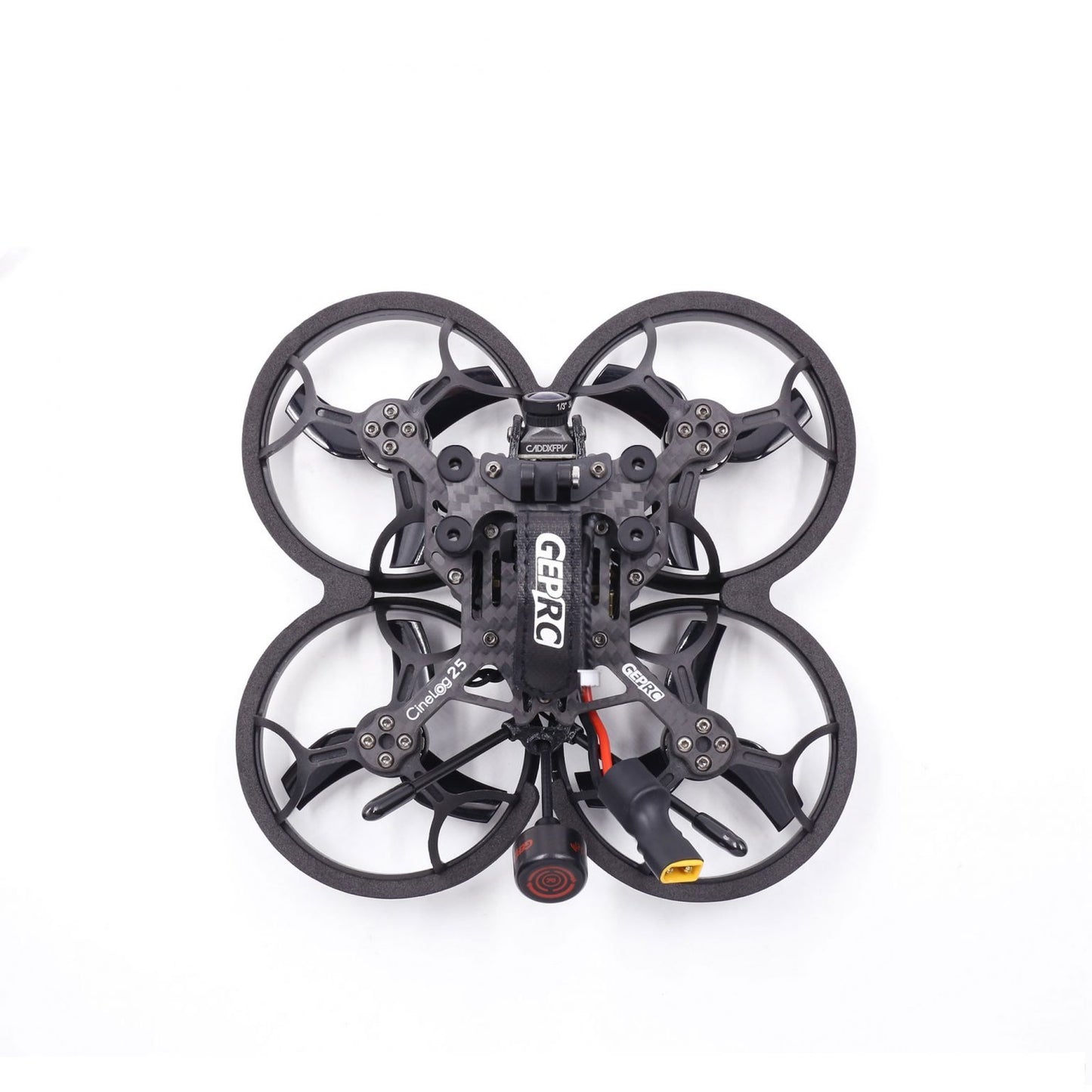

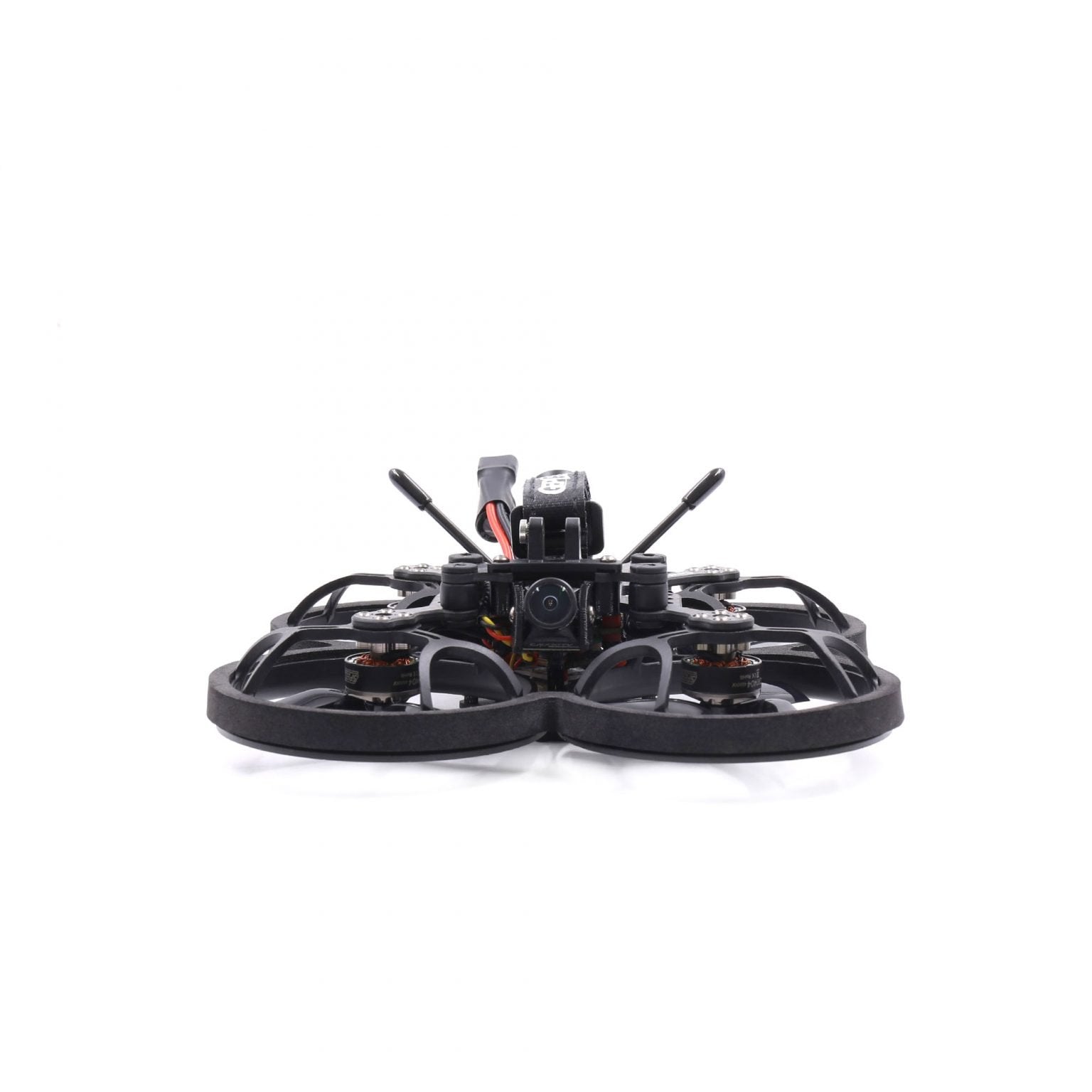

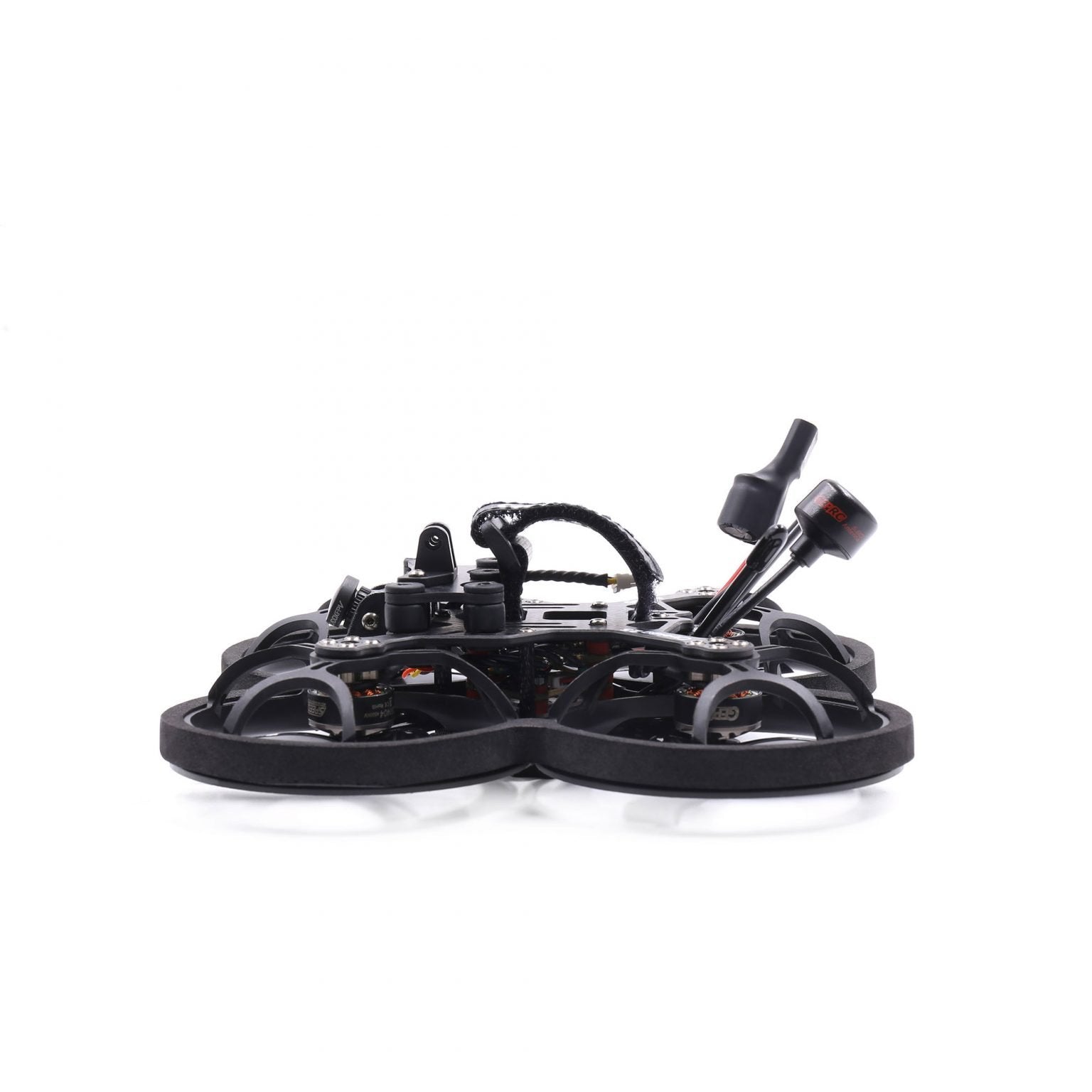

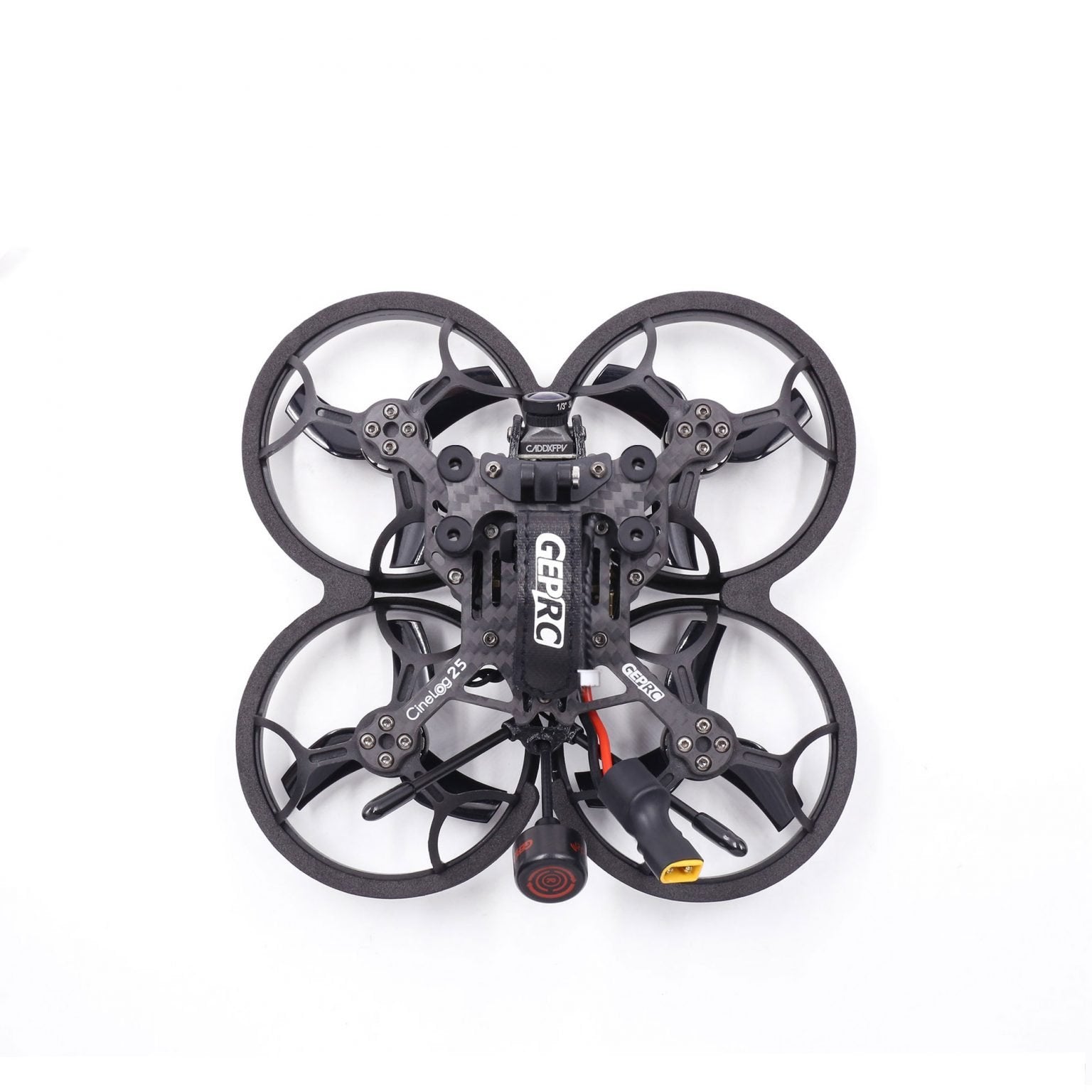

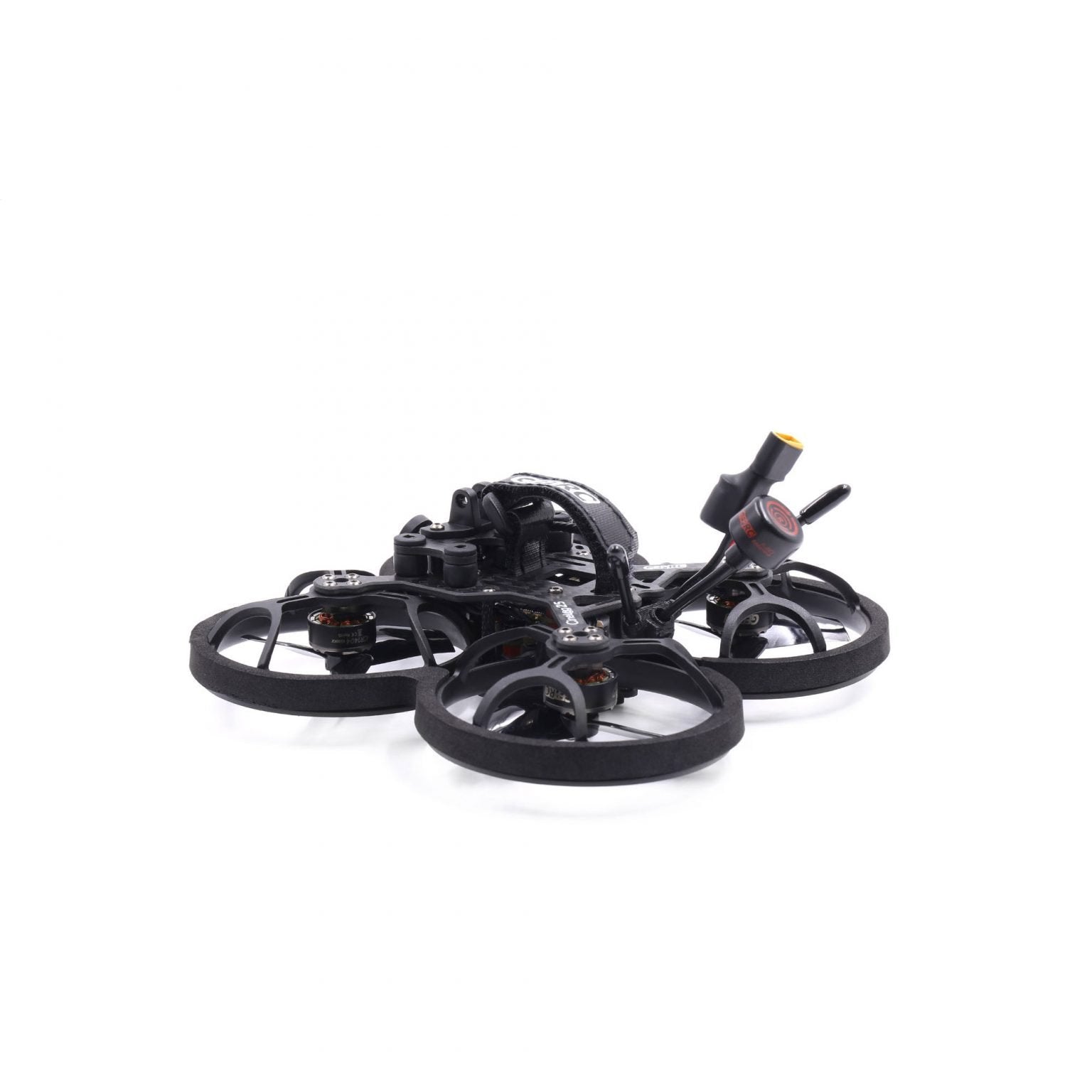

CineLog25 is a lightweight quadcopter designed for shooting video with a GP Lite camera. Its propellers offer optimal flight efficiency. VISTA HD is centrally located for smooth airflow and reduced noise. Revamped shock absorption system of the camera holder and equipped with damping rings for vibration control. With 3, 4 or 5 damping rings, you can fine-tune the stability of vibration and noise according to your flight conditions. The CineLog25 has a push frame that combines ultralight carbon plates and advanced materials, resulting in a 20% increase in strength and 15% more efficiency.
Flight system includes F411-35A AIO and upgraded GEPRC GR1404 4500kv engines. The power system works with 450mAh to 750mAh batteries for a flight time of 5.5 minutes. Customized EVA foam cushioning protects against impacts.
Function:
1. Improved energy efficiency with GR1404 4500kv output power scheme (upgraded version) and precision tuning provide extended flight times.
2. Perfectly compatible with popular cameras such as SMO 4K, GP6 Lite and GP8 Lite, it offers versatility for your photography needs.
3. Adjustable lens angle from 0-40 degrees.
4. Camera power output: Dedicated output for camera power cable (GP6 and GP8) with video recording cable, allowing direct control of camera power by remote controller.
Specifications:
Brand: GEPRC
Frame: GEP-CL25
Wheelbase: 109 mm
Flight controller: F411-35A AIO
MCU: STM32F411
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: BLheli_S 20A
VTX: 5.8G 600mW VTX
Camera: Caddx EOS2/Runcam Nano2
Props: GEMFAN D63-3
Engines: GR1404 4500kv (upgraded version)
Antenna: GEPRC Momoda 5.8g RHCP
CineLog25 Analog Weight: 128 g (without battery)
Receiver: ELRS 2.4G
Battery: Recommended 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery
