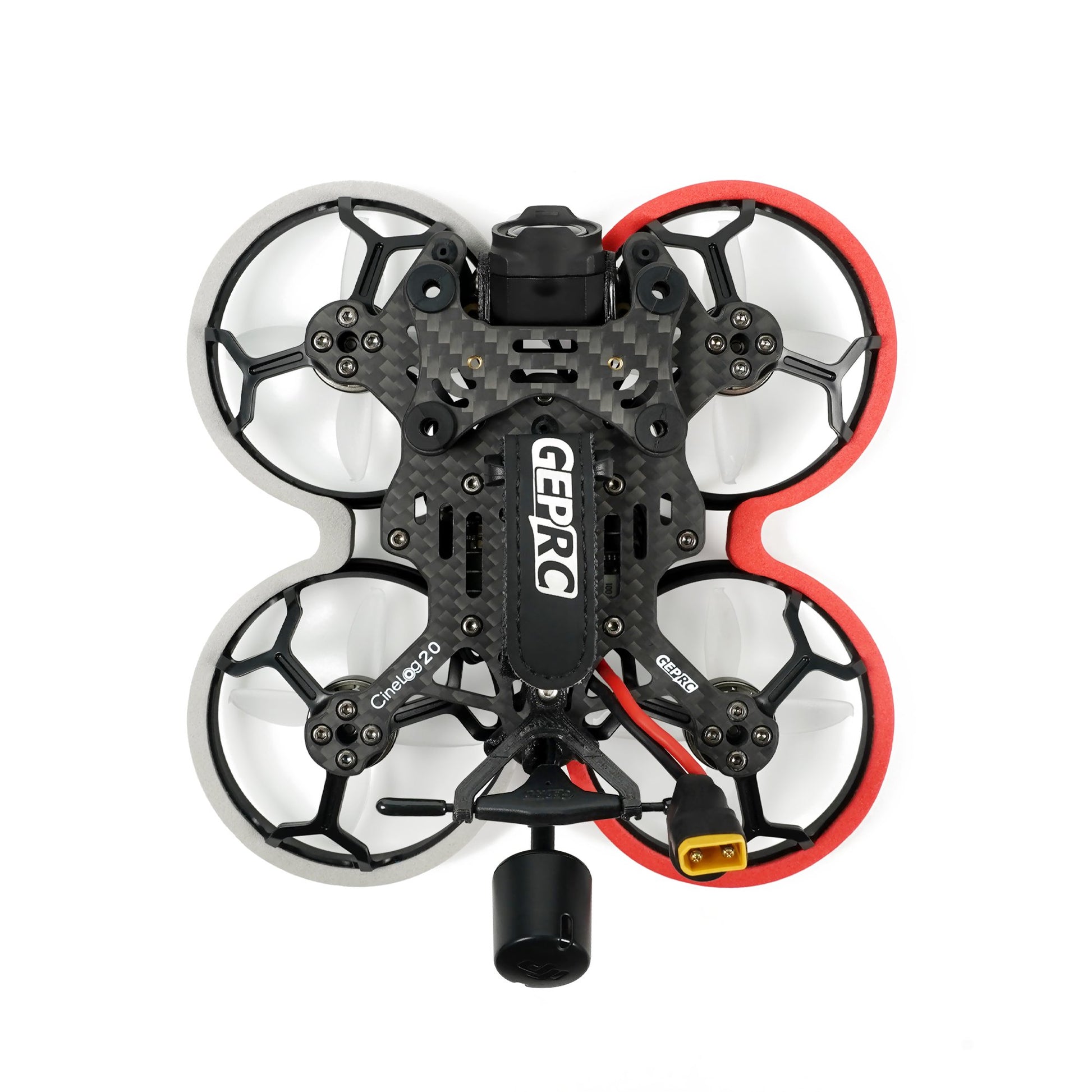

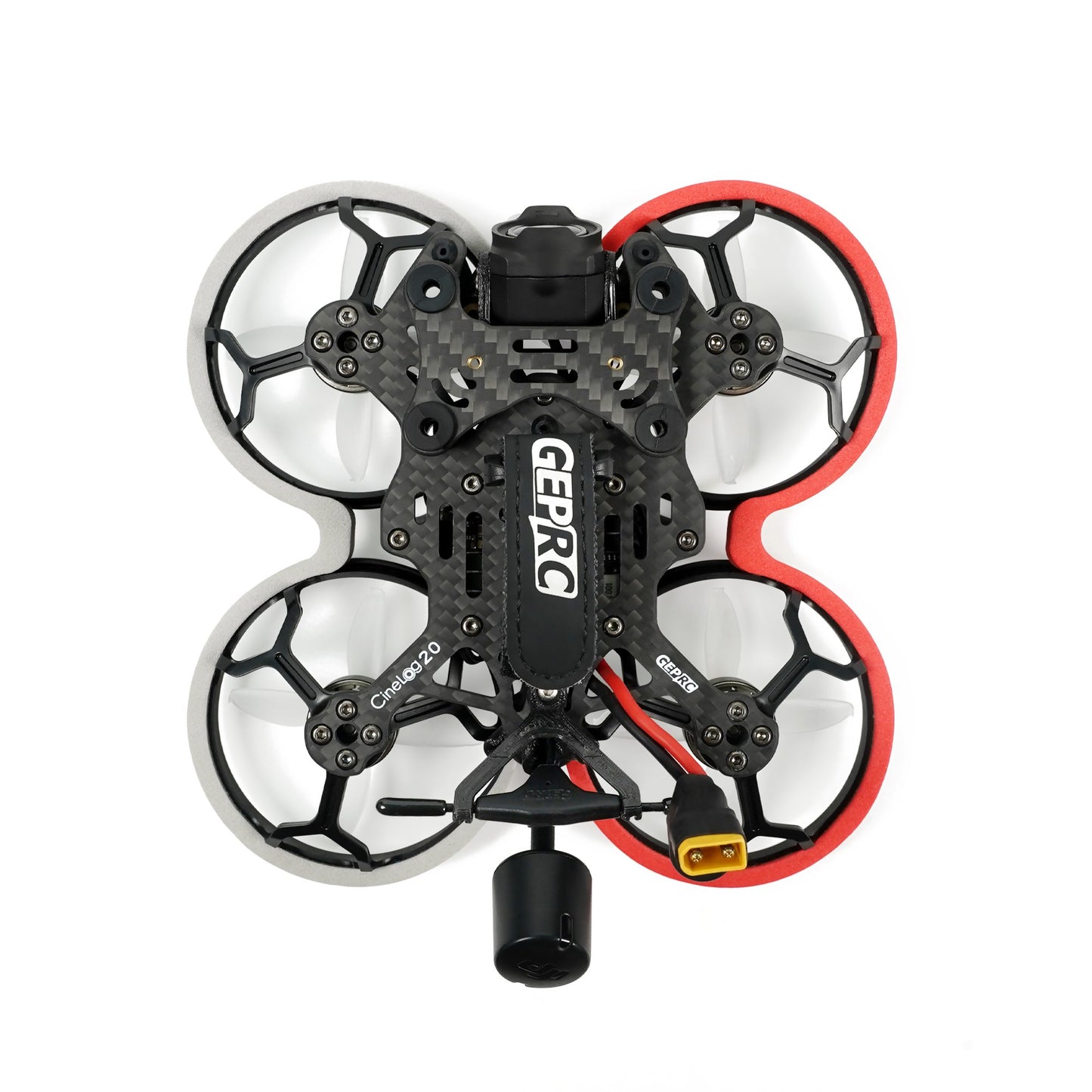

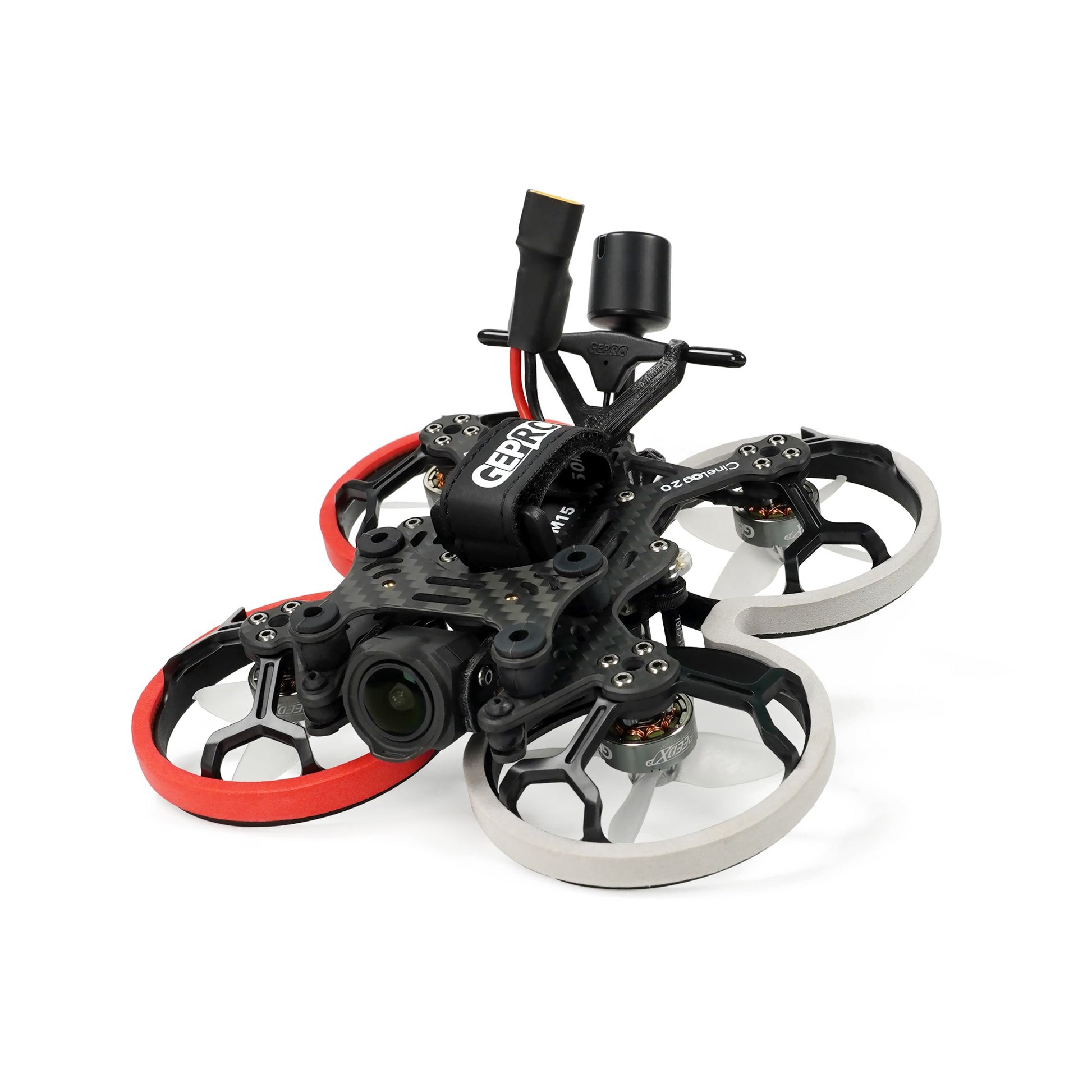

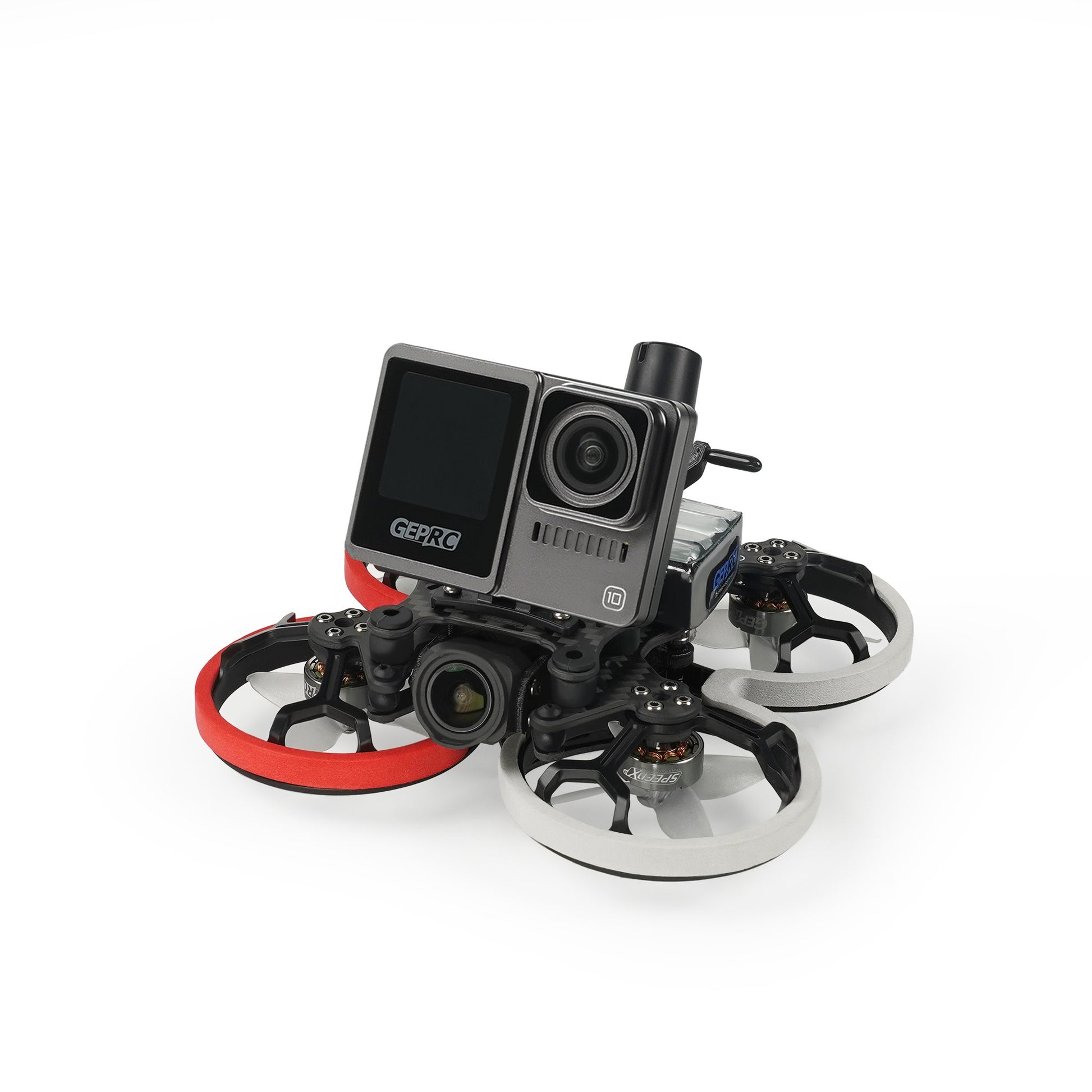

Cinelog20 HD O3 TBSNanoRX
Designed to mount the shock-absorbing gimbal under the independent FPV camera to reduce the image blur of the FPV glasses with good anti-shake effect. Provide mainstream versions of Link Wasp, O3 Air Unit and Walksnail HD video transmission versions, Bind-N-Fly to save you the trouble of building and tuning. 2-inch thruster design, small size and light weight, more suitable for flight shooting in complex and narrow environments. The overall feel of the flight is soft and supple. The SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers allows for unhurried flight shooting. A continuation of the CineLog series anti-vibration structure, which can effectively eliminate image jello caused by the body when flying with the Naked GP camera attached.
Specifications
Model: CineLog20 HD O3
Frame: GEP-CL20
Wheelbase: 100 mm
Gimbal plate: 2.0 mm
Top plate: 2.5mm
Bottom plate: 1.5 mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E chip
ESC: 8bit 35A
VTX: O3 AIR Unit
Camera: O3 camera
Antenna: 5.8G and 2.4G
Motor: GR1303.5 5500KV
Propellers: EMAX Avan Micro 2×2.4×4
Weight: 140g
Receiver: PNP (built-in DJI receiver), ELRS 2.4G, TBS Nano RX/RXSR
Recommended battery: LiHv 4S 450mah-660mah
Flight time: 4-6 min
