Tinyhawk II RTF

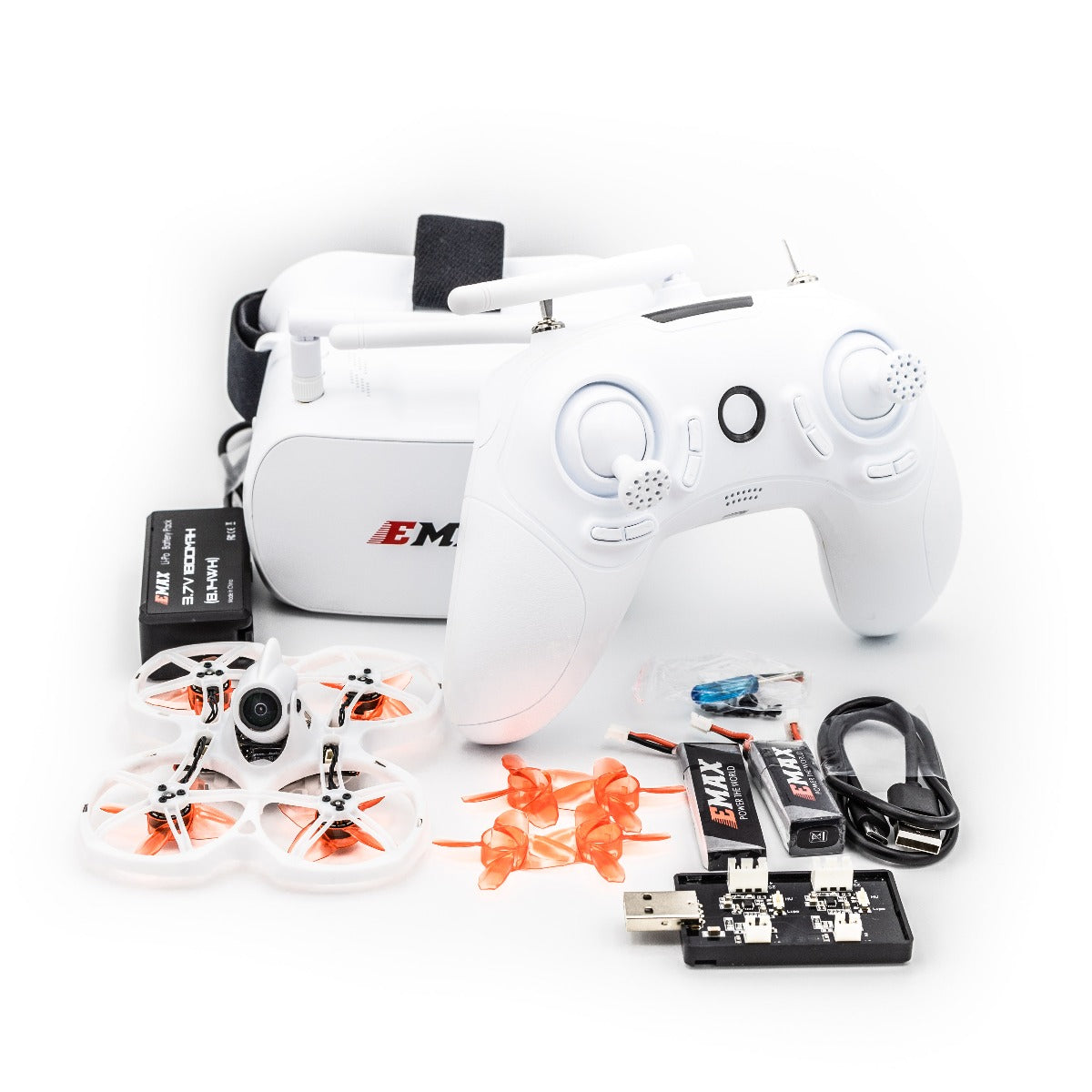

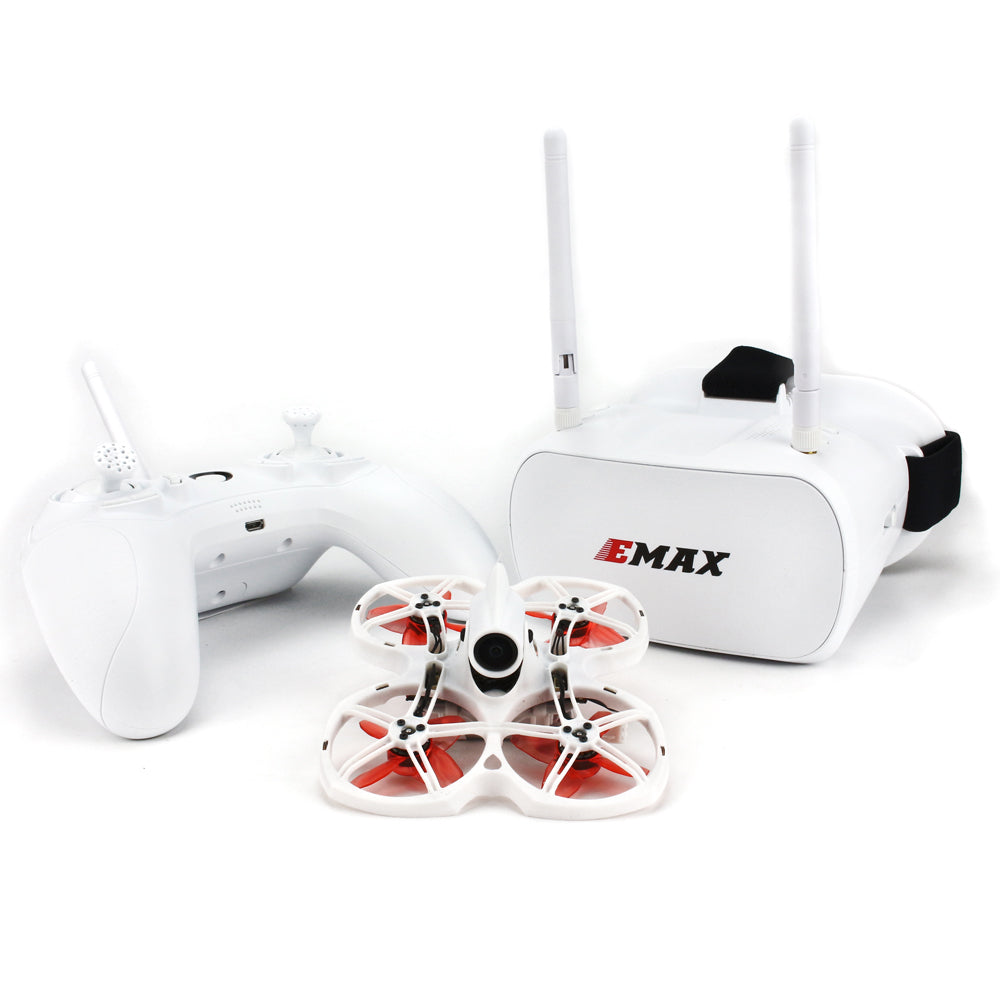

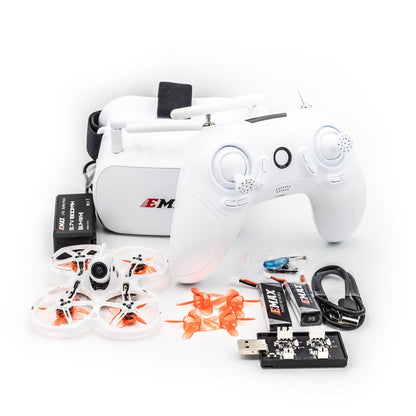

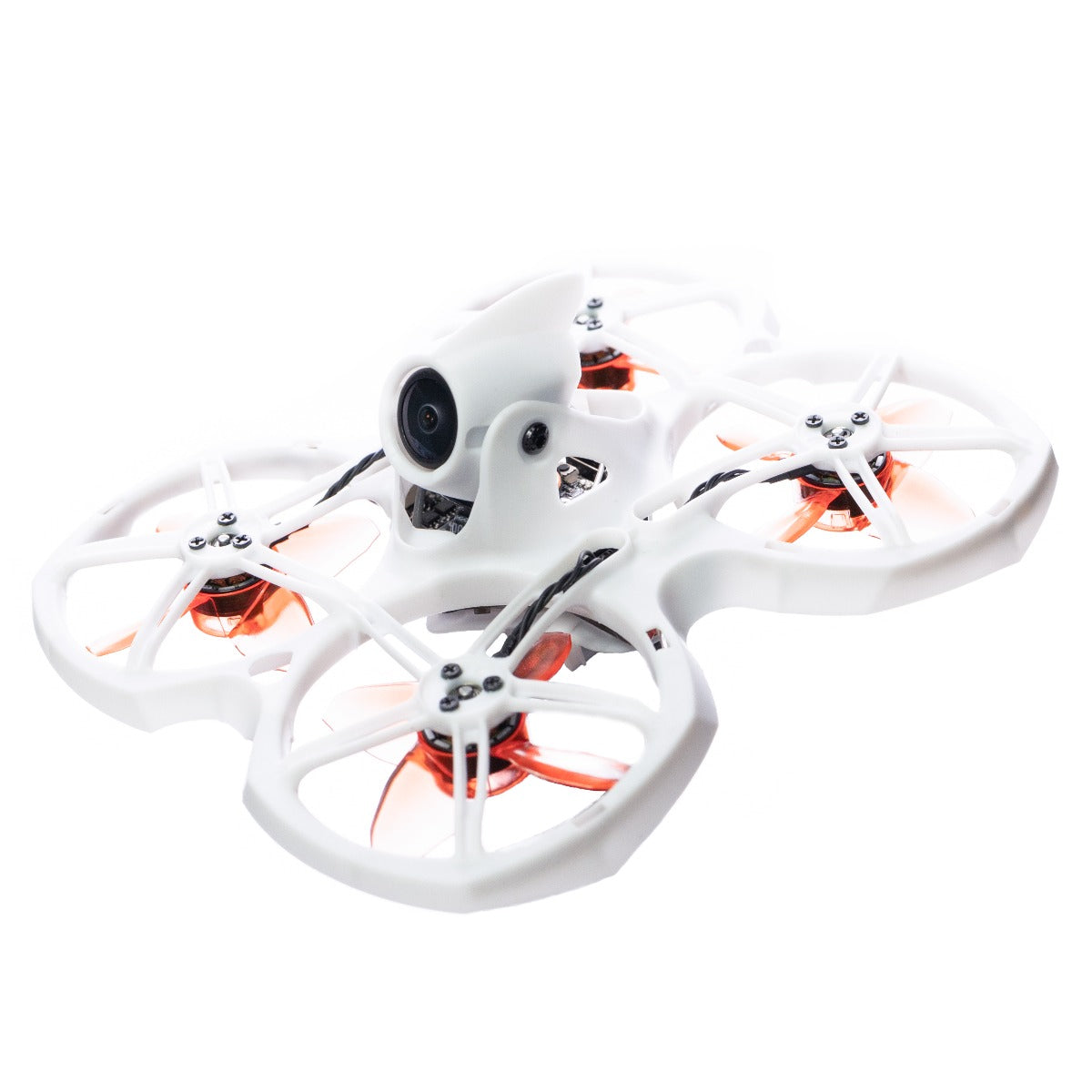

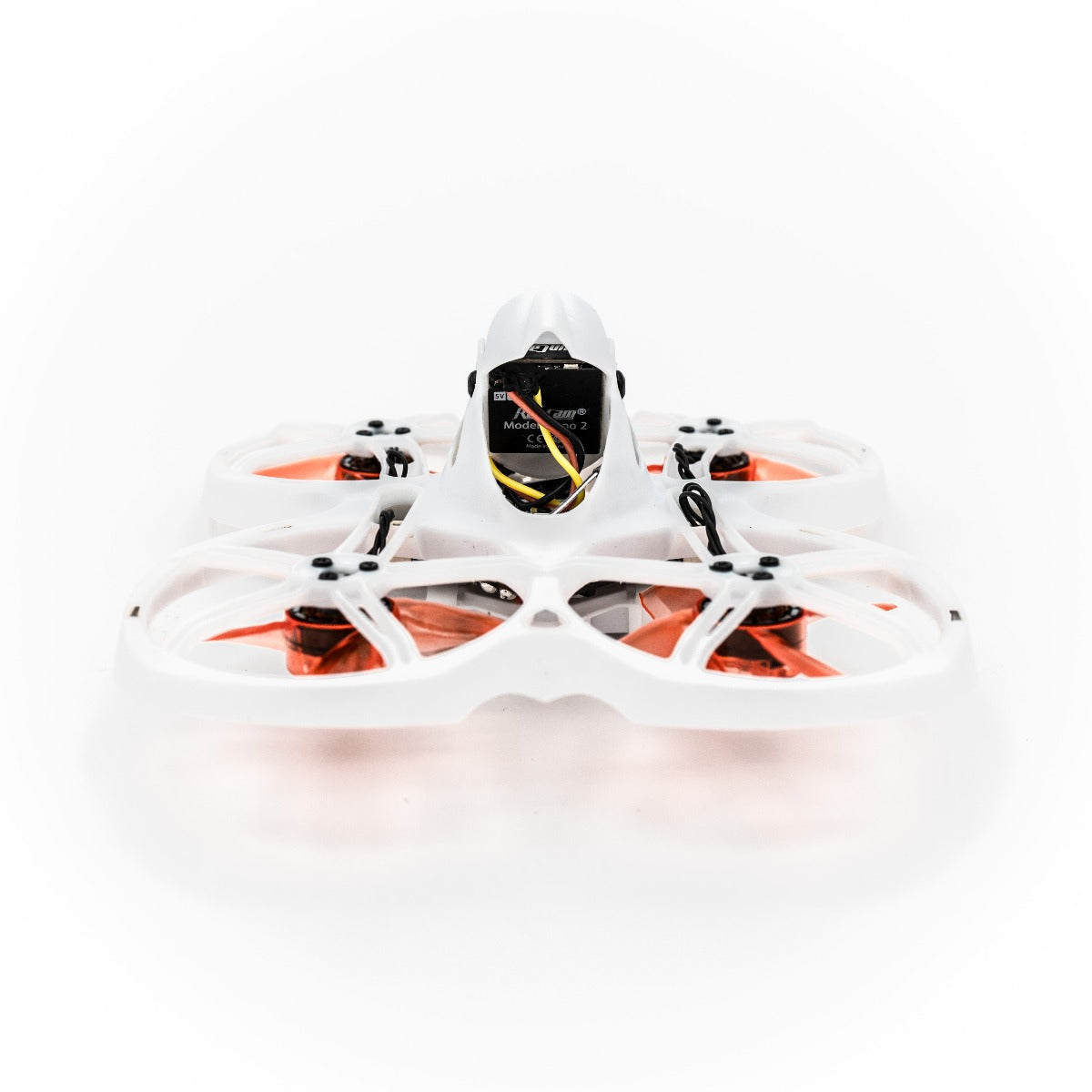

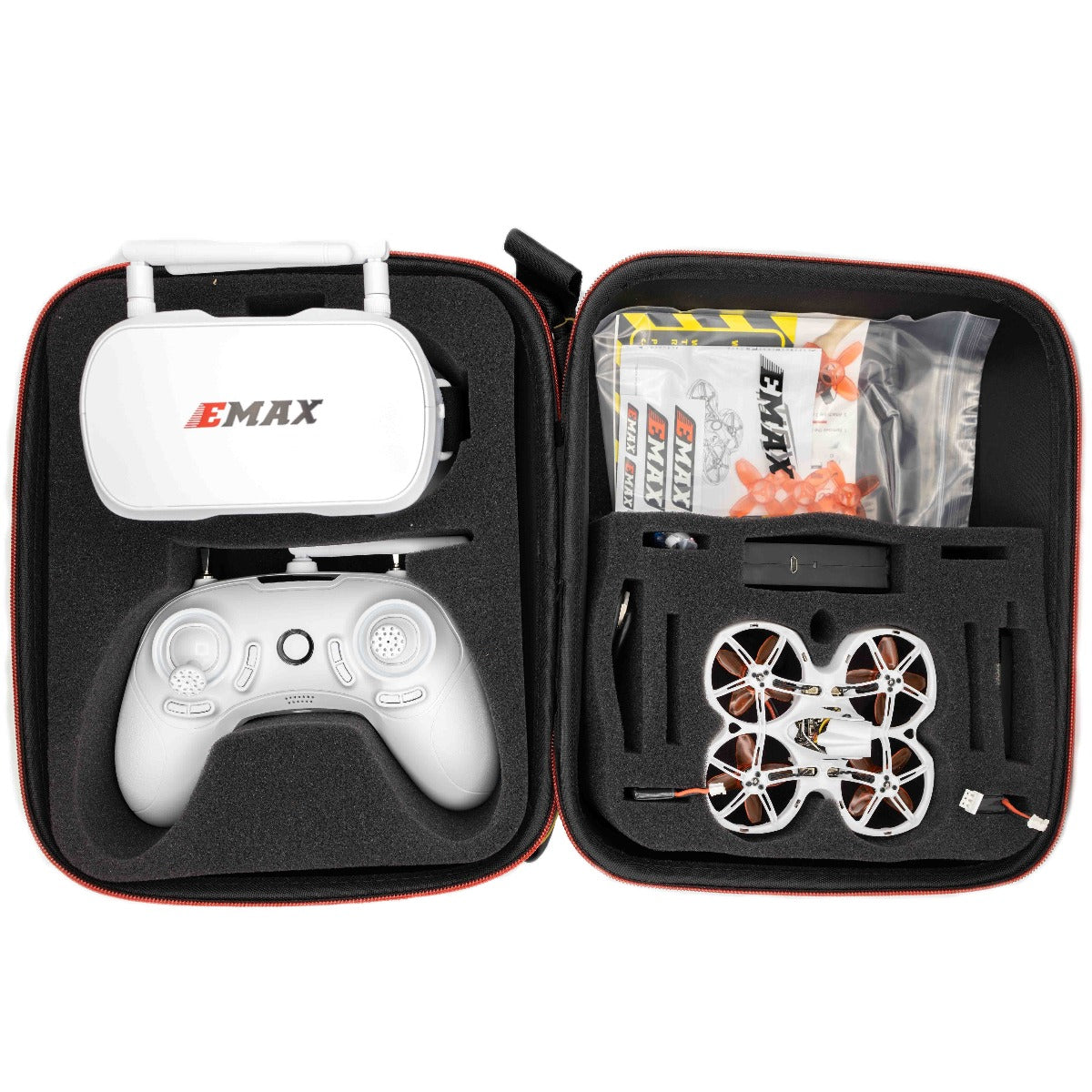

The Tinyhawk II RTF is a micro FPV drone, controller and goggles kit from Emax. The TinyHawk II is specifically designed for indoor flight. It is equipped with Runcam Nano 2 with adjustable camera mount, powerful VTX and brushless motors.
Specifications:
Frame:
Frame wheelbase: 75 mm
Net weight: 31.2g
Total weight: 43.5g with 1x 450mAh 1S battery
Frame material: Polypropylene

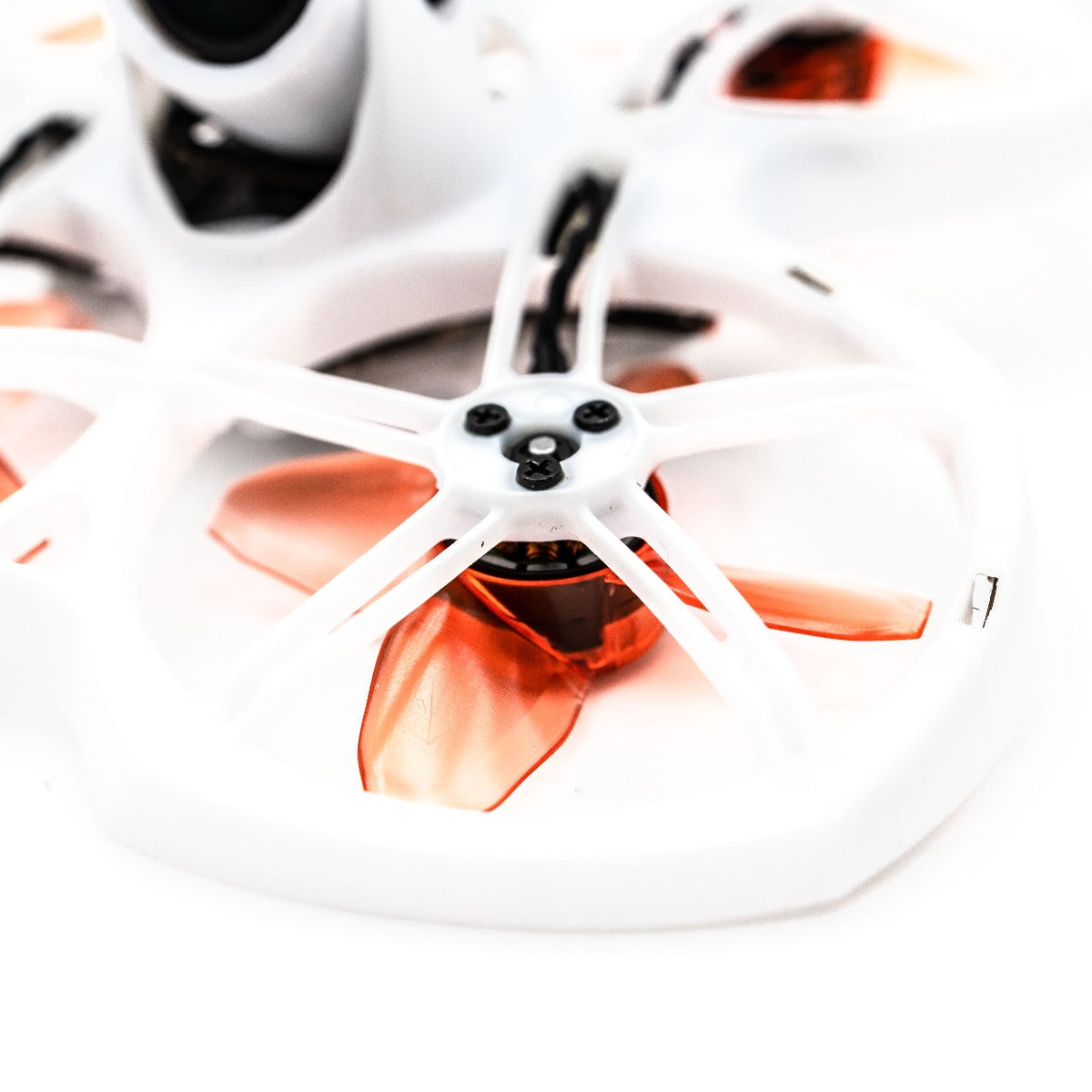

Engines:
Stator size: 0802
Sq.m.: 16000 sq.m
Propeller holder: Push-On Avan TH-style

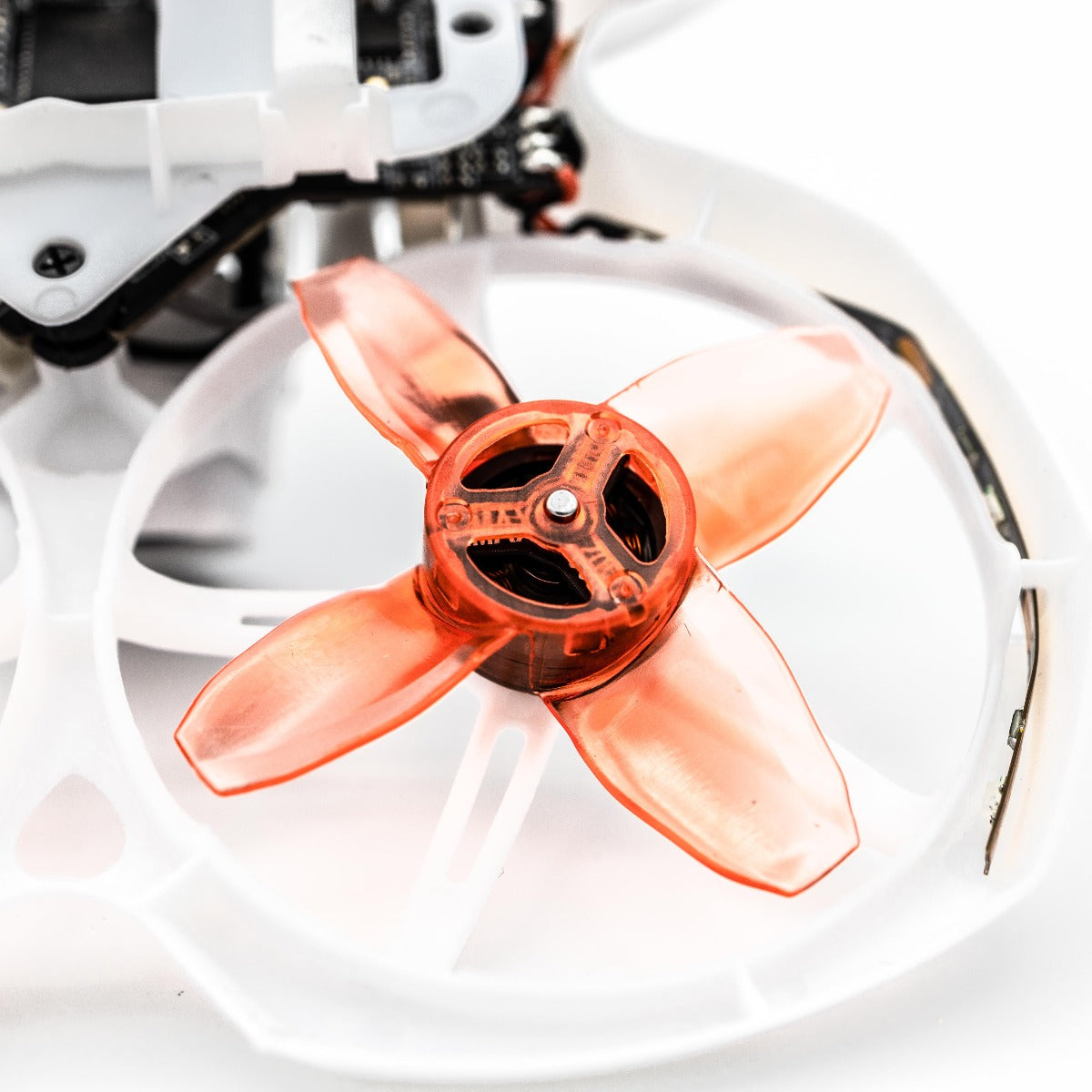

Propeller: Avan Turtlemode 4-Blade

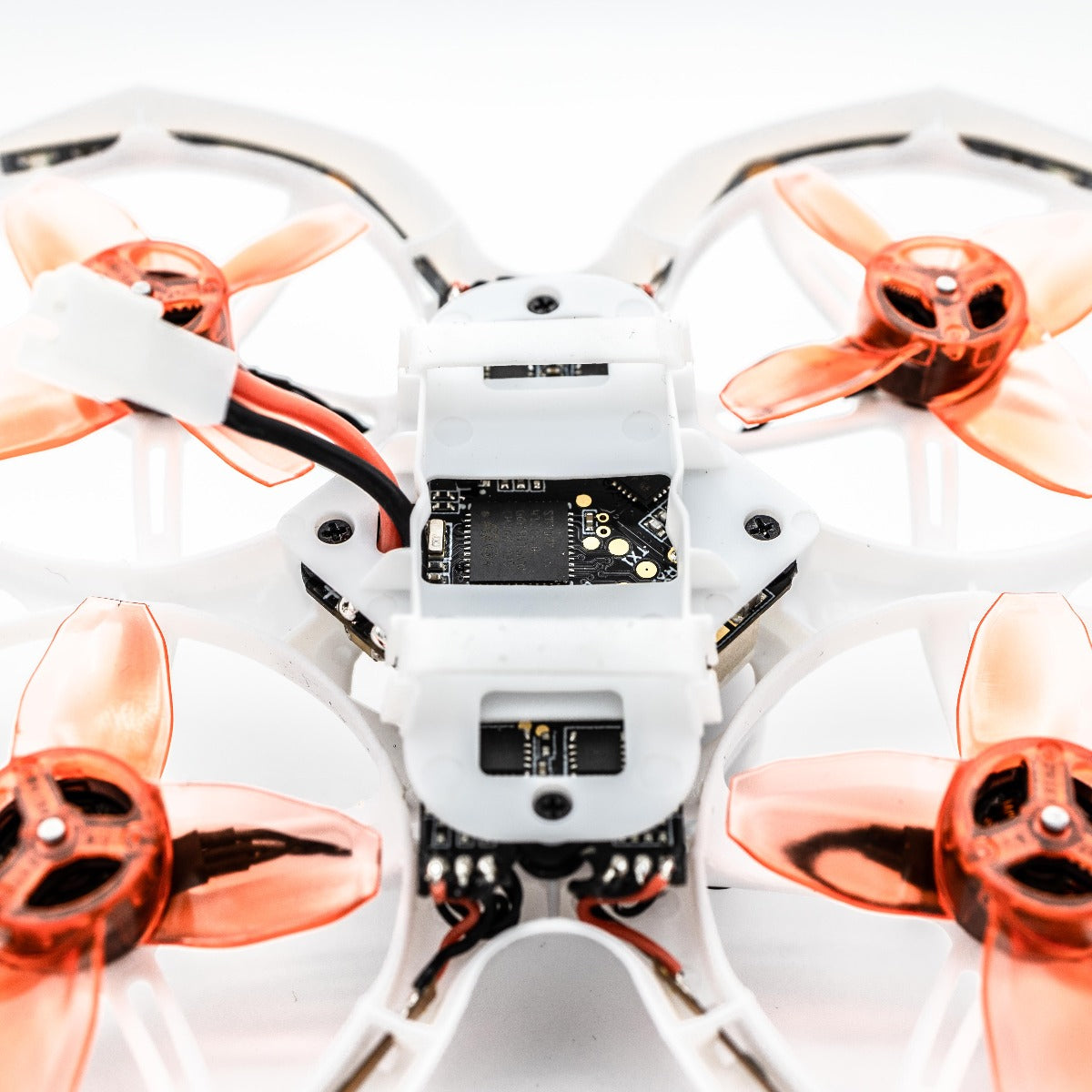

All-In-One (AIO) flight controller:
Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A BlHeli_S
Receiver: EMAX SPI Receiver (compatible with FrSky D8 mode)
Battery connector: JST-PH2.0
Camera and VTX:
VTX power: 25/100/200 mw Switchable
Channels: 37CH incl. Racing groups

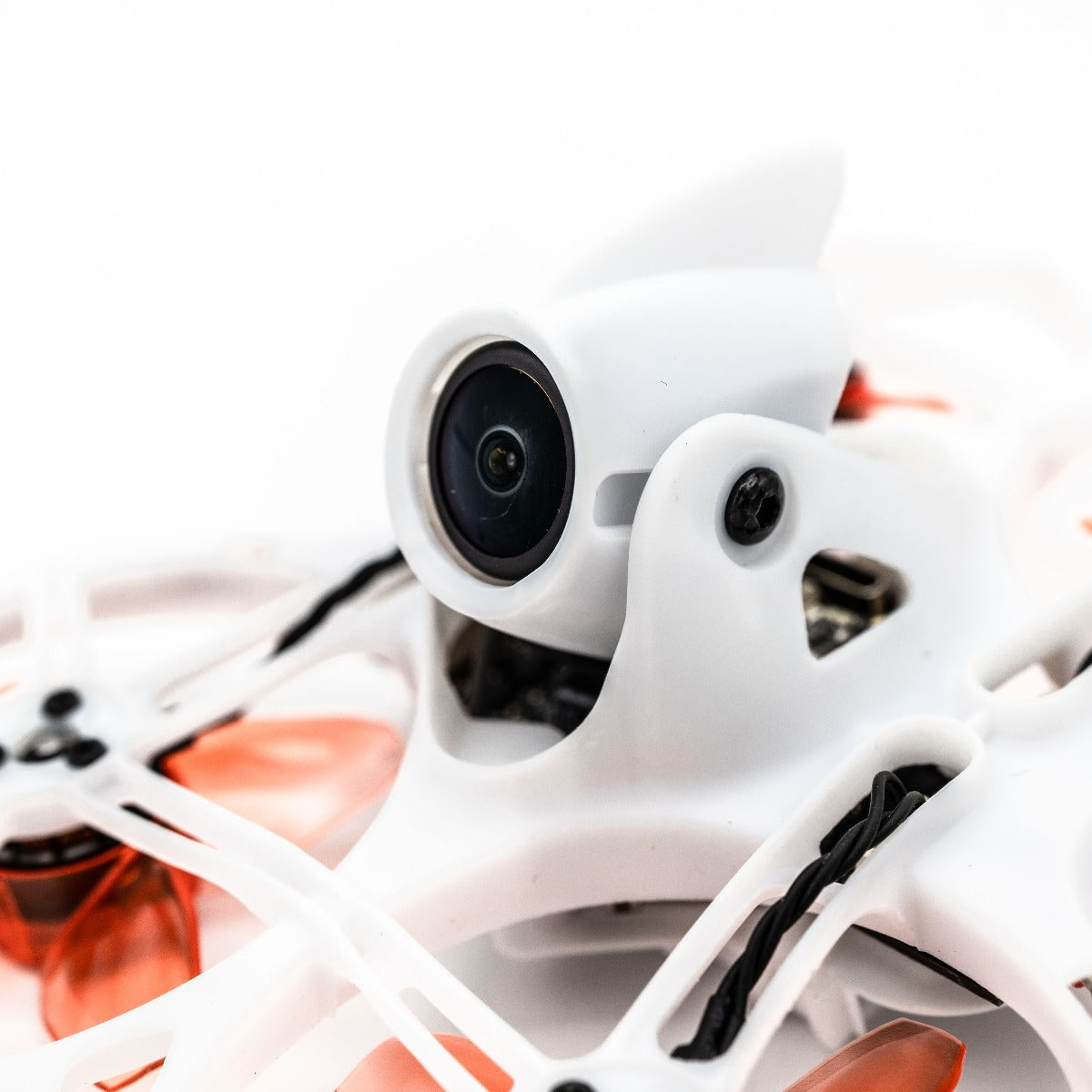

Camera: RunCam Nano 2 1/3" 700TVL CMOS
Smart Audio: Yes
Remote control:
Dimension: 181×213×80 (mm)
Weight (without battery): 211g
Number of channels: 6 channels
Transmission frequency: 2.4GHz ISM Band (2400MHz-2483.5MHz)
Output power: 22 dBm
Modulation: GFSK
Battery: 1s 18650 lipo battery
Goggles:
Dimension: 140×153×90 (mm)
Weight (without battery): 398 g
Resolution: 480×272
Battery: 1s 18650 lipo battery
