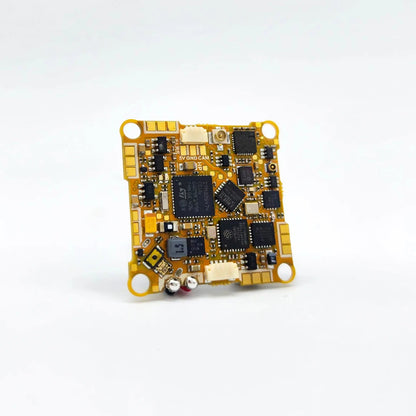

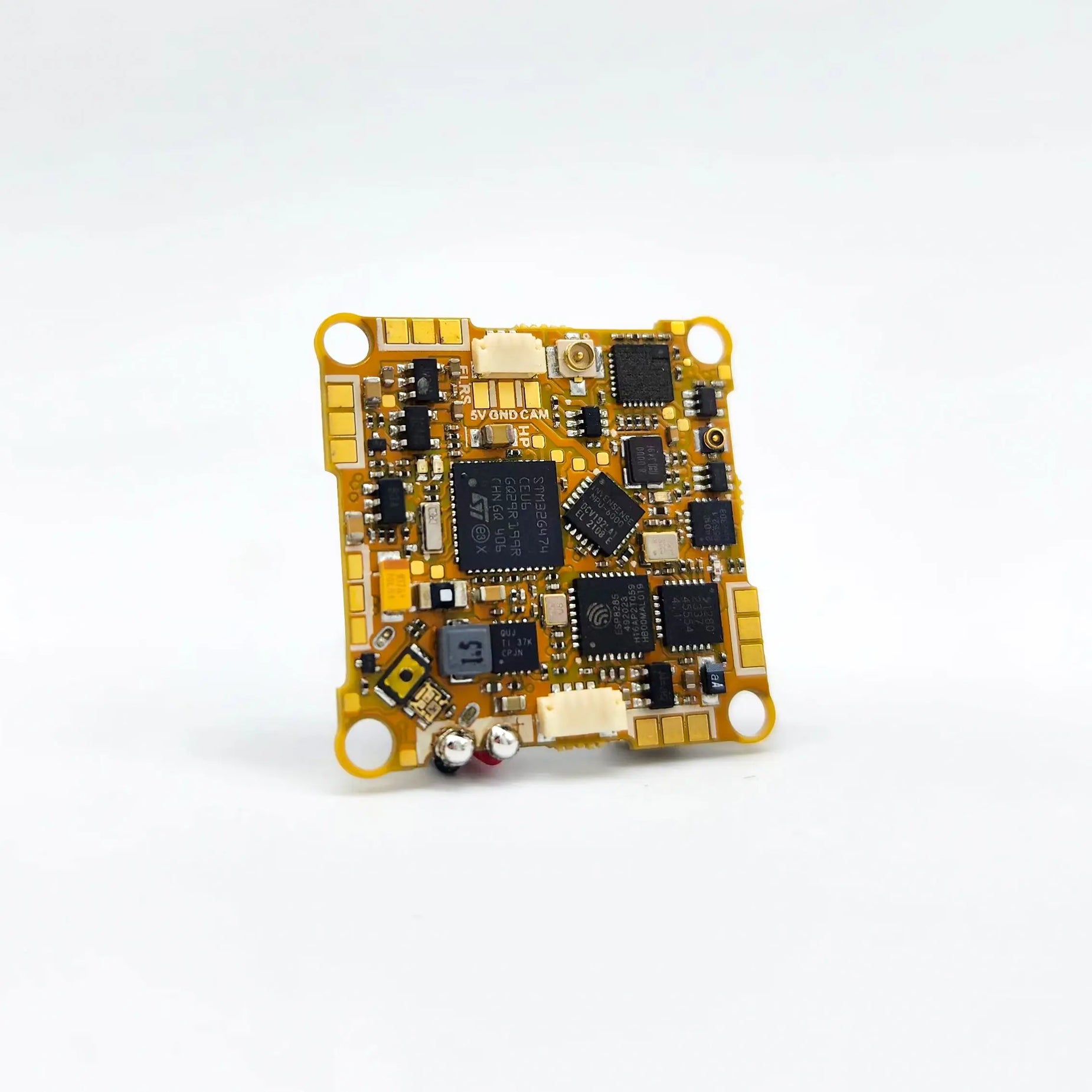

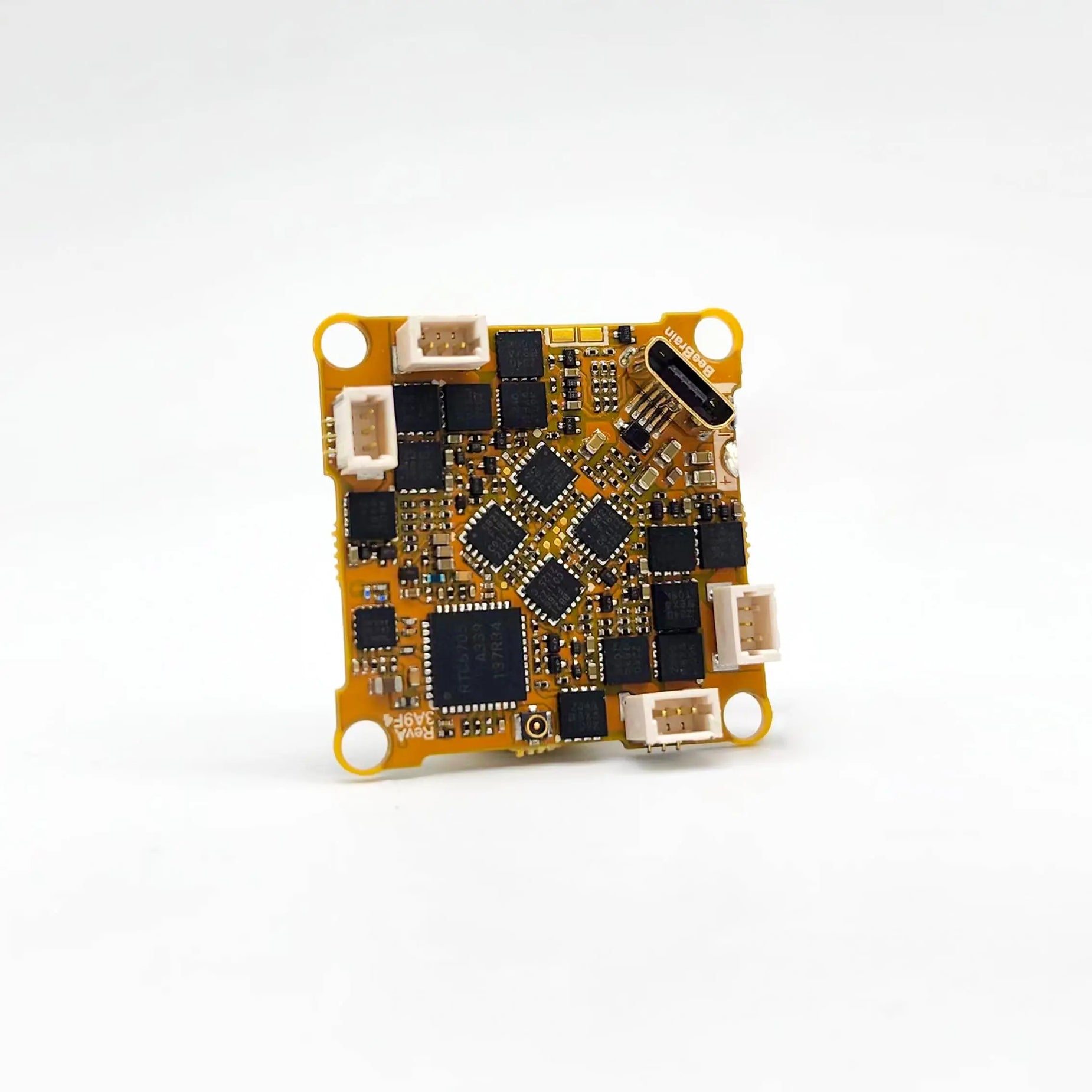

Flight Controller NewBeeDrone BeeBrain BLV5 AIO (ELRS 2.4G)
Flight Controller NewBeeDrone BeeBrain BLV5 AIO (ELRS 2.4G)
Brand: NewBeeDrone
Regular price
€99,00
Regular price
€99,00
Sale price
€99,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
NewBeeDrone BeeBrain BLV5 AIO flight controller (ELRS 2.4G) The NewBeeDrone BeeBrain BLV5 AIO Flight Controller with ExpressLRS (ELRS) 2.4G brings the latest innovation to the BeeBrain line. As the 5th generation of NewBeeDrone's flagship flight controller, the BLV5 features improved technology for better control, signal strength and durability. Built with an STM32G474 MCU and dual N-MOS 18A ESC running Bluejay 0.19.2 at 48KHz, this flight controller is designed for precision and performance. The BLV5 features Smart-Max VTX Power Control technology, which dynamically adjusts VTX power depending on temperature. With 25mW, 100mW and 400mW settings, it automatically balances power to maximize signal and prevent overheating, giving you stable video transmission during flights. This flight controller pairs perfectly with Flow 0804 14000KV AC motors for smooth performance on 1S and 2S batteries. The built-in ExpressLRS dual-antenna receiver ensures consistent signal strength, ideal for a variety of flight environments. Upgraded BeeBrain BLV5: STM32G474 MUC Dual N-MOS 1 Channel 18A Running Z-H-40 - Bluejay 0.19.2 48KHz TCXO crystal oscillator ELRS 2.4G diversity receiver Non-PI MPU6000 Gyro Smart-Max VTX Power Control technology: Smart-Max Intelligent Power Management: Smart-Max technology dynamically adjusts VTX performance based on real-time temperature monitoring to prevent overheating and protect VTX hardware. It automatically reduces power when needed and increases power to 400mW when temperatures allow, ensuring maximum signal strength and stable video transmission. It is equipped with a three-level power switch: 25mW (short distance flying) 100 mW (mid-range flying) 400mW (flying long distances) Smart-Max Specifications: MCU: STM32G474 216MHz Gyroscope: MPU6000 VTX: 25mw/100mw/Smart-Max(400mw) Camera: Caddx Ant Nano 1200TVL ESC: Double N-MOS 1 Channel 18A Running Z-H-40 Bluejay 0.19.2 48KHz Motor plug: JST-1.0 3Pin Receiver: Built-in TCXO Crystal Oscillator ExpressLRS 2.4GHz Diversity Receiver (Uart Base) Flight control weight: 5.8g Flight control size: 29x29x7.6mm; 25.5x25.5mm Input battery: 1s-2s The package contains: 1 x BeeBrainBLV5 1 x 2.4G T-antenna 1 x 2.4G receiving antenna 1 x 5.8G VTX antenna 4 x grommet 5 x screws
