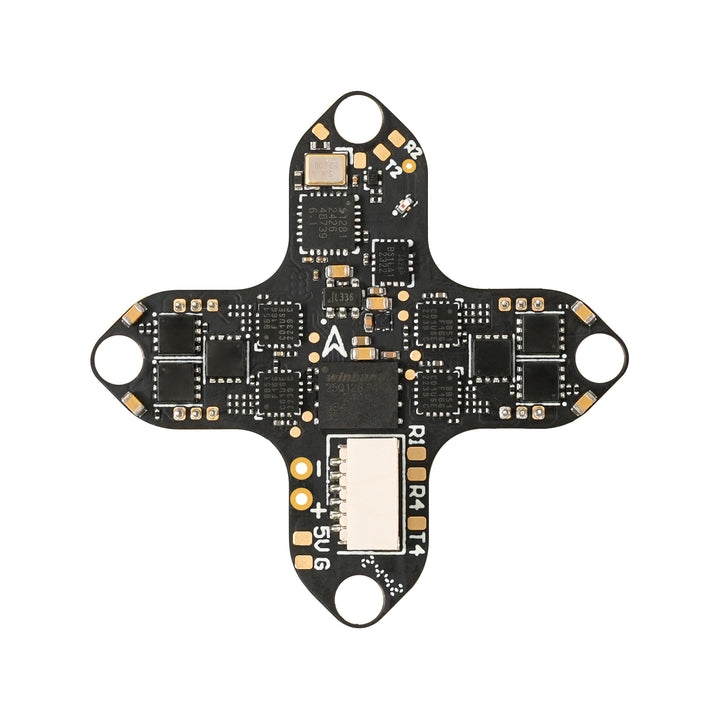

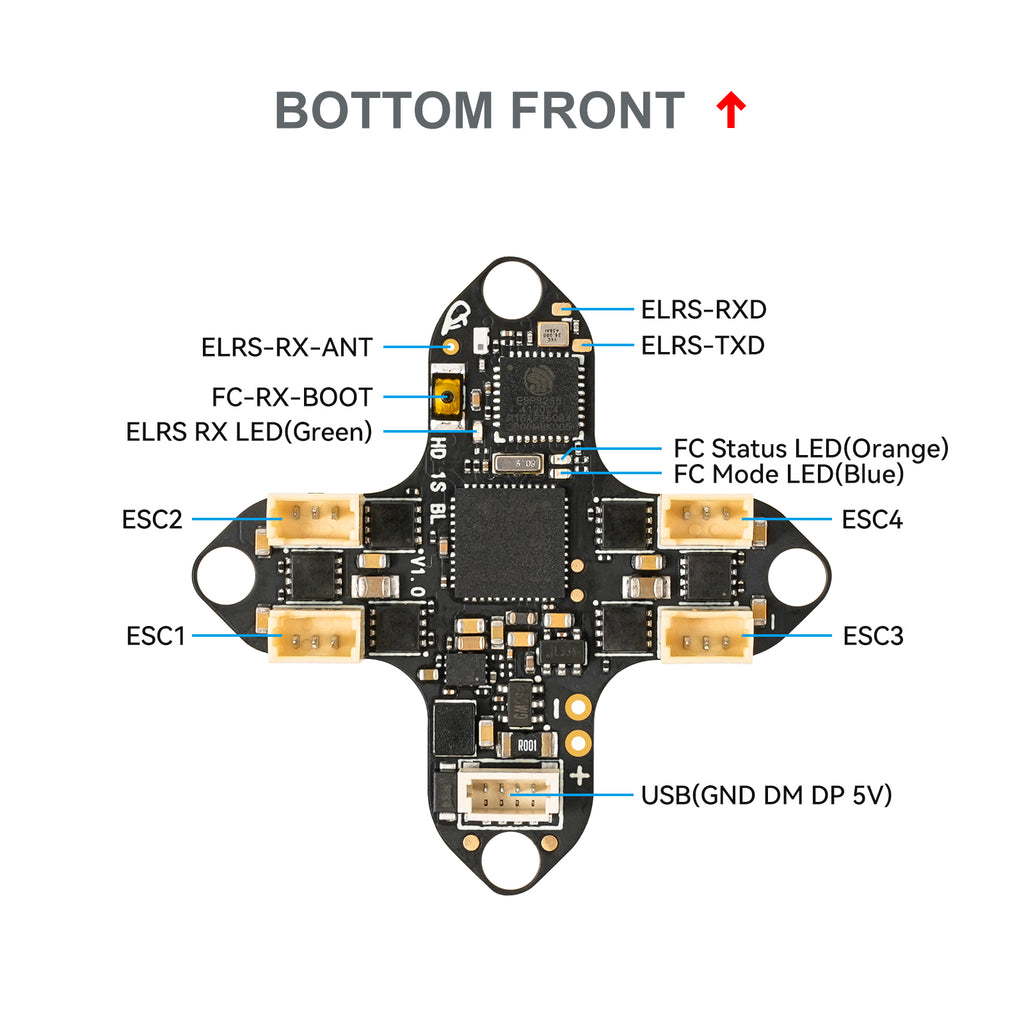

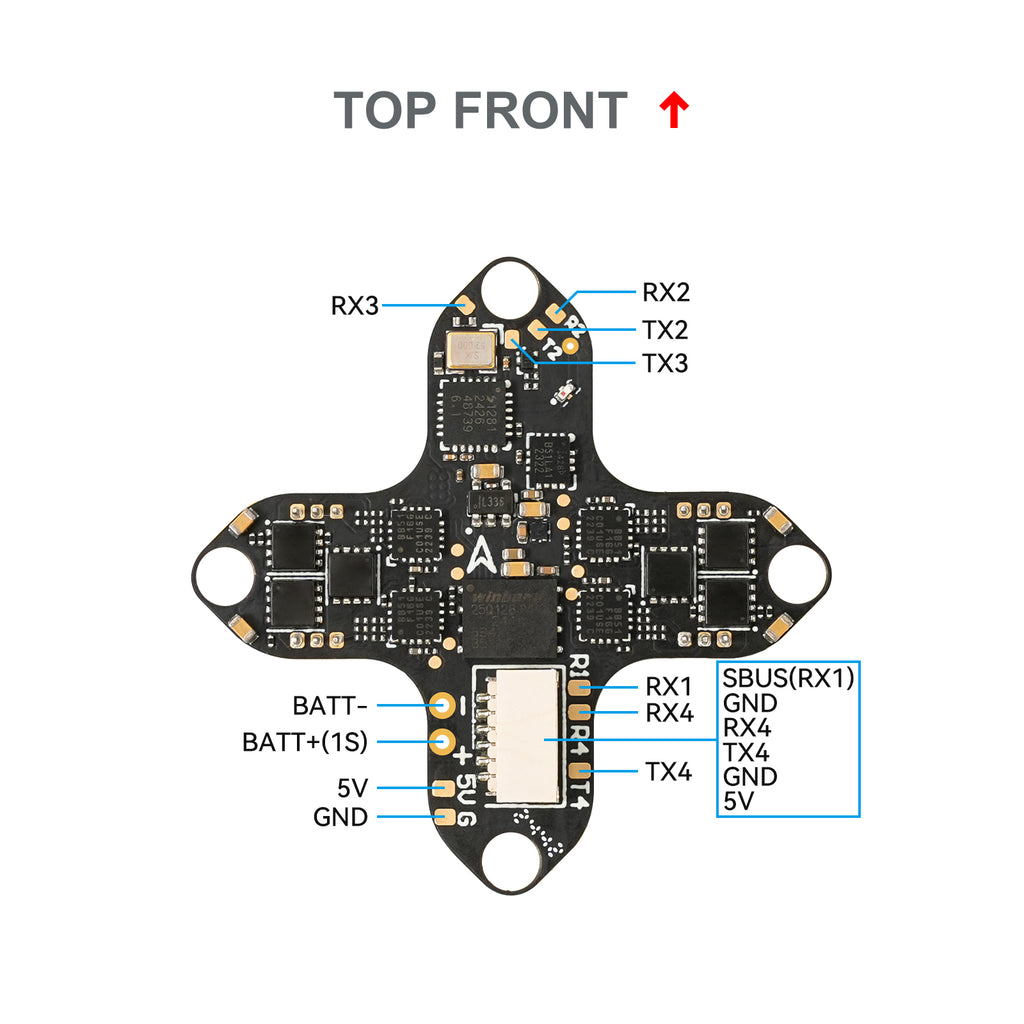

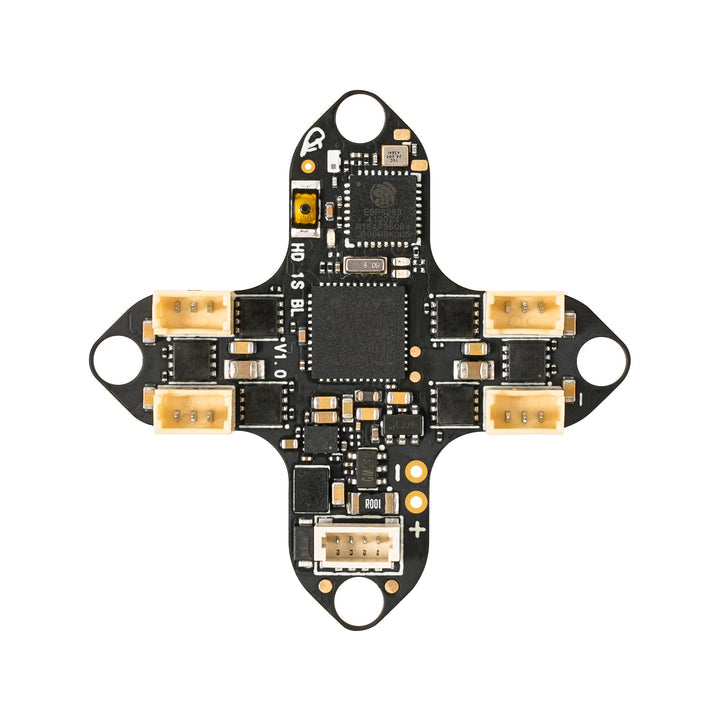

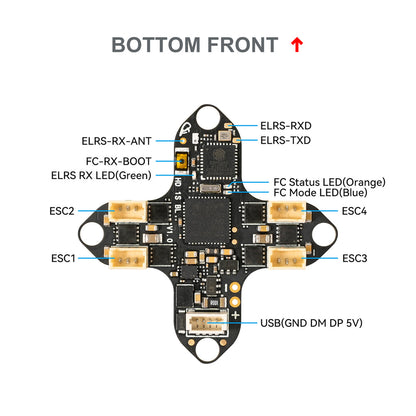

BetaFPV Matrix 1S Brushless G4 3IN1 HD V1.0 flight controller The Matrix 1S 3IN1 HD Brushless Flight Controller is designed specifically for the 1S HD whoopy and uses the iconic "cross" design. Designed exclusively for digital FPV - no analog OSD - it integrates a flight controller, ESC and ELRS 2.4G receiver into one lightweight and compact module, simplifying installation and maintenance. With a newly developed BEC and ESC, it is tuned for the demanding requirements of 1S HD whoop drones and sets a new standard among 1S HD controllers. Features: - Optimized for 1S Whoopy: Designed to improve performance with DJI O4 digital transmission. - Three in one: Combines flight controller, ESC and ELRS 2.4G receiver into one compact unit without analog OSD - fully focused on digital FPV. - Stable HD video transmission: The new BEC ensures a stable power supply for the smooth operation of digital systems. - Increased current capacity: ESC supports 12A continuous and up to 18A peak for powerful flights. - Accuracy and reliability: An independent 3.3V LDO circuit powers the IMU without interference for precise control. - Easy installation: Motor connectors and SH1.0-6Pin digital HD port ensure installation without soldering. Specifications: FC: MCU: STM32G473CEU6 (168MHz) Gyroscope: ICM42688P Blackbox: 16 MB Sensors: voltage and current BEC: 5V/3A UART: - UART 1 (RX/SBUS only) - UART 2 (free) - UART 3 (for receiver) - UART 4 (free/HD MSP) ESC: 12A continuously Receiver: Serial ELRS 2.4GHz (version 3.4.3) FC firmware: Betaflight_4.5.1_BETAFPVG473 USB port: SH1.0-4Pin HD Digital VTX Port: SH1.0-6Pin Motor connector: JST1.25-3Pin Battery connector: BT2.0 Mounting dimensions: 25.5 mm × 25.5 mm Weight: 3.2 ± 0.1 g (without connector), 4.2 ± 0.1 g (with connector) ESC: Power supply: 1S only Current: 12A continuous, 18A peak ESC Firmware: A_X_5_96_v0.19.2.hex (Bluejay BB51) Digital signal protocol: DSHOT300, DSHOT600 The package contains: 1 × Matrix 1S Brushless Flight Controller (3IN1 HD) 1 × Type-C to SH1.0 adapter 1 x SH1.0-4Pin cable 1 x SH1.0-6Pin cable 4 × Self-tapping screws M1.2*4 4 × Self-tapping screws M1.4*5 4 x Damping silicone balls
