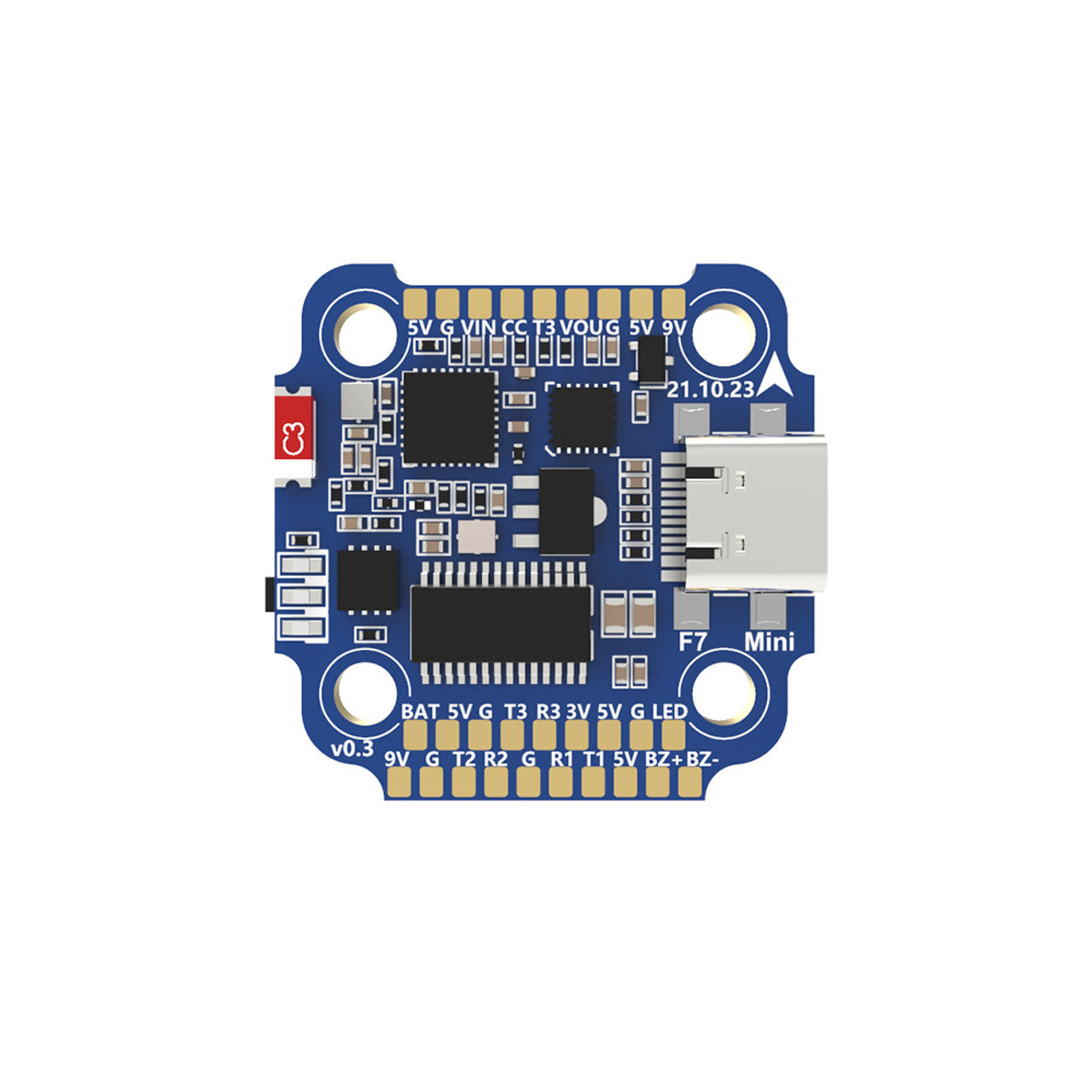

    SpeedyBee F7 Mini Flight Controller

The SpeedyBee F7 Mini FC has come to change the way you handle electronics. Flash, update, configure, all without plugging into any computer. With the SpeedyBee app, you can change almost any parameter wirelessly.

Specifications:
Product name: SpeedyBee F7 Mini
MCU: STM32F722
IMU (Gyro): BMI270 for current batches; MPU6000 for old batches before May 2022.
USB port type: Type-C
Barometer: N/A
OSD chip: AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART 6)
WIFI: Not supported
Firmware Flash FC wireless: Not supported. Update the firmware for this FC on PC
Download/Analyze Blackbox: Not supported. Download and analyze Blackbox data on PC
DJI Air Unit Solder Pads: Supported
Flash (for BlackBox): 8 MB
Current Sensor: Supported, Scale=250 Offset=-500
BetaFlight Camera Control Pad: Yes (CC pad)
Power: 3S - 6S Lipo
5V output: 6 groups of 5V output, five +5V pads and 1 BZ+ pad (used for buzzer). The total current load is 2.5A.
9V output: 2 groups of 9V output, the total current load is 2A.
3.3V output: Supported. Current load up to 500 mA.
ESC signal pads: M1 - M4
UART: Full UART x 3 (UART1, UART2, UART3)
ESC Telemetry UART: R4(UART4)
I2C: Not supported
LED Pad: Used for WS2812 LED
Buzzer: BZ+ and BZ- pad used for 5V buzzer
BOOT Button: Used to enter DFU mode
RSSI input: Not supported
SmartPort: Use any UART TX pad for SmartPort function.
Supported flight controller firmware: BetaFlight (default)
Target firmware name: SPEEDYBEEF7MINIV2 for current batches (Gyro: BMI270); SPEEDYBEEF7MINI for old batches (Gyro: MPU6000) until May 2022.
Mounting: 20 x 20 mm, hole diameter 3.5 mm
Dimension: 30 x 30 x 7.5 mm
Weight: 5.7g
