SpeedyBee F405 V3 30x30 Flight Controller

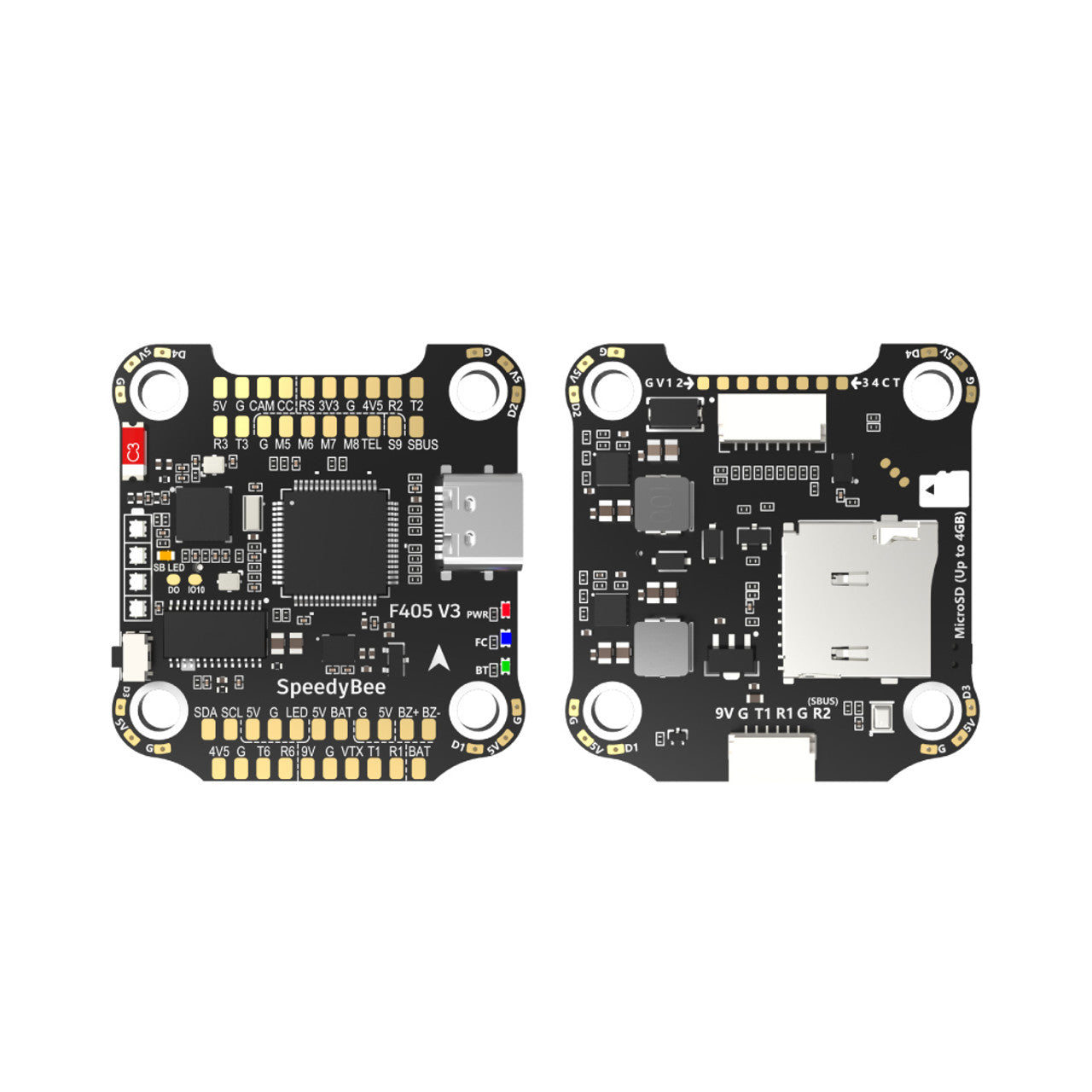

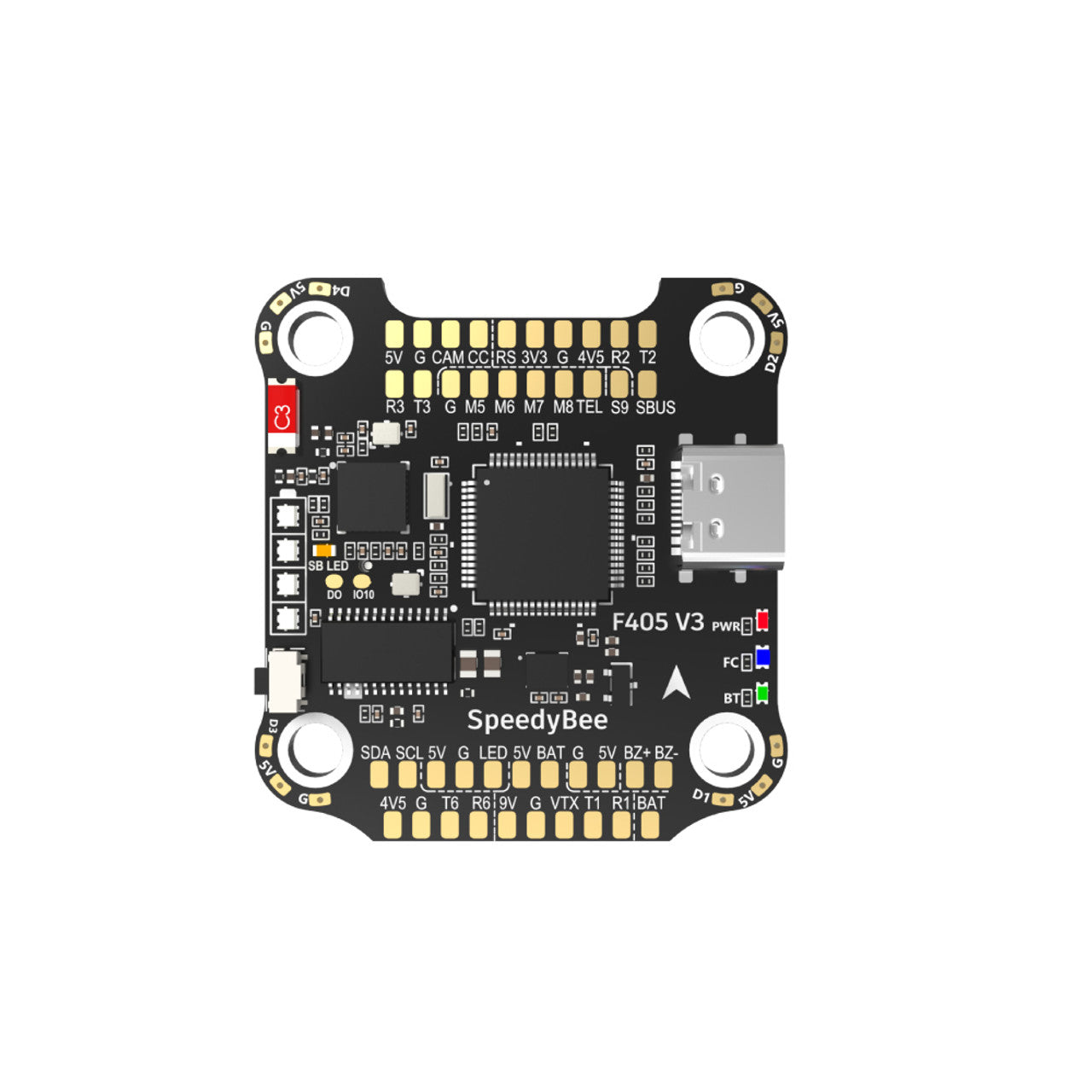

SpeedyBee F405 V3 Flight Controller - 30x30 offers Bluetooth pairing. It also features a 4-level LED battery indicator in case you don't have your LiPo checker handy. The F405 V3 FC also has a built-in barometer, ESC m1-m8 signal and 4x UARTS.
Function:
-Dedicated DJI Air Unit connector for fast digital assembly
-Power the GPS with a USB cable - no battery required.
-4 x UART for your receiver + VTX + camera + GPS.
-SD card slot supports up to 4GB of Blackbox data*
-22mm cutouts for FPV camera in your tight design
-9V 2A + 5V 2A single BEC
-4-level LED battery indicator
-m1-m8 ESC signal
-Built-in barometer
-Bluetooth pairing
Specifications:
BOOT Button: Supported.
[AND]. Press and hold the BOOT button and power on the FC at the same time, this will put the FC into DFU mode, this is for flashing the firmware when the FC freezes.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom. By default, short press the BOOT button to toggle the LED display mode. Long press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. In BF-LED mode, all LED1-LED4 strips will be controlled by Betaflight firmware.
Blackbox MicroSD Card Slot: *Betaflight firmware requires the microSD card type to be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). The card MUST also be formatted with a FAT16 or FAT32 file system (recommended). So you can use any SD card smaller than 32GB, but Betaflight can only recognize a maximum of 4GB. We suggest you use this third-party format tool, select 'Overwrite Format' and then format the card. See also recommended SD cards here or buy tested cards in our store.
5V output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for buzzer) on the front and 4x LED 5V pads. The total current load is 2A.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front. Used for WS2812 LED controlled by Betaflight firmware.
9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 2A.
4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A.
Power Input: 3S - 6S Lipo (via G, BAT pins/pads from 8-pin connector or 8-pads on bottom)
Current sensor input: Supported. For the SpeedyBee BLS 50A ESC, set Scale = 386 and Offset = 0.
3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA.
DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering.
I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc.
Supported Flight Controller firmware: BetaFlight (default), EMUFlight, INAV
UART: 5 sets (UART1, UART2, UART3, UART4 (for ESC telemetry), UART6)
BLE Bluetooth: Supported. Used to configure the Flight Controller
SmartPort: Use any UART TX pad for SmartPort function.
ESC signal: M1 - M4 on the bottom side and M5-M8 on the front side.
BetaFlight Camera Control Pad: Yes (CC pad on front)
RSSI Input: Supported. Named as RS on the front.
Mounting: 30.5 x 30.5mm (hole diameter 4mm)
Buzzer: BZ+ and BZ- pad used for 5V buzzer
Firmware: Target name SPEEDYBEEF405V3
Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm
ESC: UART R4 telemetry (UART4)
OSD chip: AT7456E chip
USB port type: Type-C
IMU (gyroscope): BMI270
Barometer: built-in
MCU: STM32F405
Weight: 9.6g
