Code: SKU:5447

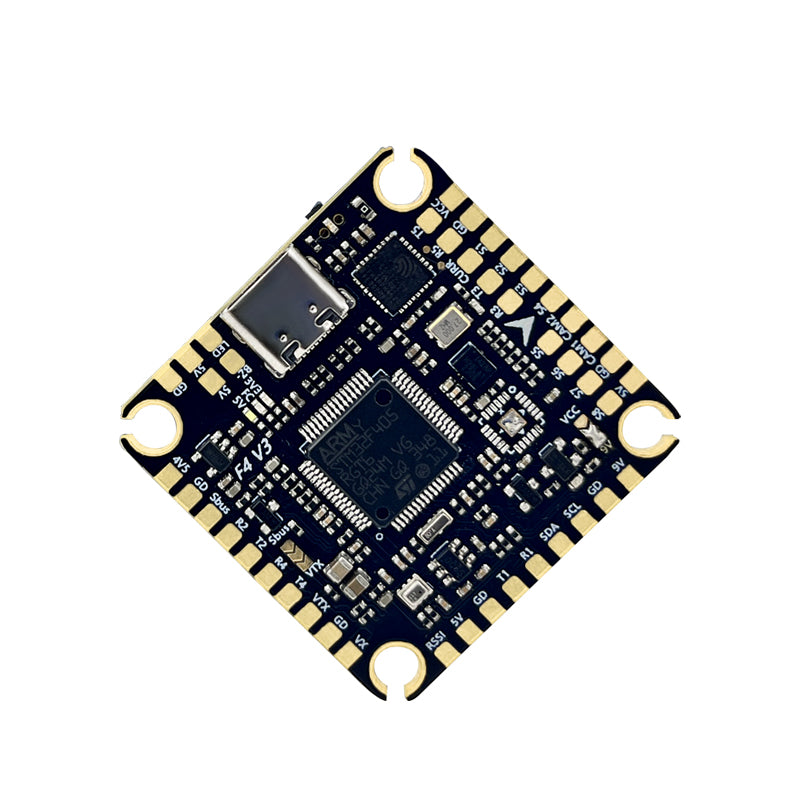

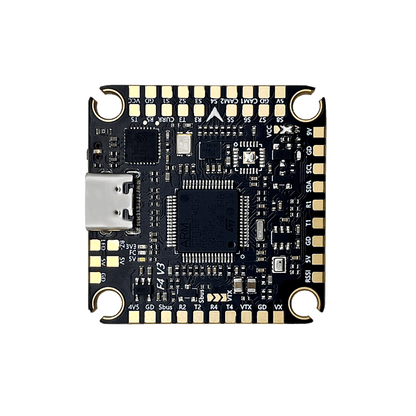

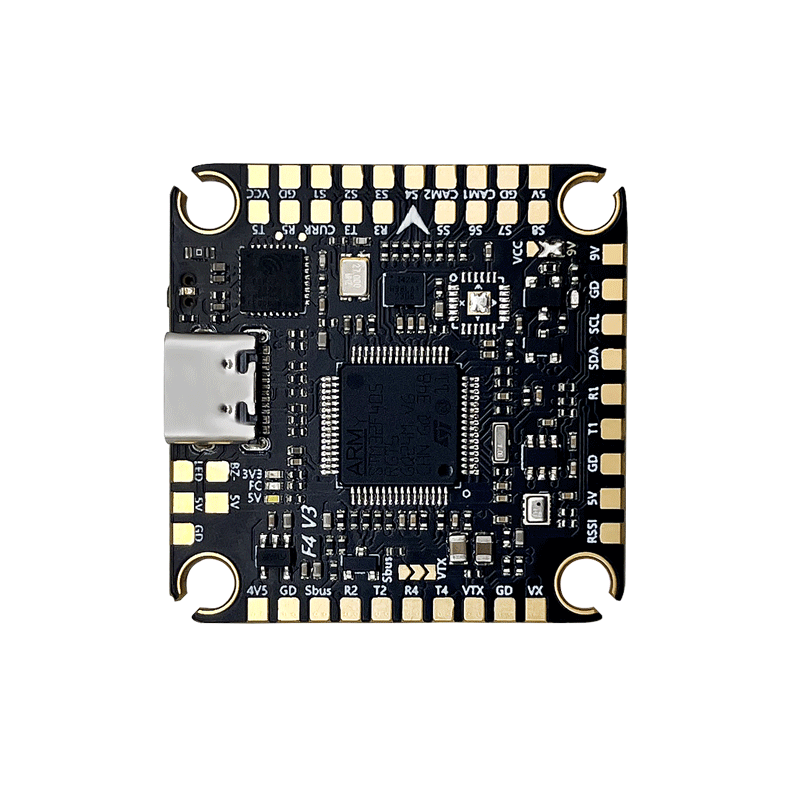

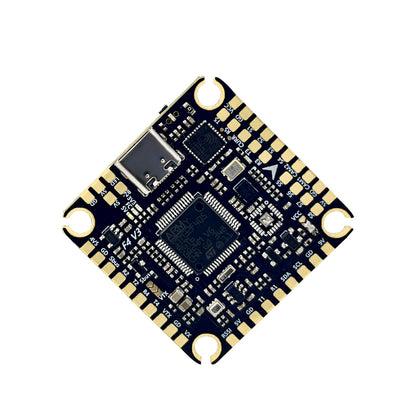

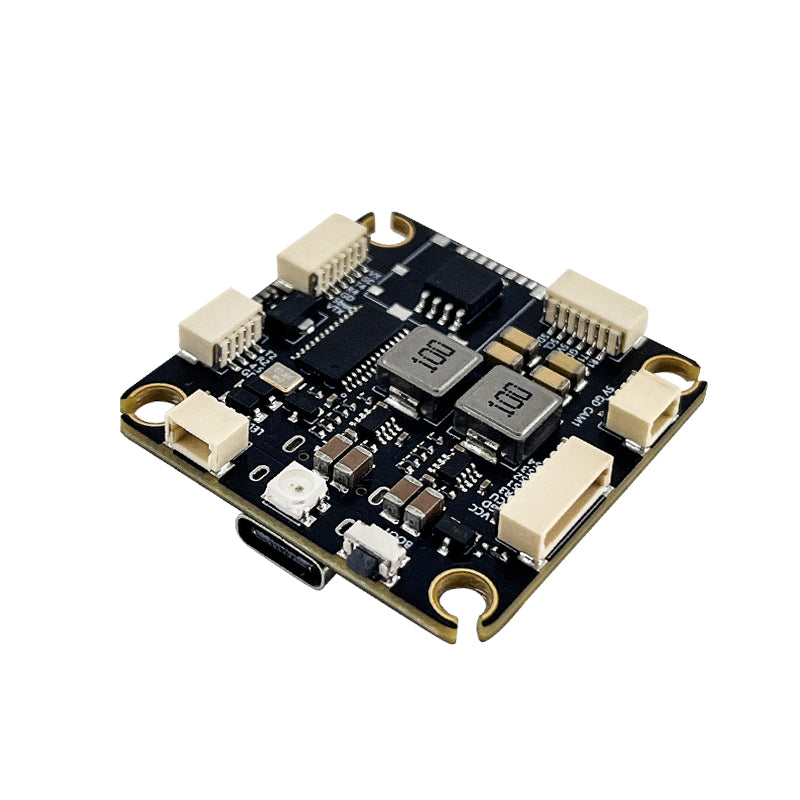

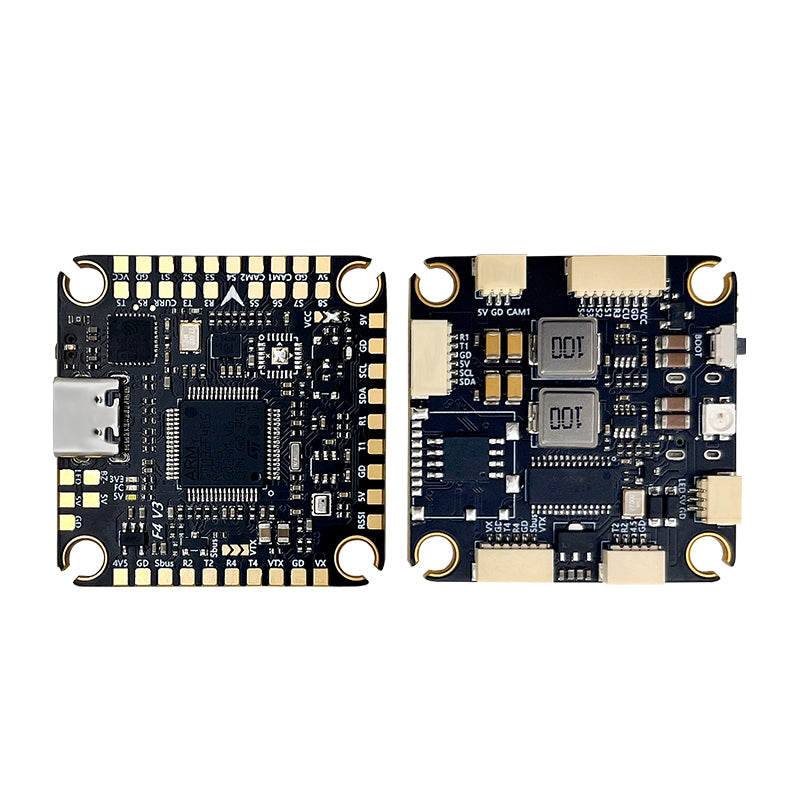

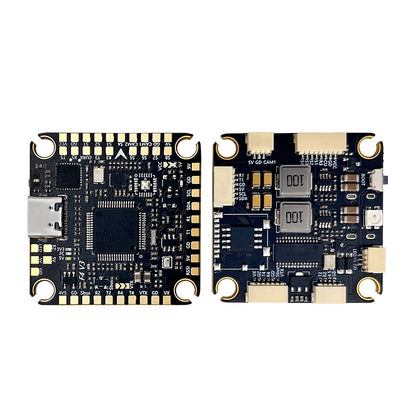

FC Pilotix F405 V3 ICM42688
FC Pilotix F405 V3 ICM42688
Brand: Pilotix
Regular price
€30,00
Regular price
€30,00
Sale price
€30,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
The F405 V3 flight controller is designed for drones and UAVs, offering robust features with support for various receiver protocols, sensors and functions. Here is an overview of the key specifications:
- Main chip: STM32F405RGT6, 32-bit ARM Cortex-M4 microcontroller.
- Gyro: ICM42688, a powerful 6-axis gyroscope for precise flight stability.
- Barometer: SPL06, providing altitude data for better in-flight control.
- OSD: Supported, allows real-time display of flight data.
- Black Box: 16MB built-in storage and microSD support for flight data recording.
- Motor output: 8 channels, support up to 8 motors.
- LED strips and buzzer support: Allows visual and audio feedback during flight.
- Receive Protocols: Compatible with a wide range of protocols, including ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire and DSMX.
- Ports: 5 universal serial ports for connection flexibility.
- Power output: 5V/2.5A and 9V/3A power for external devices such as cameras or VTX (video transmitters).
- USB connector: Type-C for modern and fast connection.
- DJI/Vista Digital: Support for DJI/Vista FPV systems for high-quality digital video transmission.
- Camera switching and jumper selection: Provides flexibility to connect and switch between SBUS and VTX, or 9V and VCC power supply.
- Weight and dimensions: 9.6 grams, with external dimensions of 36mmx36mm and an installation hole of 30.5mmx30.5mm.
- Firmware: Compatible with F405V3/F405V3SD firmware.
