Code: SKU:5089

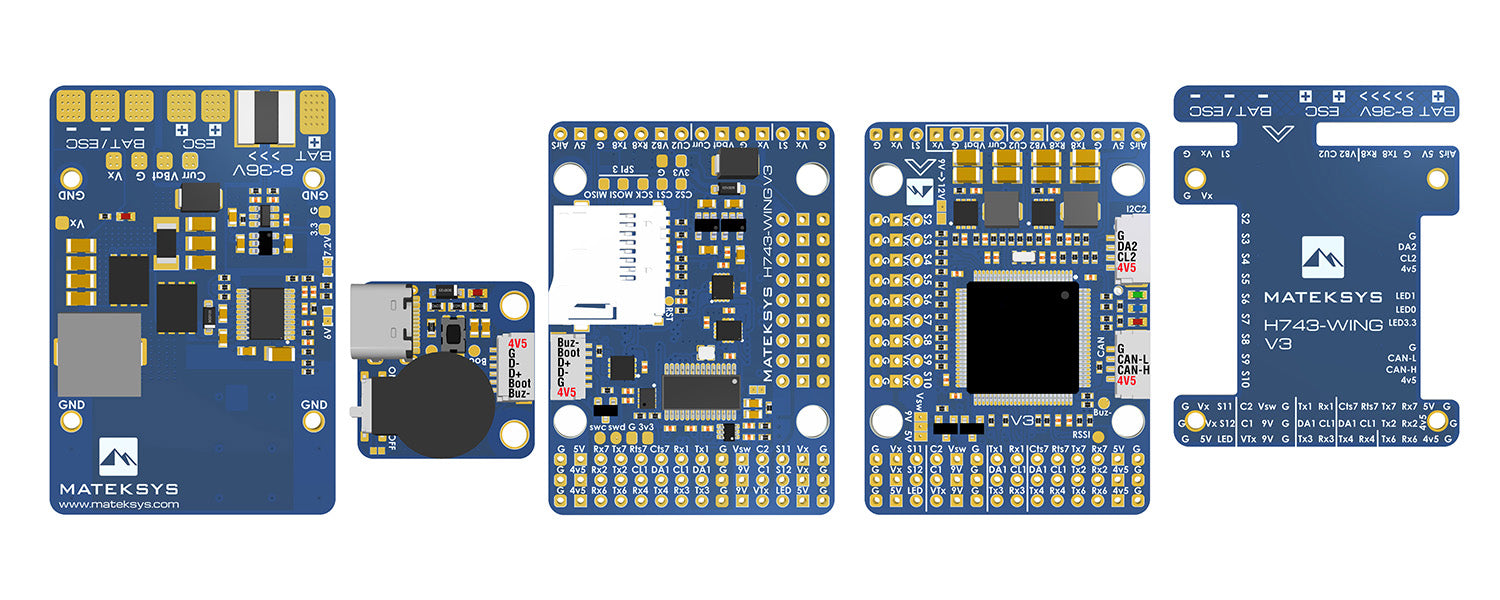

FC MATEKSYS H743-WING V3
FC MATEKSYS H743-WING V3
Brand: MATEKSYS
Regular price
€105,00
Regular price
€105,00
Sale price
€105,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

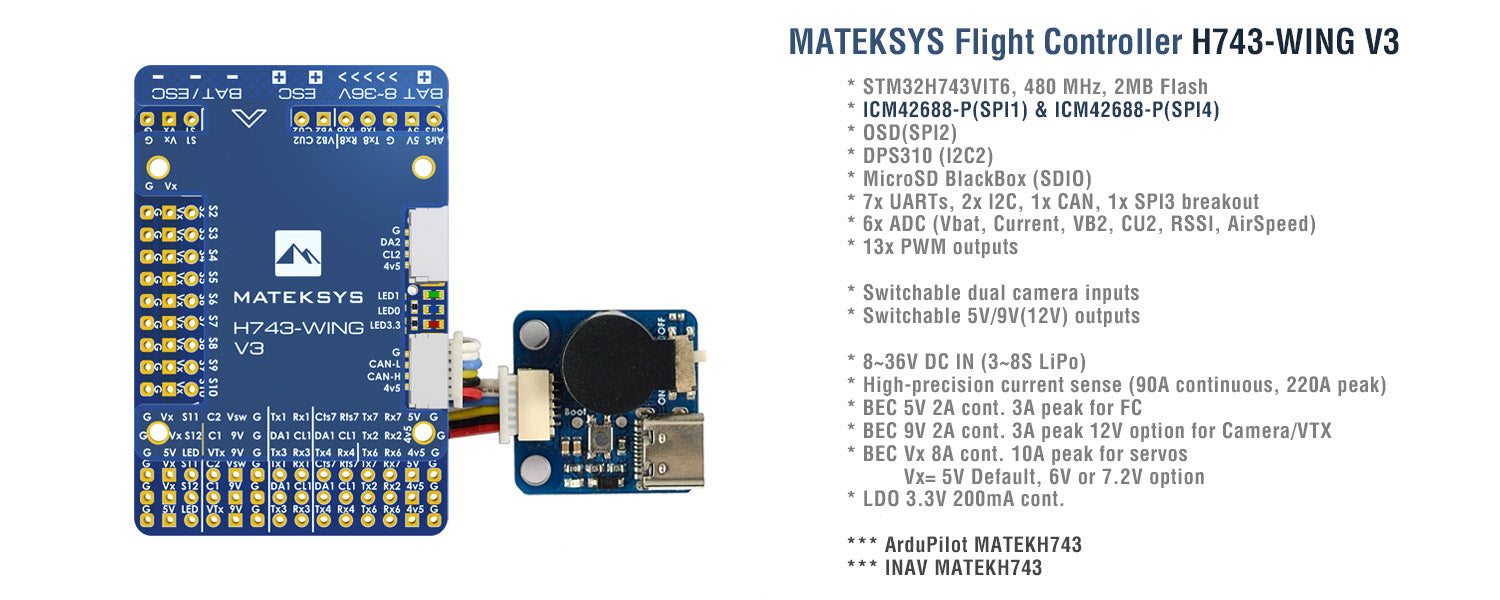

Processor: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash (SPI2). />SPI3 Breakout Output: 1
LED: 3 LEDs for FC Status (Blue, Red) and 3.3V BEC Indicator (Red)
ADC: VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2
Separate Board: USB Type-C / Buzzer
Switchable Inputs: For dual camera use
BEC Switch: 5V/9V (12V)
High Precision Current Sensor: Yes
ADC Voltage Divider VB2: 1K:10K
ADC Voltage Divider AirSpeed: 10K:10K
INAV TR/SA VTX Control: Yes
Buzzer Support: Yes
RSSI: Yes
Analog Airspeed Sensor Connection: Yes
Digital Airspeed Sensor Connection: Yes
Static Power Consumption: 160mA at 5V
Firmware INAV: MATEKH743
Firmware ArduPilot (ChiBiOS): MATEKH743
Firmware BetaFlight: MATEKH743
Mounting: 30.5 x 30.5mm, hole diameter 4mm, with 3mm spacers
Dimensions: 54 x 36 x 13 mm
Weight: 30 g (with USB extension)
LED: 3 LEDs for FC Status (Blue, Red) and 3.3V BEC Indicator (Red)
ADC: VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2
Separate Board: USB Type-C / Buzzer
Switchable Inputs: For dual camera use
BEC Switch: 5V/9V (12V)
High Precision Current Sensor: Yes
ADC Voltage Divider VB2: 1K:10K
ADC Voltage Divider AirSpeed: 10K:10K
INAV TR/SA VTX Control: Yes
Buzzer Support: Yes
RSSI: Yes
Analog Airspeed Sensor Connection: Yes
Digital Airspeed Sensor Connection: Yes
Static Power Consumption: 160mA at 5V
Firmware INAV: MATEKH743
Firmware ArduPilot (ChiBiOS): MATEKH743
Firmware BetaFlight: MATEKH743
Mounting: 30.5 x 30.5mm, hole diameter 4mm, with 3mm spacers
Dimensions: 54 x 36 x 13 mm
Weight: 30 g (with USB extension)
