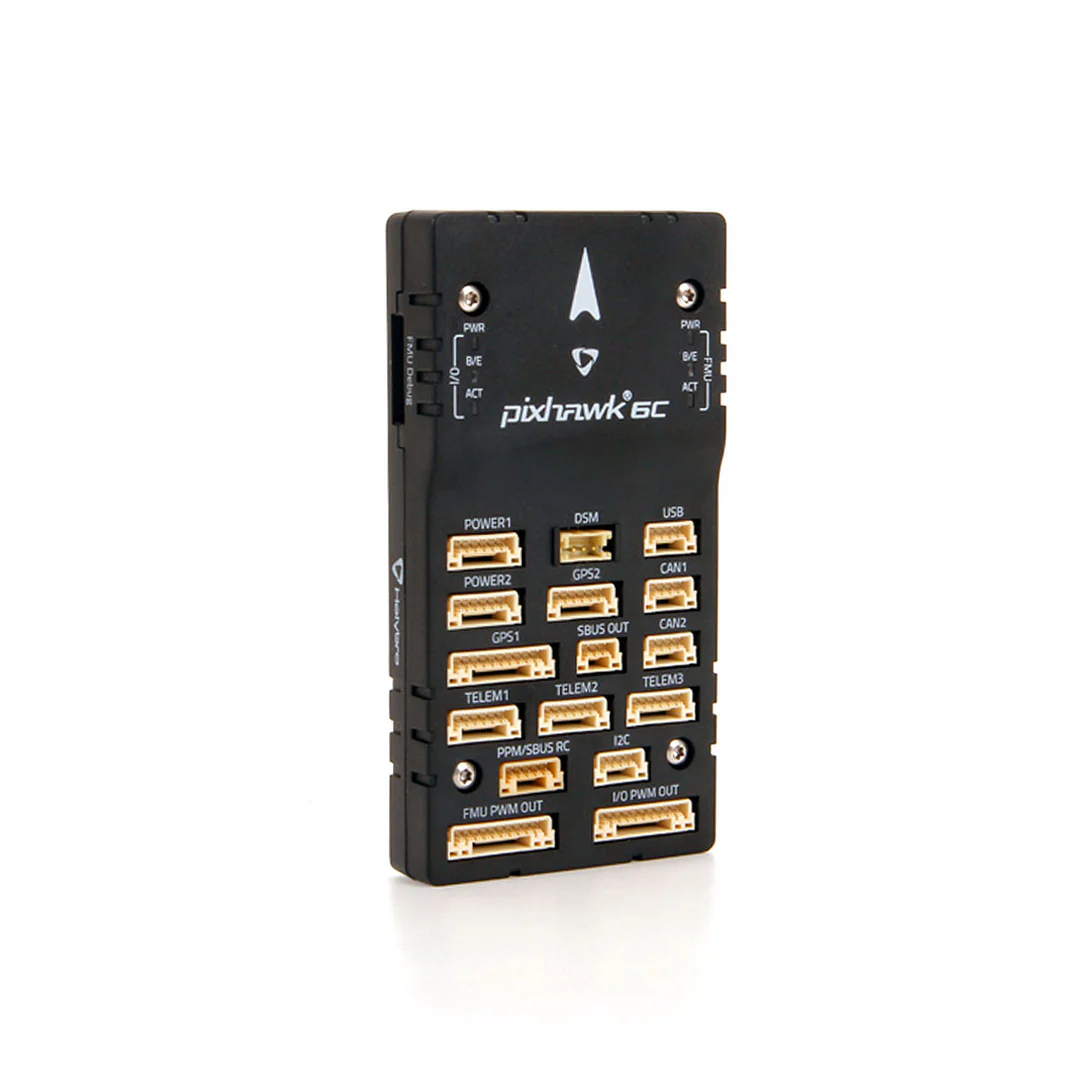

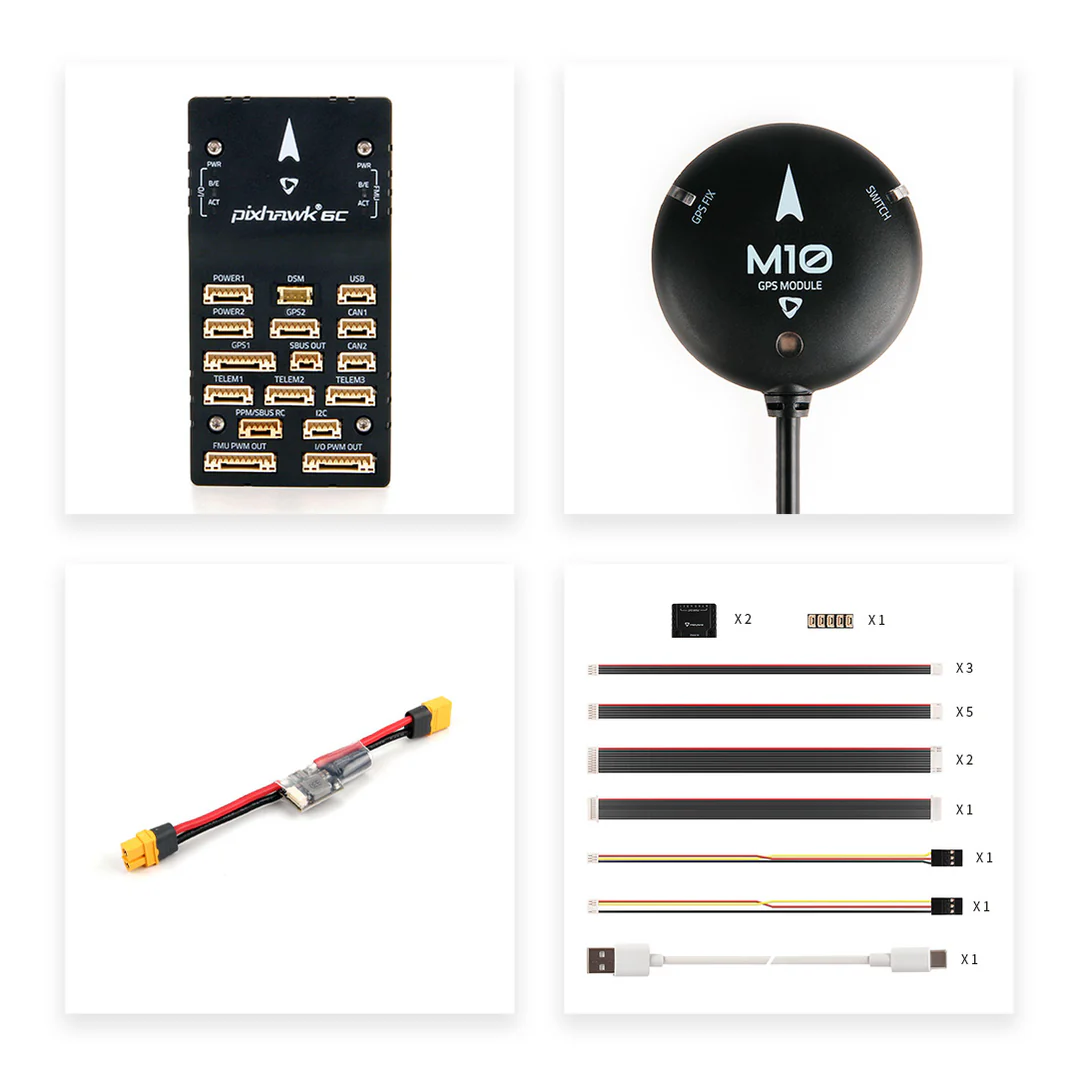

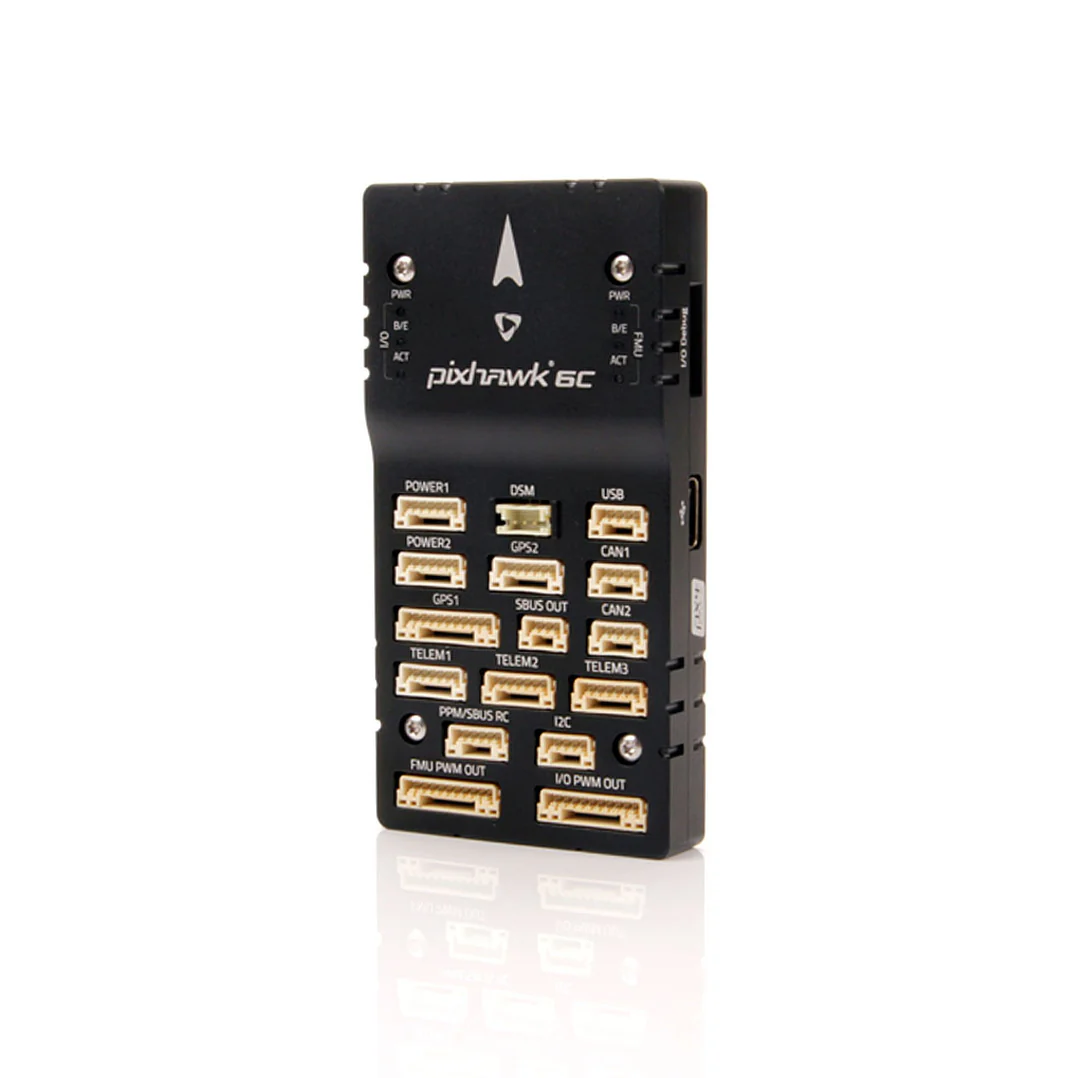

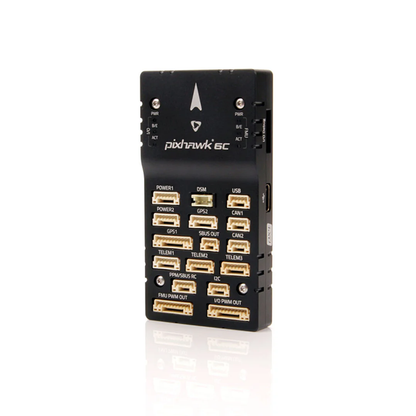

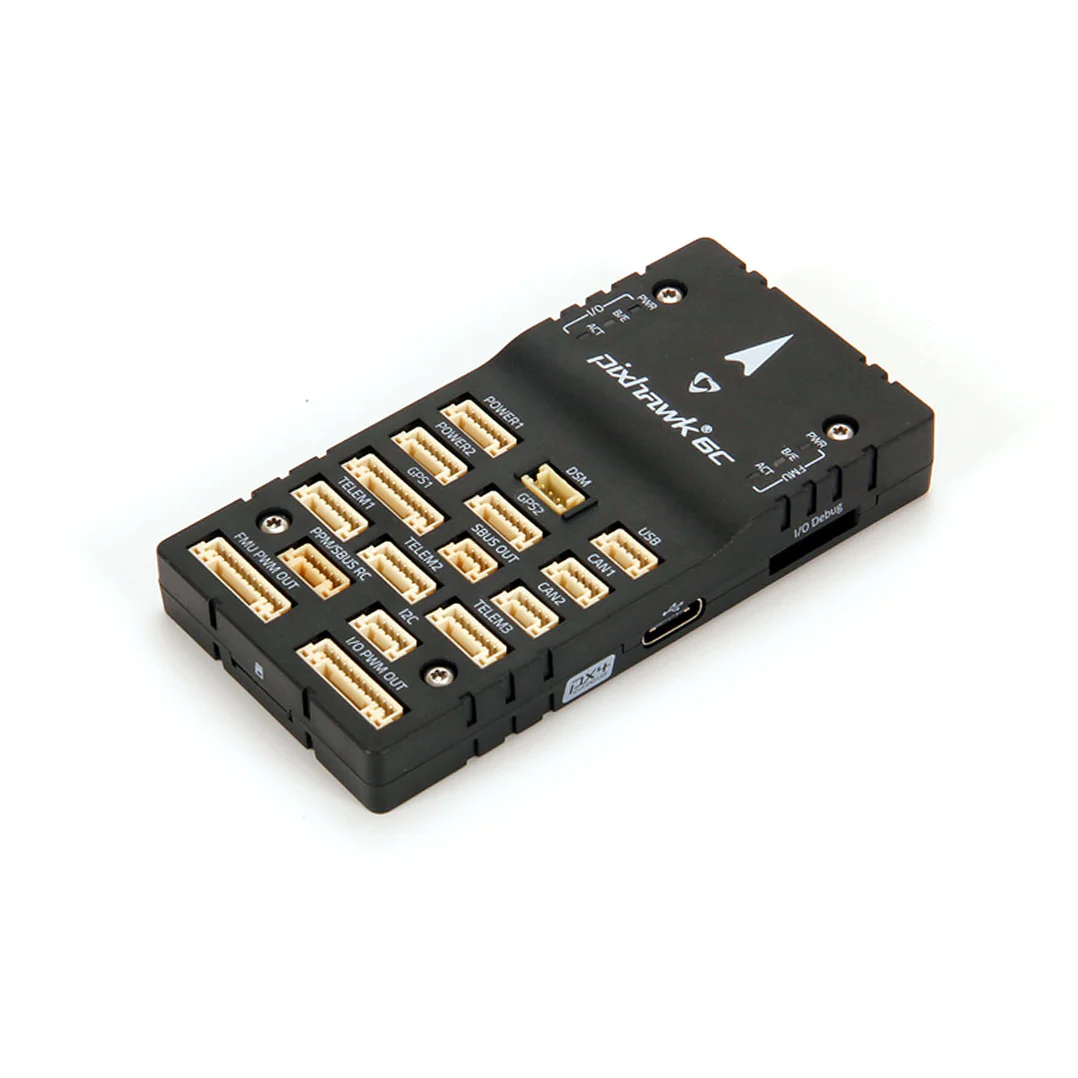

FC Holybro Pixhawk 6C (aluminum case) & PM02-12S & M10 GPS
Pixhawk® 6C is the latest update to the successful Pixhawk® family of flight controllers, based on the open Pixhawk® FMUv6C and connector standard. It comes with a pre-installed PX4® autopilot. Inside the Pixhawk® 6C you will find an STM32H743 microprocessor from STMicroelectronics®, coupled with sensors from Bosch® and InvenSense®, providing the flexibility and reliability to control any autonomous vehicle, suitable for both academic and commercial applications.
The H7 microprocessor in the Pixhawk® 6C contains an Arm® Cortex®-M7 core with a clock speed of up to 480 MHz, has 2 MB of flash memory and 1 MB of RAM. With increased computing power, developers can be more productive and efficient in their work, enabling the implementation of more complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise on-board IMUs designed to be cost-effective while providing IMU redundancy. The vibration isolation system filters out high-frequency vibrations and reduces noise, ensuring accurate readings and allowing vehicles to achieve better overall flight performance. The Pixhawk® 6C is ideal for developers in corporate research labs, startups, academia (research, professors, students) and commercial applications.
Key design points:
- High-performance H7 processor with a clock speed of up to 480 MHz
- New cost effective design with low profile format
- Redundant Inertial Measurement Unit (IMU) from Bosch® and InvenSense®
- Newly designed integrated vibration isolation system to filter high-frequency vibrations and reduce noise to ensure accurate measurement
- The IMUs are tempered with built-in heating resistors, allowing for optimal IMU operating temperature
Specifications
Processors and sensors
- FMU processor: STM32H743
- 32-bit Arm® Cortex®-M7, 480 MHz, 2 MB memory, 1 MB SRAM
- IO processor: STM32F103
- 32-bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM
- Built-in sensors:
- Accelerometer/Gyroscope: ICM-42688-P
- Accelerometer/Gyroscope: BMI055
- Magnetometer: IST8310
- Barometer: MS5611
Electrical data
- Voltage values:
- Maximum input voltage: 6V
- USB power supply: 4.75~5.25V
- Power input for servos: 0~36V
- Current values:
- Telem1 Maximum output current limit: 1.5A
- All other ports combined current limit: 1.5A
Mechanical data
- Dimensions: 84.8 x 44 x 12.4 mm
- Weight (aluminum case): 59.3 g
