    Code: GP102076

    FC GEPRC STABLE-F411

    FC GEPRC STABLE-F411

    Brand: GEPRC

    €65,99
    €65,99 €65,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

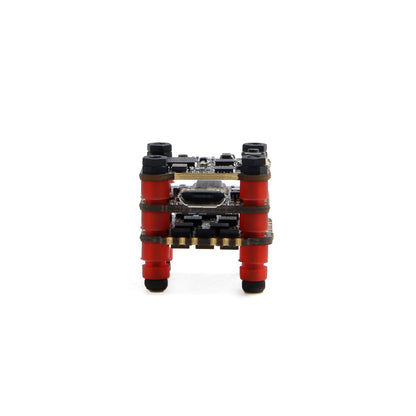

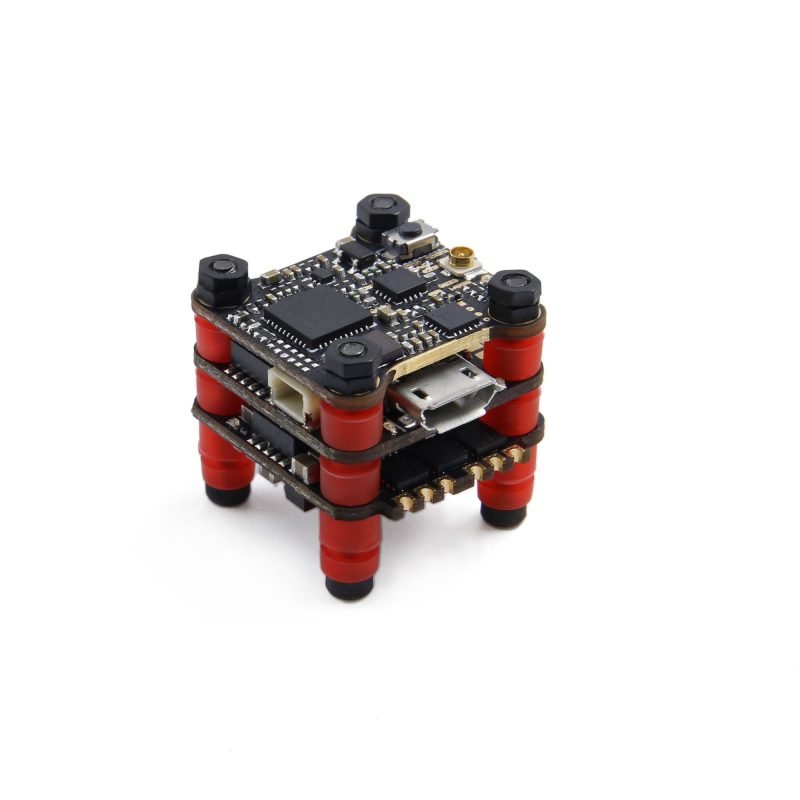

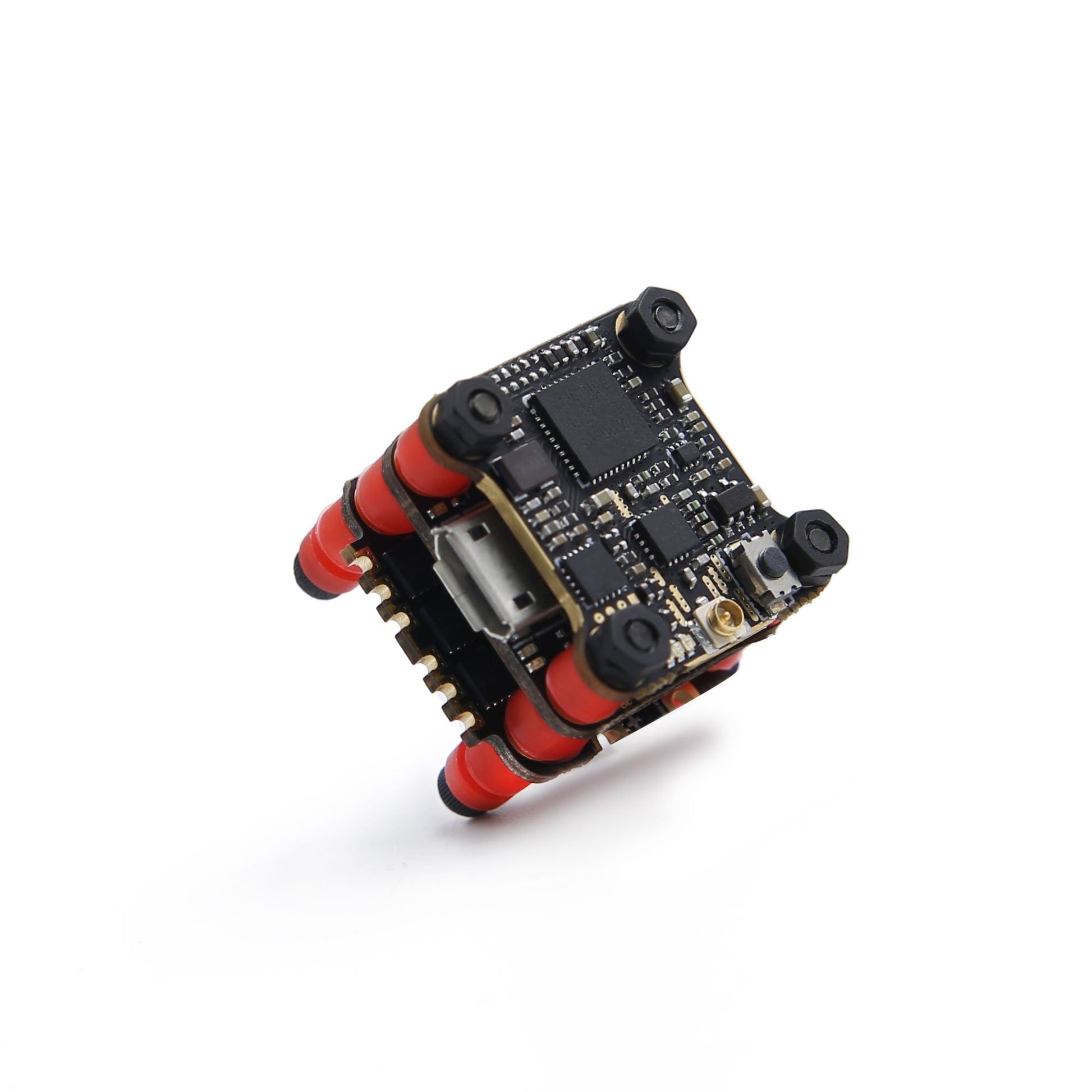

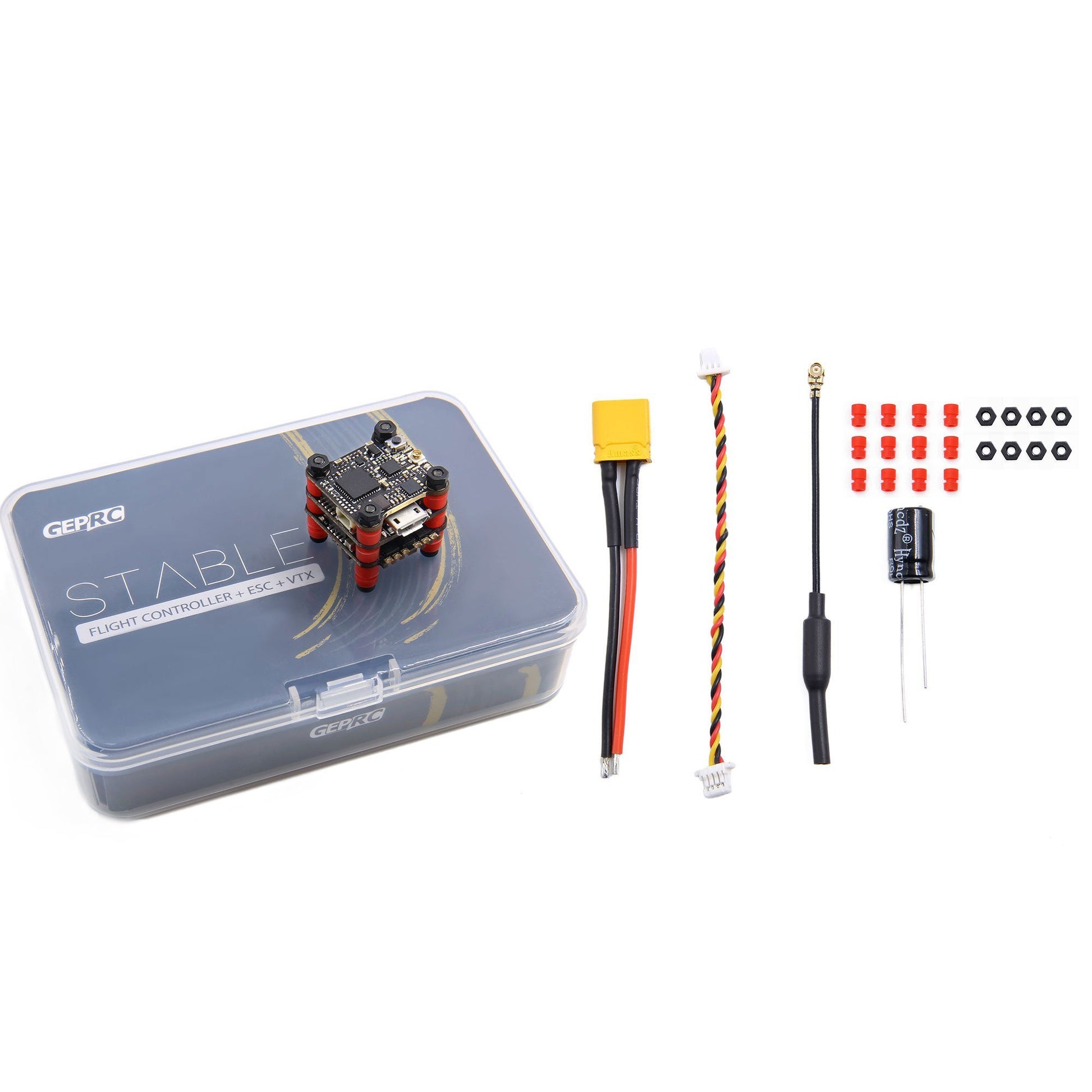

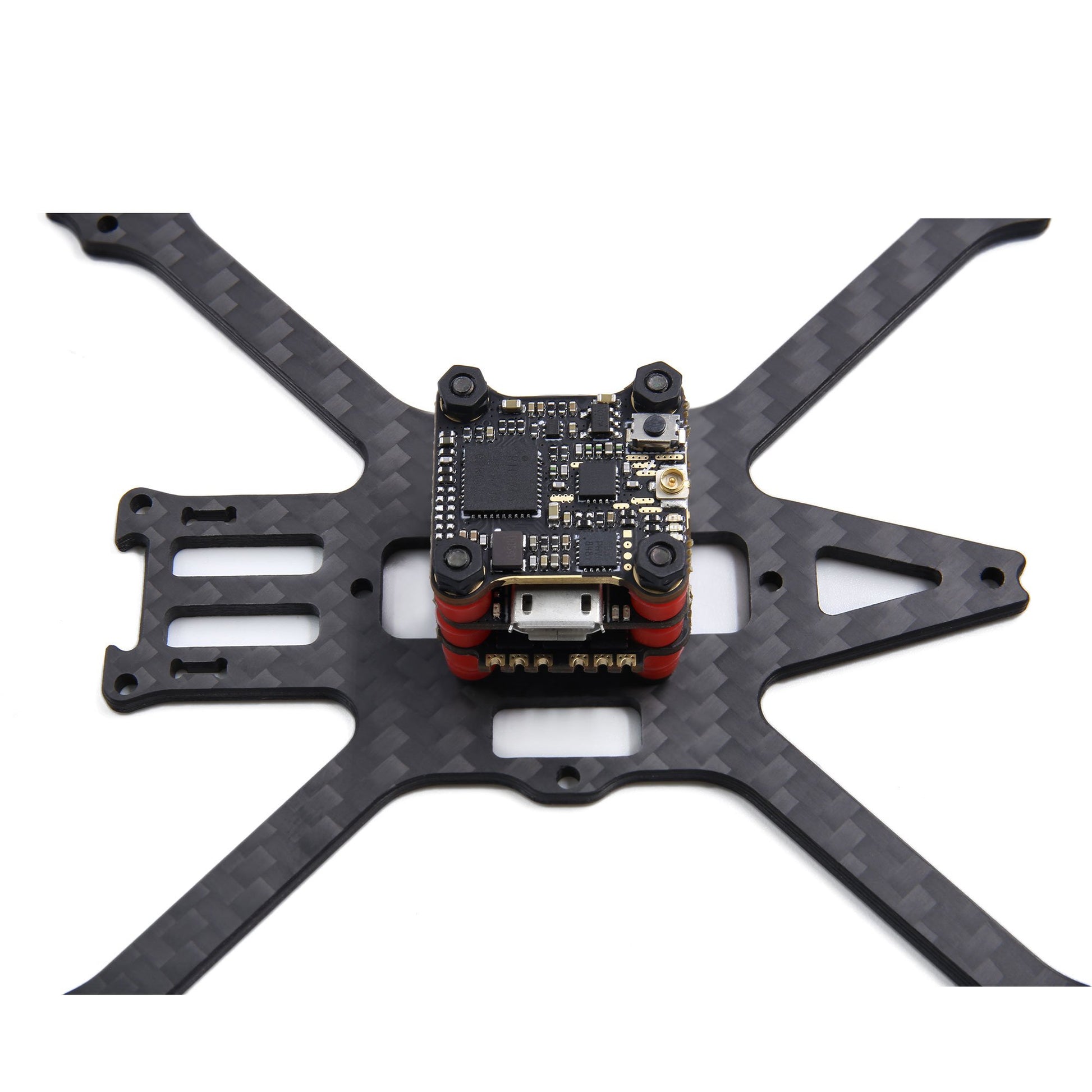

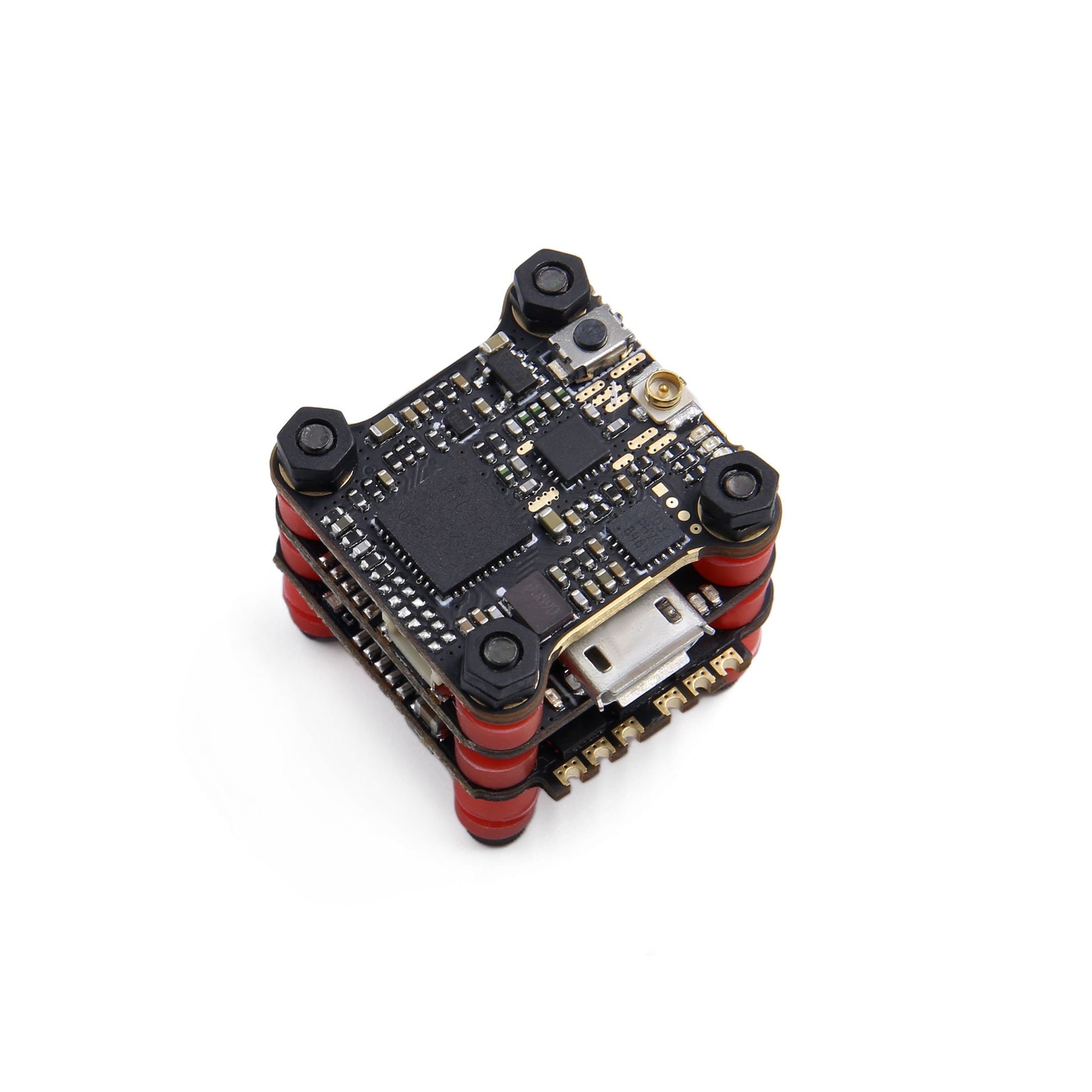

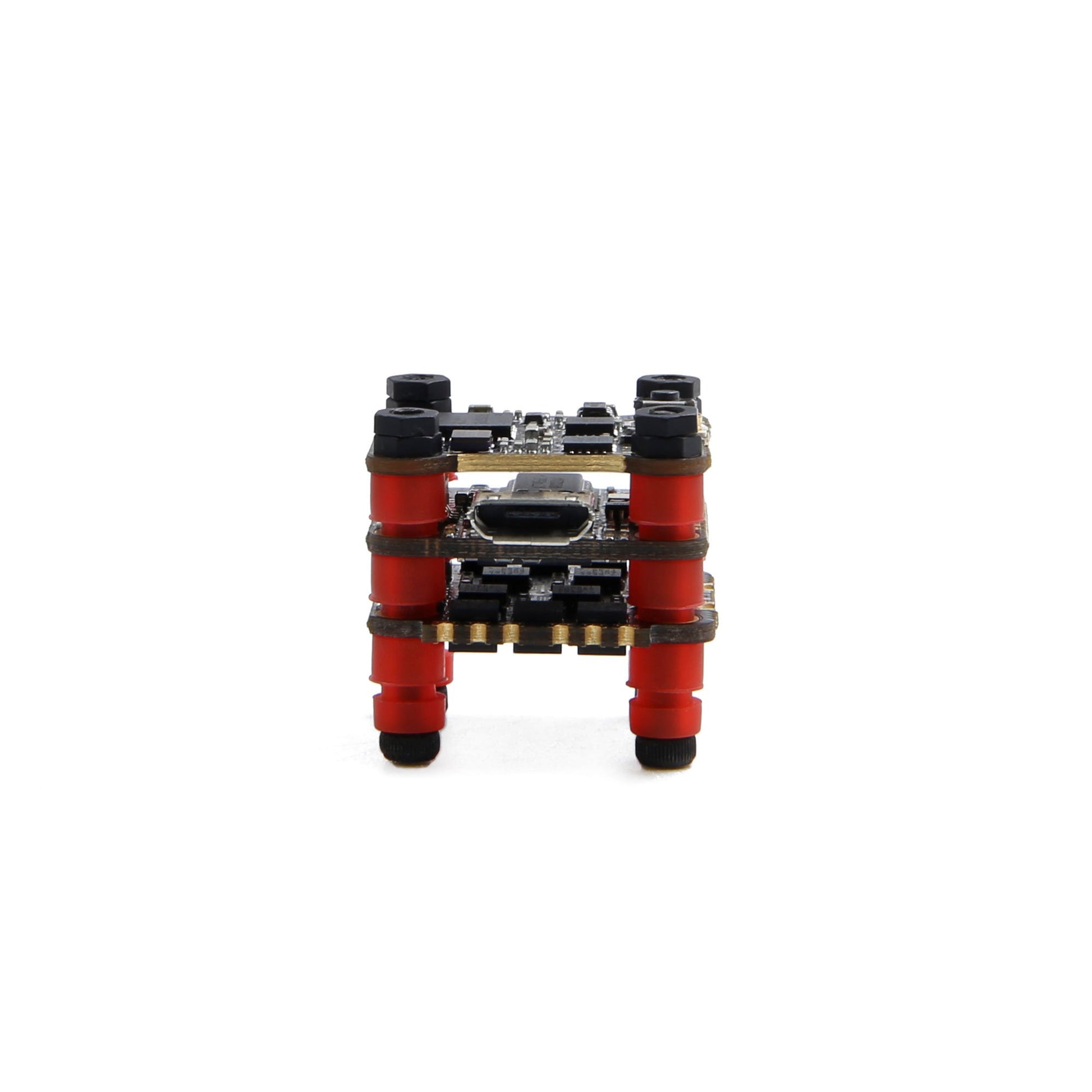

    STABLE-F411

GEPRC STABLE F411 is an electronic system designed for micro quadcopters, which includes F411 flight controller, 4-in-1 BLS 12A ESC and 5.8G VTX with multiple power options (PIT/25/100/200mW). It supports 2-4S LiPo batteries, making it versatile for various flight conditions.

Specifications:

STABLE F411 Flight Controller (16*16mm):
MCU: STM32F411
IMU: MPU6000 Gyroscope/Accelerometer (SPI)
OSD: BetaFlight OSD with AT7456E chip
BEC output: 5V@2A
Size: 21mm x 21mm
Mounting holes: 16x16mm
Input voltage: 2-4S LiPo
Target firmware: GEPRCF411
Weight: 2.5g

STABLE F411 BLheli_S 4IN1 12A ESC (16x16mm):
MCU: BB21F16G
Continuous current: 12A
Input voltage: 2-4S LiPo
ESC protocol: PWM, Oneshot125, Multishot, Dshot150, 300, 600.
Size: 23 x 21 mm
Mounting hole: 16x16mm
Target firmware: Blheli_S G_H_30
Current meter: 210
Weight: 2.7g

STABLE F411 VTX 5.8G 200mW (16x16mm):
Power: PIT/25/100/200mW
Antenna interface: IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm x 27mm
Mounting holes: 16x16mm
Integrated LC filter
Weight: 1.6g
