FC FLYWOO GOKU F7 PRO V2 ICM42688 30x30
FC FLYWOO GOKU F7 PRO V2 ICM42688 30x30
Brand: FLYWOO
Regular price
€35,71
Regular price
€35,71
Sale price
€35,71
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

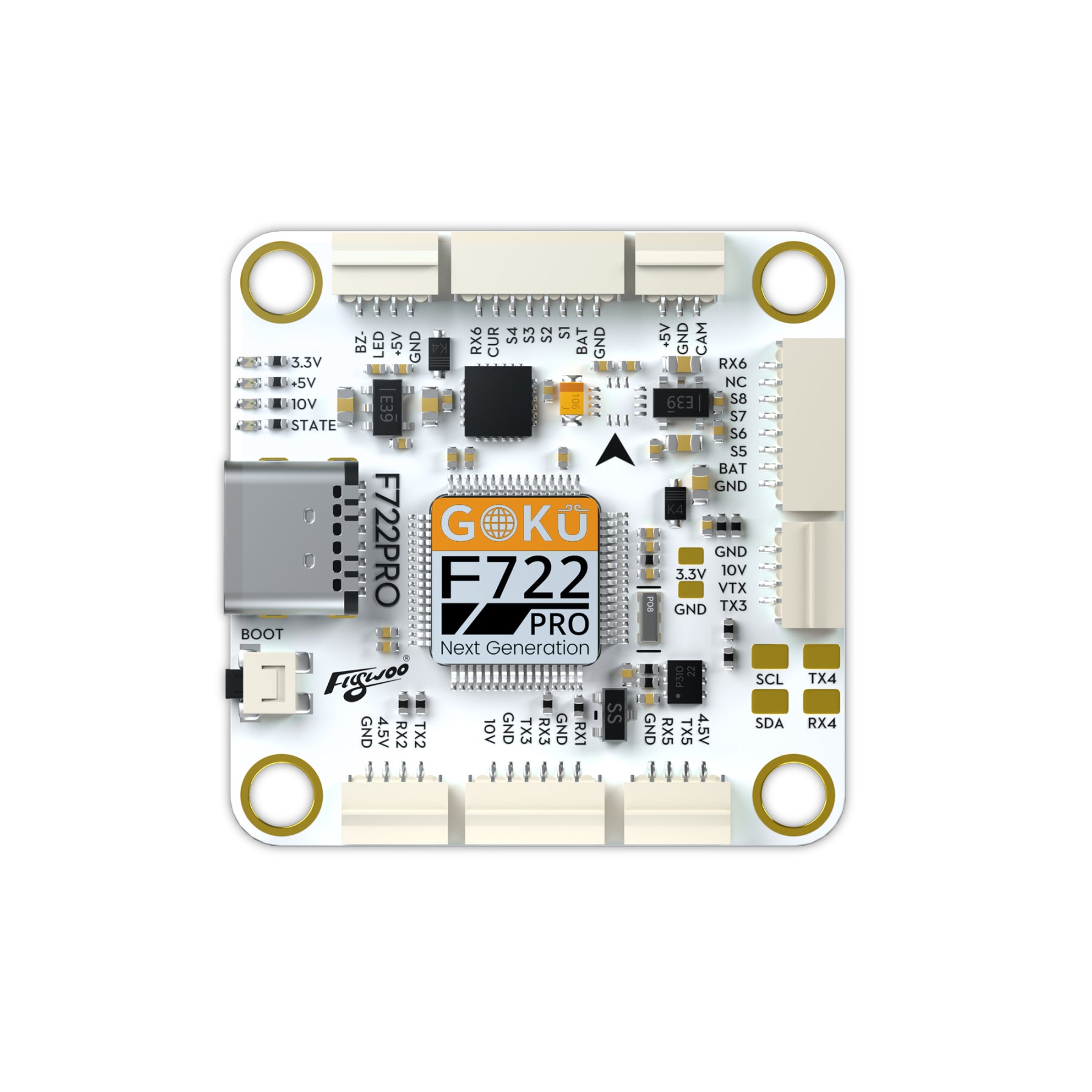

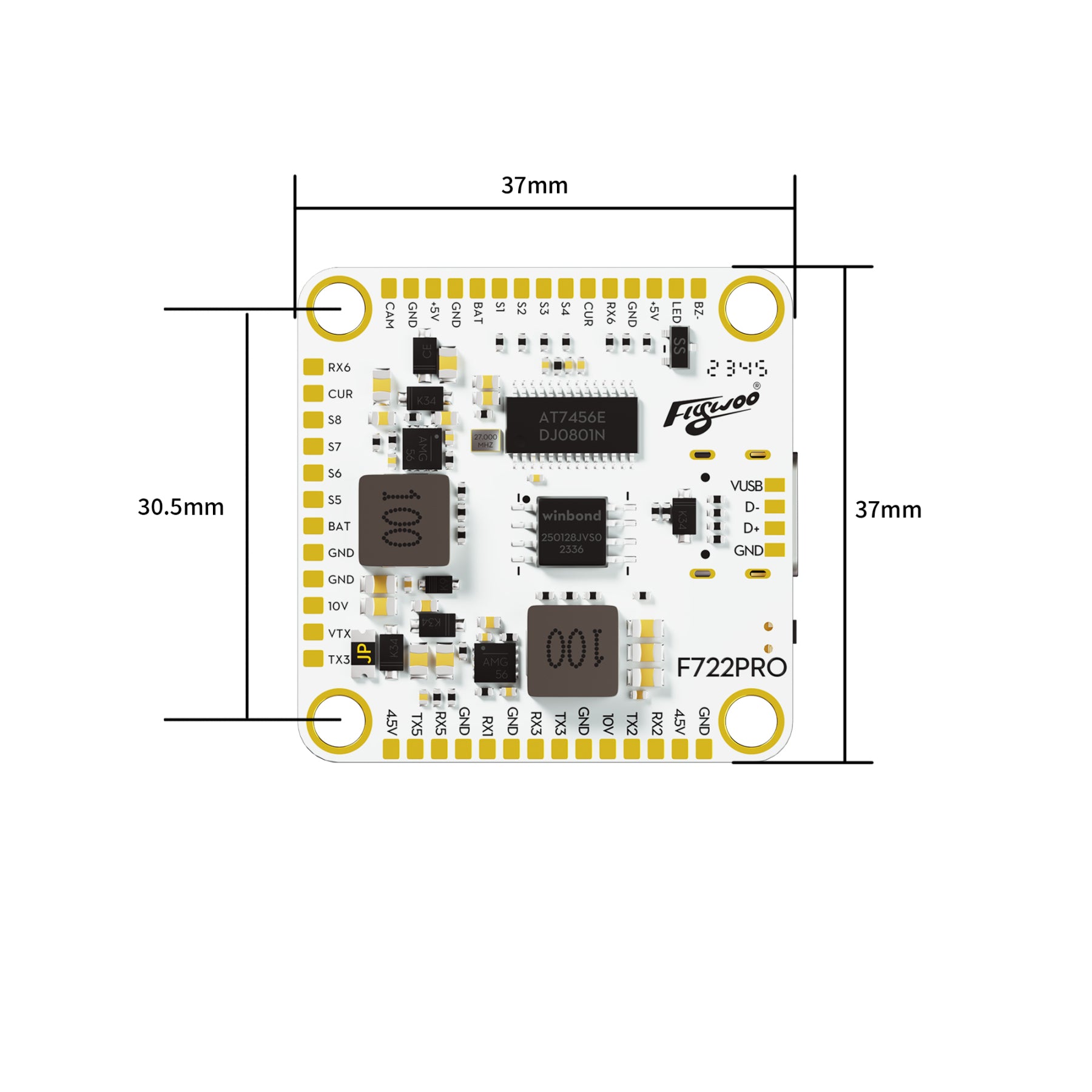

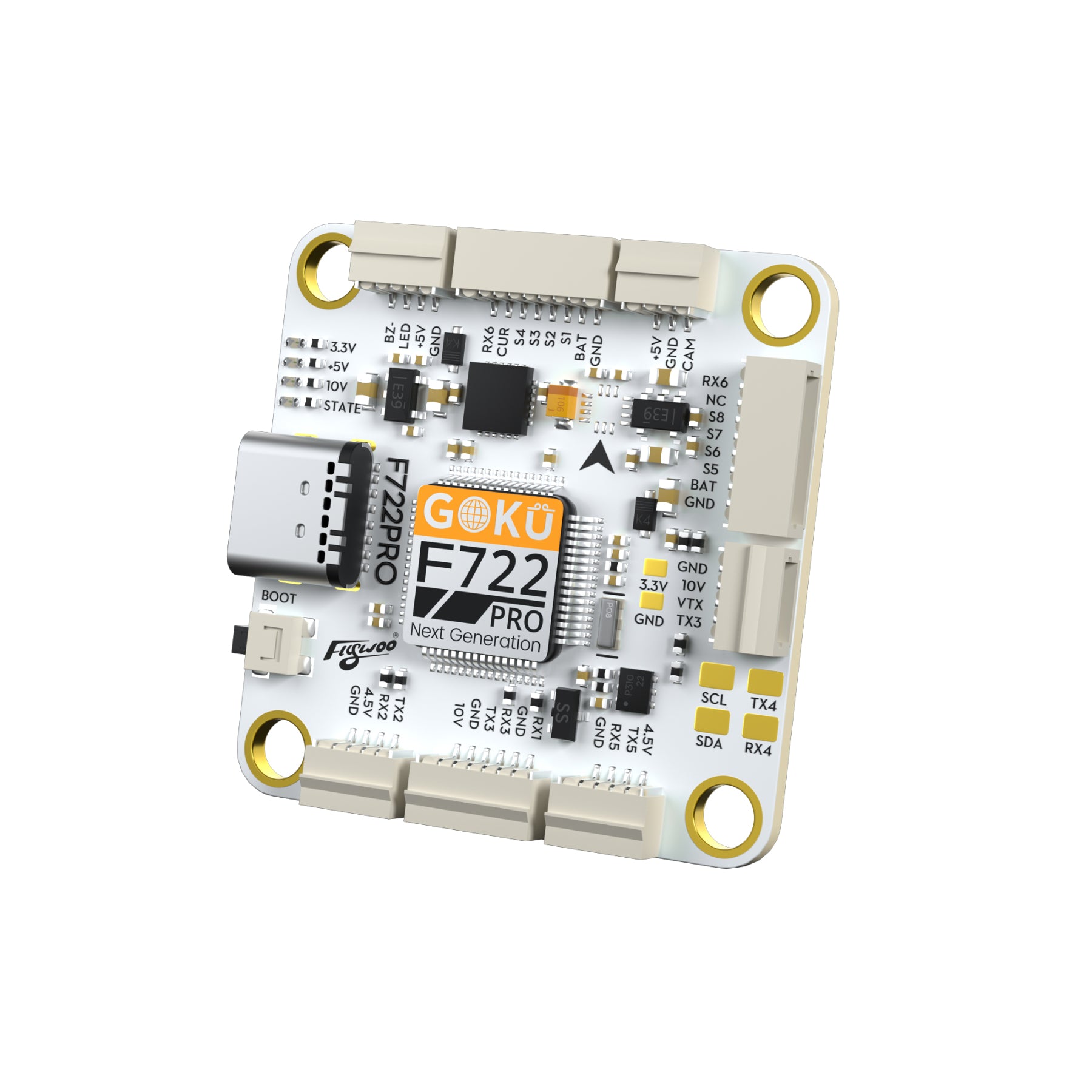

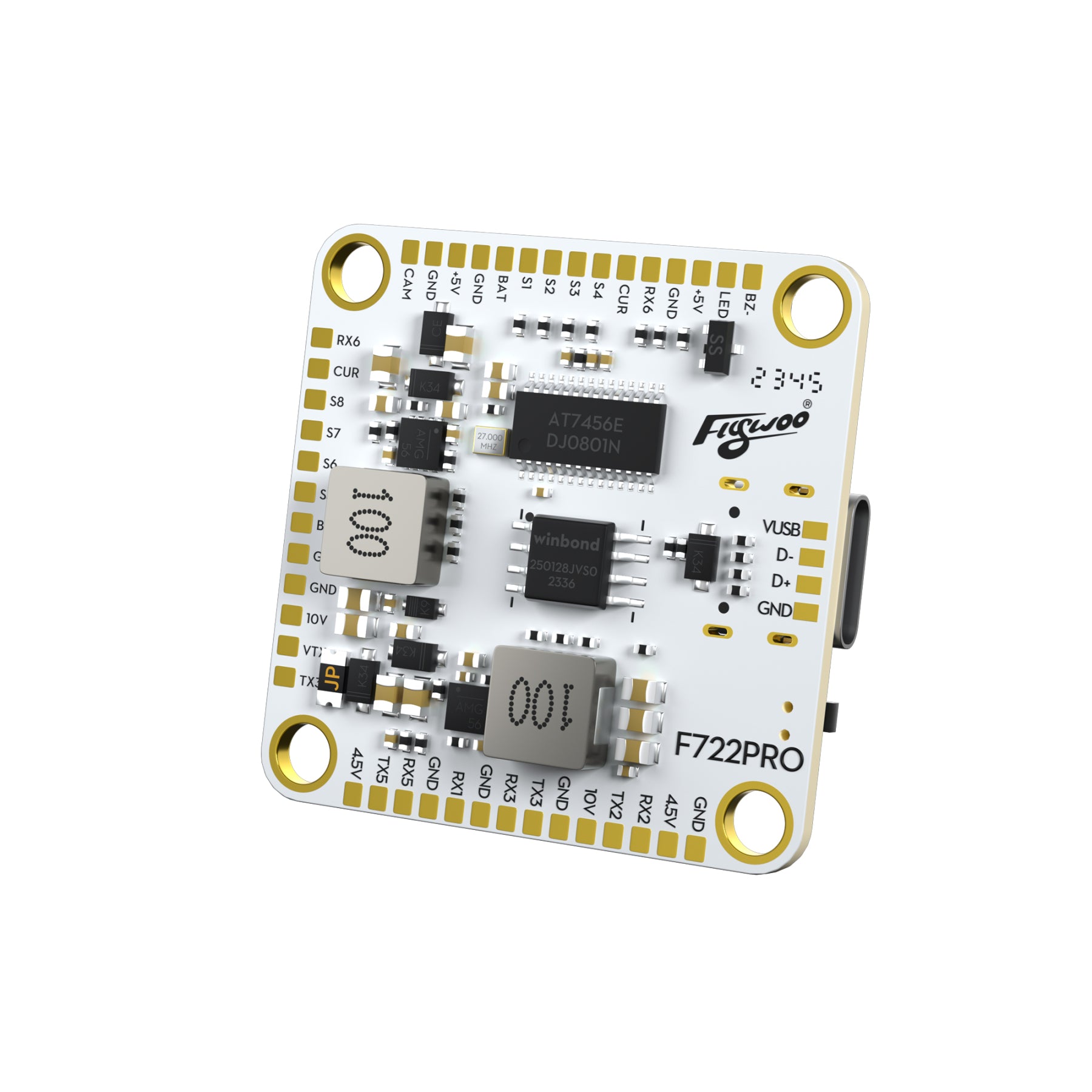

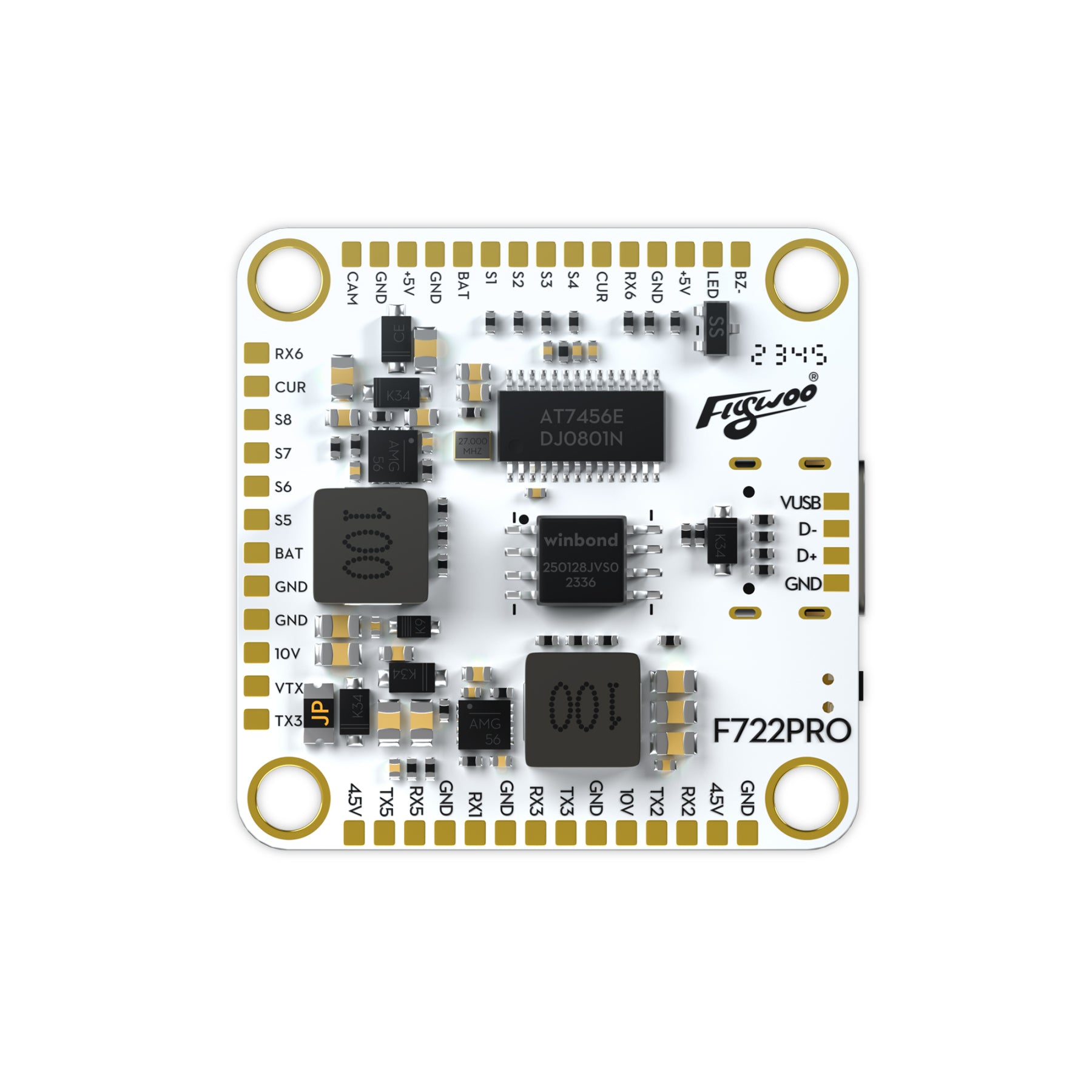

Flywoo GOKU F7 PRO V2 (30x30) (ICM42688) Flight Controller The Flywoo GOKU F7 PRO V2 brings flagship processing and connectivity to full-size FPV builds. Powered by the STM32 F722 MCU and a choice of ICM42688 or MPU6000 gyro, it delivers extremely responsive control for racing, freestyle, or cinematic footage. Eight motor outputs and two 4-in-1 ESC sockets support X8 or hex configurations, while each connector is available as either a female or a conventional solder pad—perfect for plug-and-play speed or custom wiring. Integrated 16 MB black box logging, two 10 V/5 V 3 A BECs, a barometer, and a dedicated DJI O3 Air Unit cable make this controller a powerful drop-in module for modern digital or analog drones. Specifications: MCU: STM32 F722 Gyro (selectable): ICM42688 / MPU6000 OSD: AT7456E Barometer: DPS310 / SPL06 Black Box Memory: 16 MB UART Ports: UART1-UART6 Motor Outputs: 8 (two 4-in-1 ESC sockets) Input Voltage: 7.4-26 V (2-6 S Li-Po) BEC Outputs: 10 V at 3 A / 5 V at 3 A Firmware Targets: Betaflight FLYWOO F722PRO / INAV FLYWOO F7 Dimensions: 37 × 37 × 8 mm Mounting Pattern: 30 × 30 mm (M3) Weight: 9.9 kg g Scope of delivery: 1 × Flywoo GOKU F7 PRO V2 (30x30) Flight Controller (ICM42688) 1 × FC and ESC Connection Cable 1 × Buzzer Connection Cable 1 × GPS Connection Cable 1 × DJI O3 Connection Cable 1 × Receiver Connection Cable 4 × M3 Shock Absorbing Balls 7 × M3 Rubber Rings 1 × Analog VTX Connection Cable 1 × Camera Connection Cable
