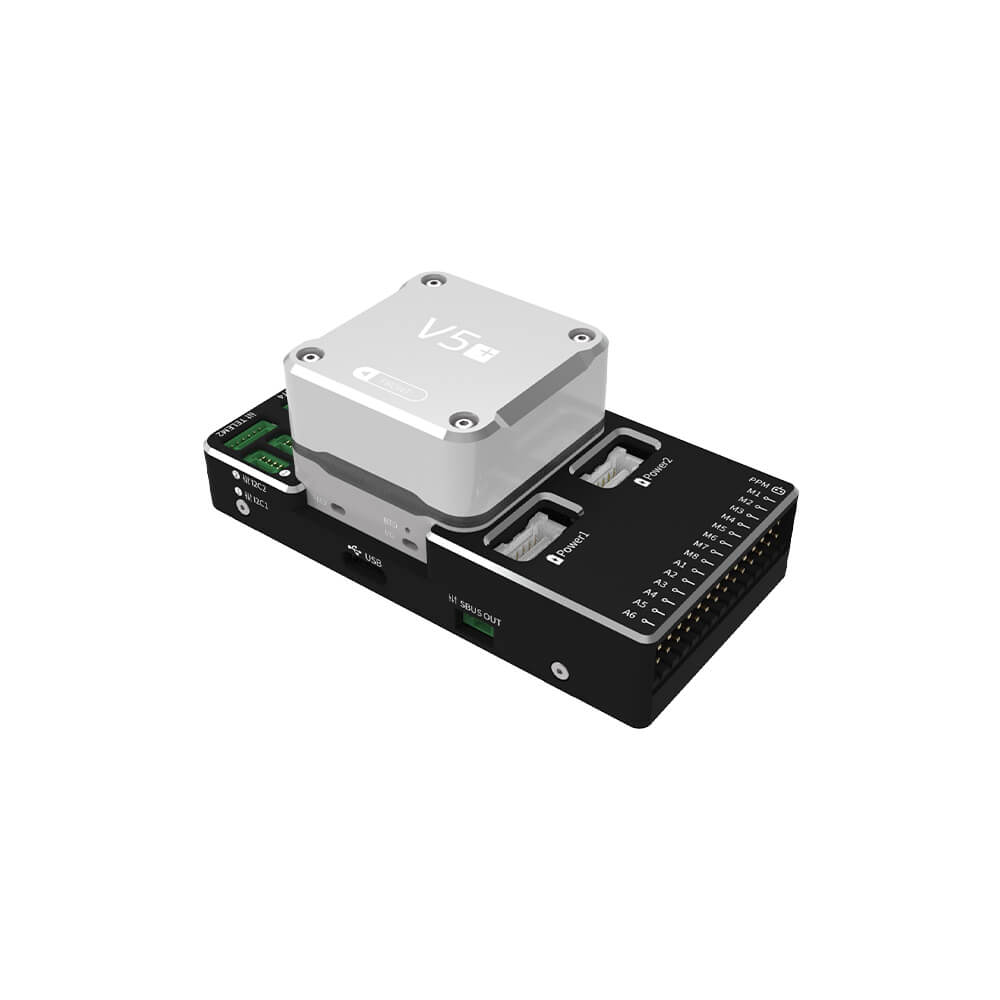

Flight controller CUAV V5+

The CUAV V5+ is a professional-grade flight controller featuring a powerful dual-processor design: a 216 MHz STM32F765 Cortex-M7 for primary flight tasks and a dedicated 24 MHz STM32F100 Cortex-M3 for I/O handling. It integrates triple redundant IMUs (ICM-20602, ICM-20689, BMI055), an IST8310 magnetometer, and an MS5611 barometer for rock-solid stability and precision. With 14 PWM outputs, dual CAN, SBUS, PPM/DSM inputs, multiple UARTs, I²C, SPI, and a safety-enabled GPS interface, the V5+ supports complex VTOL and multicopter configurations. Rated for 4.5–36 V servo rail and –20 °C to +85 °C operation, it’s ideal for industrial, surveying, and professional aerial platforms.

Specifications:

Main MCU: STM32F765, 216 MHz, 2 MB Flash, 512 KB RAM
I/O MCU: STM32F100, 24 MHz, 8 KB SRAM
IMUs: ICM-20602 + ICM-20689 + BMI055 (Accel & Gyro redundancy)
Magnetometer: IST8310
Barometer: MS5611
Operating Voltage: 4.5–5.5 V
USB Power Input: 4.75–5.25 V
Servo Rail Input: 0–36 V
Environment: –20 °C to +85 °C
Size & Weight: 85.5 × 42 × 33 mm, 91 g

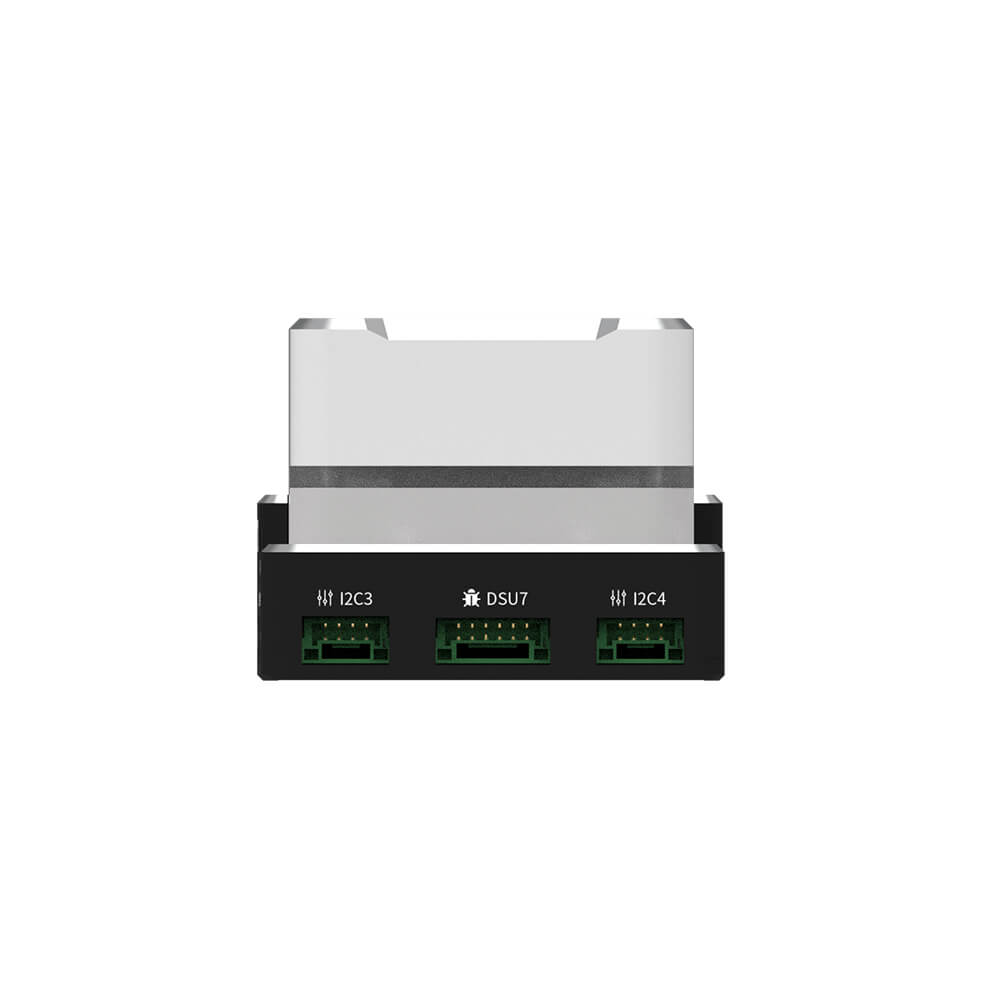

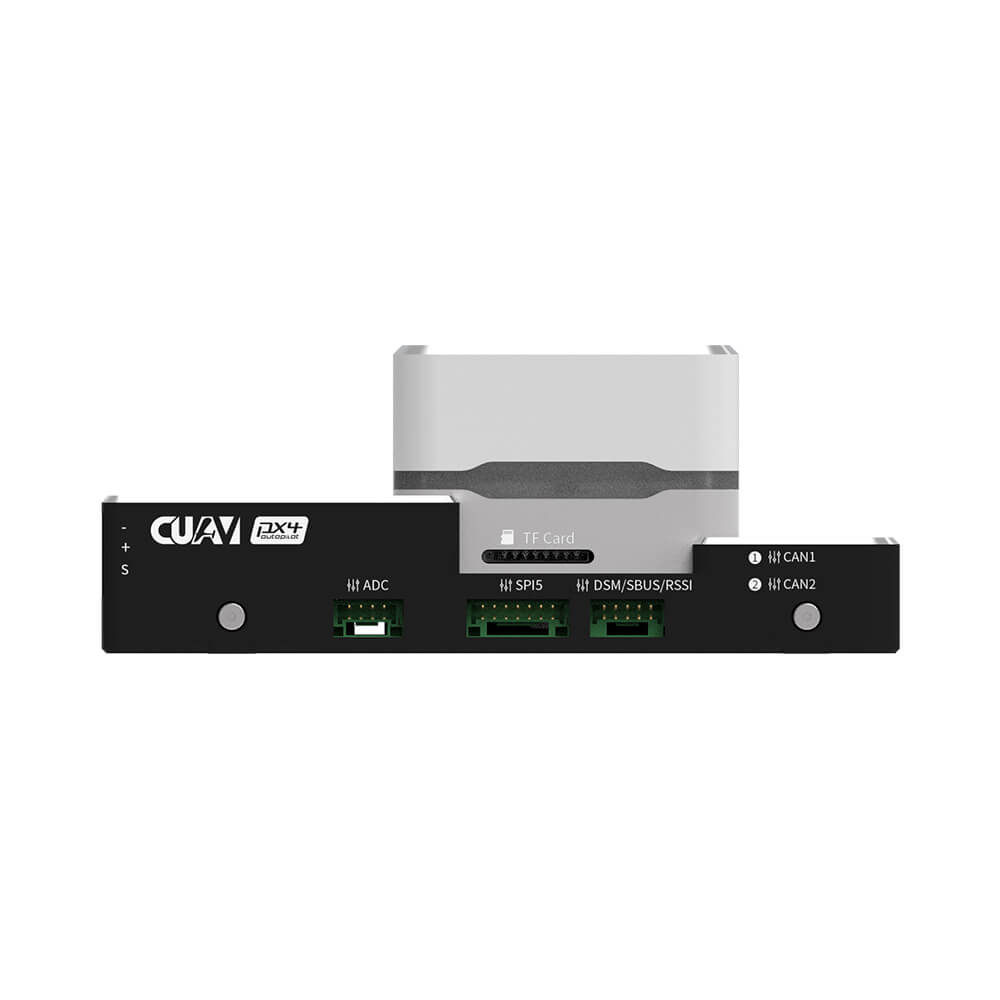

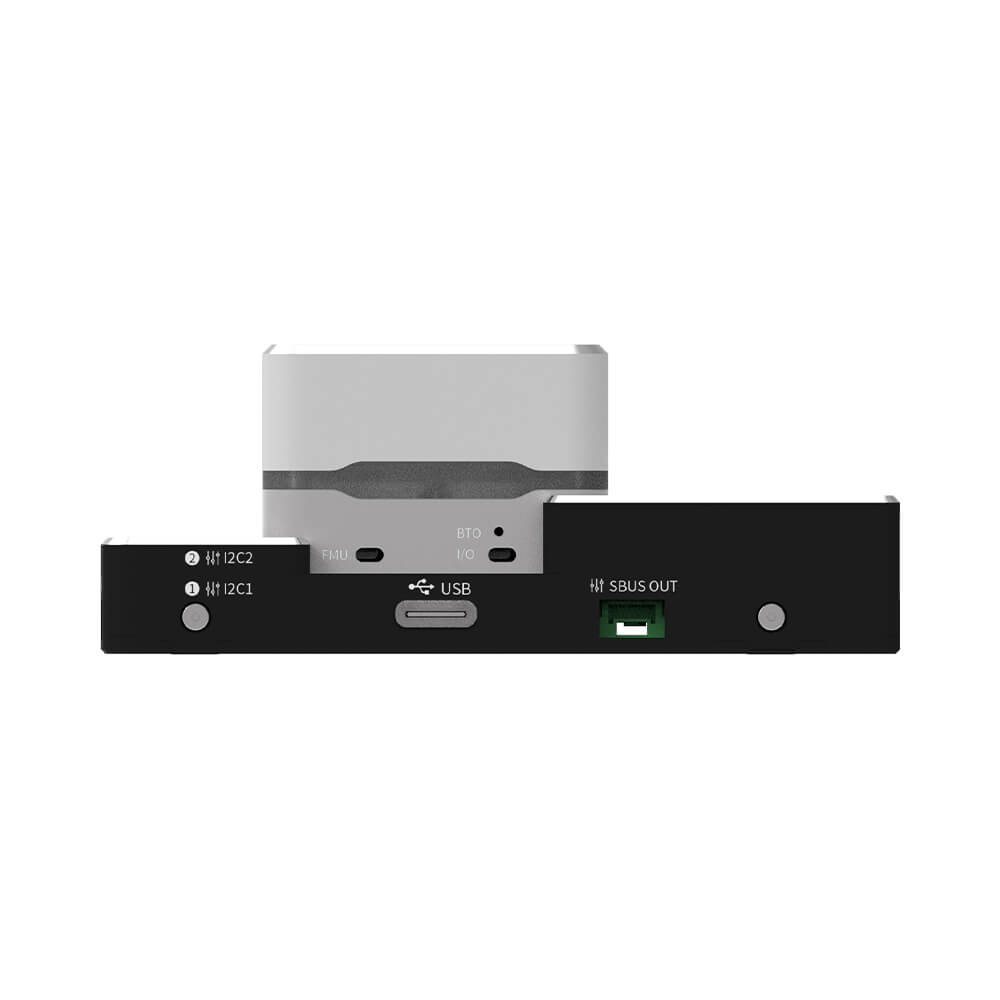

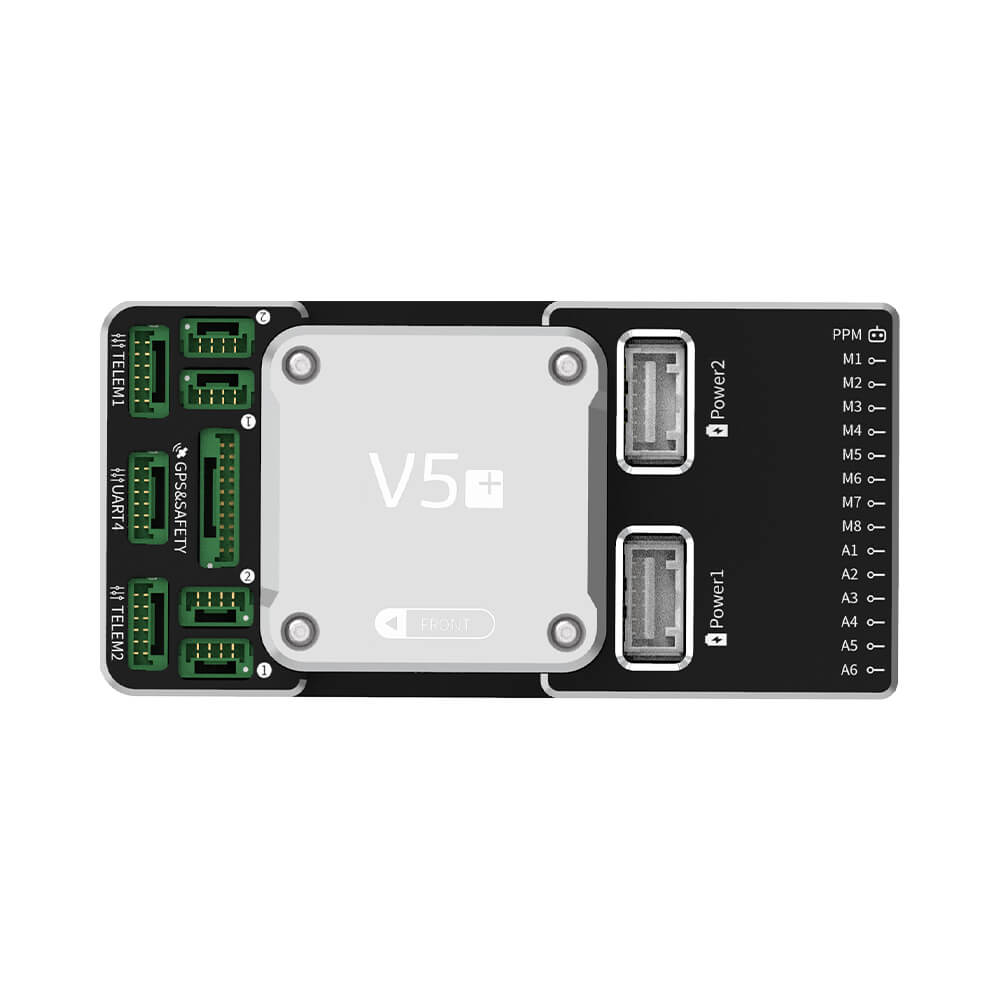

Interfaces:

PWM outputs ×14 (6 configurable as GPIO)
SBUS out ×1; PPM in ×1; DSM/PPM/RC SPort/ RSSI ×1
ADC ×1 (3.3 V/6.6 V)
Telemetry UARTs ×2; Serial UART ×1
CAN buses ×2
SPI ×1; I²C buses ×4
GPS interface with safety switch & buzzer (I²C) ×1
USB Type-C ×1; Debug port ×1; TF (microSD) slot ×1

Package Includes:

1 × CUAV V5+ Flight Controller
1 × USB-C Configuration Cable
4 × Anti-vibration Mounts
4 × M3 Mounting Screws & Nuts
1 × Quick-Start Guide
1 × Safety-Switch Jumpers Kit
