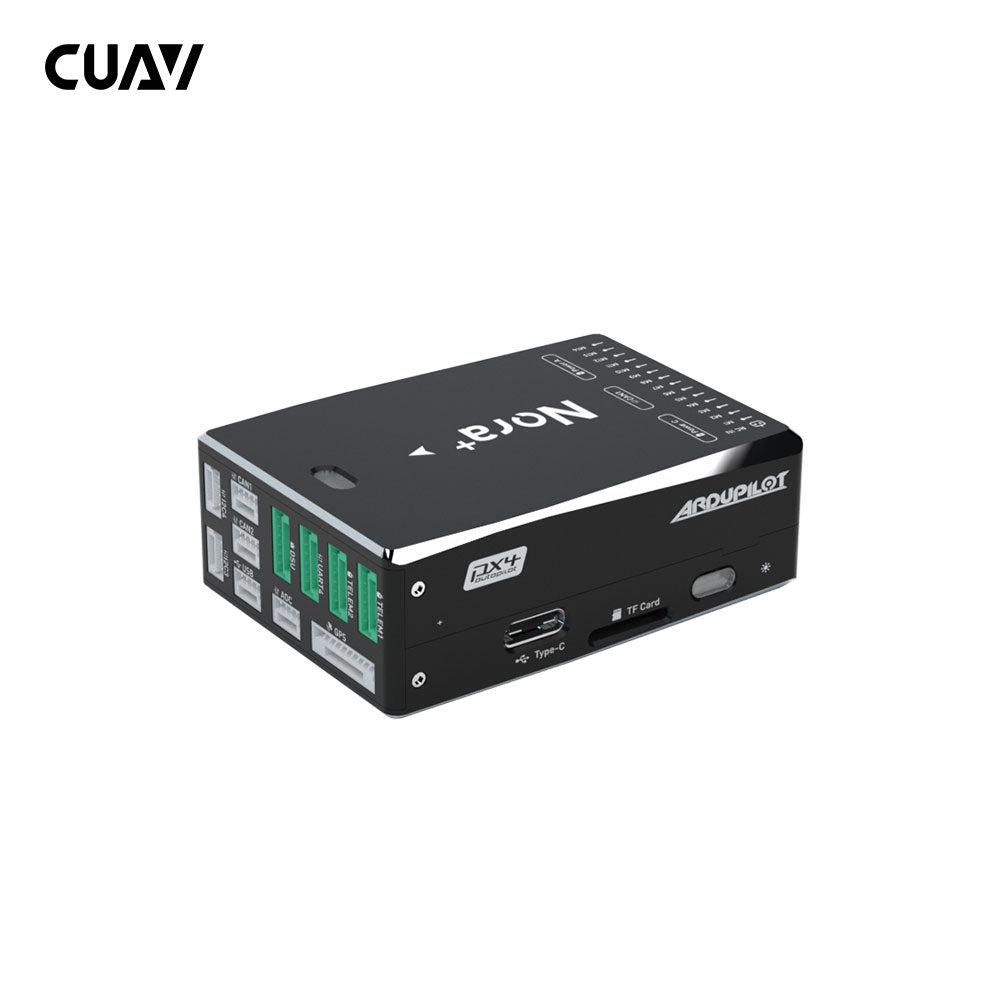

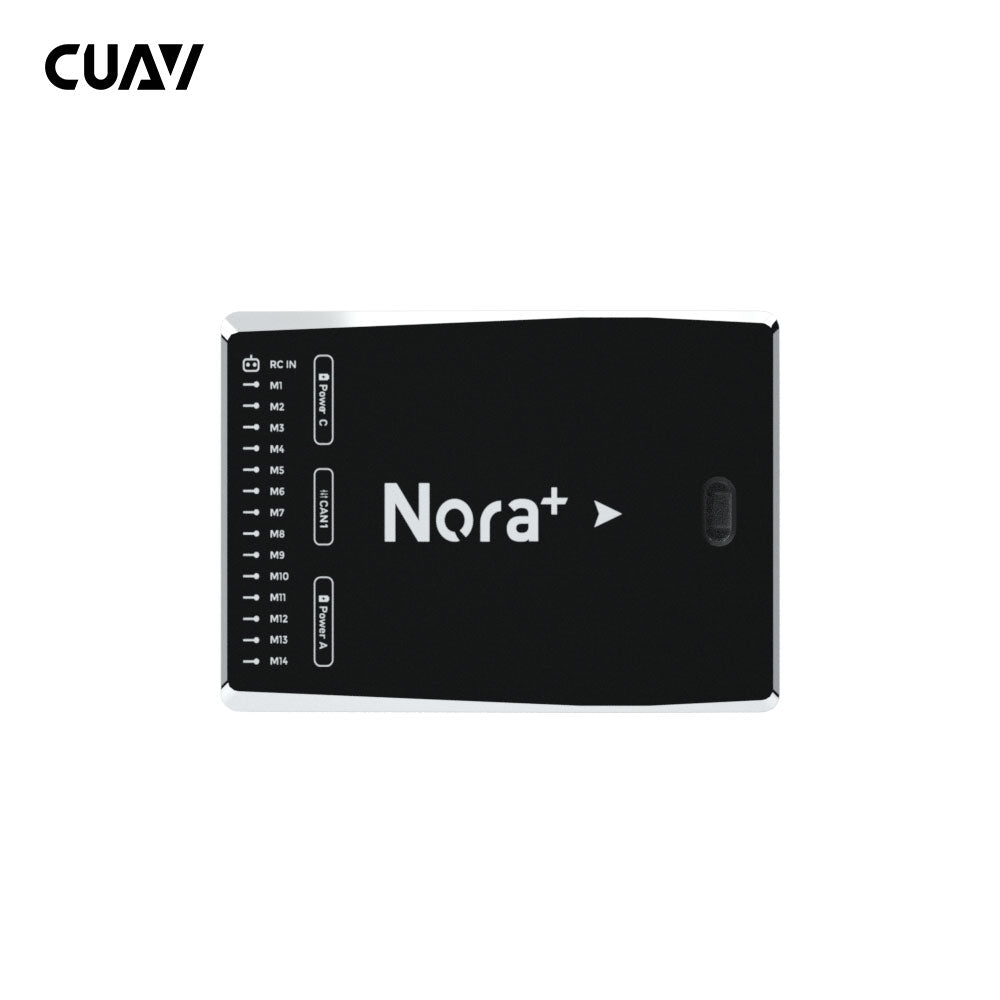

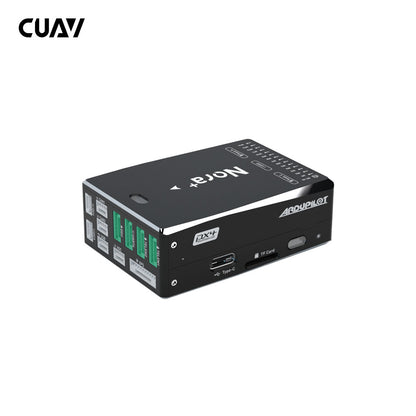

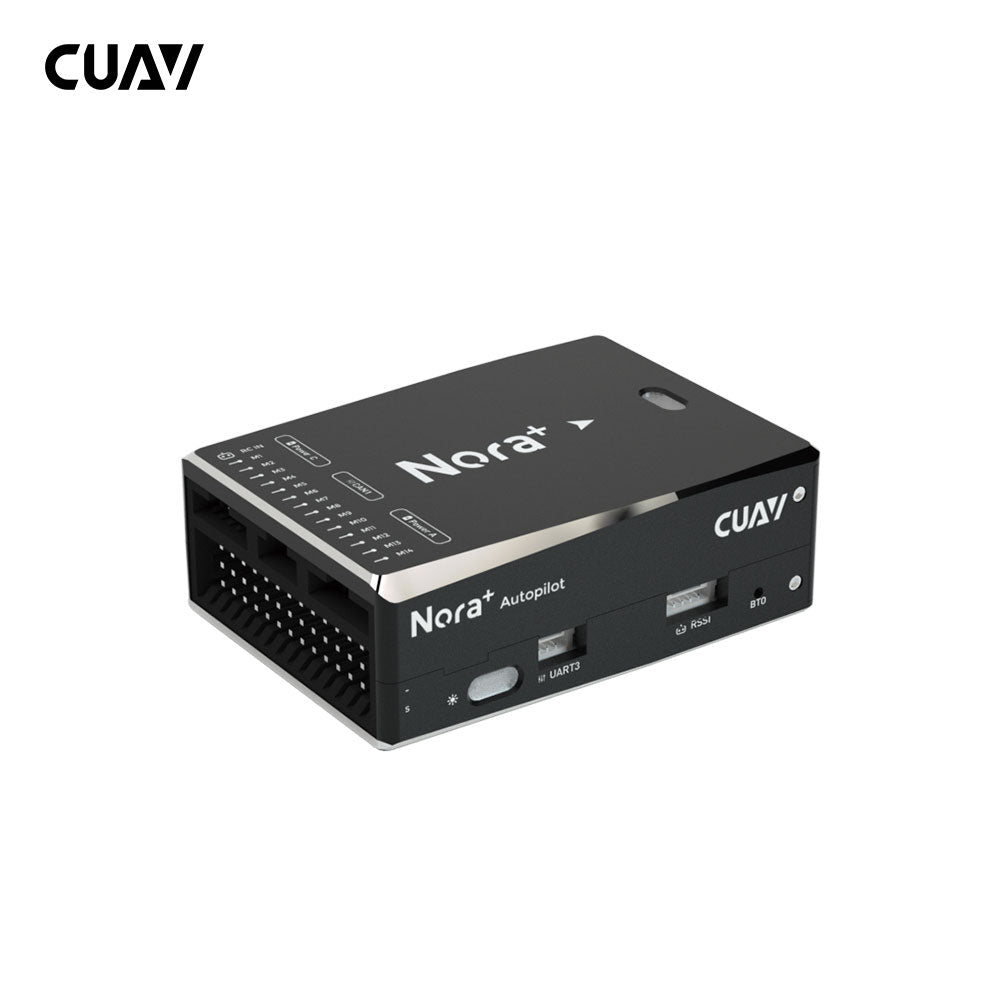

    FC CUAV NORA+

    Nora® is an advanced controller developed by the independent company CUAV®. It uses a more powerful STM32H7 processor and combines industrial sensors with ultra-low temperature drift. Compared to previous autopilots, it offers better performance and higher reliability. Nora is ideal for academic research and commercial systems integration.

    Features:

    • High performance driver
    • Triple redundancy of inertial navigation
    • Industrial grade compass
    • Temperature compensation increases sensor accuracy
    • Built-in damping system
    • Compact design
    • Extended operating conditions

    Specifications:

    • Manufacturer: CUAV
    • Main driver: STM32H743
    • Operating frequency: 480 MHz
    • Firmware memory: 2 MB
    • RAM: 1 MB
    • Stabilization: ICM-42688-P + ICM-20689 x 2
    • Compass: RM3100
    • Barometer: MS5611 x 2
    • Expansion ports: UART x5; I2C x6; CAN x2; ADC; SPI; RSSI (PWM/0-3.3V)
    • PWM outputs: 14 (1-12 with DSHOT)
    • Receiver input: 1 (PPM/DSM/S.BUS)
    • Power inputs: 2
    • Start fuse: yes (in GPS&SAFETY port)
    • Buzzer support: yes (in GPS&SAFETY port)
    • Debug: yes (UART7)
    • JTAG: yes
    • USB: Type-C x2
    • Flight controller power supply: 4.5 - 5.5 V
    • Servo voltage: 0-36 V
    • Supported device types: aircraft, helicopter, VTOL, rover and more
    • Main firmware: Ardupilot v4.10+/PX4 v1.12.3+

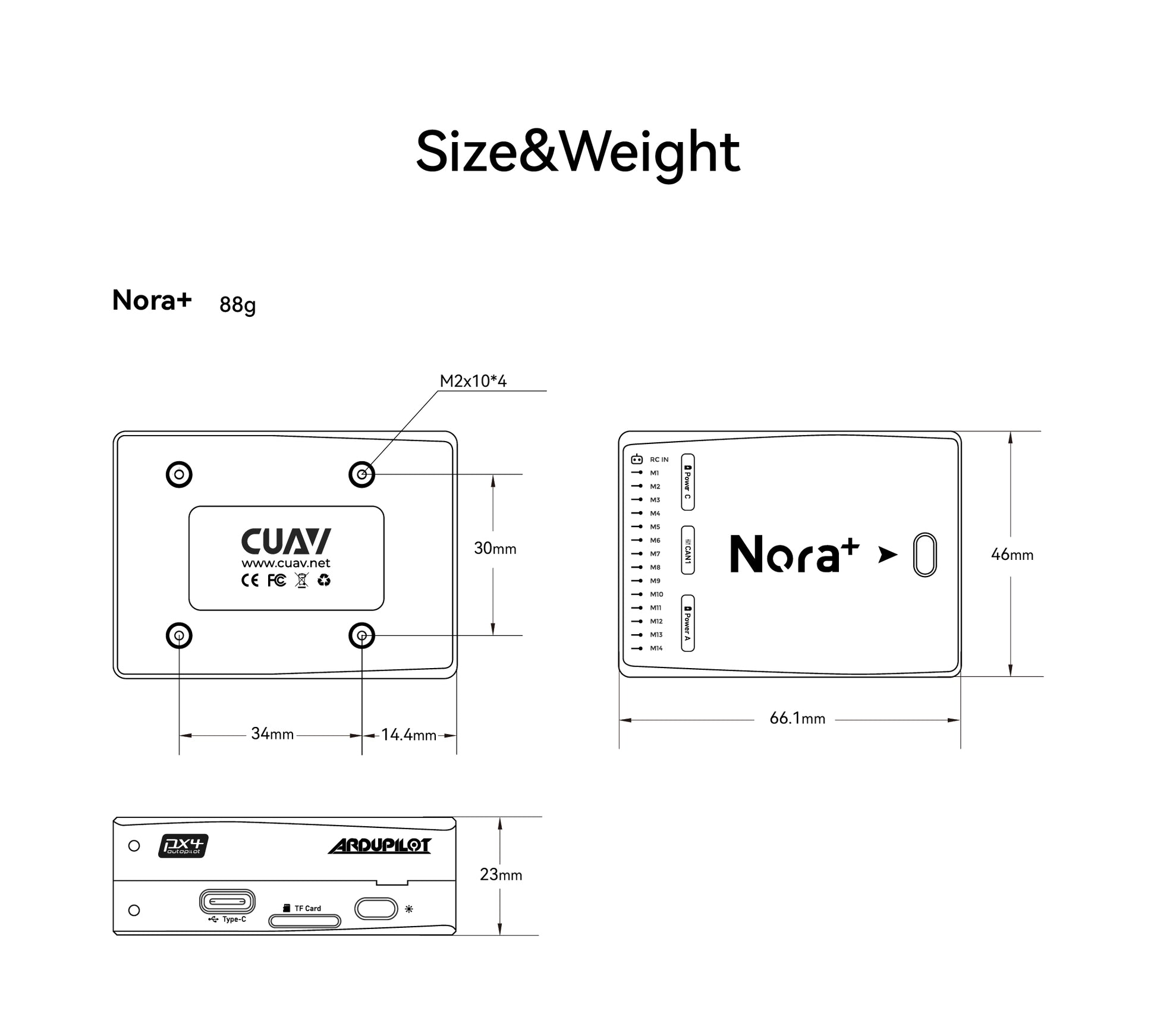

    • Dimensions: 46x64x22 mm
    • Weight: 90 g

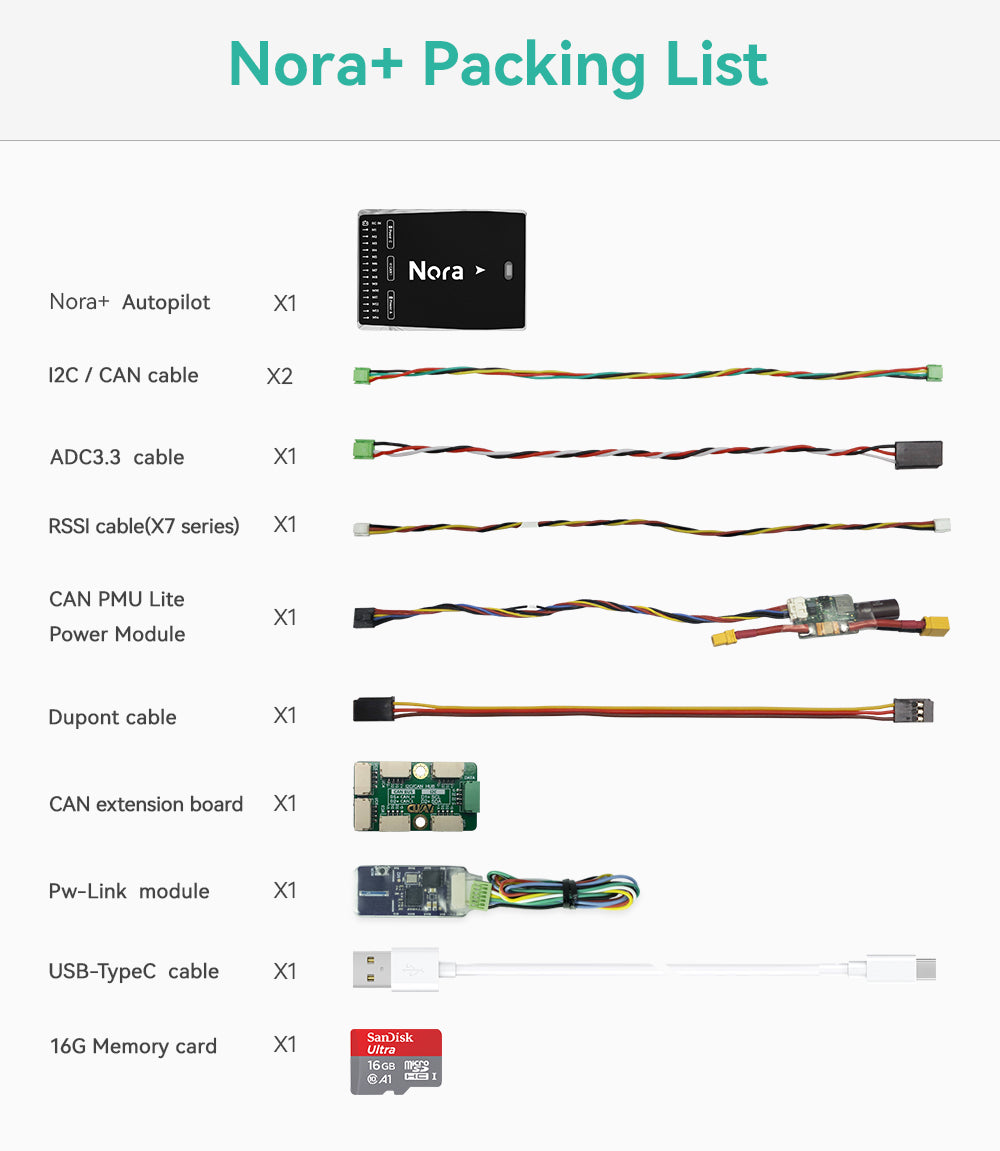

    The package contains:

    • Flight controller with memory card - 1 pc
    • USB Type-C cable – 1 pc
    • Accessory set (CAN/I2C distribution board + cable) – 1 pc
    • Accessory set (PW-Link board + cable) – 1 pc
    • PMU SE power module with cable - 1 pc
    • Cable set (I2C/CAN, ADC (with Futaba connector), RSSI) – 1 set.
