    Code: 01040016_1

    FC BetaFPV Air Brushless (4 IN 1)

    FC BetaFPV Air Brushless (4 IN 1)

    Brand: BETAFPV

    €44,99
    €44,99 €44,99
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    Air Brushless Flight Controller is an advanced 1S control module that takes the performance of ultra-light drones to a new level. Thanks to the STM32G473CEU6 processor, it achieves a remarkable 55% increase in calculation speed compared to the F411, enabling lightning-fast response and extremely smooth control. Coupled with a state-of-the-art ICM42688P gyroscope and an integrated 5.8G VTX (with output power options from 25mW up to 400mW), this module accurately tracks the drone's movements and provides a unique level of control and stability.

    Designed for 1S whoop drones, it is available in 4IN1 (2.9g) and 5IN1 (3.6g) versions, making it the ideal choice for powerful, ultra-lightweight builds that require precision and quick response. Thanks to compact and high-quality components and the possibility of fingertip control, this control module is a promising solution for the ultralight drones of the future.

    Specifications

    Control Module (FC)

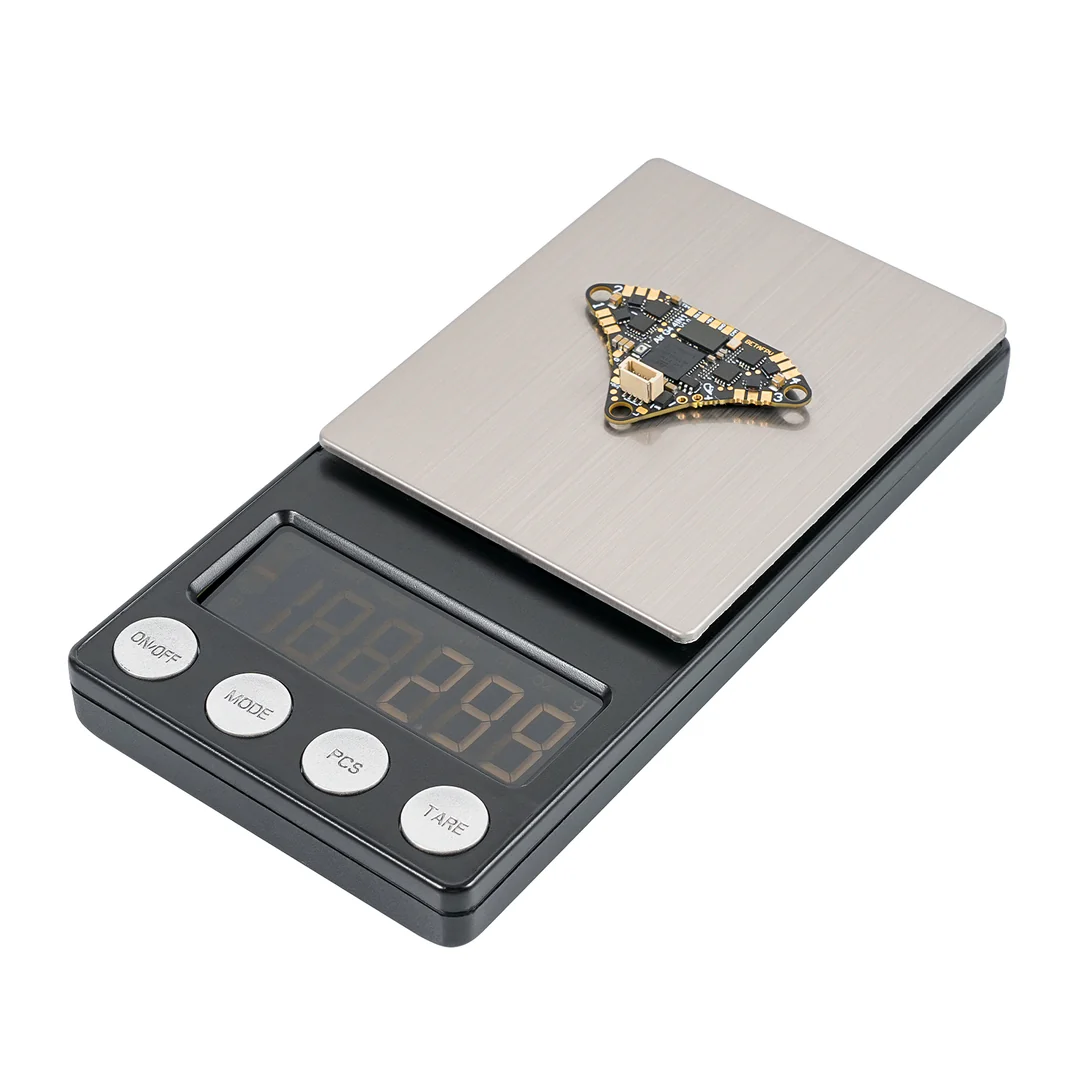

    • Weight: 2.9g
    • Mounting Hole Size: 26mm x 26mm
    • CPU: STM32G473CEU6 (168 MHz)
    • Six-Axis Gyroscope: ICM42688P (SPI Connection)
    • Blackbox Memory: 16 MB
    • Sensors: Voltage and Current
    • 5V BEC: 5V 3A
    • USB Port: SH1.0 4-Pin
    • Integrated ESC: 5A continuous
    • Receiver (RX): Serial ELRS 2.4G
    • 4IN1 version: FC + ESC + OSD + VTX

    Electronic Speed ​​Controller (ESC)

    • Input Voltage: 1S
    • Firmware FC: Betaflight_4.5.0_BETAFPVG473
    • ESC firmware: A_X_5_96KHz_V0.19.hex (BB51 Bluejay hardware)
    • Supported Signals: D-shot300, D-shot600

    Video Transmitter (VTX)

    • Output Power: 25/100/200/400/PIT
    • Frequency: 5.8 GHz, 48 channels (Raceband: 5658~5917 MHz)
    • Channel Selection: SmartAudio2.0
    • Modulation: FM
    • Frequency Control: PLL
    • Frequency Stability: ±100 kHz (Typ.)
    • Frequency Accuracy: ±200 kHz (Typ.)
    • Channel Carrier Deviation: ±1.5 dB
    • Antenna Port: 50 Ω
    • Operating Temperature: -10 ℃ to +80 ℃

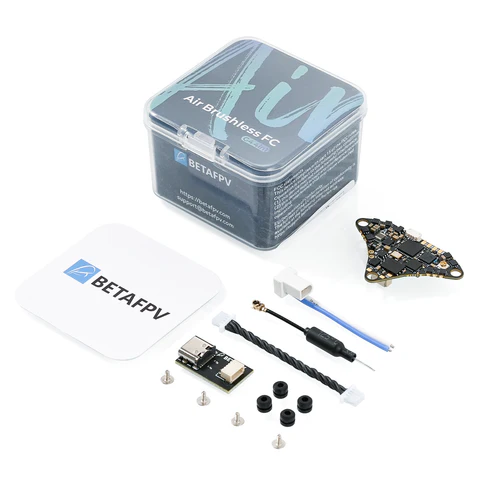

    Package Contents

    • 1 x Air Brushless Flight Controller
    • 1 x Type-C to SH1.0 Adapter
    • 1 x SH1.0 4-Pin Adapter Cable
    • 1 x 5.8G VTX Antenna
    • 1 x BT2.0 U Whoop Cable Pigtail (40mm)
    • 4 x Self-tapping screws M1.4*4
    • 4 x Dampers
