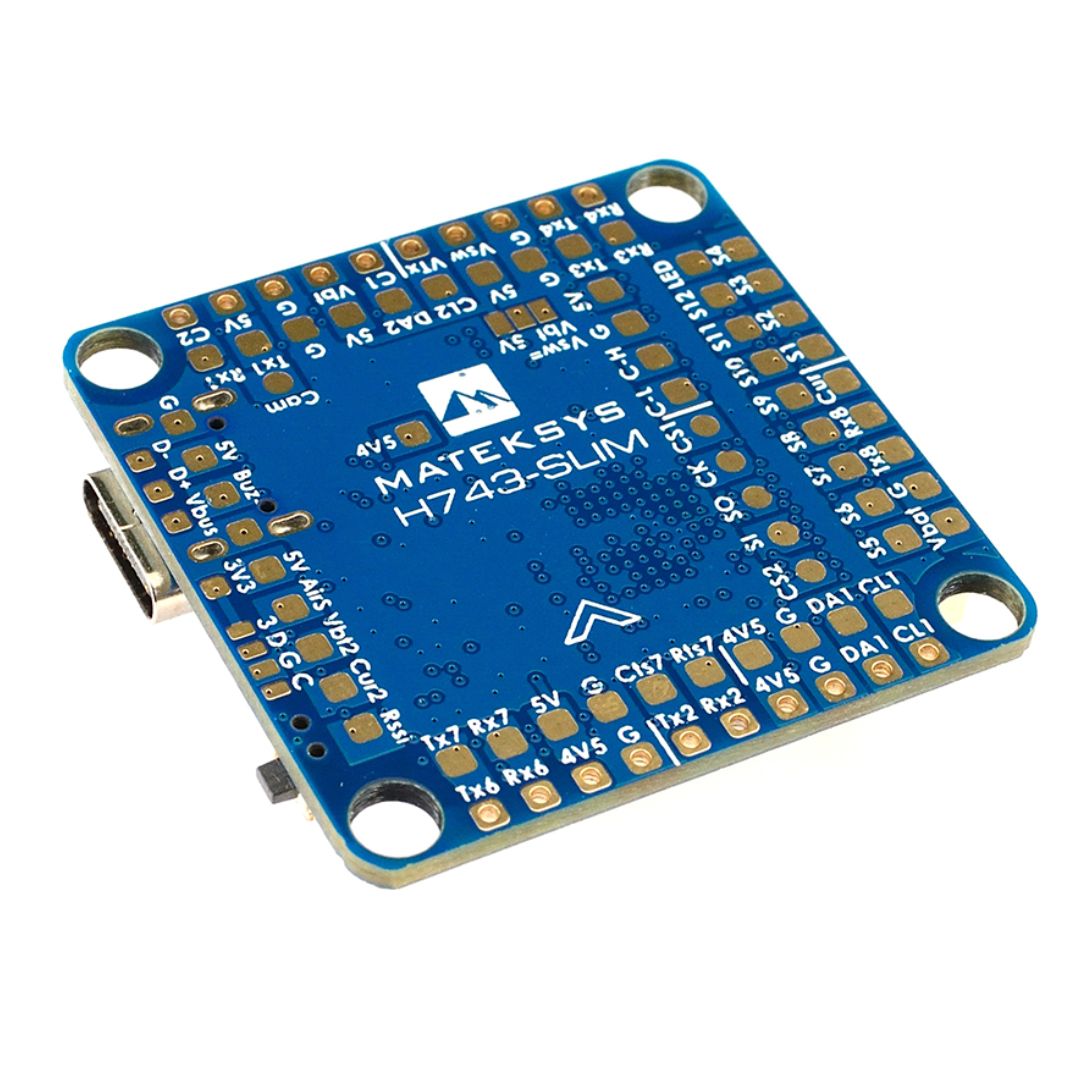

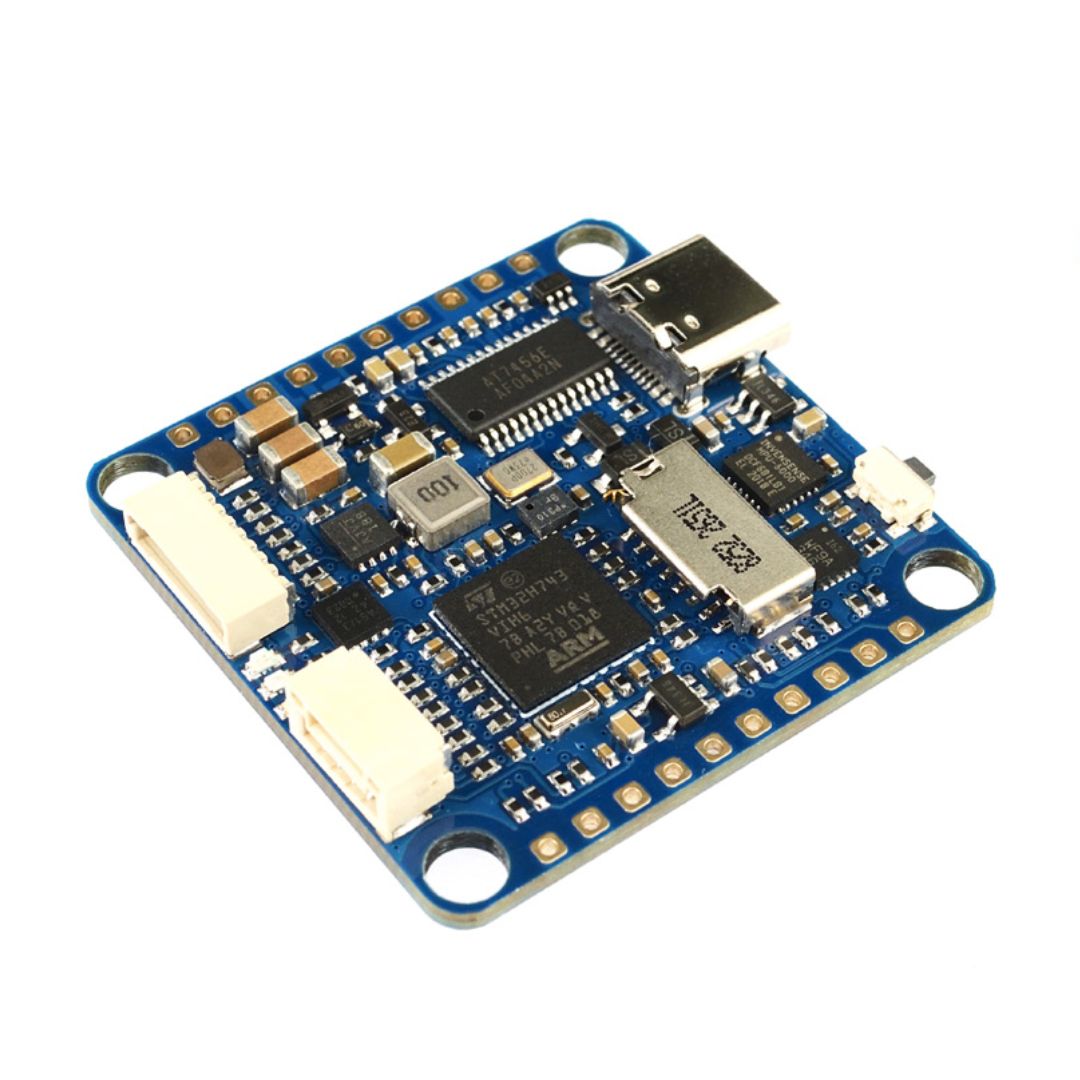

    FС Mateksys H743-SLIM V3

    The H743-SLIM V3 flight controller is equipped with an ultra-fast modern H7 processor with a frequency of 480 MHz and 1 MB RAM! It weighs just 7 grams and measures 36 x 36 mm. It features an Infineon DPS310 precision barometer, dual ICM42688-P and ICM42605 gyroscopes, a MicroSD slot for data logging and 7 UART ports – including support for FPV systems such as DJI.

    Like its larger counterpart, the H743-WING, it includes a CAN BUS port for connecting advanced peripherals. However, the H743-SLIM is more suitable for quadcopters as it does not have a PDB and several BEC voltage regulators, although it remains flexible enough to be used in a variety of RC models, including fixed-wing aircraft.

    H743-SLIM V3 is compatible with ArduPilot (4.2 or later), BetaFlight (4.3 or later) and INAV (5.0 and later), giving you the freedom to choose the firmware that best suits your setup.

    Specifications

    MCU: STM32H743VIH6, 480MHz, 1MB RAM, 2MB Flash
    V1.0 IMU Board: MPU6000 (SPI1) and ICM20602 (SPI4)
    V1.5 IMU Board: MPU6000 (SPI1) and ICM42605 (SPI4)
    Baro: Infineon DPS310 (I2C2). analog air speed, Vbat2, Cur2)
    3x LEDs for FC STATUS (blue, red) and 3.3V indicator (red)
    1x SPI3 hub
    USB Type C (USB 2.0)

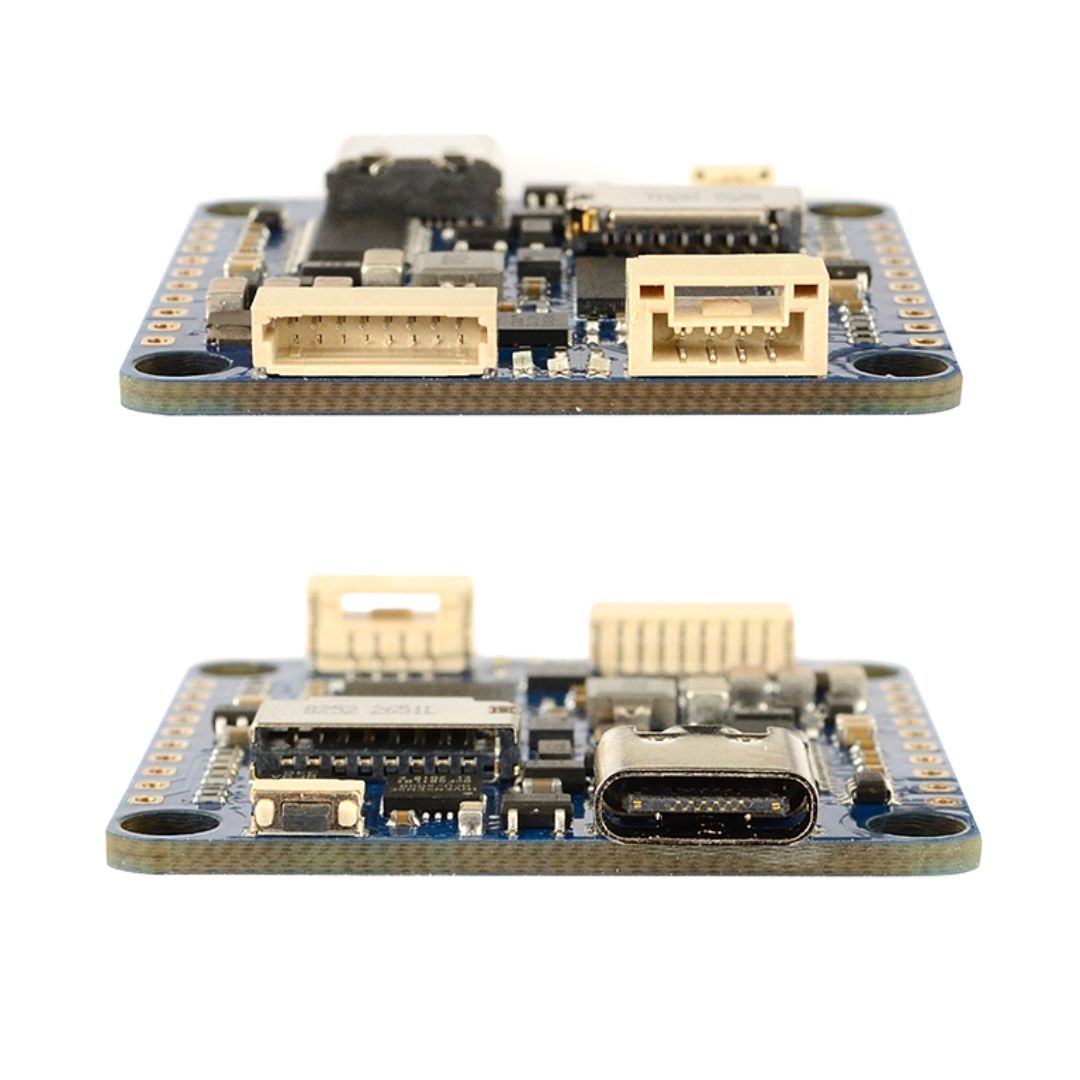

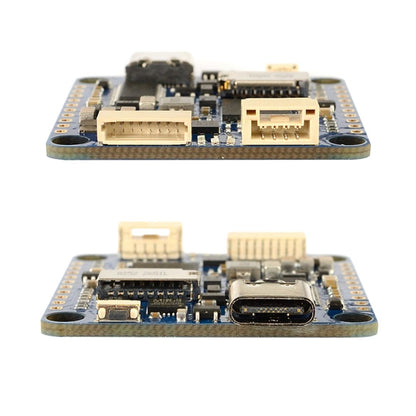

    1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
    1x connector JST-GH1.25_4pin (5V/CAN-H/CAN-L/G)
    Camera Dual Input Switch
    5V/Vbat Filtered Power Switch
    DJI FPV OSD is supported by any spare UART

    Power supply
    Vbat input: 6~36V (2~8S LiPo)
    BEC: 5V 2A continuously (max. 3A)
    LDO 3.3V: max. 200 mA
    No built-in current sensor
    ADC Vbat2 pad supports max. 69V (voltage divider: 1K:20K)
    Static output: 200mA at 5V with Betaflight, 150mA at 5V with ArduPilot

    Firmware FC
    ArduPilot(ChiBiOS): MATEKH743
    BetaFlight: MATEKH743
    INAV: MATEKH743

    Physical
    Mounting: 30.5 x 30.5mm, Φ4mm with Φ3mm grommets
    Dimensions: 36 x 36 x 5mm
    Weight: 7g

    Package includes:
    1x H743-SLIM V3
    6x M4 to M3 silicone grommets
    1x JST-SH1.0_8pin cable, 5cm
    2x JST-SH1.0_8pin connectors
    1x JST-GH-4P to JST-GH-4P CAN port cable, 20cm
