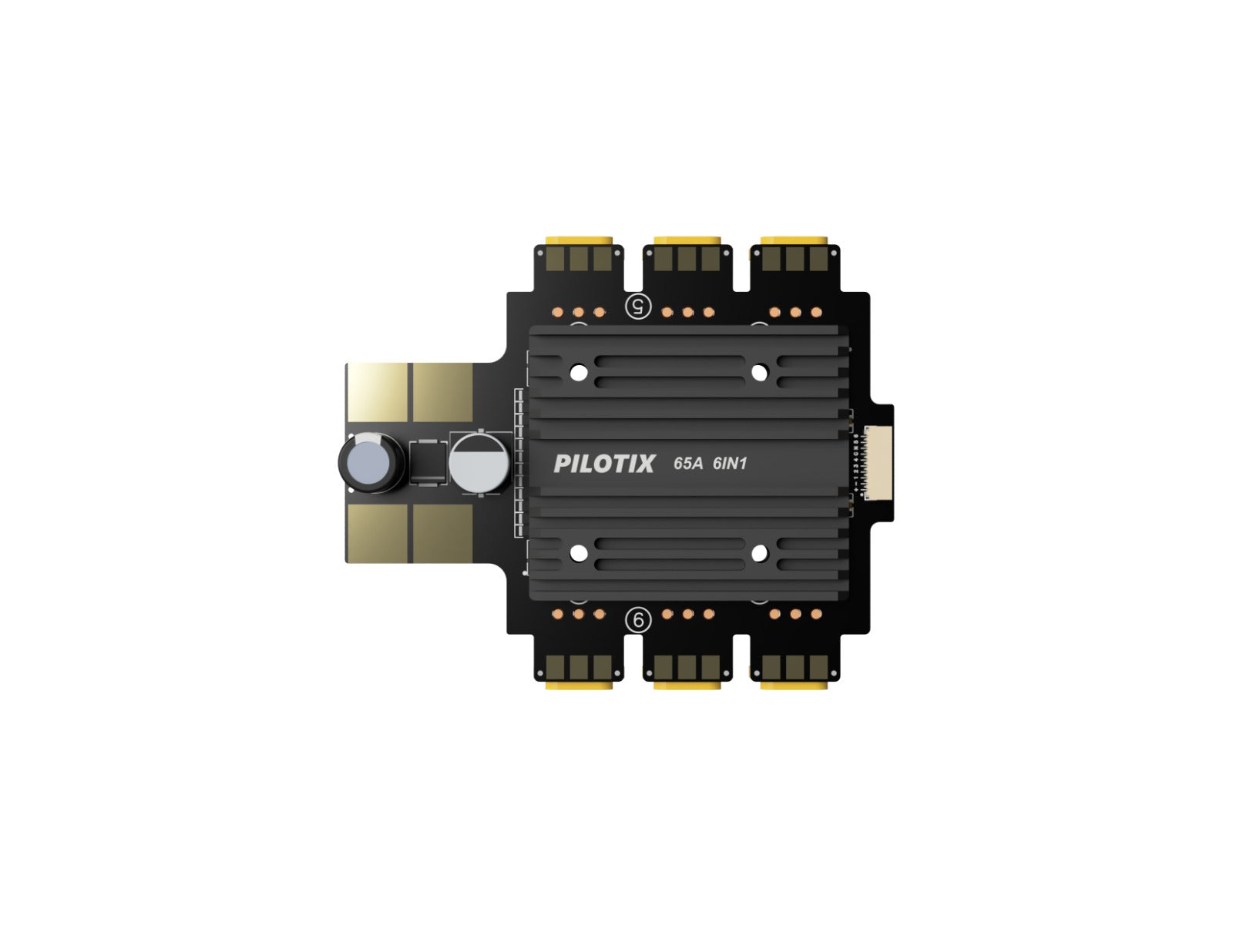

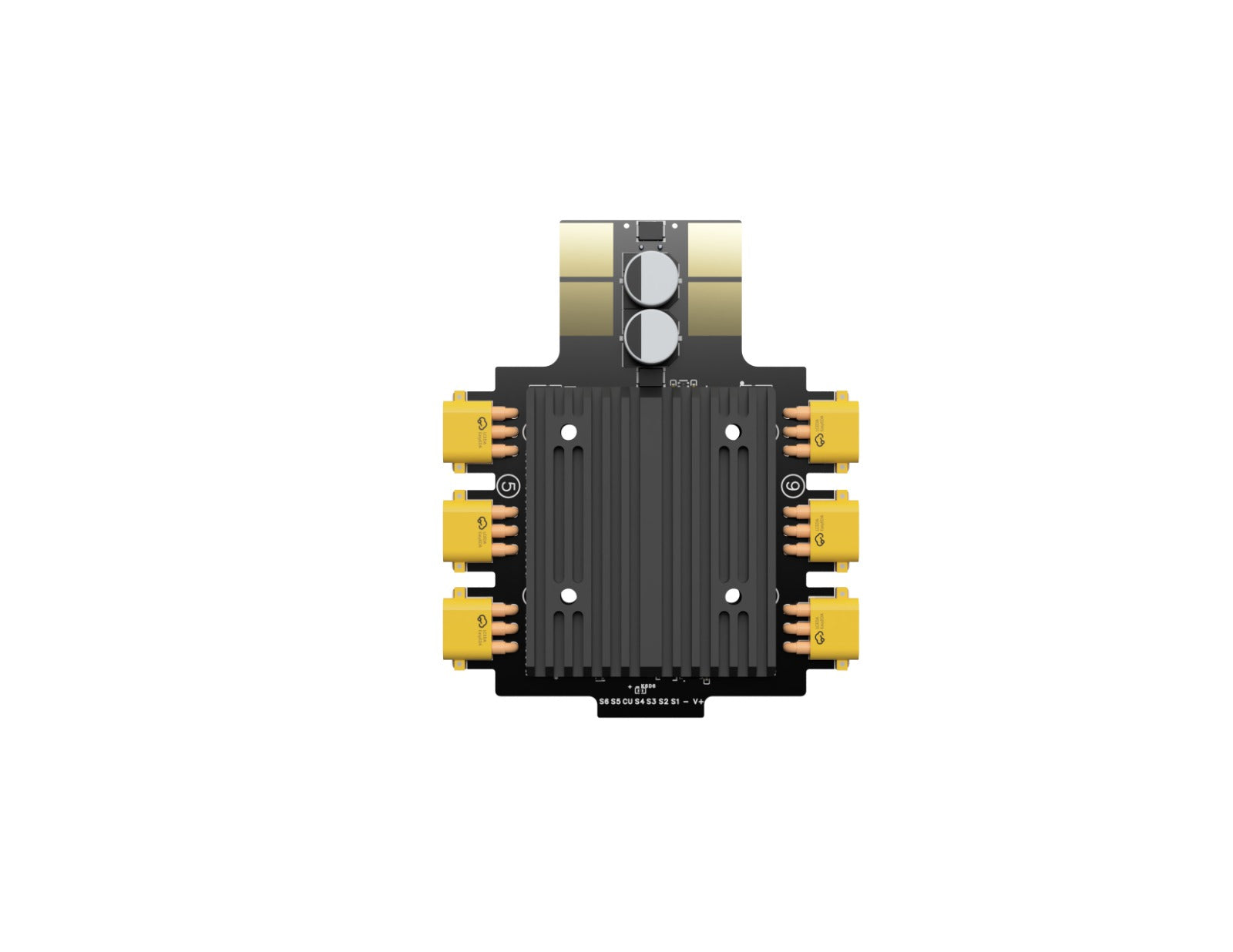

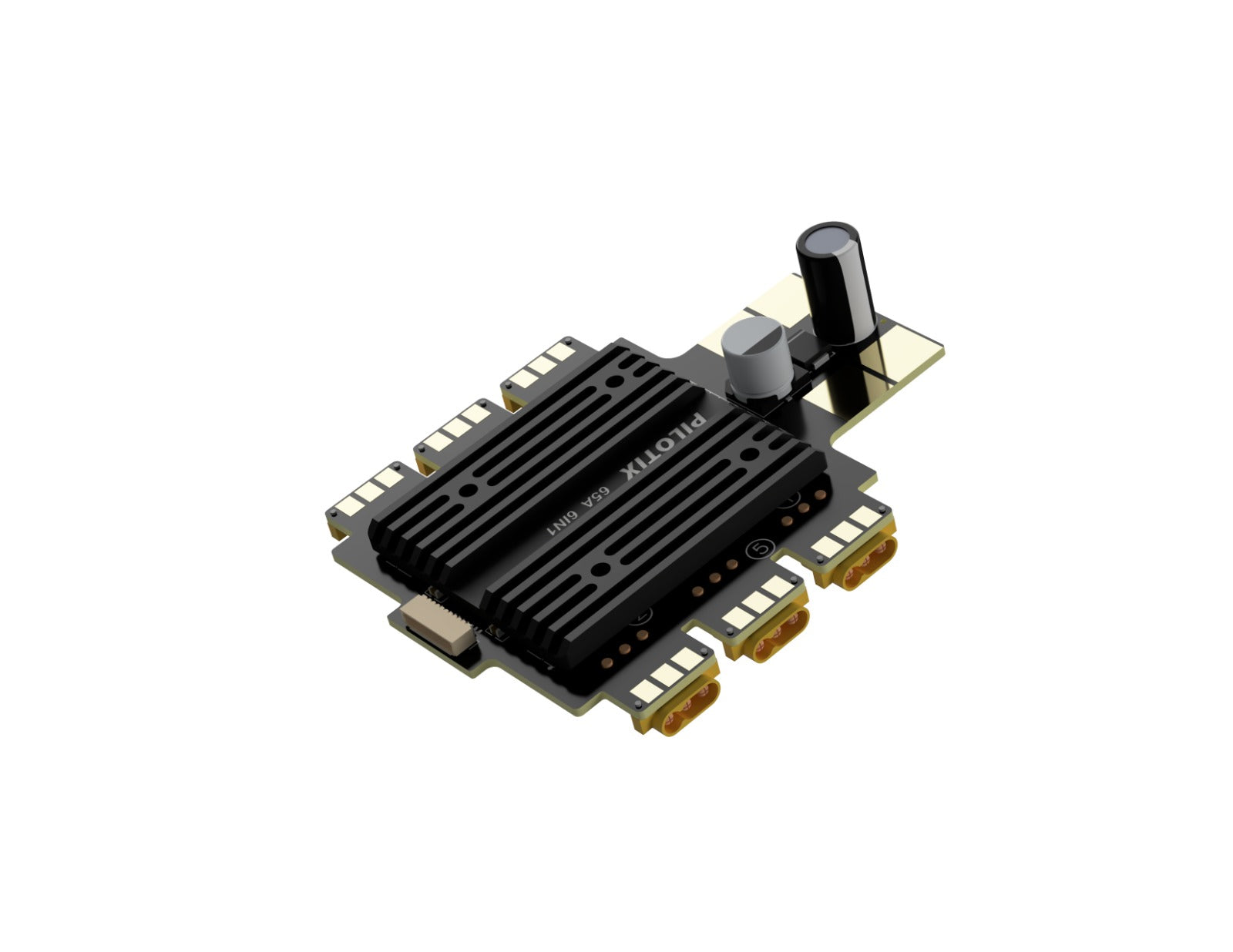

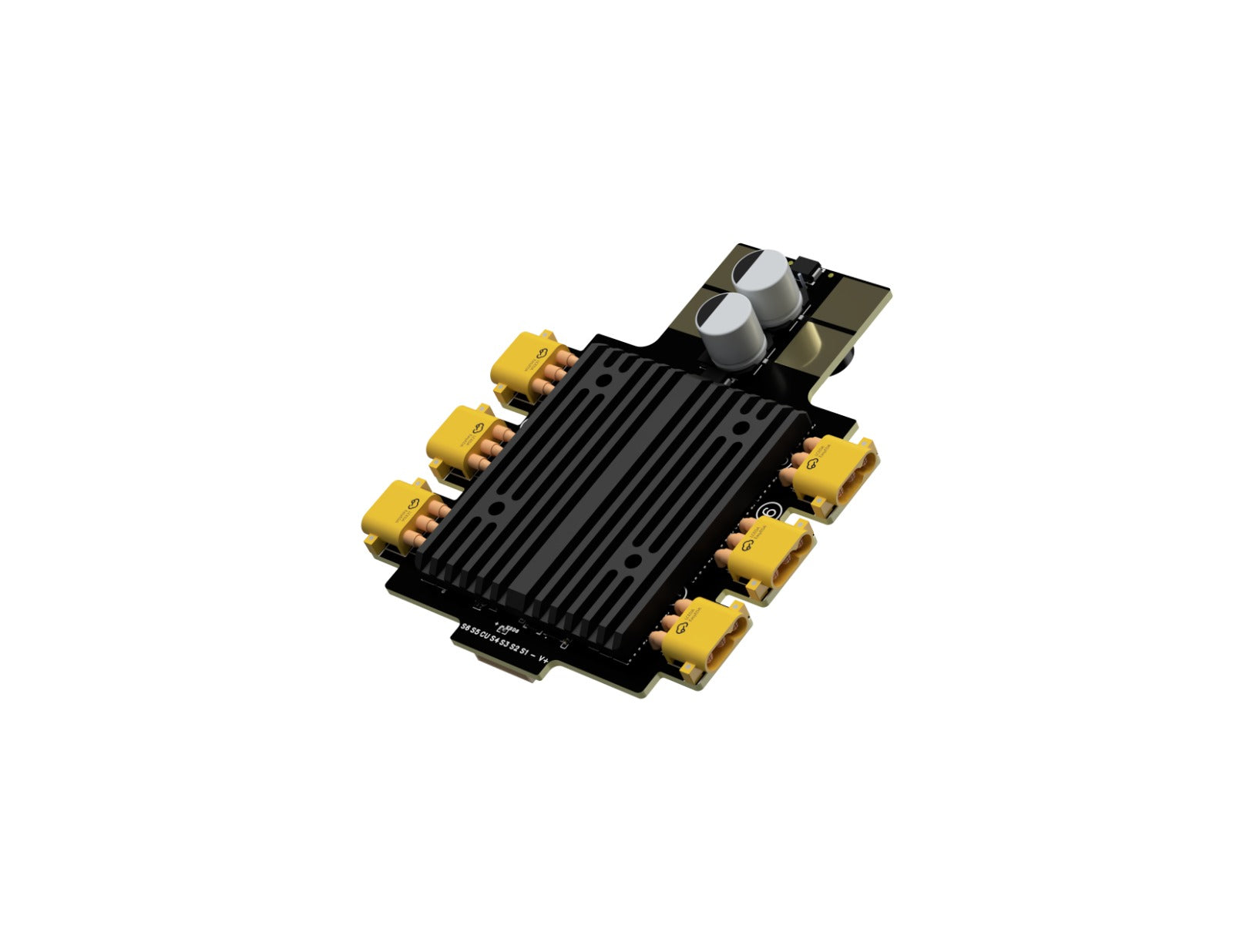

Pilotix BLS 6in1 ESC is a high-performance speed controller designed for demanding FPV applications. It supports 3-6S LiPo batteries and provides a continuous current of 65A with a peak capability of up to 75A, ensuring a reliable and robust power supply. Its advanced design offers smooth and precise throttle control, which is essential for high-speed maneuvers and stable flight performance. Ideal for professional pilots and enthusiasts alike, the Pilotix BLS ESC combines durability with exceptional efficiency to enhance your FPV experiences.
Key Specifications:
- Model: Pilotix BLS 65A 6IN1 ESC
- Input voltage: 3-6S (10.5-25.2V)
- Continuous current (one motor): 65A
- Peak current (one motor): 75A
- Continuous power (one motor): 1600W
- Peak power (one motor): 1900W
- Working temperature: -40℃ to 80℃
- Current sensor: Yes
- Telemetry: No
- Bidirectional Dshot: Supported
- ESC firmware: BLheli_S 16.7 / Bluejay 0.19.2
- ESC protocol: DShot150/300/600, MultiShot, OneShot PWM etc.
- Dimensions (LWH): 93x77x29mm
- Integrated capacitors: 35V 1000µF1, 35V 470µF3
- Connector: Amass MR30
- PCB: 6 layers, 3 OZ copper thickness
- Configuration tool: ESC Configurator
Important notes:
- For sustained high current, it is strongly recommended to ensure sufficient cooling and an active fan.
-
The package contains:
- 1x ESC 6in1 Pilotix BLS 3-6S 65A (top 75A)
