ESC 4in1 Pilotix 100A AM32 Lite
ESC 4in1 Pilotix 100A AM32 Lite
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion

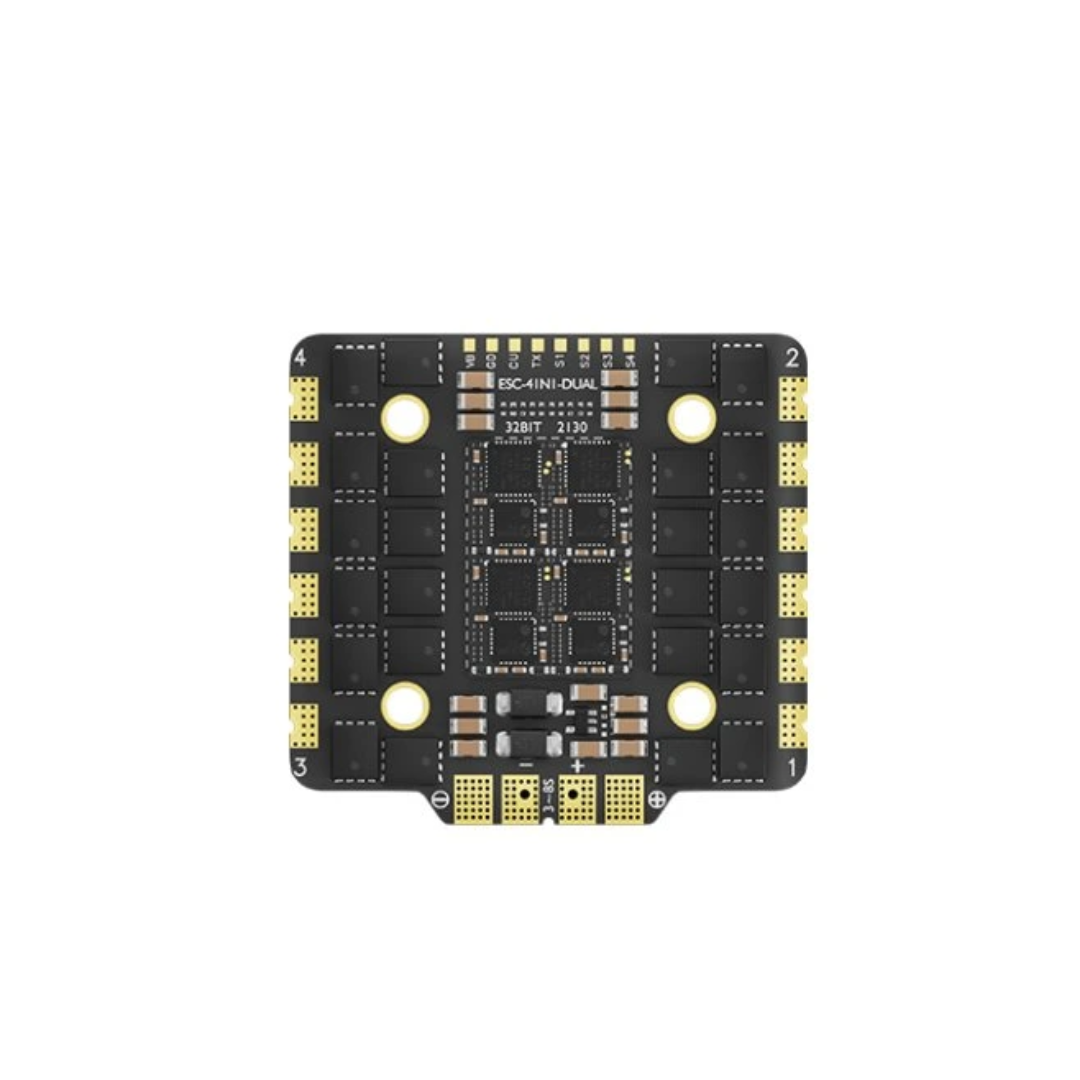

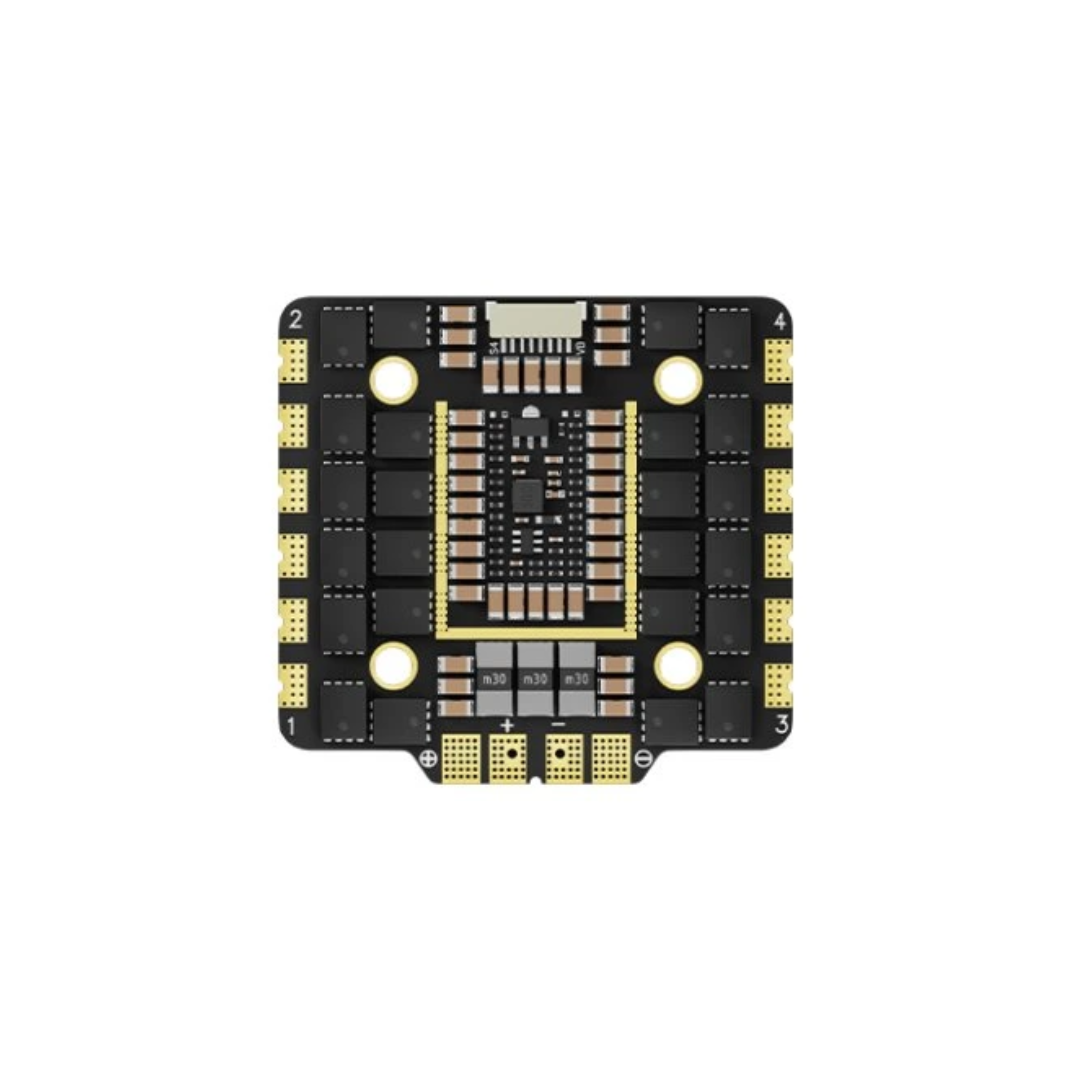

ESC 4in1 Pilotix 100A AM32 Lite
Pilotix AM32 Lite is a high-performance ESC designed for demanding FPV drones and RC projects. Built on a powerful 32-bit ARM® Cortex®-M4 MCU operating at 120 MHz, this controller provides lightning-fast processing and efficient processing of your flight commands.
Features:
- On-board ammeter and telemetry support. Monitor power consumption and get real-time data during your flights.
- High current capacity. It supports 100A x 4 continuous current and 120A x 4 peak current, making it suitable for powerful assemblies.
- Wide voltage range. Works with DC 12V-33V voltage, compatible with 3-8S Lipo batteries.
- Versatile signal compatibility. Works with signals 150/300/600, Multishot, OneShot, Proshot, PWM, etc.
- Compact and light. It weighs only 33g and measures 55 x 52mm, making it ideal for tight builds.
- Durability. It handles humidity in the range of 20-95%, which ensures reliable performance even in demanding environments.
Specifications:
Firmware: AM32_AORC_K_A_F421_2.16.hex
Built-in Ammeter: Supported
Maximum Continuous Current: 100A x 4
Instantaneous Max Current: 120A x 4
MCU: 32-bit ARM® Cortex®-M4 120MHZ
Telemetry: Supported
Input Voltage: DC 12V-33V (3-8S Lipo)
Working humidity: 20-95%
Mounting hole: M3 30.5 x 30.5mm
Dimensions: 55mm * 52mm
Weight: 33g
Input signal: 150/300/600 and Multishot/OneShot/Proshot/PWM etc.
The package contains:
1x ESC 4in1 Pilotix 100A AM32 Lite.
