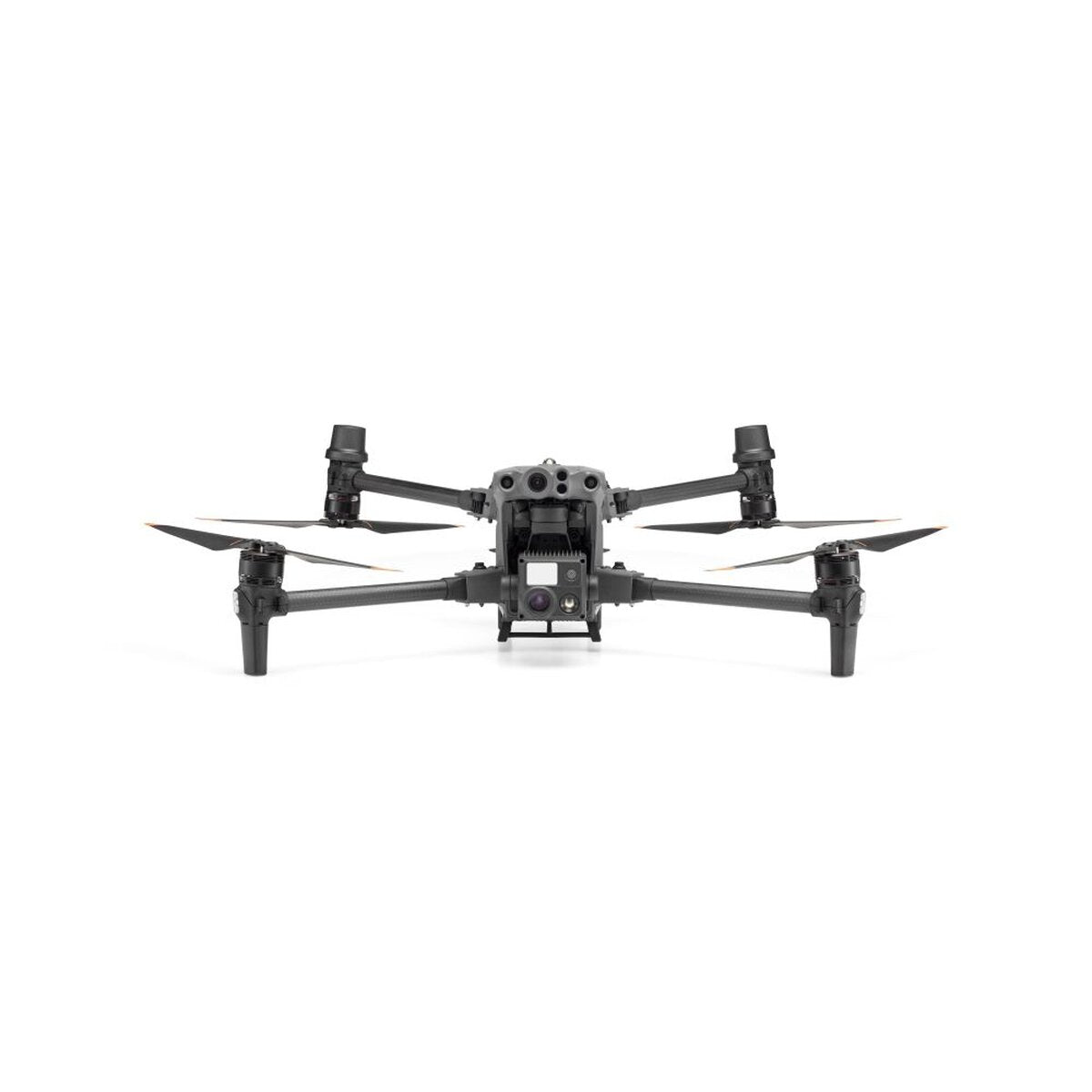

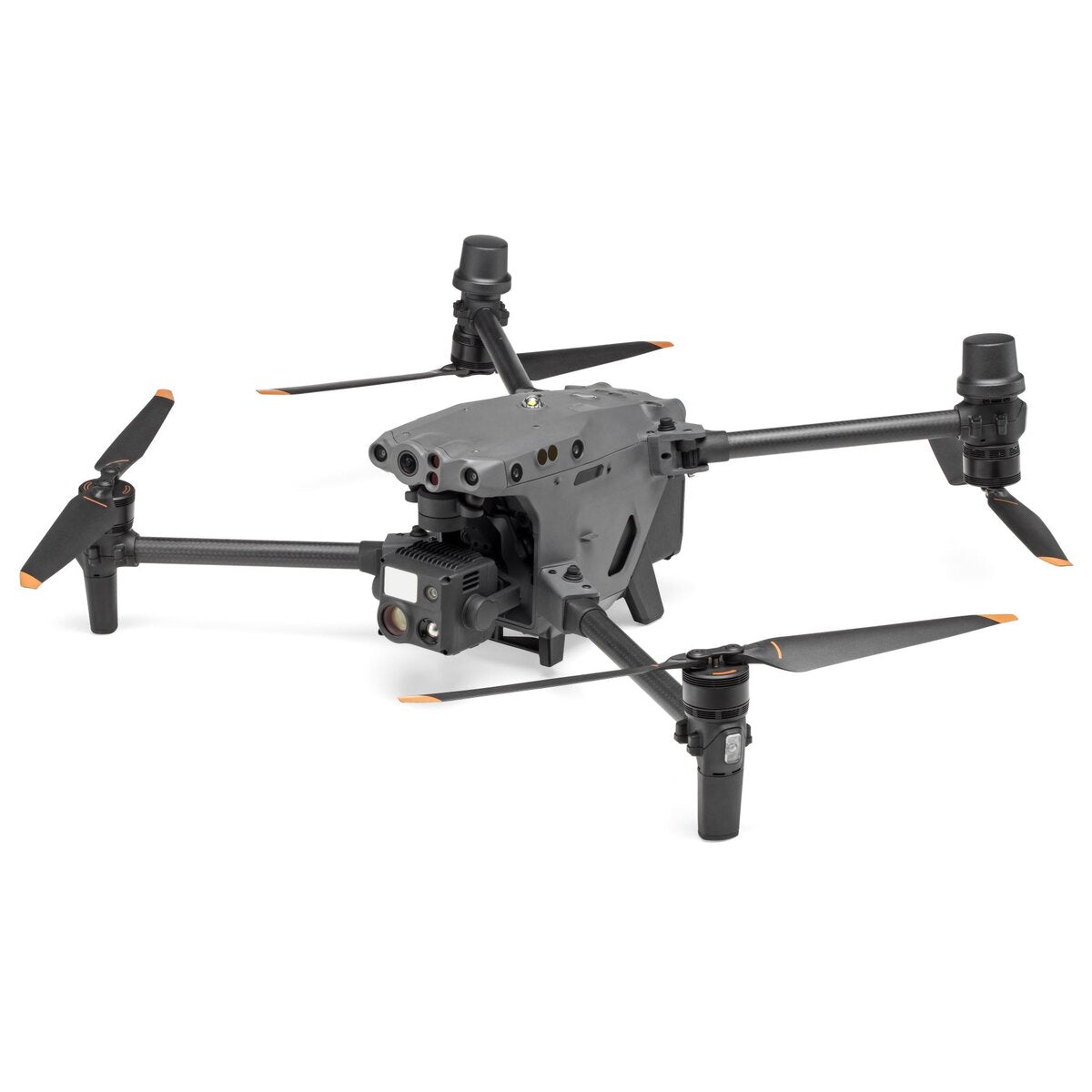

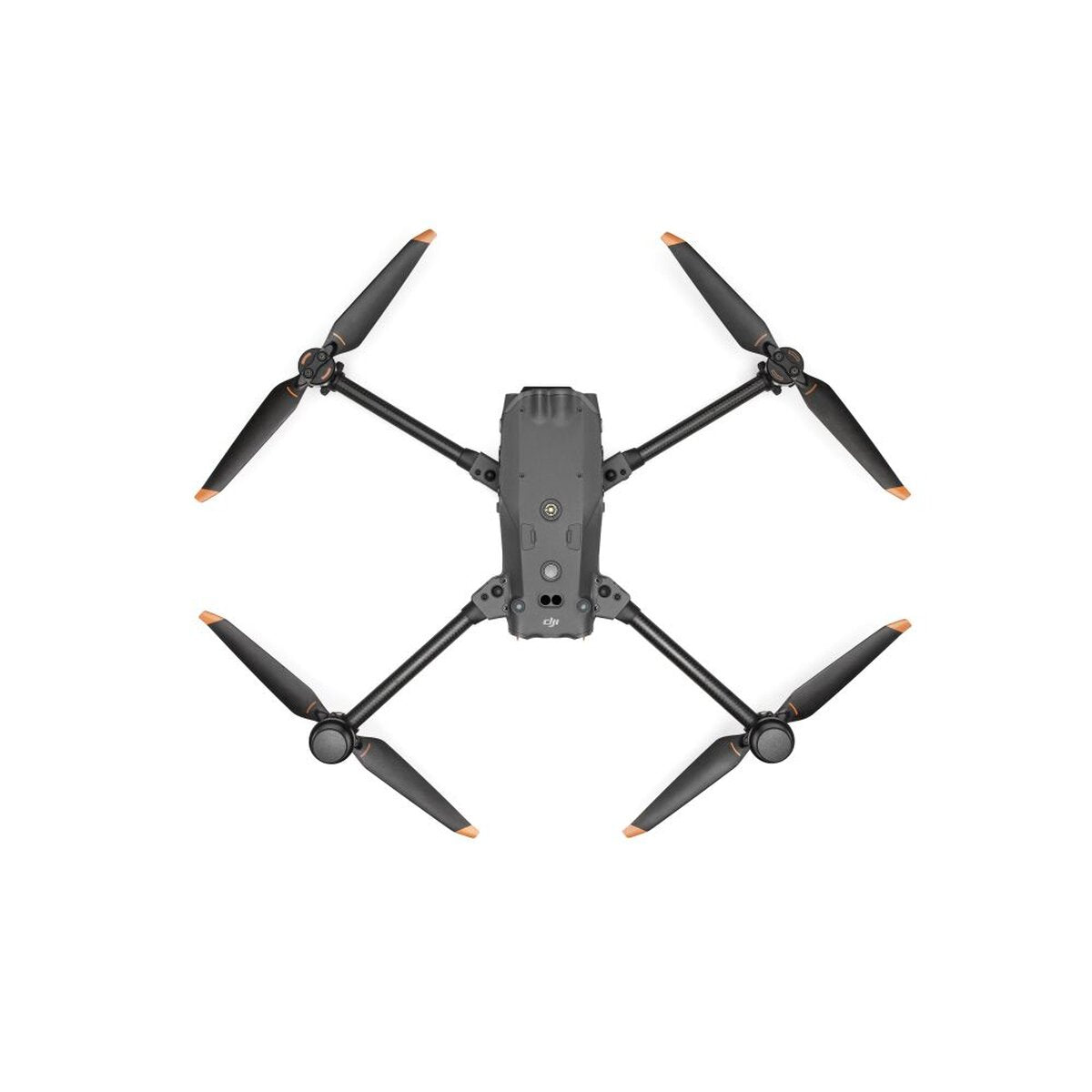

Matrix 30 Series
A new generation of portable industrial drones
The M30 series drones (including M30 and M30T), while portable and weatherproof, are integrated with several high-performance sensors and equipped with the all-new DJI RC PLUS remote control and the newly improved DJI Pilot 2 flight application for better piloting efficiency and safety.
Environment adaptability
With IP55 protection, the M30 can easily handle bad weather and different temperatures from -20°C to 50°C
Security and reliability
Dual-Vision and ToF sensors appear on all six sides of the plane, keeping the plane and your mission safe. The built-in ADS-B receiver provides early warning of any incoming manned aircraft in the vicinity.
Backup systems
Built-in advanced backup systems help keep your critical missions running even in unexpected situations
Improved transfer
Four built-in antennas support OcuSync 3 Enterprise, which enables three-channel 1080p video transmission and seamless switching between input channels, even in complex environments. Strengthen your connection with the DJI Cellular Module, an optional 4G dongle that supports stable video transmission in complex or remote work environments.
Lightweight and portable

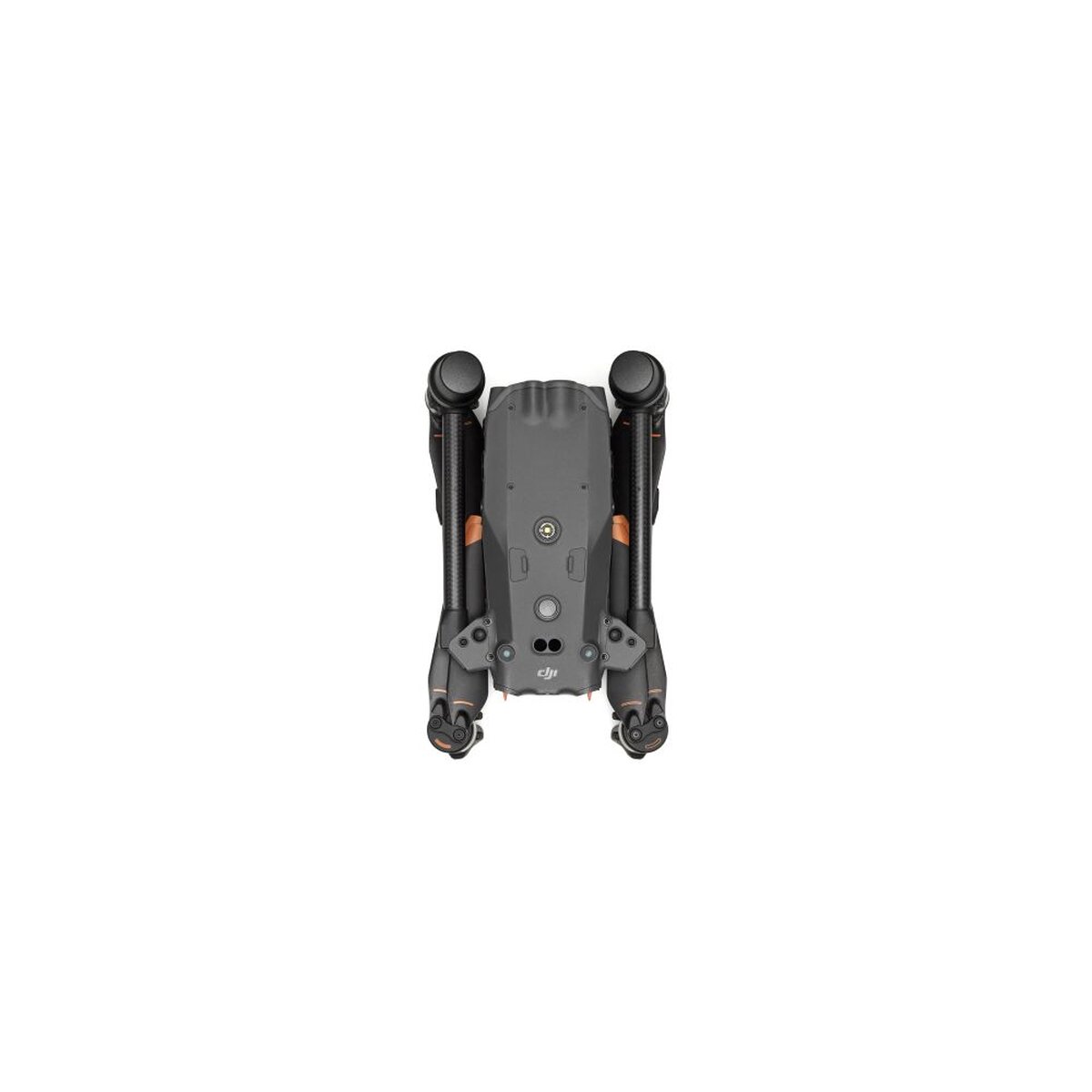

Compact and collapsible, the M30 series is easy to pack, carry and place at the start
Unique aerial intelligence to capture everything
The M30 series integrates wide-angle, zoom and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need when you need it.
Wide Angle Camera
Equivalent focal length: 24mm, DFOV: 84° 12 MP 1/2'' CMOS sensor Video resolution: 4K/30fps
Zoom Camera
48 MP 1/2'' CMOS sensor 5×-16× Optical zoom 200× Max. Hybrid Zoom Photo resolution: 8K Video resolution: 4K/30fps
Thermal Imaging Camera (M30T Only)
Equivalent focal length: 40 mm Resolution: 640×512 Frame rate: 30fps Measurement accuracy: ±2°C or ±2% Laser rangefinder range
Laser Rangefinder
Range: 3m - 120m Accuracy: 0.2m+D×0.15%

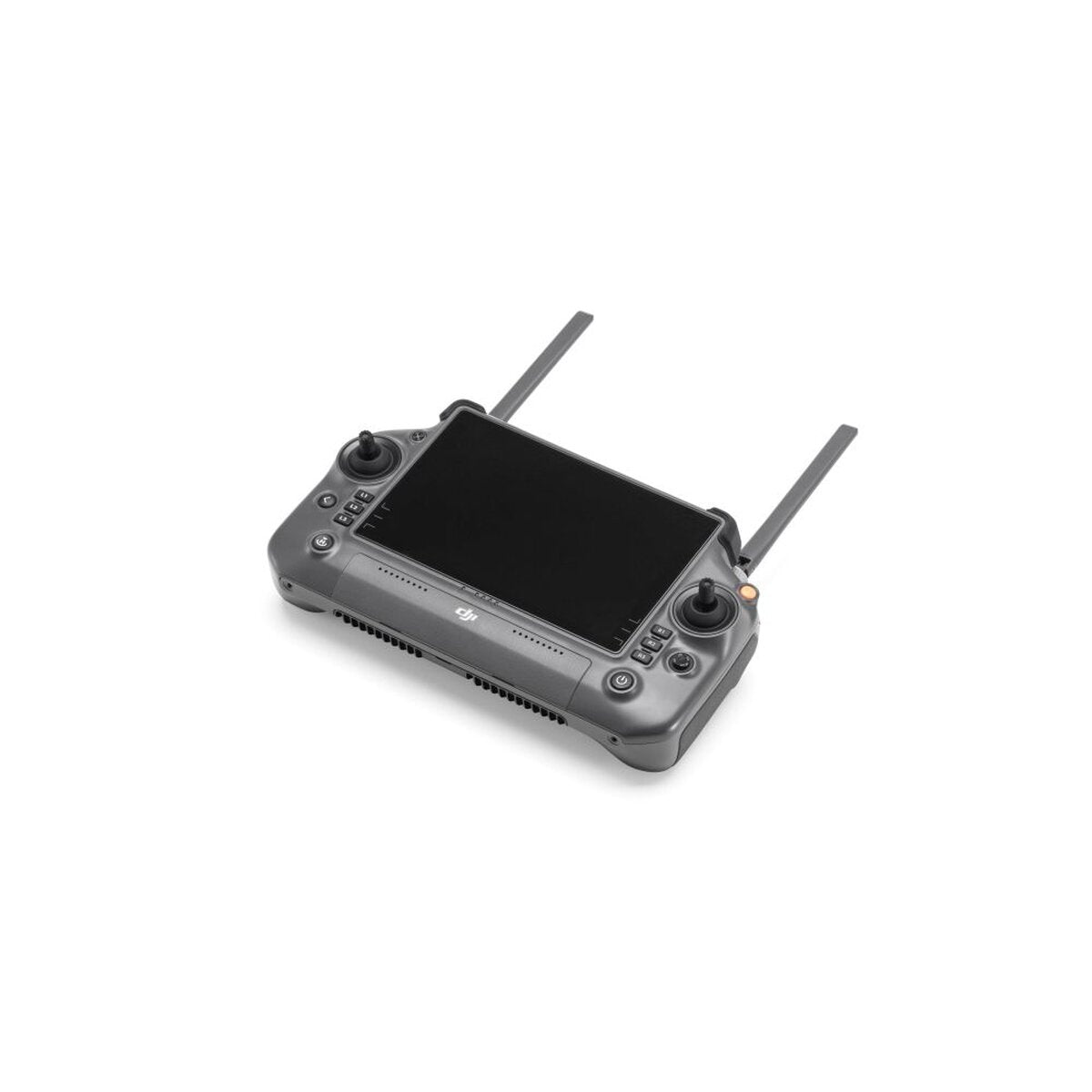

A unique piloting experience. The new DJI RC Plus
controllerBuilt for commercial drone pilots
The 7-inch wide-angle DJI RC Plus with dual control mode is tailor-made for Enterprise users.
◾ IP54 rating - Waterproof and dustproof ◾ -20°C to 50°C - Capable in both warm and cold climates
Improved stability and battery life
OcuSync 3 Enterprise Four Antennas Cover a larger area with stable video transmission and two removable antennas.
DJI Cellular Module Provides a 4G-based transmission connection between the drone and the remote controller, while also enabling an internet connection for the remote controller. Extended battery life The internal and external battery configuration ensures a 6-hour battery life and enables hot swapping for trouble-free and uninterrupted flight operations.
Introducing the brand new DJI Pilot 2 control app
Redesigned User Interface Drone and camera (or other payload) controls are easily accessible with one tap. Clear presentation of flight details and navigation information improves user experience and flight efficiency. Ergonomic design for safety and efficiency Pilot 2 works seamlessly with DJI RC Plus. On-screen and customizable buttons are within easy reach for quick operations such as adjusting the camera view and positioning points. Flight Safety Pre-Flight Checklist A comprehensive checklist will help you quickly confirm aircraft status and parameter settings so you can take off with confidence. Navigation Display The optimized interface displays your home point, PinPoints and nearby obstacles to increase safety and provide a comprehensive overview of the situation. Alerts Stay informed with timely alerts as conditions and scenarios develop.
DJI Dock. For less time on the go
DJI docks are robust, reliable and designed to work 24/7, day or night, rain or shine. Each DJI Dock contains a Matrice 30(T) drone where it lands, recharges, takes off and performs missions programmed in DJI FlightHub 2.
Non stop operation
The docking station version of the M30 series has top performance with a maximum wind resistance of 15 m/s, IP55 protection and thanks to the TEC air conditioner, work
e at temperatures from -30 °C to 50 °C.
Fast charging, fast start
Fast charging and take-off thanks to TEC air conditioning, which cools the drone's batteries and allows charging from 10 to 90% in just 25 minutes
Wide area coverage
A fully charged Matrix M30 flies for 40 minutes and can conduct missions and inspections up to 7 km from the dock
Target details at your fingertips
The docking station version of the M30 series integrates wide-angle, zoom and thermal cameras (M30T only) with a laser rangefinder, which together can capture the necessary aerial data when you need it.
Easy setup DJI docks weigh less than 100 kg and have a footprint of less than 1 square meter. Setup requires grounding, power and internet access, and quick configuration using the DJI RC Plus remote. Integrated design
DJI docks are packed with highly integrated hardware that enhances functionality.
- Wide Angle Security Camera
- Integrated weather station
- LTE 8 network card slot
- Internal omnidirectional antenna
- RTK Module
- Edge Computing Expansion Slot
