Code: SKU:S0303--0302

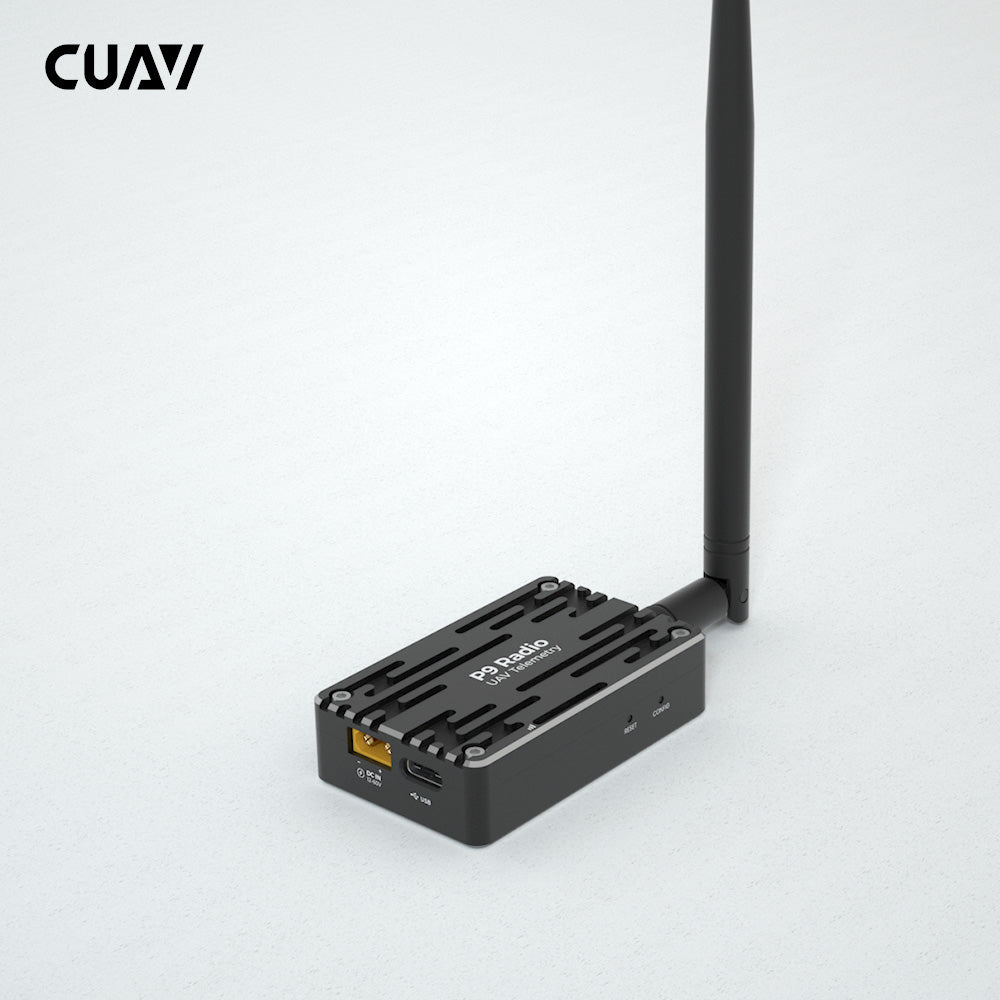

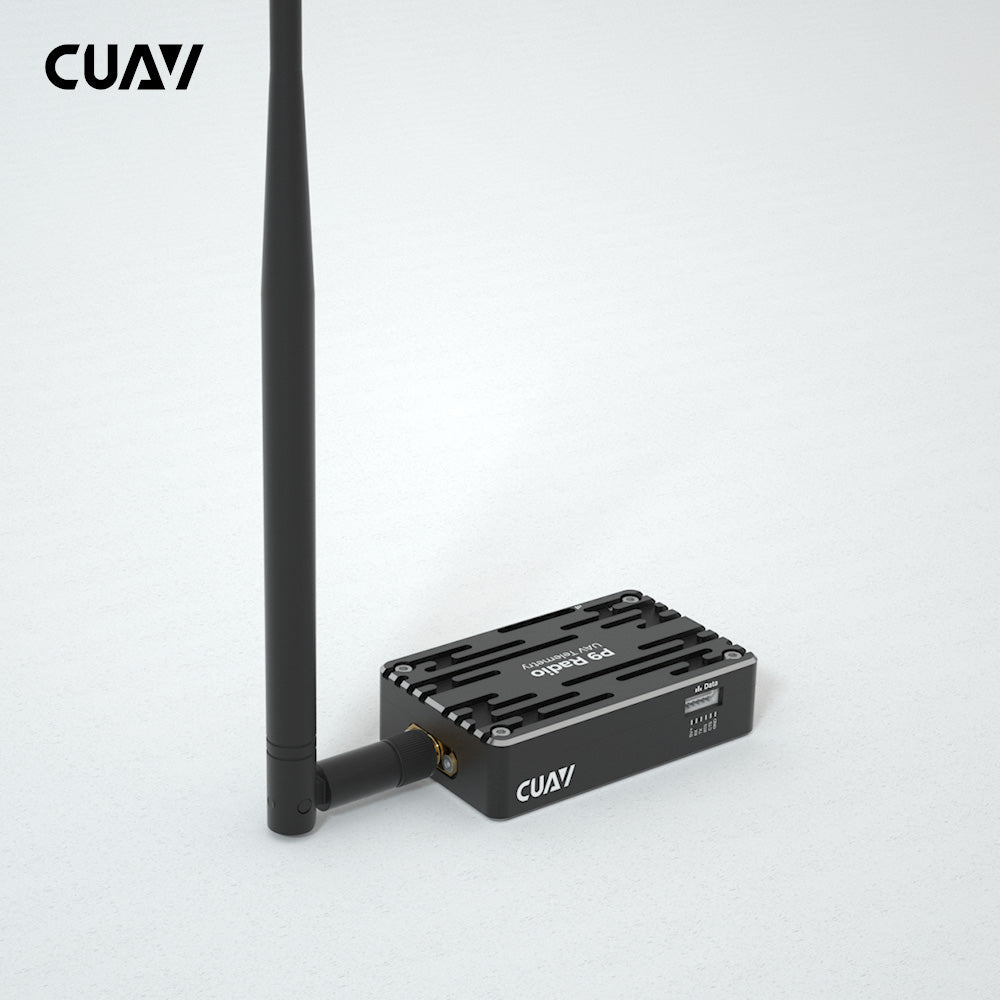

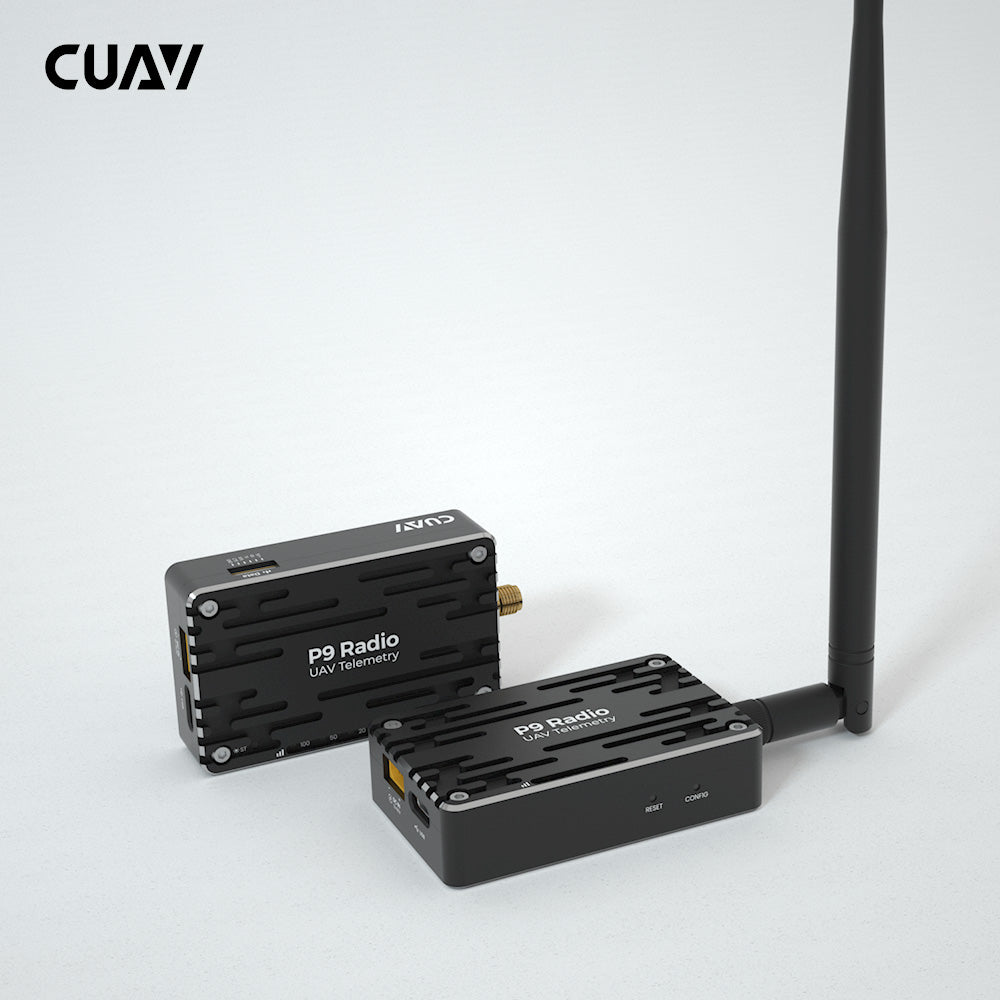

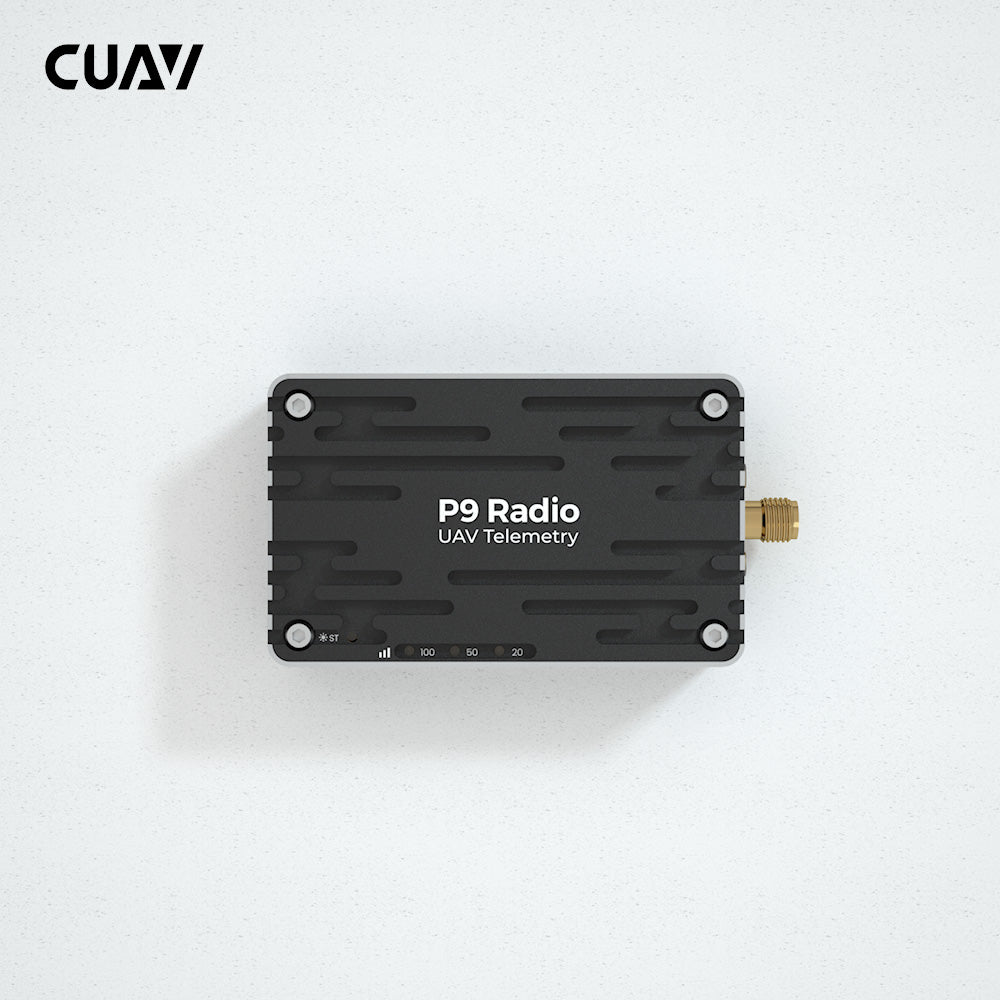

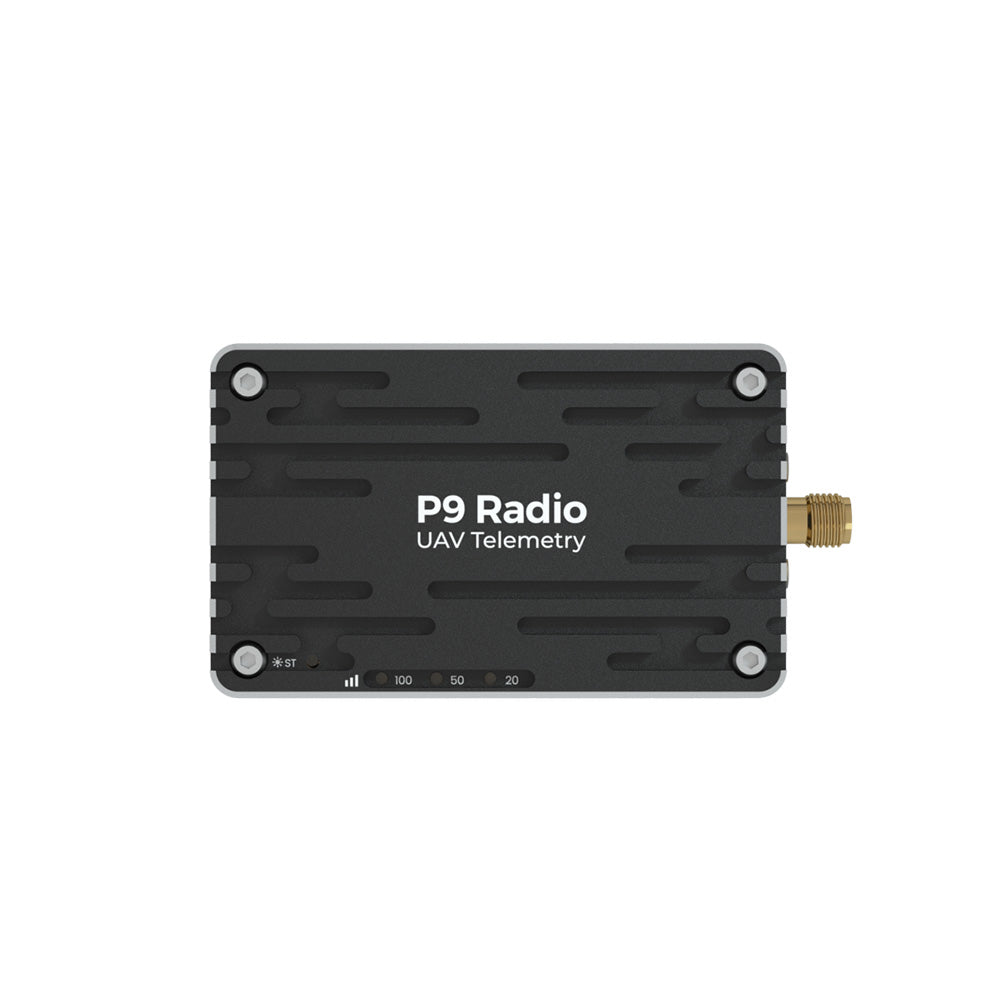

CUAV Telemetry Radio Drone Sky and Base Unit P9
CUAV Telemetry Radio Drone Sky and Base Unit P9
Brand: CUAV
Regular price
€459,00
Regular price
€459,00
Sale price
€459,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
CUAV Telemetry Radio Drone Sky and Base Unit P9
Features:
- Long transmission distance.
- Support point-to-point, retransmission and other communication methods.
- Input voltage 3~12s.
- Aeronautical CNC aluminum alloy body.
- Support high-speed frequency hopping technology, anti-interference.
Technical specifications:
- Operating frequency: 902-928 MHz
- Transmission technology: Frequency hopping
- Transmission protocol: Transparent transmission
- Forwarding error detection: Hamming / BCH / Golay / Reed-Solomon
- Error detection: 32 bit CRC, ARQ error detection
- Encryption: Optional (see AES option)
- Range: Reference distance: 40km (Transmission distance varies depending on environment/configuration, please refer to actual use)
- Sensitivity: -110 dBm @ 115.2 kbps, -108 dBm @ 172.8 kbps, -107 dBm @ 230.4 kbps
- Output power: 100mW - 1W (20-30dBm) (Default: 1W)
- Serial interface: 3.3V CMOS TTL
- Antenna gain: 5 dBi
- Transmission speed: Up to 230.4 kbps; 57600 (default)
- Line speed: 115 - 276 kbps
- Operating Modes: Auto Routing, Store and Forward, Self Healing, Packet Routing Modes
- Operating voltage: 12V-60V
- Power consumption: Sleep < 1mA, Idle < 3.5mA, RX: 35mA ~ 80mA, TX: 800mA ~ 1200mA
-
Interface:

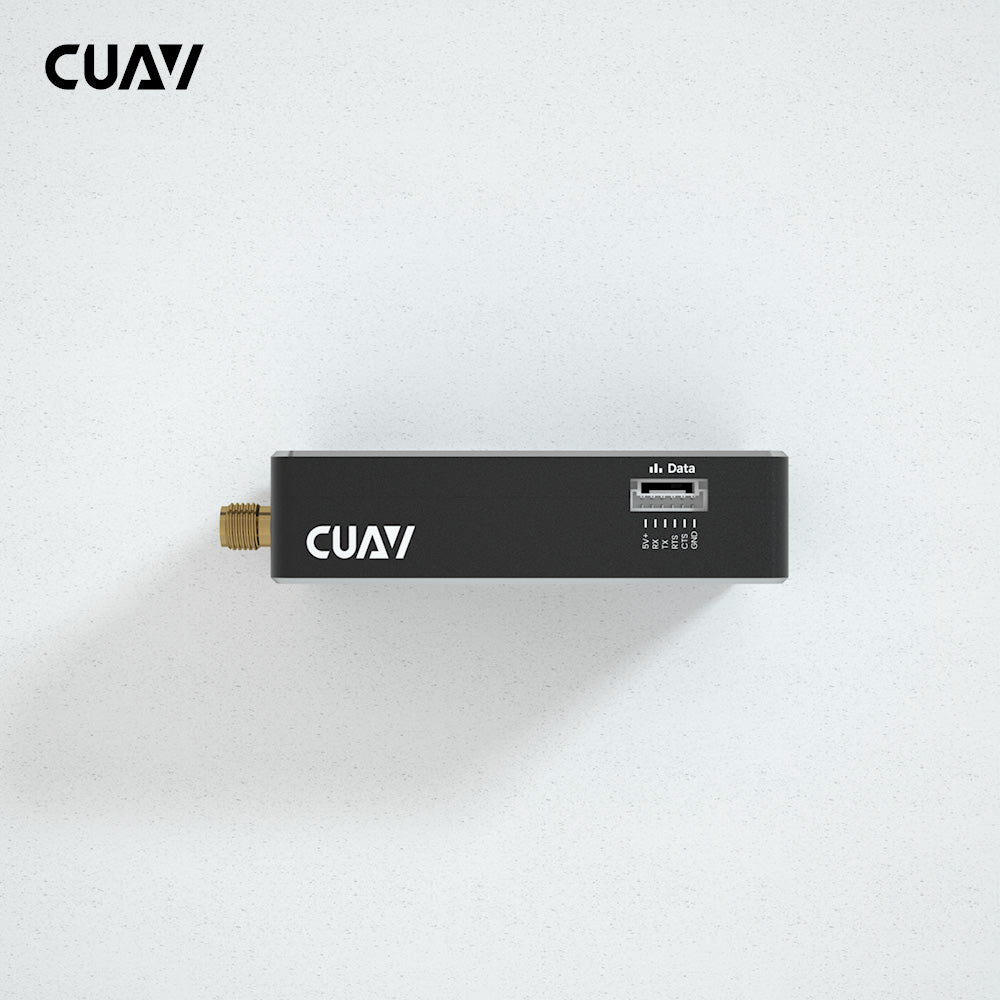

- Serial: GHR-06V-S
- Antenna: SMA inner needle
- USB: TYPE-C
- Power supply: TX30PW-M
- Operating temperature: -40℃ ~ +85℃
- Humidity: 5% ~ 95% (Non-condensing)
- Weight: 5 g (without antenna); Antenna: 31 g
- Size: 65mm x 40mm x 16.5mm
