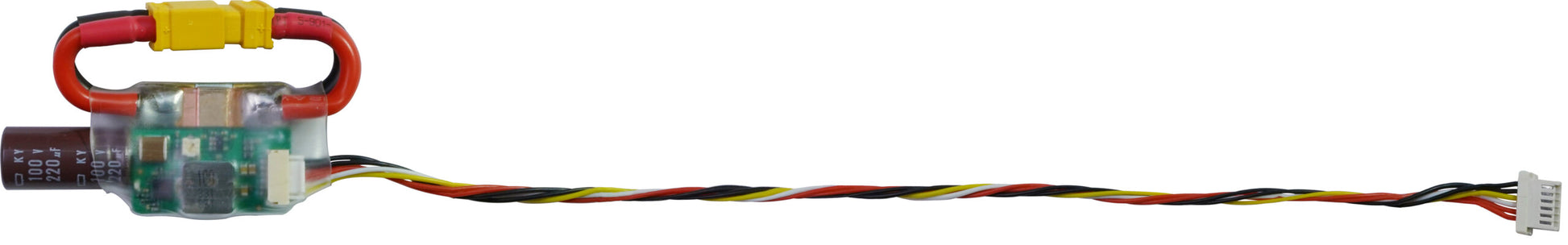

CUAV High voltage HV-PM power module V5+version
The V5 series autopilot kit includes the HV PM module. The following describes how to set up and use HV_PM (High Voltage Module).
Overview: The CUAV HV_PM module is a new high voltage module independently developed by CUAV and has the following features:
- Higher input voltage: 10V-60V (3s~14s battery)
- More accurate battery monitor: voltage measurement accuracy: ±0.1V; current measurement accuracy: ±0.2A
- BEC (5V) maximum current: 5A
- Maximum (measured) current: 60A
- Maximum output current (ESC/MOTOR PORT): 60A
- Settings via Mission Planner
Settings via Mission Planner:
- Monitor: Analog voltage and current
- Sensor: CUAV HV PM
- APM Ver: CUAV v5 or APM1 (V5 flight control series select CUAV v5)
- Click another interface to write parameters
- Restart mp ground station and flight control
Settings via QGroundcontrol:
- HV PM
- Number of cells: Set according to your battery.
- Full voltage: The voltage of each cell, lithium-ion batteries are generally 4.2V
- No-load voltage: LiPo batteries are generally 3.7V, depending on the battery.
- Voltage divider: 18
- A/V: 24
