X2-AIR 5.8 MK II pair for DJI FPV (combo) LHCP
Improved 13dBic gain and massive 180 degree combined beam width deliver an amazing flight experience in the most challenging conditions. The most compact antennas of this gain level are only 15mm thick, so you can leave them on all the time without worrying about breaking them. The included double-sided foam tape securely attaches to the faceplate of your glasses and installs in minutes. Custom made RP-SMA connectors, perfectly fit DJI FPV goggles.
Function:
- Circularly polarized
- Sector-type beam shape (widest horizontally)

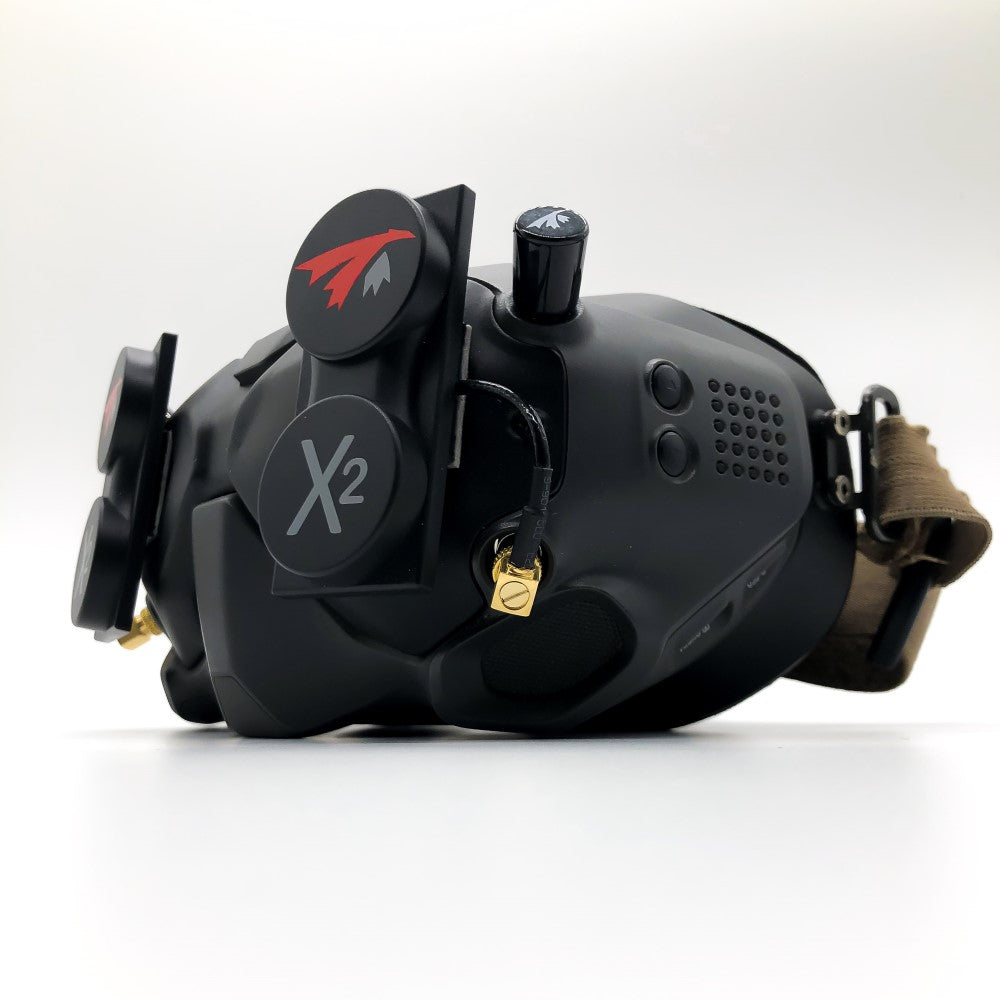

- Mounting directly on the DJI front plate with the included adhesive backing
- Compact low profile design on your glasses, easy to store and carry
- High 13dBic for unsurpassed long reach and signal penetration
- Large bandwidth of SWR and axial ratio, works even outside the 5.8 GHz band
- Super wide beam of 150 degrees for each antenna combining up to 180 degrees of beam width
- Custom knurled RP-SMA connectors
- Highly compact integrated antennas for combined directional and omnidirectional coverage
Specifications (X²-air):
Bandwidth: 5.1GHz-7.0GHz
Gain: 13dBic
Polarization: LHCP
Beam Width Horizontal*: 150 degrees
Vertical beam width*: 62 degrees
Mountains. beam @-3dB**: 75 deg.
Vert. beam @-3dB**: 34 deg.
Connector: Custom knurled RP-SMA
Dimension: 72mm x 34mm x 15mm
Weight: 20g each
Includes adhesive mount for installation on DJI FPV goggles.
*Individual antenna coverage where reception is at least equivalent to an omnidirectional antenna.
**Individual antenna coverage where at least 70% of maximum range is achieved.
Specifications (stubby):
Gain: 1.9 dB
Polarization: LHCP
Cross-Polar Rejection: -15 to -30 dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation efficiency: 99%
SWR: <=1.5:1
Weight: 3.7 g
Dimension: 12.7mm x 20mm
Connector: RP-SMA

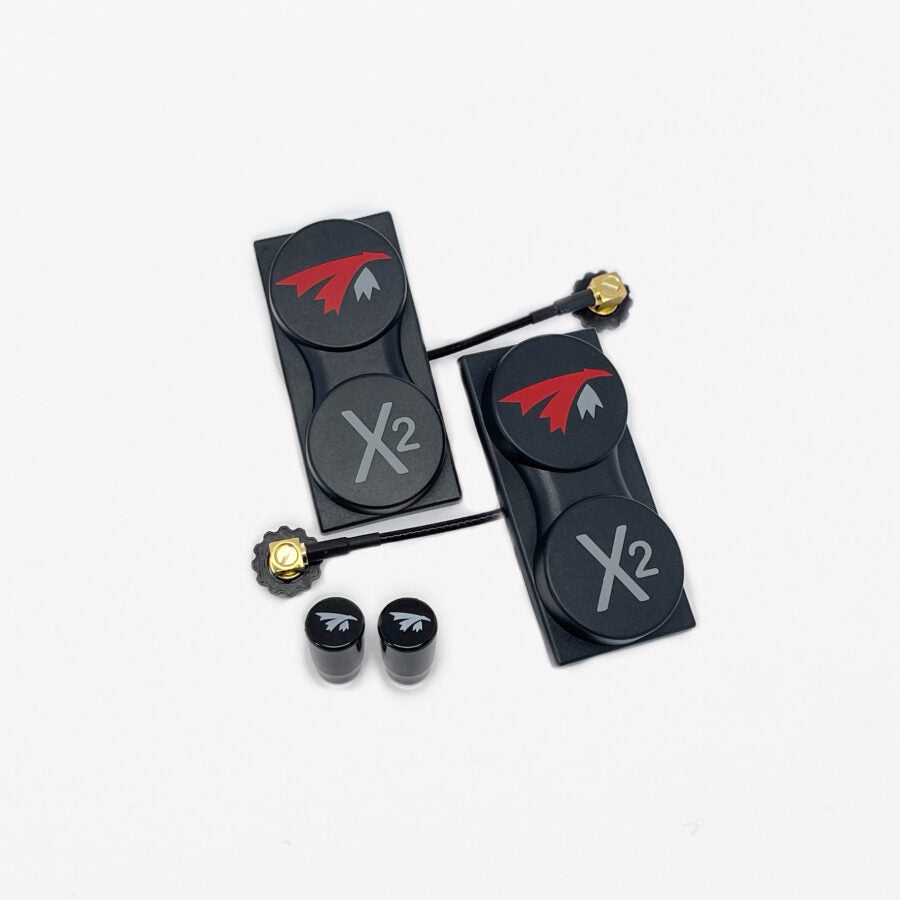

Includes:
Two X²-air MKII antennas (one for each side).
Two small Singularity antennas
