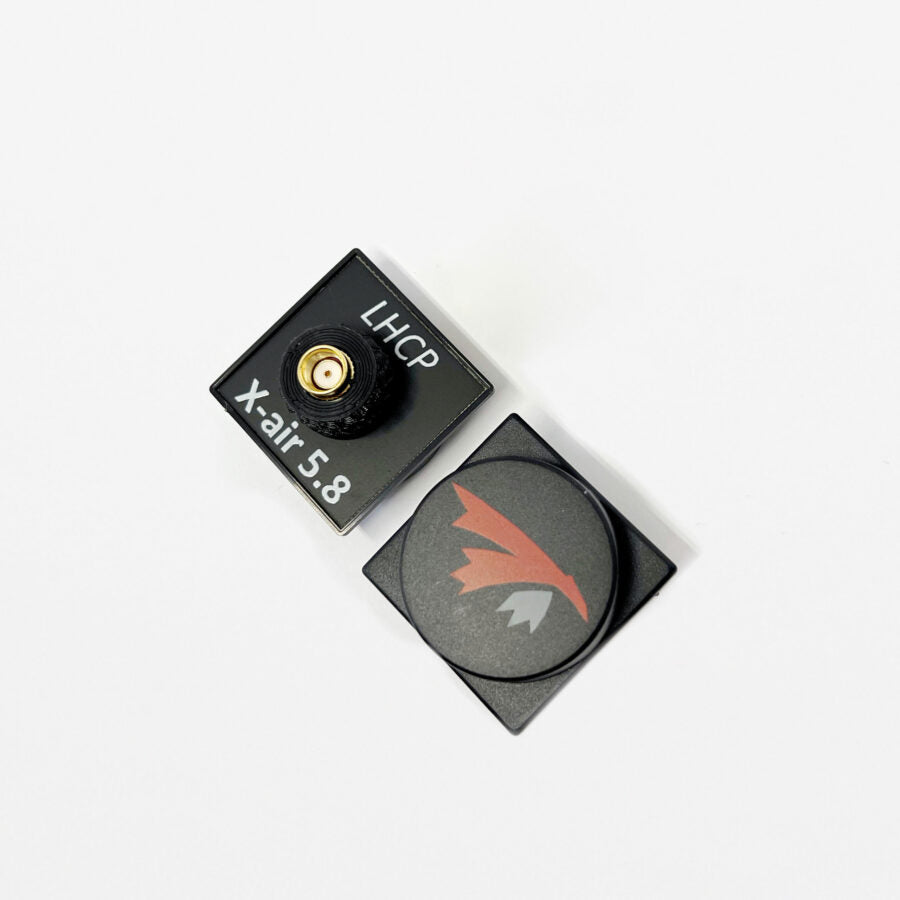

    X-AIR 5.8 MK II pair for Walksnail LHCP, (X-AIR pair only)

Highly efficient X-AIR MK II with direct RP-SMA connectors for installation on Walksnail avatar or Fat Shark dominator HD FPV goggles.

Function:
- Circularly polarized
- Connect directly to Walksnail avatar or Fat Shark dominator
- Compact low profile design, easy to store and transport
- High 10dBic for long reach and signal penetration
- Large bandwidth of SWR and axial ratio, works even outside the 5.8 GHz band
- Super wide 120 degree beam
- Custom knurled RP-SMA connectors

Specifications:
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5dBic
Polarization: LHCP
Beam width*: 120 degrees
Beamwidth @-3dB**: 68 degrees.
Connector: RP-SMA male
Dimension: 32 x 32 x 16 mm

*Individual antenna coverage where reception is at least equivalent to an omnidirectional antenna.
**Individual antenna coverage where at least 70% of maximum range is achieved.

Includes:
Only two X-air MKII antennas
