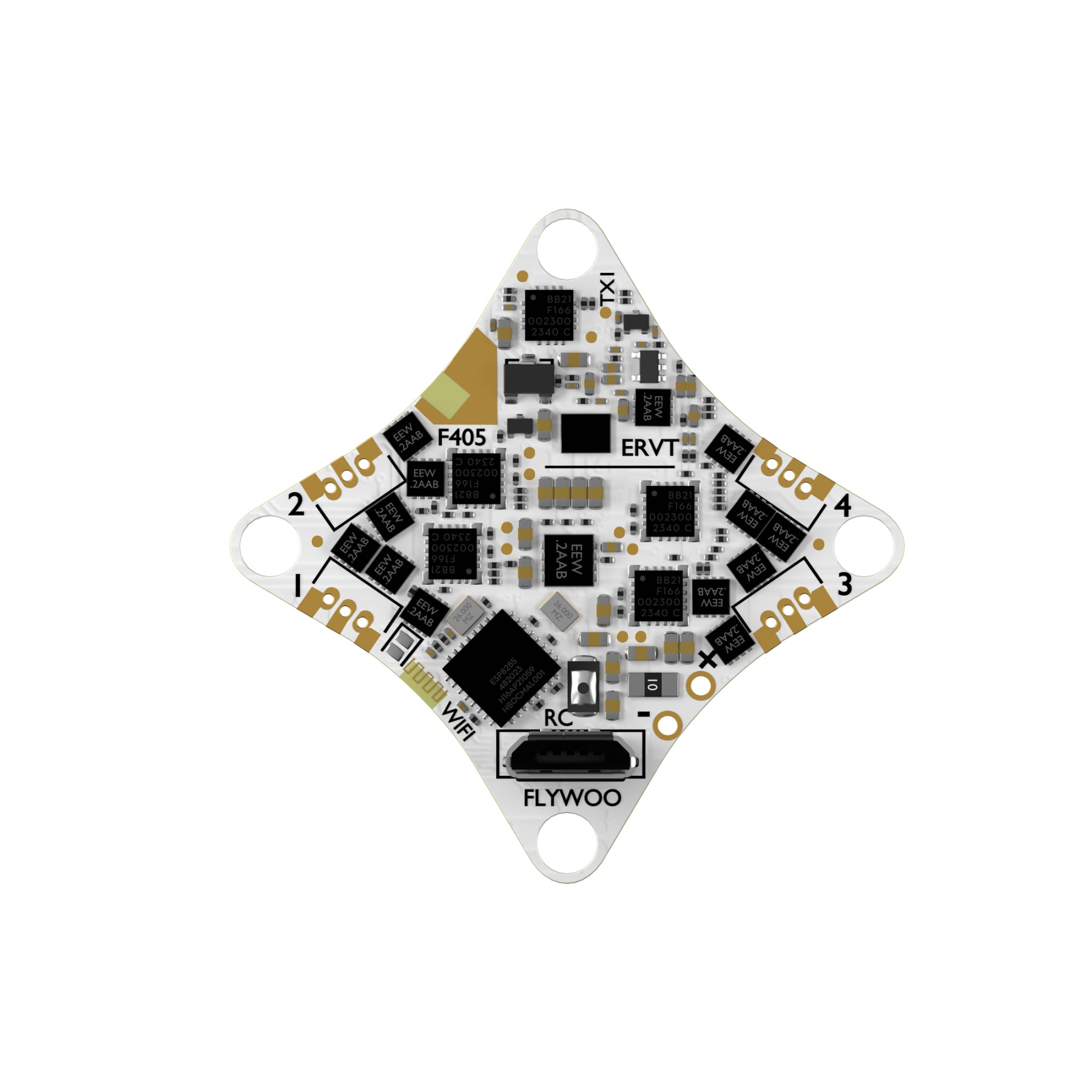

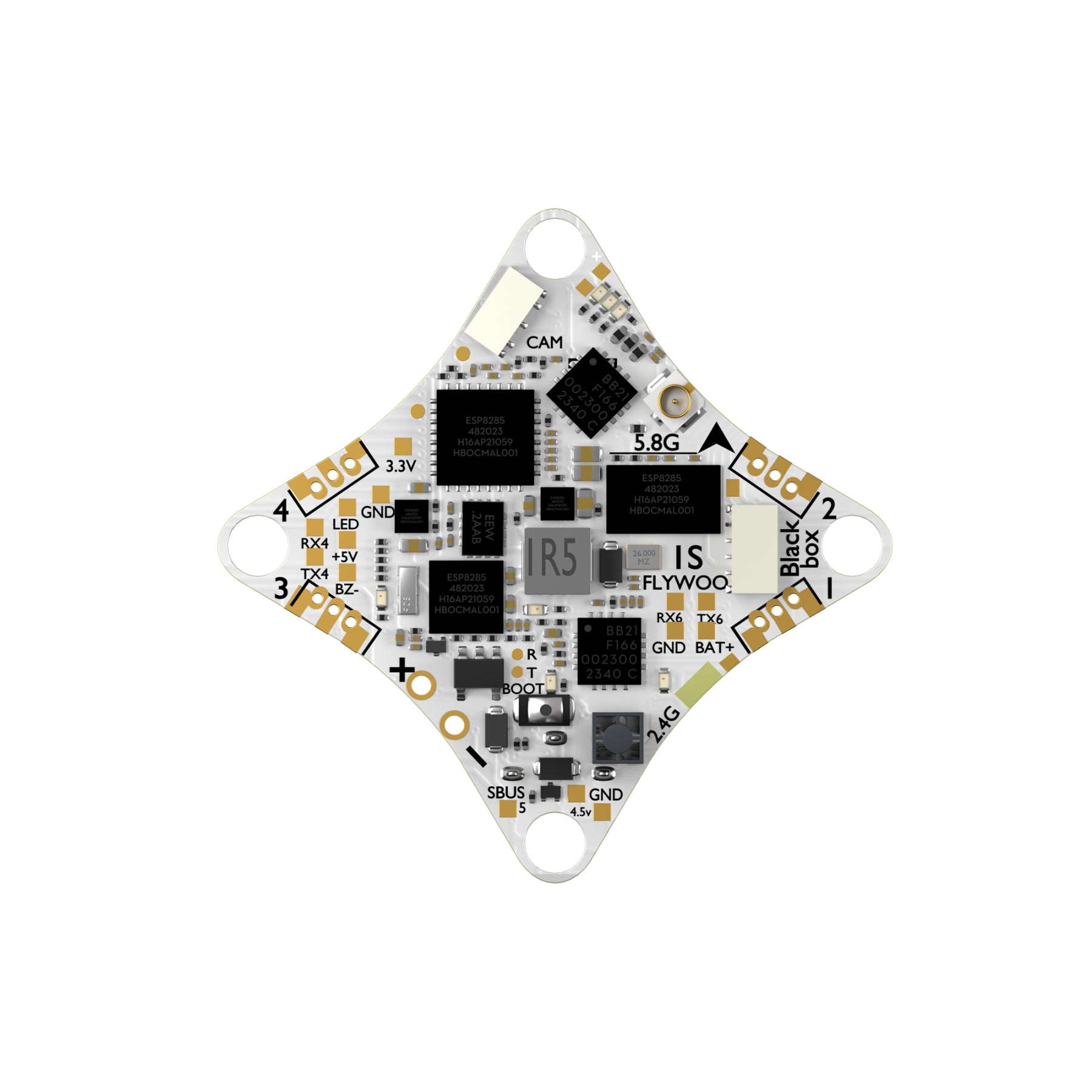

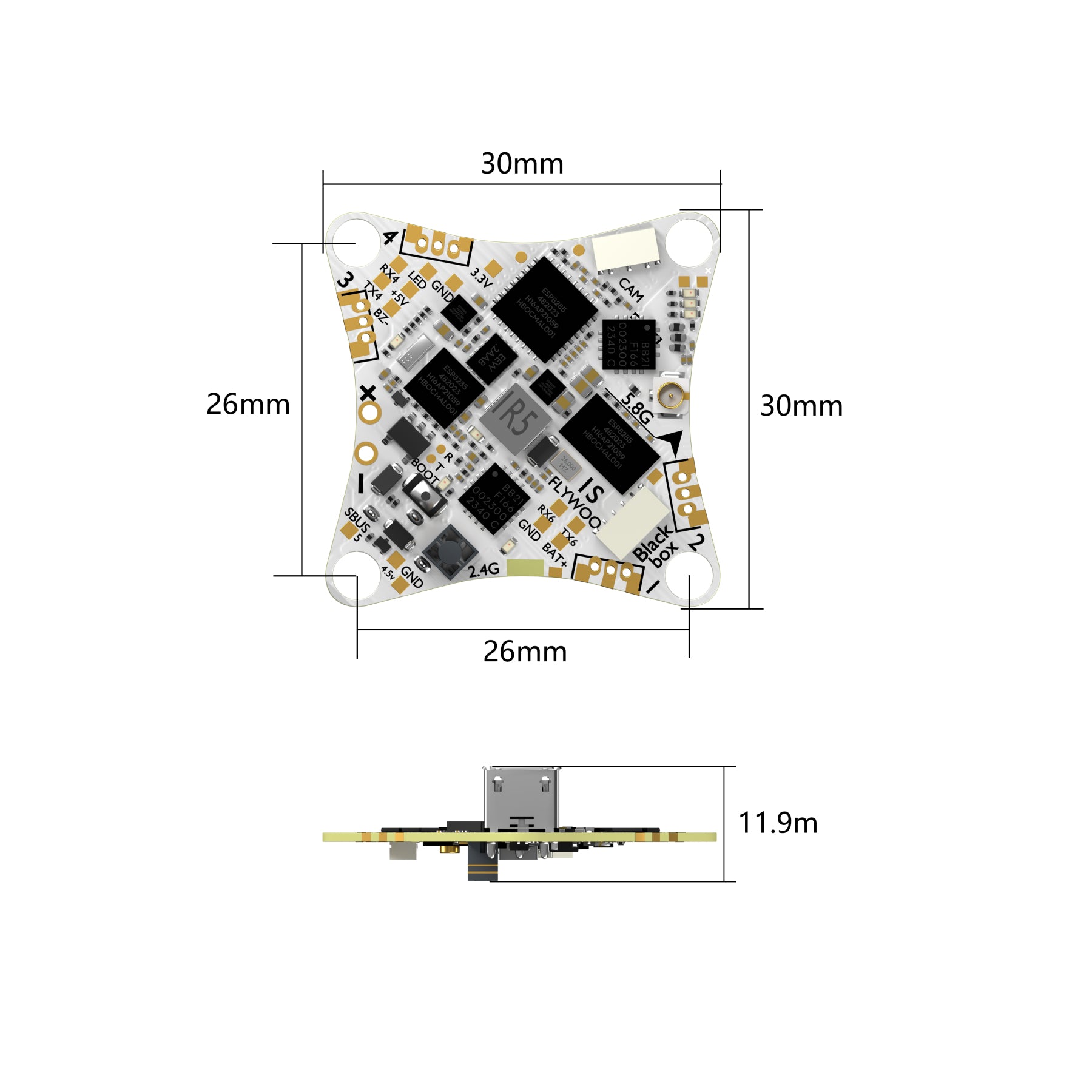

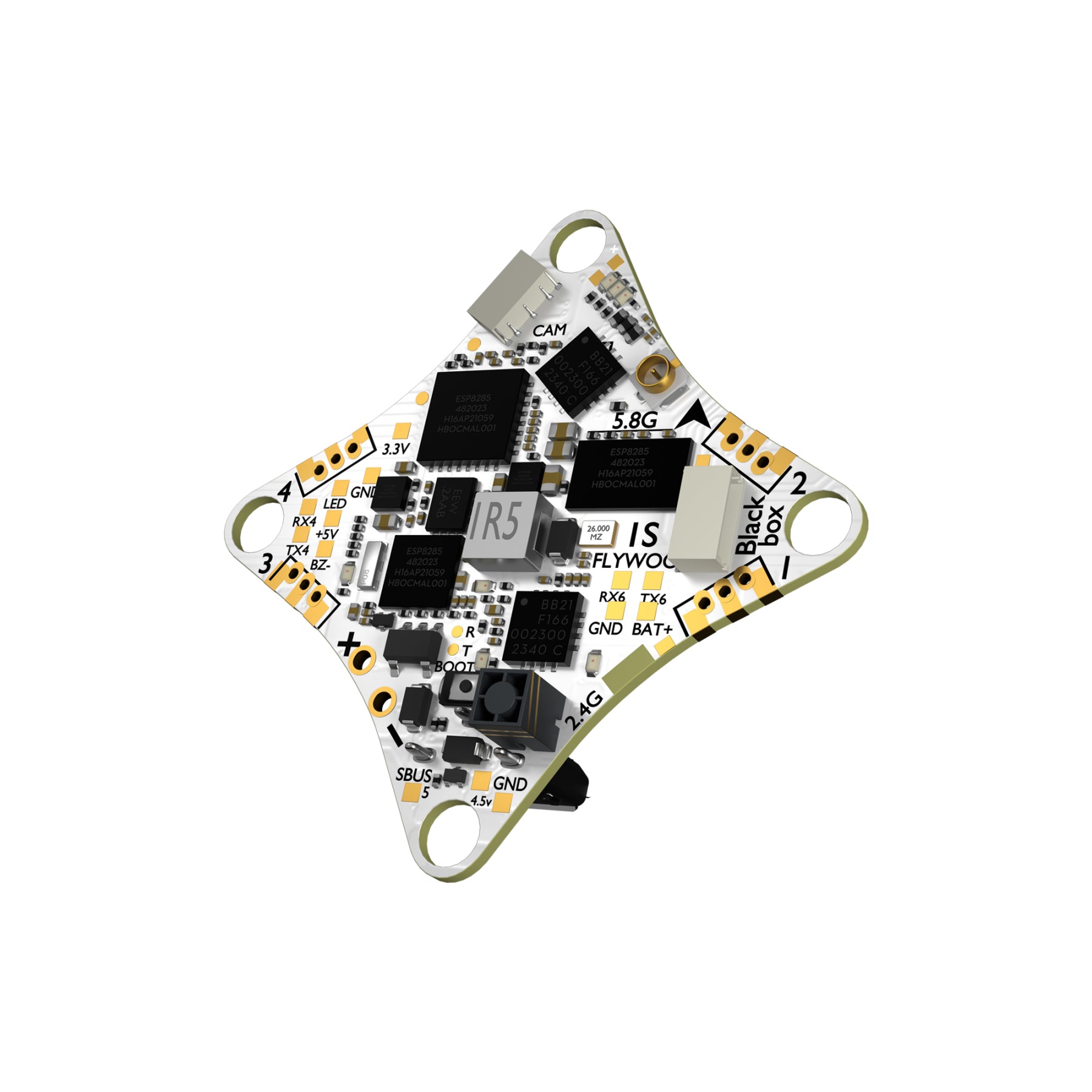

AIO FLYWOO GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS Flywoo GOKU F405 ERVT 5-in-1 AIO is an ultra-compact and integrated flight controller designed for 1S FPV drones. It is built on a powerful STM32F405BGA microcontroller and equipped with an ICM42688P gyroscope, which ensures fast response and precise control. This board combines FC, 4-in-1 ESC (5A), ELRS receiver, 400mW analog VTX and OSD into one efficient unit. It supports Bluejay ESC firmware and DShot protocols to ensure smooth performance. With plug-and-play connectors, JST1.25 motor ports and an A30 battery input, it's ideal for micro-construction. It is Betaflight compatible and optimized for racers who demand performance and comfort. Flight controller: MCU: STM32F405BGA IMU: ICM42688P OSD: AT7456E (LGA16) Black Box: No (512MB optional) Barometer: No UART: UART1–6 (incl. ELRS RX, SBUS, black box, VTX) Protocols: CRSF, SBUS, iBus, Spektrum BEC output: 5V 2.0A max. FC firmware: FLYWOOF405S_AIO Mounting: 25.5 x 25.5 mm (M2) Dimensions: 30.5 x 30.5 mm Weight: 4 g ESC: Input voltage: 1S only Continuous current: 5 A Peak current: 8 A Firmware: Bluejay O_H_5_48KHz_V0.19.hex Signal protocols: DShot300, DShot600 Motor connectors: JST1.25 Battery connector: A30 Video transmitter (VTX): Power: 25 / 50 / 100 / 200 / 400 / 0 mW Frequency: 5.8 GHz, 40 channels Protocol: IRC Tramp Racing Band: 5658-5917 MHz Latency: under 50ms (optimized for 1S) Antenna: integrated pagoda Operating temperature: -15 °C to +80 °C The package contains: 1 × GOKU F405 ERVT 1S 5A 5-in-1 AIO 1 x A30 Power Cable 1 × 3-pin 50mm camera cable JST-0.8 1 x Flywoo Blackbox connecting cable 4 x 1.25mm 3-pin vertical straight socket 4 × M2x6.6 damping balls
