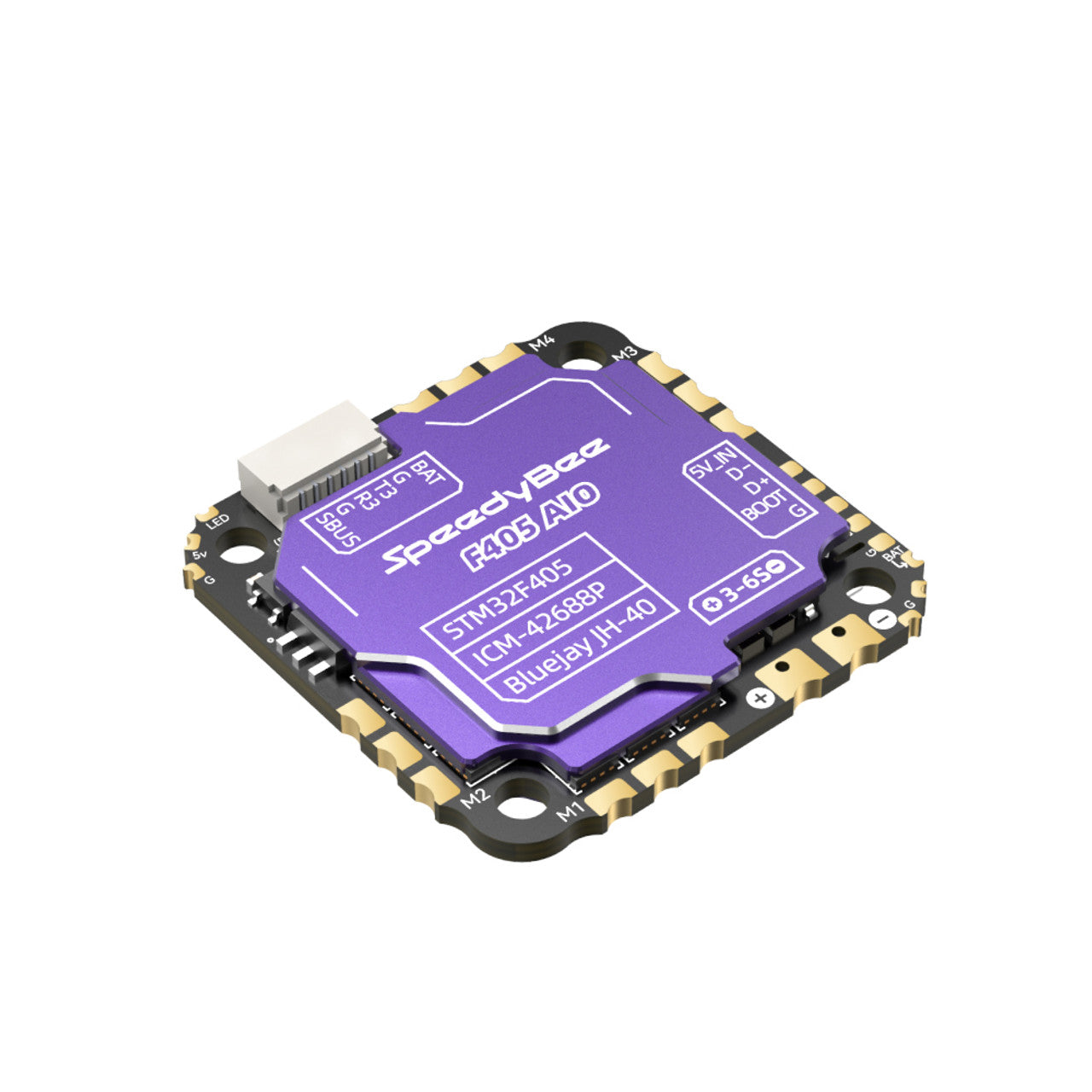

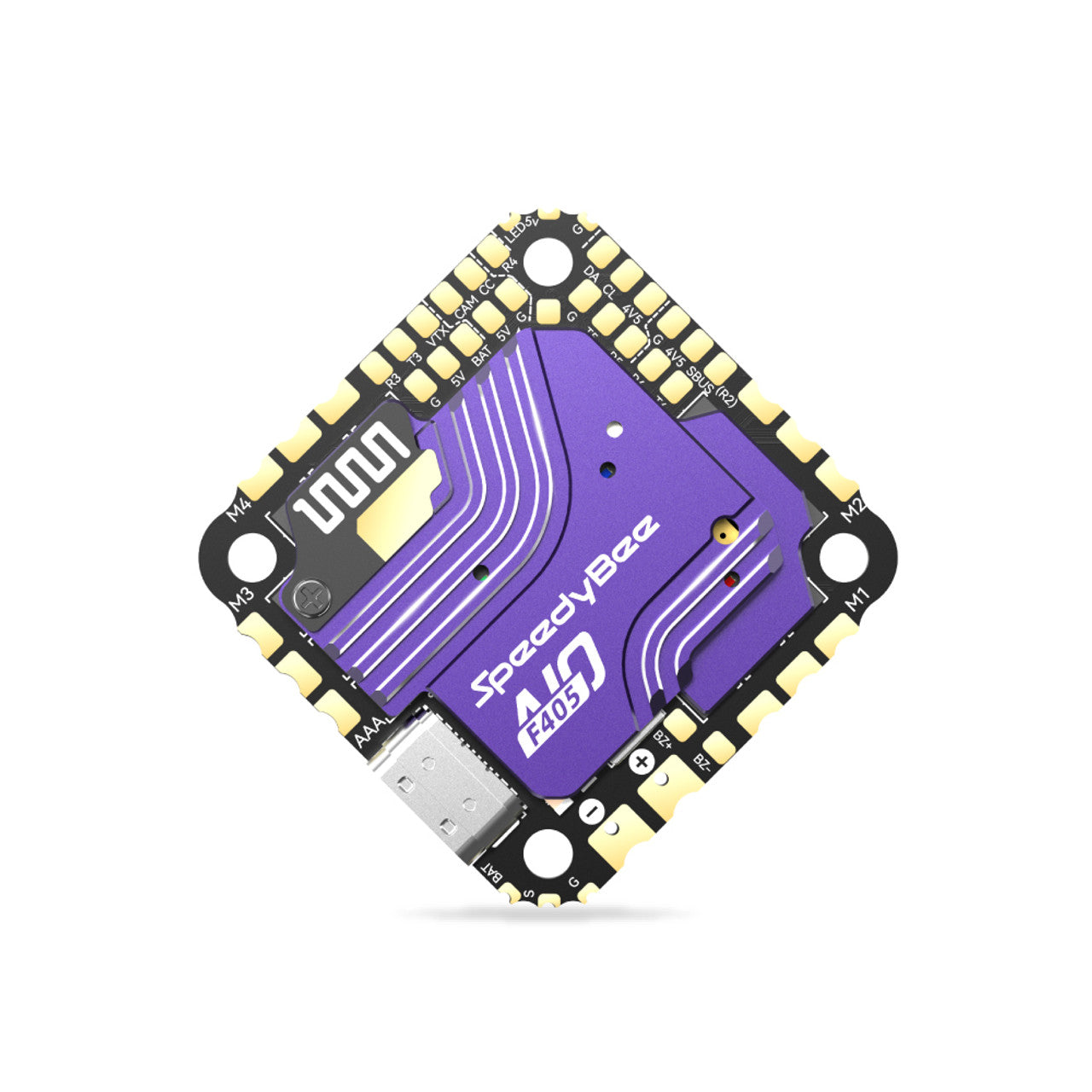

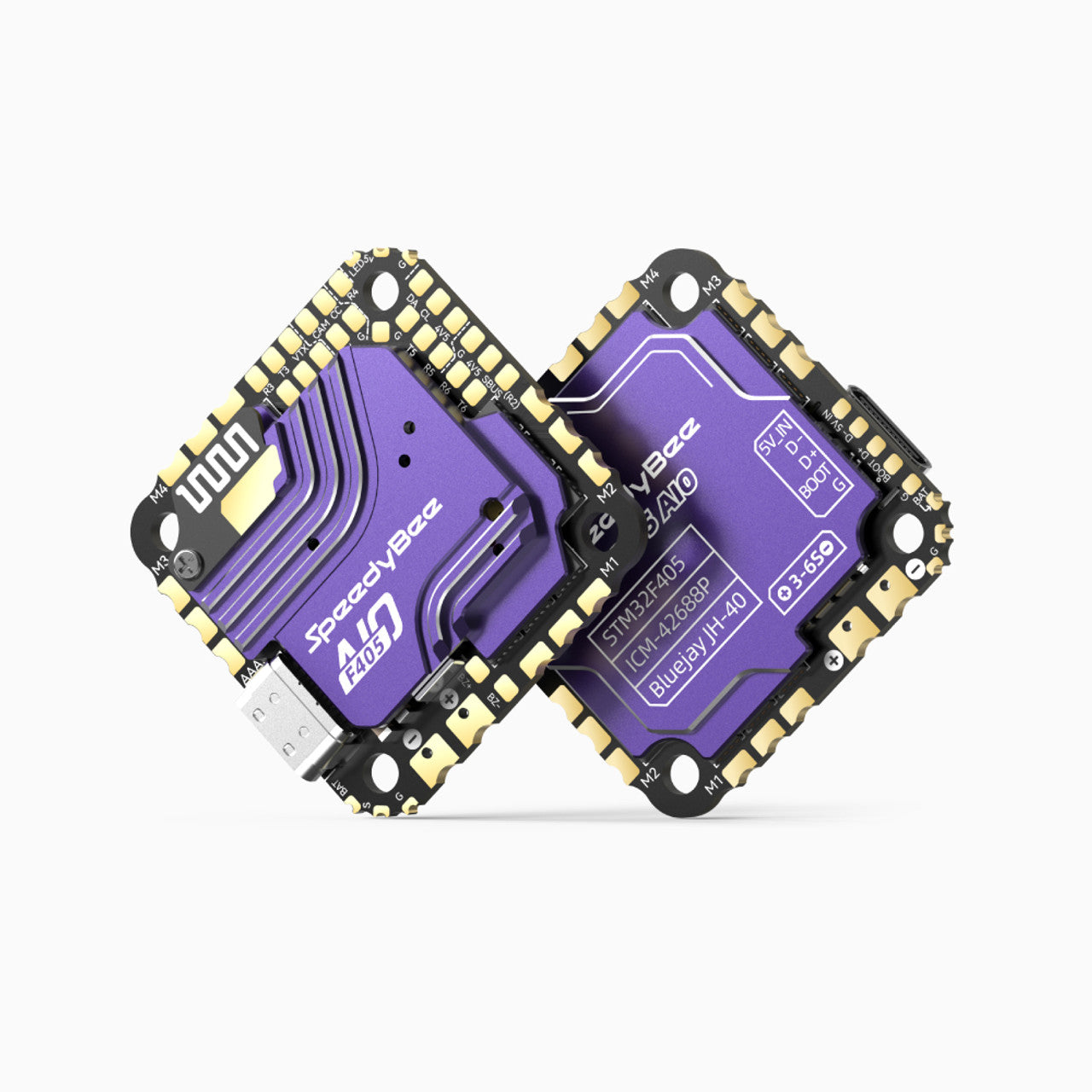

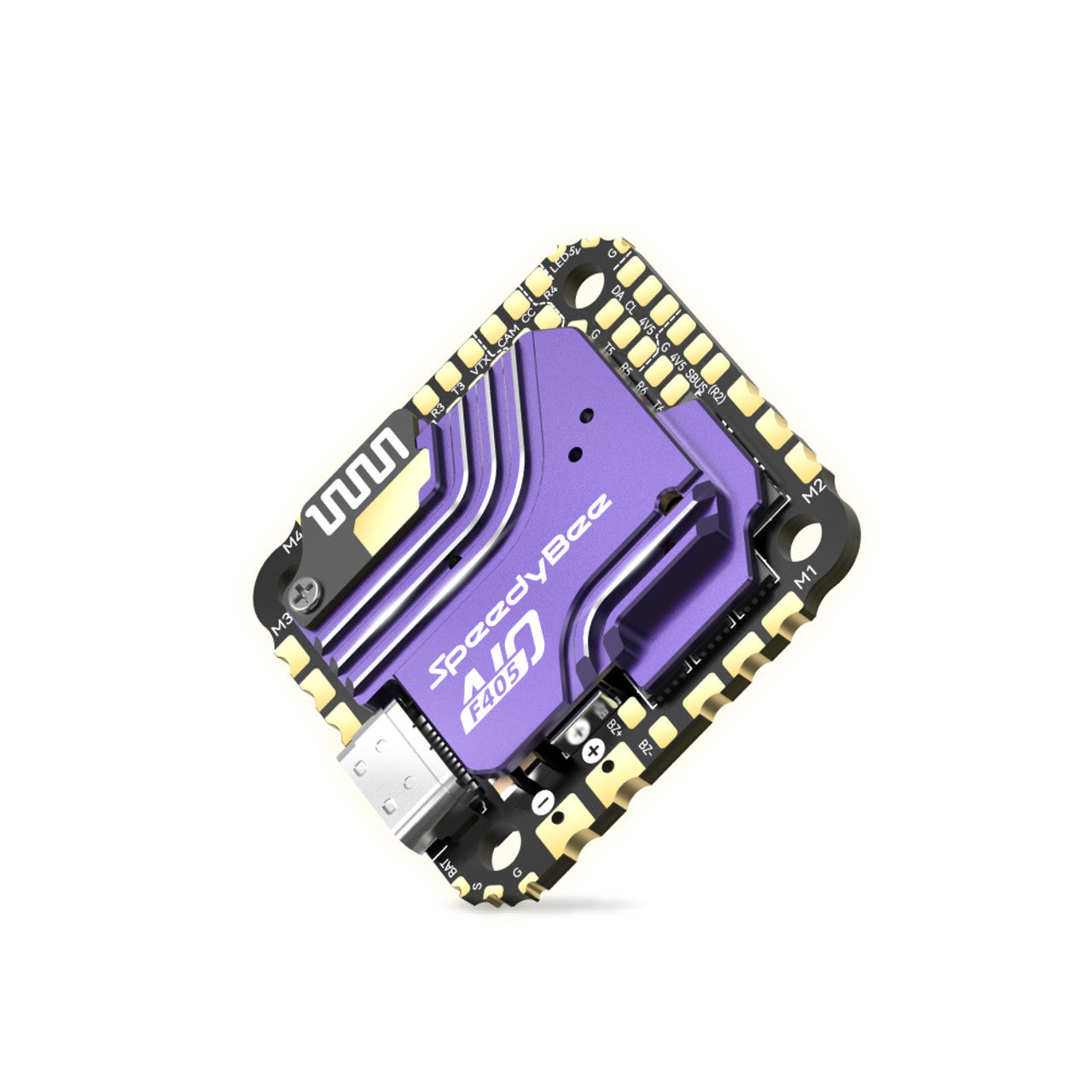

SpeedyBee F405 AIO
Specifications of the control unit:
- MCU: STM32F405
- Gyro: ICM-42688P
- Type of USB port: Type-C
- Barometer: SPA06-003
- OSD: Supported
- Bluetooth BLE: Supported (Bluetooth 2.0 Speed Improvement)
- Wireless controller firmware update: Supported (no need to press physical BOOT button)
- Wireless Download & BlackBox analysis: Not supported
- DJI Air Unit connection method: Support direct 6-pin connection and soldering
- DJI Sky Port direct connection (6-pin): Compatible with DJI O3, RunCam Link and Caddx Vista without the need to switch cables
- Flash memory (for BlackBox): 8 MB
- Betaflight CC Pads (camera settings): Supported
- Input voltage: 3S-6S LiPo battery
- Output 4V5: Two outputs, total current 1A
- 5V BEC output: Three outputs, total current 2A shared with 4V5
- 9V BEC output: None (external BEC module included, switchable between 5V and 9V, total current 2A)
- Engines: M1-M4

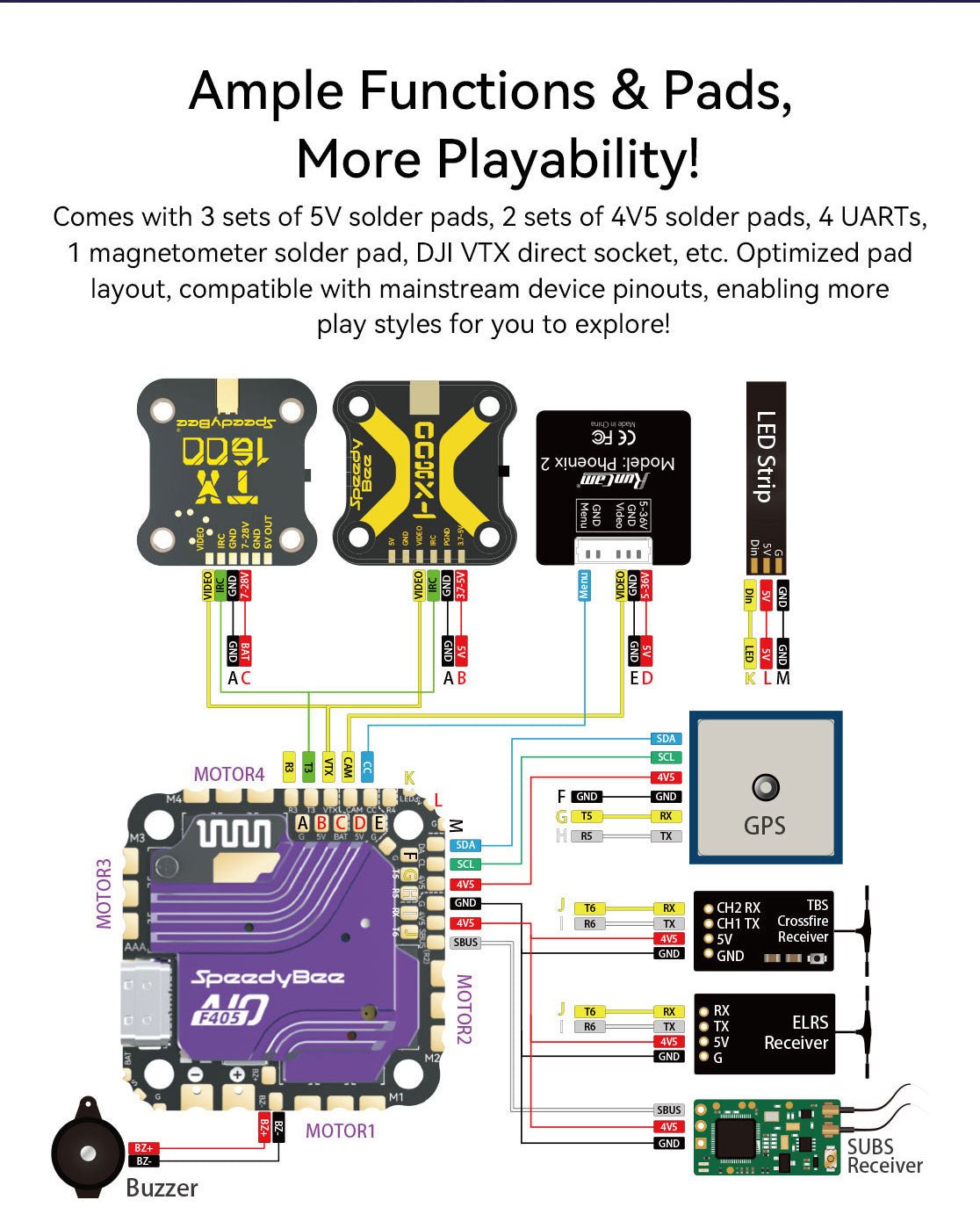

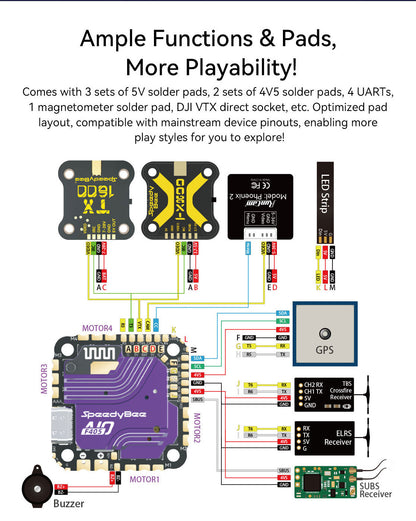

- UART ports: 4 full-fledged ports (UART3, UART4, UART5, UART6 + SBUS[R2])
- ESC Telemetry: Not supported
- I2C: Supported
- LED Pads: Compatible with WS2812 LED lights
- Buzzer Pads: Supported (BZ+ and BZ- pins)
- BOOT button: Yes, to enter DFU mode during firmware recovery
- RSSI Pads: Not supported
- SmartPort: Not supported
- Supported firmware: BetaFlight (default), INAV
- Target firmware: SPEEDYBEE F405AIO

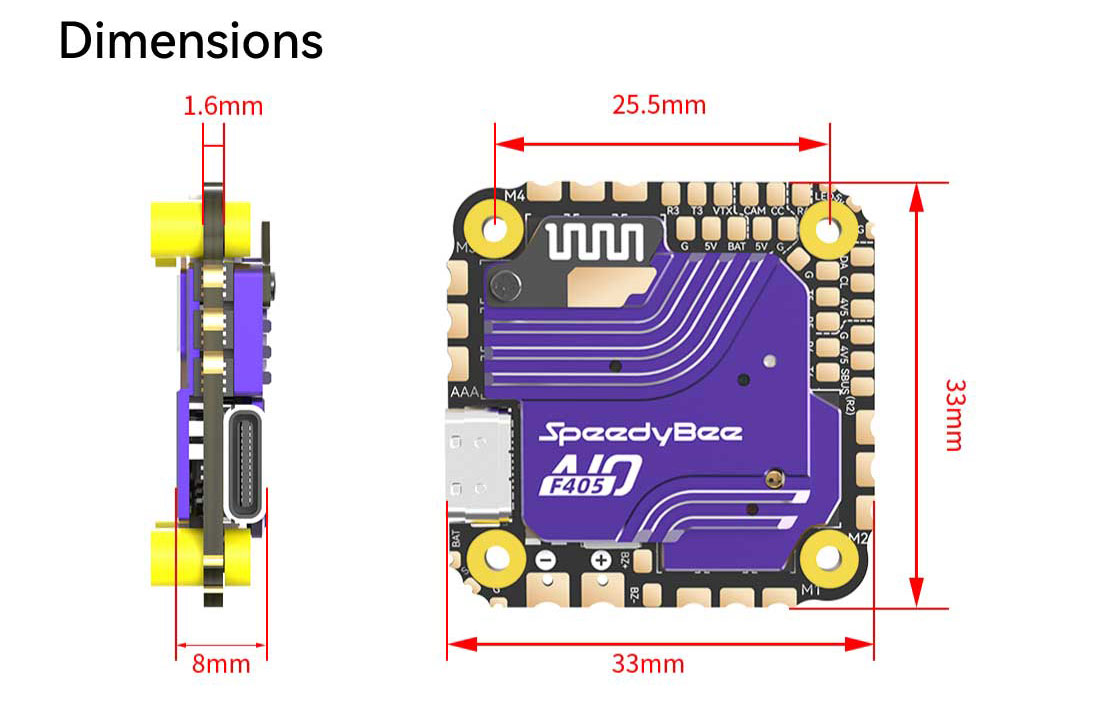

- Mounting: 25.5 x 25.5 mm, hole diameter 2 mm
- Dimensions: 33.0 mm x 33.0 mm x 8 mm
- Weight: 13.6 g (including CNC components)
ESC Specifications:
- Model: SpeedyBee F405 AIO
- Input voltage: 3S-6S LiPo battery
- Continuous current: 40 A
- Peak current: 45 A (for up to 10 seconds)
- ESC Protocol: DSHOT600/300 (other protocols may cause errors)
- Output voltage: VBAT (powers the control unit)
- Current Sensor: Supported (Scale = 254, Offset = 0)
- Firmware: Bluejay JH-40 48kHz
