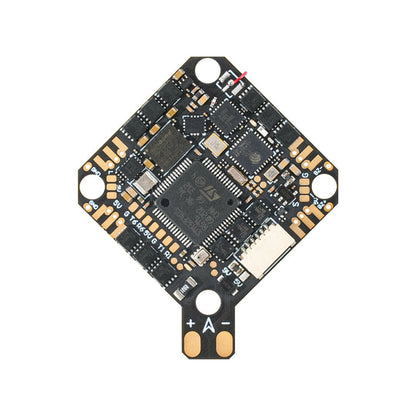

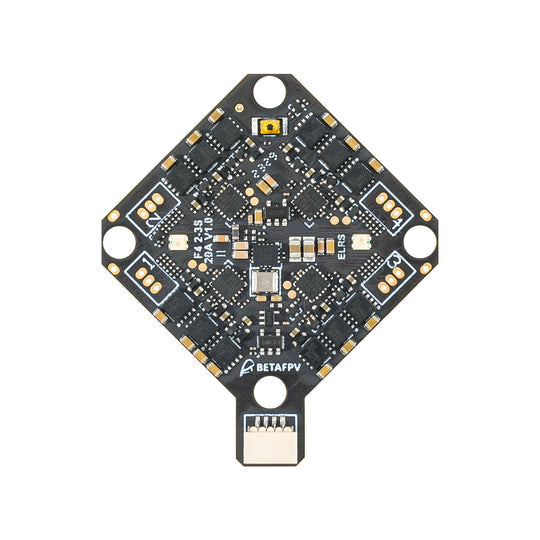

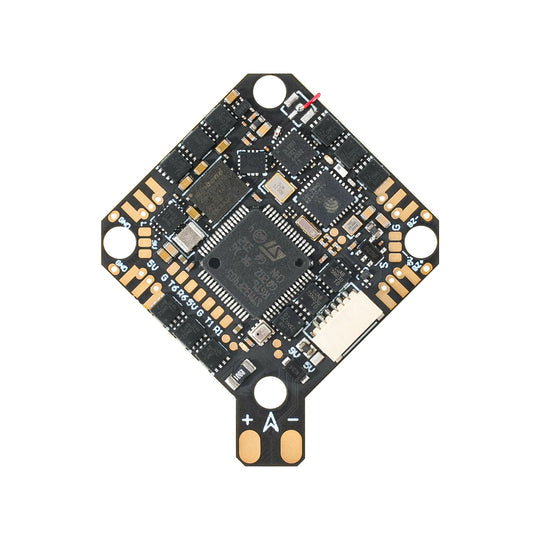

F4 2-3S 20A AIO FC V1
F4 2-3S 20A AIO FC V1 is specially designed for HD VTX, it uses 2-3S batteries to enhance the flight experience. It features a dual BEC solution that provides a stable output power of 9V@2A for DJI O3 and 5V@3A for external devices. With 20A ESC enables agile flight and increases dynamics. And DJI O3 HD VTX connector and USB port for easy installation and maintenance. Ideal for HD VTX enthusiasts who offer a higher level of professionalism and convenience with this FC option.
Function
- Designed for HD VTX, includes dual 9V@2A for DJI O3 and 5V@3A for external device BEC solution to avoid screen dropout on DJI O3 due to low voltage when throttle is increased.
- Includes DJI O3's new 6-pin PMU for easy installation without soldering, reducing assembly complexity. Newbie friendly.
- 2-3S power range provides increased pull and improved control with 20A single NMOS ESC for continuous current capability.
- Upgraded on-board receiver allows selective power-down for power saving and offers additional UART TX3 and RX3 ports for external device connection.
- Redesigned soldering pad layout provides larger and safer pads for easy and reliable soldering, while a relocated USB port on the back makes debugging your computer easier.
- Contains STM32F405RGT6 chip, Integrate Serial ELRS 2.4G receiver, 16M black box, barometer, current meter, reserve 3 complete serial ports and standard SBUS, support GPS, HD VTX, external receiver and other devices.
Specifications

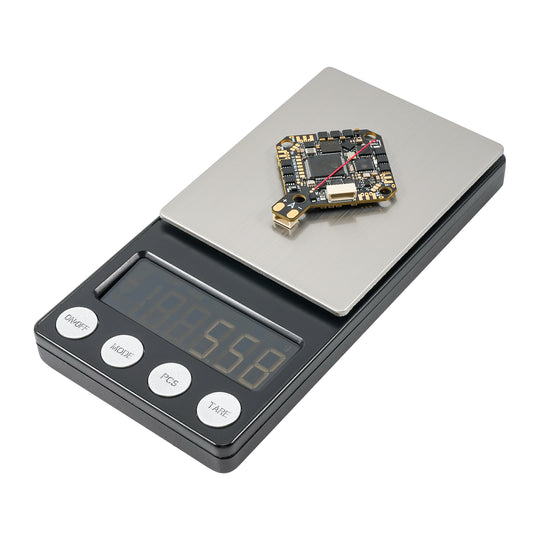

Weight: 5.58g (without motor connectors and power cable), 5.92g (with motor connectors)
Mounting hole size: 26mm x 26mm
CPU*: STM32F405RGT6 (168 MHz)
Six-axis: ICM42688P (SPI connection)
RX: ELRS 2.4G serial receiver
RX firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
Antenna: Enamelled wire
Blackbox memory: 16 MB
Sensor: barometer (BMP280), voltage and current
5V BEC*: power supply 5V 3A@8V
9V BEC*: power supply 9V 2A@8V
USB port: SH1.0 4-pin
Built-in ESC with continuous 20A and peak 25A current
ESC input voltage: 2-3S
FC firmware version: Betaflight_4.4.1_BETAFPVF405
ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
Signal support: D-shot300, D-shot600
*BEC output current will decrease as temperature increases
Recommend drones:
- Pavo Pico brushless quadcopter
- HX115 SE drone with toothpick
Package
1 * F4 2-3S 20A AIO FC V1
4 * M2 * 10 Machine screw
4 * M2 * 10 nylon screw
4 * Nut M2
4 * Shock-absorbing ball
4 * Angle socket JST 1.25 mm
4 * JST 1.25mm straight socket
1 * SH1.0 4 pin adapter cable
1 * Type C to SH1.0 adapter
1 * XT30 power cable
1 * Filter capacitor
1 * 30mm double head VTX connector
1 * 60mm single head VTX connector
