Note! This model has been discontinued and is no longer available. Please see the new model that replaced it
https://www.hobbydrone.cz/aio-fc-betafpv-matrix-1s-air-brushless--5-in-1/

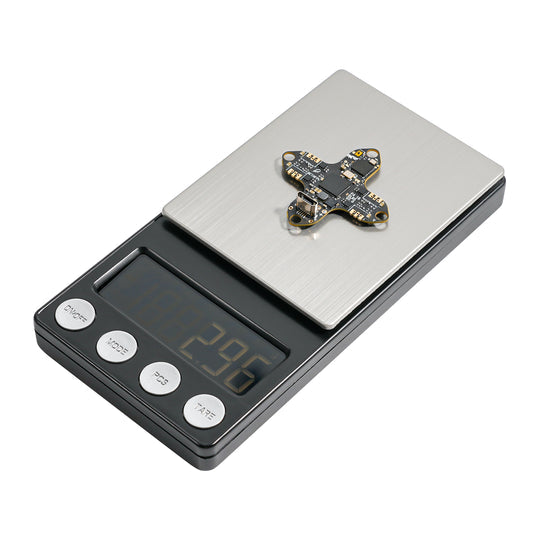

F4 1S 5A AIO Brushless Flight Controller (Lightweight Version, Serial ELRS 2.4G) V3.0 BMI270 The F4 1S 5A AIO Brushless Flight Controller has an integrated Serial ExpressLRS 2.4G receiver that allows for easy firmware updates via Wi-Fi or Betaflight serial pass-through. Compared with the original built-in SPI ELRS 2.4G receiver, it can easily flash the latest official ELRS firmware such as V3.0. The updated FC also features a BMI270 gyroscope, BB51 ESC hardware with Bluejay ESC firmware, and an 8MB flash memory chip dedicated to Blackbox logging. There are two versions of the FC board: classic and light. Light version: Weight: 2.96g Plate thickness: 0.8 mm Motor connectors: Solderless Classic version: Weight: 3.64g Plate thickness: 0.8 mm Motor connectors: Soldered FC Specifications: Version: Light version CPU: STM32F411CEU6 (100MHz) Six-axis: BMI270 Built-in receiver: Serial ExpressLRS 2.4G Receiver antenna: Line antenna FC size: 30 x 30 mm Mounting hole size: 26 x 26 mm Firmware version: betaflight_4.3.0_BETAFPVF411 OSD: Built-in BetaFlight OSD Blackbox: 8MB Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX Power cable: 55mm, with BT2.0 connector Weight: 2.96g (without motor connectors), without power cable ESC Specifications: Power supply: 1S Current: 5A continuous and 6A peak (3 seconds) ESC Firmware: A_X_5_.HEX for Bluejay BB51 hardware Signal support: D-shot300, D-shot600
