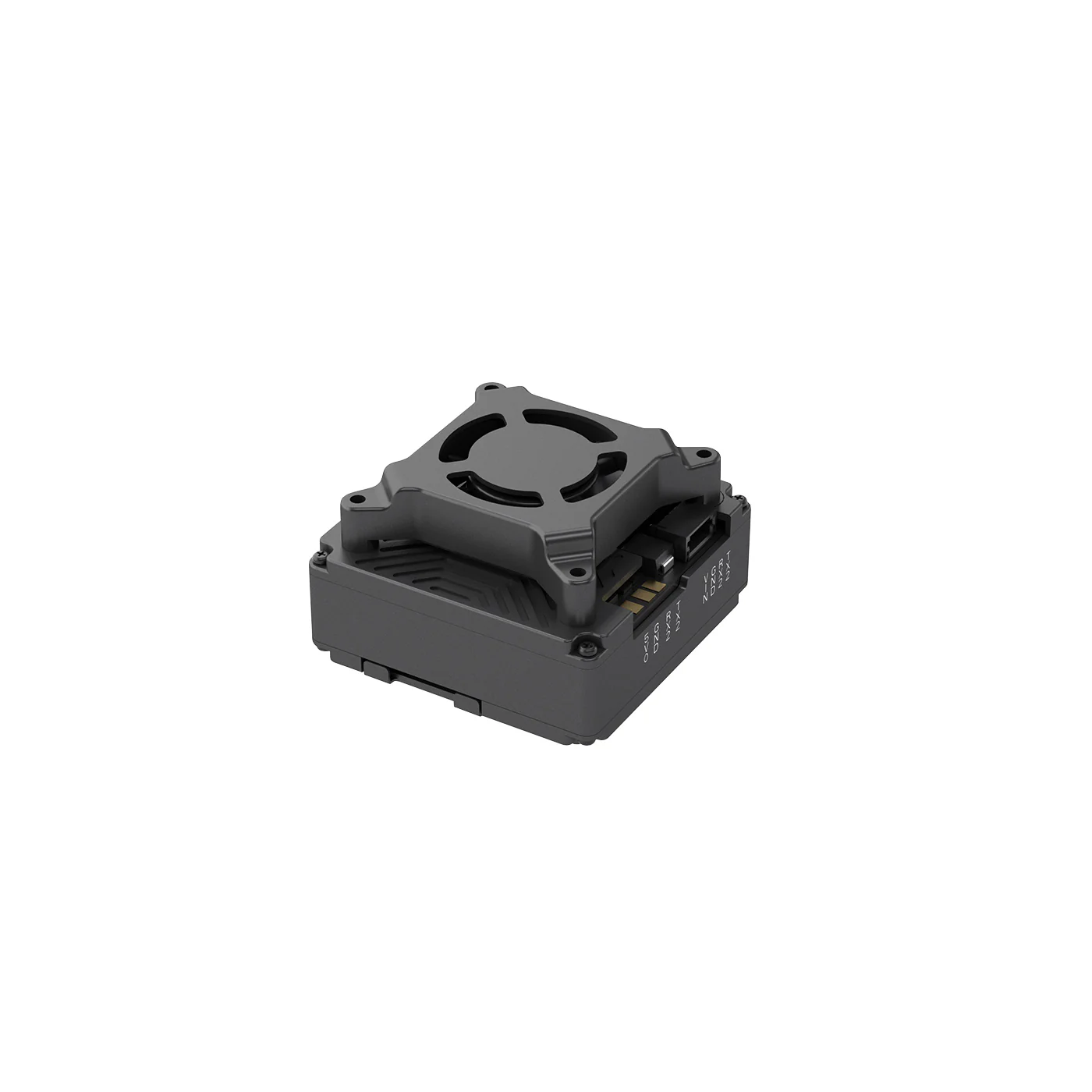

VTX Walksnail Avatar GT VTX 2W
Specifications:
VTX
Model: Avatar GT
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC: <30 dBm, MAX.: 33 dBm; CE: <14dBm;
SRRC: <20dBm; Microphone: <25dBm

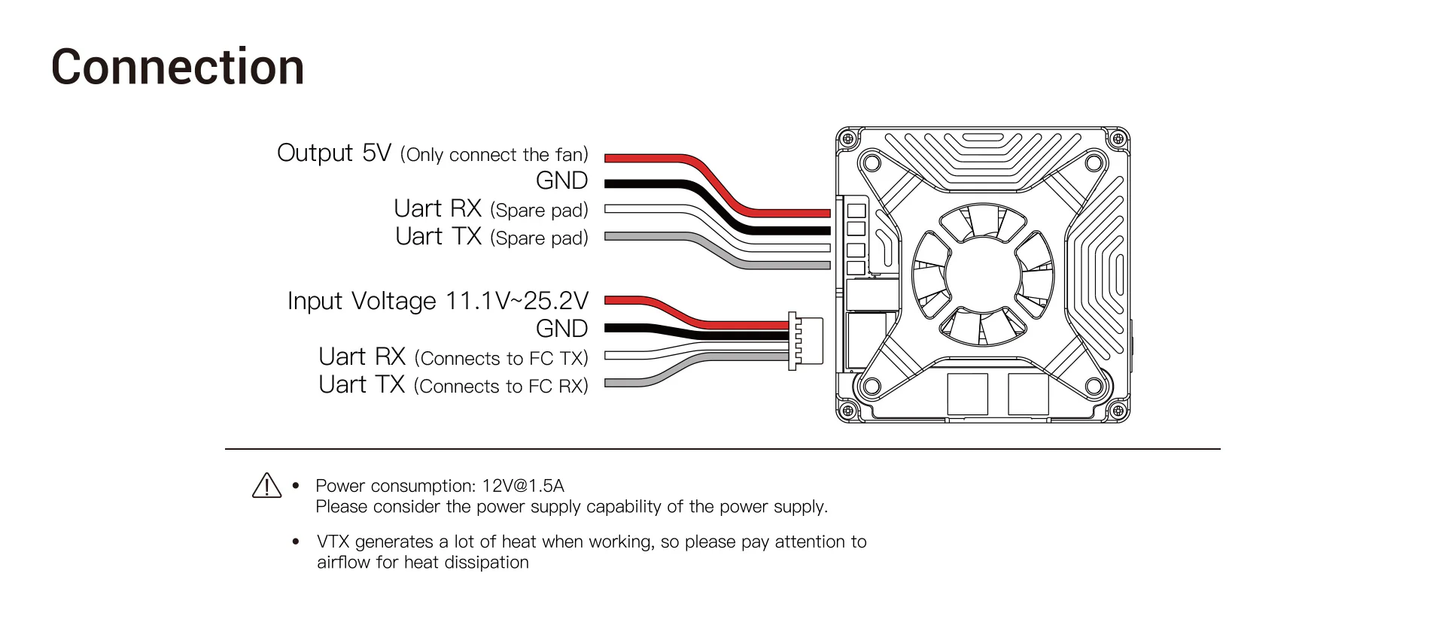

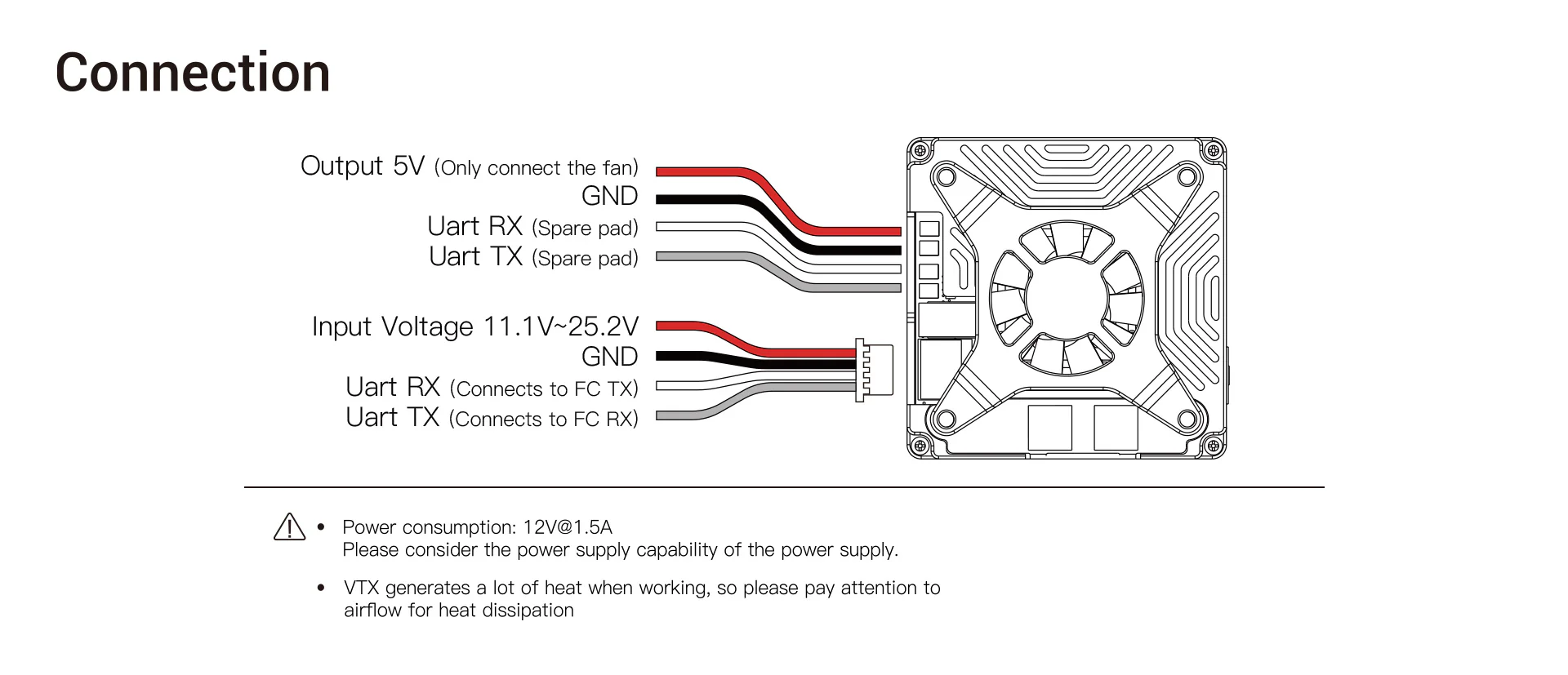

Input/output interface: Micro SD card slot; JST1.0x4 (power cable)
Supported SD cards: Micro SD (up to 256GB)
Mounting holes: 25.5 x 25.5 mm; 20 x 20 mm
Dimensions: 34 x 34 x 23 mm
Recording: 1080p / 720p
Weight: 41.6g (including antenna)
Operating temperature: -10 to 40°C
Channels: 8
Wide input voltage: 11.1-25.2V
Supported FC systems: Betaflight, Inav, Fettec, Kiss, ArduPilot
OSD mode: Canvas
Average latency: 22ms
Antenna: 2 (IPEX)
Package contents:
- VTX Avatar GT
- Quick guide
- 2 screws M2x4 mm
- 2 screws M2x5 mm
- 2 screws M2x6 mm
- 2 spacers M2x5x0.5 mm
- 2 SD card stickers
- 4-pin power cable
