Code: SKU:TX2501CNC
VTX Skyzone TX2501CNC (2.5W, 6.2GHz)
VTX Skyzone TX2501CNC (2.5W, 6.2GHz)
Brand: Skyzone
Regular price
€45,00
Regular price
€45,00
Sale price
€45,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

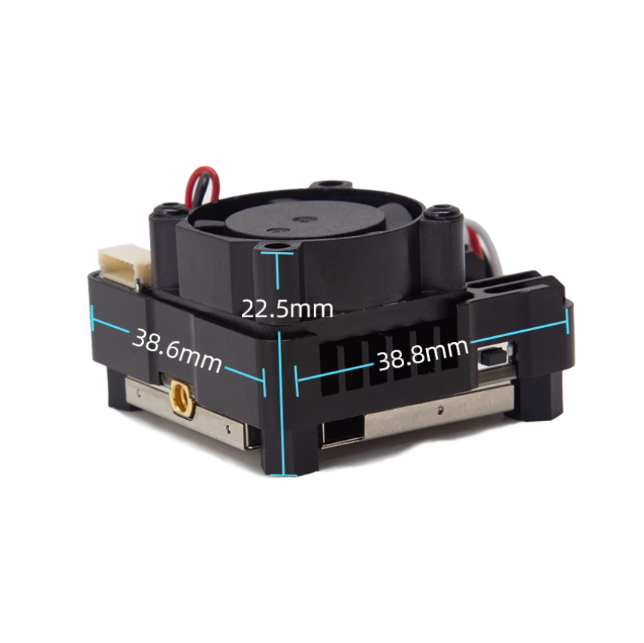

VTX Skyzone TX2501CNC (2.5 W, 6.2 GHz) The Skyzone TX2501CNC is a high-performance VTX designed for demanding FPV applications, featuring a powerful 2.5W output and a precision CNC aluminum housing with an integrated cooling fan for excellent heat dissipation. It supports both X Band (5 GHz) and Low Band frequencies, with power adjustable between 25 mW, 800 mW, 1600 mW and 2500 mW. With wide 9-26V input voltage compatibility, segment LED display and push button or IRC control, it ensures fast tuning and status checking. This VTX also allows for custom frequency configuration (1MHz steps between 4990-5945MHz), making it ideal for advanced FPV users looking for stable, customizable and high-performance video transmission. Specifications: Output power: 25 mW / 800 mW / 1600 mW / 2500 mW Cooling: CNC case with fan, max. power 3.0-3.5W Antenna port: MMCX Input voltage: 9-26V Protocol: IRC / push button control, LED segment display Mounting: 30.5 x 30.5 mm, M3 screws Dimensions: 38.8 x 38.6 x 22.5 mm Weight: 27.5 g Frequency range: 4990-5945 MHz, 1 MHz steps The package contains: 1 x VTX module 1 x cable 1 x MMCX to SMA adapter 1 x screw accessory
