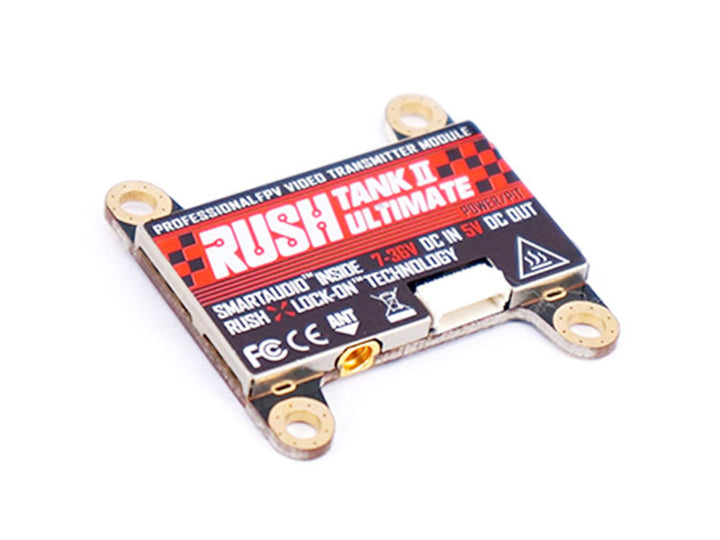

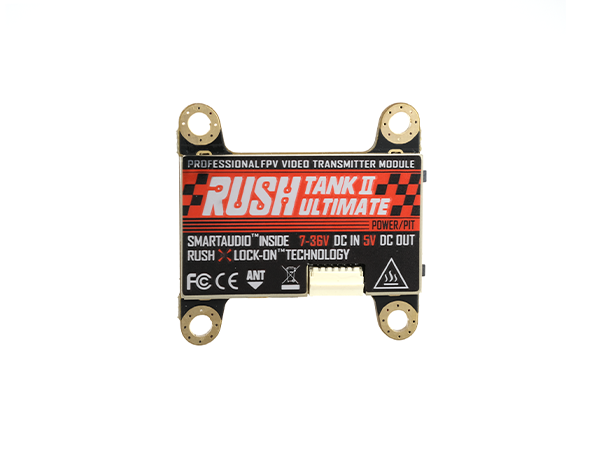

RUSH TANK II
FUNCTION:
- Four adjustable transmission power levels. (PIT/25/200/500/800/mW) The excellent performance of Tank Racing VTX allows 8 ATVs to race in the same band, without interference.
- Side LED indicators mean more intuitive status reading.
- Irresistible: A newly designed power filtering system allows the TANK RACING VTX to work stably with any power system within its limits without interference from the power source.
- Power LUT: Built-in high-precision power look-up table that performs power calibration in milliwatts for all channels. The entire band has its own unique performance. In a multi-pilot flight, all pilots will benefit and get a fair and consistent signal.
- LOCK-ON: Frequency drift is eliminated, the performance of the entire frequency band is constant, 8 pilots easily compete at the same time.
- Quiet setting: TANK's intelligent transmitter circuit will not generate any interfering signal during VTX switching and setting.
- SmartAudio protocol authorized by TBS. This can be set via the RGB LED conventional double buttons which can then access SmartAudio to set and display VTX information via the OSD menu.
- Pit mode: After entering pit mode, VTX power will be reduced to minimum. The video is visible only to you from the immediate vicinity, so you don't have to worry about disturbing others.
- Tank Armor: Under the fully covered metal case there are 6 layers of PCB after waterproofing work. The VTX is fully protected, prevents external interference and achieves ultra-high heat dissipation efficiency.
- Simple installation, intuitive operation.
SPECIFICATIONS:
Item Name: Rush Tank II
Input voltage: 7-36V DC
Output voltage: 5V 1A
12V input current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
Channels: 48CH
Power: PIT/25/200/500/800 mW
Audio: Support audio input
Dimensions: 36*36*4.5 mm
Weight: 6.8g (including cable)

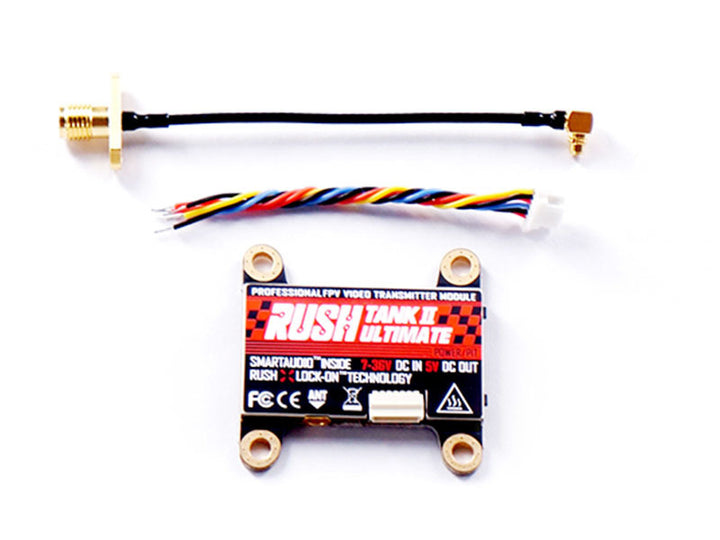

PACKAGE INCLUDES:
1 x RUSH TANK II VTX
1 x MMCX to SMA cable
1x 6 pin harness
